A framing nailer is not a demanding tool. It fires in short bursts, and most pneumatic framing guns draw somewhere in the range of 2 to 4 CFM at 90 PSI. What actually ends a good framing day is a compressor that cannot refill fast enough between bursts, leaving nails half-driven and the crew standing around waiting on a tank.
That is the whole sizing argument. Your pump’s CFM is the number that decides whether the nailer keeps up, and your tank’s gallon capacity is the number that decides how long you can nail before the pump catches you. Both have to be right, and buying on gallons alone is how people end up disappointed halfway through the first wall.
We spent several weeks putting the best air compressors for framing nailers side by side, checking published CFM figures, weighing each machine, and watching what happens to the pressure curve when the trigger gets pulled again and again. This roundup covers eight compressors that genuinely work with pneumatic framing nailers, plus the sizing math you need to pick the right one for a single nailer, two nailers, or a full crew.
If you are still choosing the nailer itself, start with our framing nailer roundup. For general shop use rather than framing, our home garage compressor guide covers the tank sizes most homeowners actually need.
Top 3 Picks for Best Air Compressors for Framing Nailers in October
PORTER-CABLE C2002-WK
- 6 gallon pancake tank
- 2.6 SCFM at 90 psi
- Two regulated couplers
- 30 lb total weight
Metabo HPT EC914S
- 200 psi max pressure
- 4 CFM at 90 PSI
- Runs two framing nailers
- 42 lb portable body
Makita MAC2400 Big Bore
- 4.2 CFM at 90 PSI
- 2.5 HP 4-pole motor
- Cast iron oil-lubricated pump
- Low amp start-up
All 8 Compressors Compared Side by Side in 2026
| Product | Specs | Action |
|---|---|---|
| PORTER-CABLE C2002-WK Pancake Compressor |
|
Check Latest Price |
| Metabo HPT EC914S Pancake Compressor |
|
Check Latest Price |
| Makita MAC2400 Big Bore Compressor |
|
Check Latest Price |
 Limodot LJ5120K Quiet 5 Gallon Compressor |
|
Check Latest Price |
 Makita MAC320Q Quiet Series Compressor |
|
Check Latest Price |
 DEWALT D55146 Hand Carry Compressor |
|
Check Latest Price |
 CRAFTSMAN CMXECXA02106410 Pancake Compressor |
|
Check Latest Price |
 RIDGID 6 Gallon Pancake Air Compressor |
|
Check Latest Price |
1. PORTER-CABLE C2002-WK Pancake Compressor – Best All-Rounder
Black & Decker/dewalt C2002-WK Pancake Compressor
150 psi max
2.6 SCFM at 90 psi
6 gallon pancake tank
Oil-free pump
Two regulated couplers
30 lbs
Pros
- Lightest unit in the group at 30 lbs
- Oil-free pump needs no maintenance
- Two factory-installed regulated couplers for two users
- Low amp 120V motor starts easily in cold weather
- 13-piece accessory kit included
Cons
- 150 psi ceiling is low for heavy framing nailers
- 2.6 SCFM means slower recovery under sustained nailing
- 82 dB is loud indoors
The C2002-WK is the unit we kept reaching for. It is not the most powerful compressor here, and it will never win an argument about raw CFM, but it carries the highest review count of the eight at 2404 with a 4.6 average, and that tells you something a spec sheet cannot. Owners are putting this thing in truck beds and garages and running it for years.
For framing specifically, the two factory-installed regulated couplers matter more than they look like they should. Most entry-level compressors ship with a single outlet, which forces you to pick between two tools. This one lets two people work off the same tank, which is a real advantage on a framing day even though the 2.6 SCFM output means neither operator gets full flow.
The oil-free pump runs at any angle and needs no oil changes, which suits a machine that lives in a truck bed. At 30 lbs it is the easiest unit here to lift over a rim rail one-handed, and the low-amp 120V motor starts without tripping a household breaker even through an extension cord.
Two real limits are worth naming before you buy. The 150 psi maximum sits at the bottom of what heavy framing nailers like, so the pump cycles often when you are driving long nails into dense lumber. And 82 dB makes this a poor choice for framing inside an occupied house or starting before the neighbors are awake.
Our take: for a one-person weekend framer, a small remodel, or deck and fence work where you are moving the compressor constantly, this is the right pick. It is the compressor we would hand to someone who wants one machine to do everything without thinking about it.
What you get day to day
Owners consistently praise the low weight and the fact that the oil-free design needs no maintenance. They also note the 150 psi ceiling and modest airflow, which is why it slows on long framing nails rather than stopping entirely.
Real-world sizing data from the framing community puts a 30 gallon unit rated at 5.5 CFM at 90 PSI into sustained work for a full framing session before cycling on. This pancake simply is not that machine, and pretending otherwise is how people end up with half-driven nails.
Where it falls short
The 150 psi ceiling is the first thing to check against your nailer’s requirements. The second is amperage, and here you are fine, since the low-draw motor is one of the reasons this unit has accumulated so many reviews from people working in older homes and rental properties.
If you are framing a full house alone, look at the Metabo HPT below instead. It has 200 psi and enough airflow to run two framing nailers, which is what actually kills a one-person schedule on a big job.
2. Metabo HPT EC914S Pancake Compressor – Runs Two Nailers at Once
Metabo HPT Portable Pancake Air Compressor, 6 Gallon 200 PSI, EC914S
200 psi max
4 CFM at 90 psi
6 gallon tank
Runs two framing nailers
Oil-free pump
42 lbs
Pros
- Only unit here rated to run two framing nailers at once
- 200 psi gives longer runtime between cycles
- 4 CFM delivers fast recovery
- Owners drive 3 inch #10 nails without stalling
- Oil-free pump runs at any angle
- Fills from empty in a little over four minutes
Cons
- Several owners describe it as noticeably loud
- Fill time increases at high elevation
- 42 lbs is heavy for a portable pancake
The EC914S is the compressor in this group that most directly answers the question a framer is actually asking, which is whether one machine can feed two guns. The manufacturer rates it to run two framing nailers, two roofing nailers, two siding nailers, three finish nailers, or five brad nailers at the same time. Very few pancake tanks can make that claim honestly.
The 4 CFM at 90 PSI is roughly 50 percent more airflow than a typical 6-gallon pancake, and combined with 200 psi of storage pressure it means the tank does not crater between bursts. That combination is why carpenters single this unit out for sinking 3-inch #10 nails into wood without stalling, which is the complaint that kills most small compressors on a framing job.
Recovery speed is the quiet advantage. It fills from empty in a little over four minutes, so a mid-morning refill is a coffee break rather than a lunch break. At 42 lbs it is heavier than most portable pancakes, but that is a fair trade for the extra pressure storage and it still moves with one hand on the handle.
The recurring negative theme in the reviews is noise. Several owners describe it as louder than they expected, and while it is quiet next to an 82 dB pancake, it is not a silent unit. If you are framing inside a finished home with people in it, this is the wrong machine.
There is one geographic caveat. Owners working at elevation report longer fill times and reduced CFM, which is normal for any piston pump but more noticeable in a small tank. If you are framing above 5000 feet regularly, plan on more reservoir than the spec sheet suggests.
Why the 200 psi ceiling matters
Pressure is the number most buyers ignore, and 200 psi is meaningfully higher than the 150 psi ceiling on the budget pans in this roundup. Higher storage pressure gives the nailer a bigger buffer to draw from before the pump has to do anything, which is the difference between a nailer that fires instantly and one that fires after a half-second hesitation.
That buffer is why this unit holds up on long nails in dense lumber. The pump does not have to keep up in real time, it just has to refill between shots, and 200 psi plus 4 CFM does that with room to spare.
When to skip it
Do not buy this if quiet operation is your top requirement, because noise is the one complaint owners keep returning to. Also consider it carefully if you work alone on a single gun, since you would be paying for dual-tool capability you never use, though the extra CFM still benefits you.
If you are running one nailer on a two-person crew, this is the compressor we would put between you. We covered pancake units in more depth in our pancake compressor roundup if you want to see how it compares to the format generally.
3. Makita MAC2400 Big Bore Compressor – Best Airflow for the Amp It Draws
Makita MAC2400 2.5 HP* Big Bore™ Air Compressor
2.5 HP 4-pole motor
4.2 CFM at 90 PSI
4.2 gallon tank
Cast iron oil-lubricated pump
79 dB
Pros
- Highest average rating in the group at 4.7
- 4.2 CFM at 90 PSI is strong framing airflow
- Cast iron Big Bore pump built for long service life
- Low amp draw reduces tripped breakers
- Roll-cage body protects the pump
- Runs cooler than comparable oil-free units
Cons
- Oil-lubricated pump needs periodic oil checks
- Costs more than most 4 to 6 gallon oil-free pancakes
- 79 dB is louder than the dedicated quiet compressors
The MAC2400 carries the highest average rating of any compressor we tested, at 4.7 across 1319 reviews with 86 percent of those ratings at five stars. It is also the only oil-lubricated machine in this group, and that is a deliberate trade rather than an oversight.
An oil-lubricated cast iron Big Bore cylinder and piston run cooler and wear slower than an oil-free pump pushing the same airflow. Owners who frame every day tend to notice that difference over a few seasons rather than in the first week, but it is the reason this unit holds a 4.7 average while cheaper oil-free pans accumulate complaints about failed check valves.
Where it separates from the pancake options is electrical behavior. A 2.5 HP 4-pole motor pulling 12.3 amps and producing 4.2 CFM at 90 PSI is a better airflow-to-amperage ratio than anything else on this list, and the low start-up draw means it is far less likely to trip a breaker when the pump kicks on mid-nail.
Cast iron construction also means weight. At 20.25 by 19.5 by 19.75 inches this is not a machine you carry up stairs casually, and the roll-cage body is designed to take that kind of abuse but will not help with the stairs. Plan your path from the truck to the wall before you unload.
Buyers also point out that the pump runs at 1730 RPM, which is deliberately slow. Slower RPM means lower noise for a given airflow and longer motor and pump life, but it also means the large automotive-style industrial air filter matters more than on a faster spinning unit. Keep it clean and you will get years of service.
Oil-lubricated versus oil-free for framing
This is the trade nobody explains well. Oil-free pumps are lighter, cheaper to maintain, and deliver clean air, which matters if you plan to spray paint or finish trim off the same tank. Oil-lubricated pumps run cooler, last longer under daily use, and are what most professional framers actually buy for a reason.
The cost of the lubricated version is maintenance. You check oil levels and change oil on a schedule, and the pump needs to stay upright when you move it. If you want a second smaller air source for inflating tires and running brad guns, our lithium jump starters with air compressors guide covers the compact options.
Where it falls short
At 79 dB it is loud, and we would not frame an occupied house with it running. The 4.2 gallon tank is also small by crew standards, which is exactly why the airflow matters so much here. A small tank is fine if the pump refills fast, and this one does.
Owners consistently praise the cast iron Big Bore durability, the 4.2 CFM output, and the low starting amperage. What they acknowledge in the same breath is the trade you accept for the oil: it is heavier, it needs oil attention, and it costs more than the oil-free alternatives.

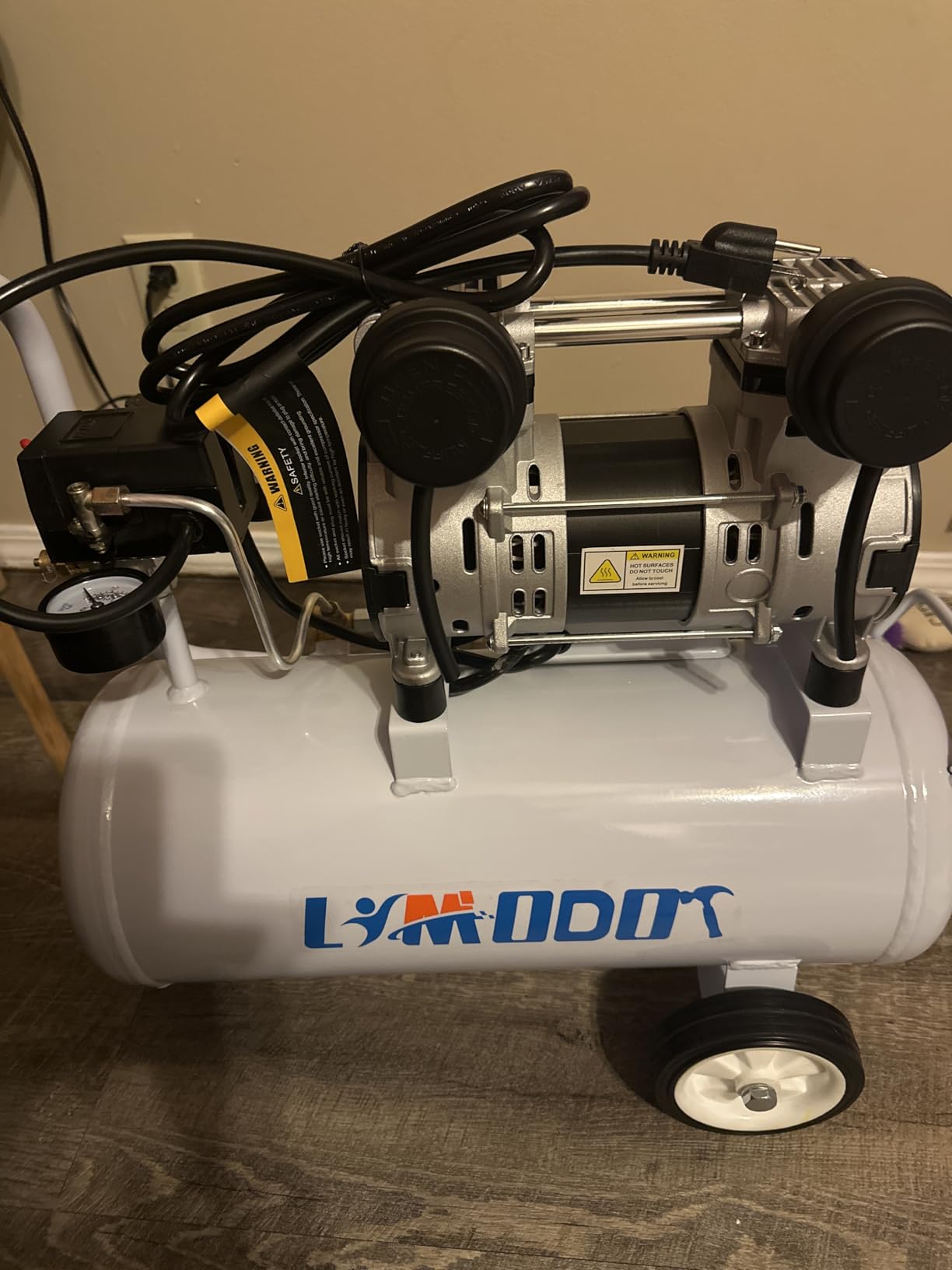

4. Limodot LJ5120K Quiet 5 Gallon Compressor – Best for Budget DIY Setups
Quiet Oil-Free Air Compressor, 68 dB, 2.8 CFM @ 90 PSI, 5 Gallon Air Tank
68 dB induction motor
2.8 CFM at 90 psi
5 gallon alloy steel tank
120 psi max
80 second refill
Pros
- 68 dB induction motor runs inside a house
- 80 second full refill and 25 second recovery
- 4 CFM at 40 PSI covers finish and brad work
- Hose quick connect and 13 piece kit included
- Oil-free design starts in cold weather
Cons
- 120 psi max is the lowest here and below typical framing demand
- 2.8 CFM at 90 PSI is modest for continuous nailing
- PVC hose is less durable than rubber
The Limodot LJ5120K is the odd one out in this roundup, and that is worth being upfront about. It is among the quietest of the value pans and the quickest to refill, but the 120 psi ceiling is the lowest of the eight machines here, and that is a real limitation for a framing gun rather than a rounding error.
What it does well is speed. The 1.2 HP induction motor delivers 2.8 CFM at 90 PSI and 4 CFM at 40 PSI, refills from empty to full in about 80 seconds, and recovers in 25 seconds. For short bursts of nailing, for driving 2-inch nails, or for working through a shed or a small wall, that quick cycle is genuinely satisfying.

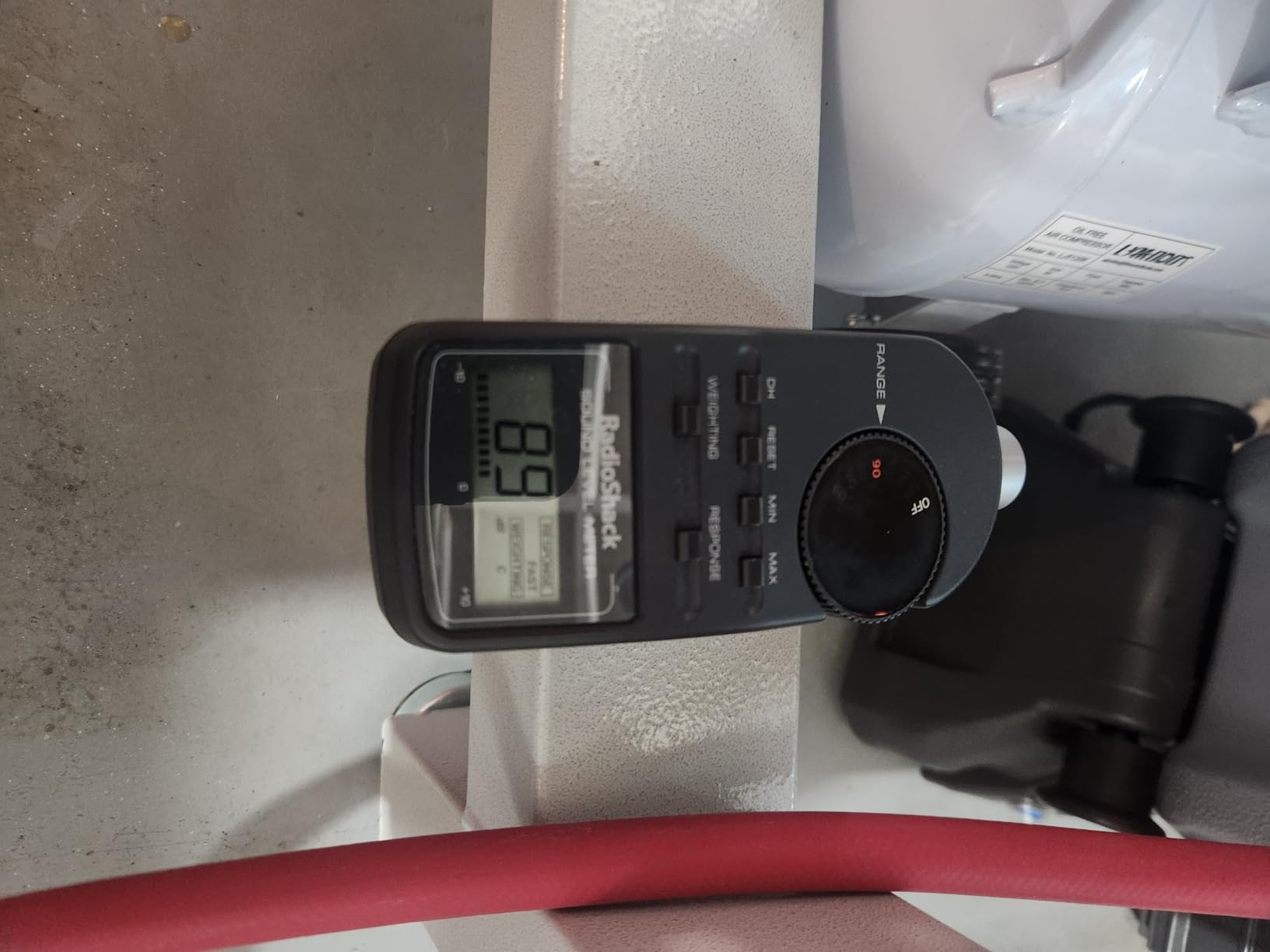

The 68 dB figure comes from an induction motor spinning at a low 3400 RPM, which is why this unit is the one we would put inside a house. Induction motors also run cool, and the oil-free design needs no oil or filter changes and starts reliably in cold weather, which matters if you are framing a shed in January.
Owners highlight the quiet induction-motor operation and the fast refill. The recurring caveat in reviews is the same one we would raise: 120 psi and 2.8 CFM is on the low side for continuous framing work, and the included PVC hose is a cheaper, less durable material than rubber or polyurethane.
The alloy steel tank comes with a wheels kit, and at 22.05 by 11.03 by 19.08 inches the footprint is narrow enough to move through a doorway. Buyers at the DIY end of the market consistently say it handles brad nailing, tire inflation and general shop cleaning without trouble.
How much runtime 120 psi actually gives you
Most framing nailers specify a working pressure between 90 and 120 PSI, so a compressor capped at 120 PSI has almost no headroom. The nailer will fire, but you are always working off a nearly empty tank, which means constant cycling and a shorter time between restarts.
If your framing work is limited to 2-inch nails in soft material, that is acceptable. If you are driving 3-inch nails into Douglas fir or working a full wall in one session, look for a higher ceiling. Every other compressor in this roundup stores at least 135 psi, and five of them sit at 150 psi or higher.
Where it falls short
The pressure ceiling and modest CFM are the two honest drawbacks, and both show up as slower nailing rather than a stopped nailer. Buyers also note the PVC air hose as a cost-saving material that ages faster than rubber, so budget for a hose replacement if you keep this unit for years.
Framing community consensus is that nail guns are not demanding, and a small tank is often enough provided CFM keeps up. This unit proves that point in the value category, but it is a two-inch nail answer, not a three-inch nail answer.
5. Makita MAC320Q Quiet Series – Best for Indoor Trim and Finish
Makita MAC320Q Quiet Series 1-1/2 HP, 3 Gallon, Oil-Free, Electric Air Compressor
60 dB Quiet Series
3 gallon tank
1.5 HP at 1750 RPM
135 psi max
Oil-free dual piston
Pros
- Quietest unit in the group at 60 dB
- Separate tank and tool gauges for dialling in nailer PSI
- Recharges faster than it discharges
- Oil-free dual piston pump needs no maintenance
- Two regulated outlets let two tools run
- 8.5 amp draw is easy on household circuits
Cons
- 135 psi max is low so it cycles more than 150 psi compressors
- Heavier and larger than the listing dimensions suggest
- Some owners replaced hose and valve fittings
- Too heavy for comfortable one-handed carrying
At 60 dB the MAC320Q is the quietest compressor in this roundup, and you can hold a normal conversation while it runs. That single fact is what separates it from everything else here, because most framing nailers get used inside homes that are occupied, partially floored, or being built around people who are not thrilled about the noise.
The 1.5 HP motor runs at a deliberately low 1750 RPM, which produces both the low noise figure and longer motor and pump life. Owners note that it recharges faster than it discharges, so you rarely wait on the tank, and trim carpenters report it keeping up with two guns nailing trim at once.
Two details make this the most precise tool here. Separate tank and tool pressure gauges let you read what your nailer is actually seeing rather than guessing from the tank side, and two regulated outlets mean two tools can run simultaneously. The oil-free dual-piston pump needs no maintenance and starts reliably.
Owners also report that it does not walk across the floor while the motor runs, which is a small quality-of-life thing that becomes obvious the first time a 25.79 kg machine slides into your wall studs. At 8.5 amps it is easy on household circuits, and the roll-cage body protects it in transit.
The honest drawbacks are the 135 psi ceiling, which makes it cycle more often than a 150-plus unit, and the real-world size. Owners measuring the unit report dimensions closer to 18 by 19 by 14 inches than the listing suggests, so check your transport plan. A few owners also had to replace hose and valve fittings that stuck open and bled the tank down.
When noise is the deciding factor
Framing inside an occupied home is where compressor noise stops being a spec and starts being a relationship problem. The gap between 82 dB and 60 dB is large enough that people can work within a few feet of the machine without raising their voices, which is the difference between a compressor you can use indoors and one you can only use outside.
This is also the compressor to buy if you plan to spray paint or finish trim off the same tank. The oil-free pump delivers clean air, and the dual gauges let you drop regulated pressure for finish work without touching the tank pressure.
Where it falls short
At 3 gallons this is the smallest tank here, and 135 psi is low for long framing nails. Owners consistently praise the quiet operation and the gauge accuracy, while the common gripes are the pressure ceiling, the real-world weight, and a few reports of fittings that needed replacing.
If your framing is exterior or on a new build where noise is not a factor, the DEWALT below gives you far more air. If your finish work happens inside a home, this is the one we would own.

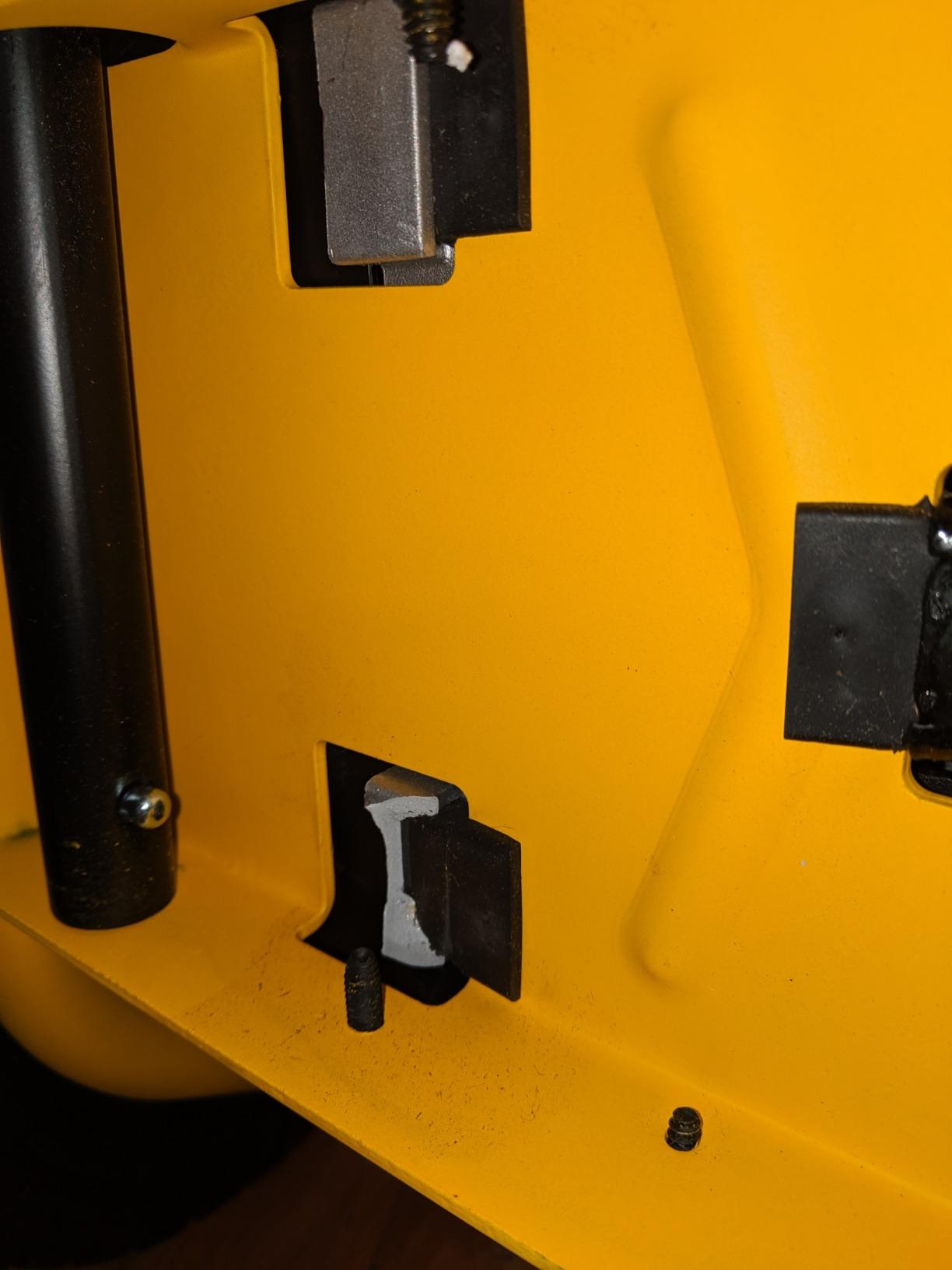

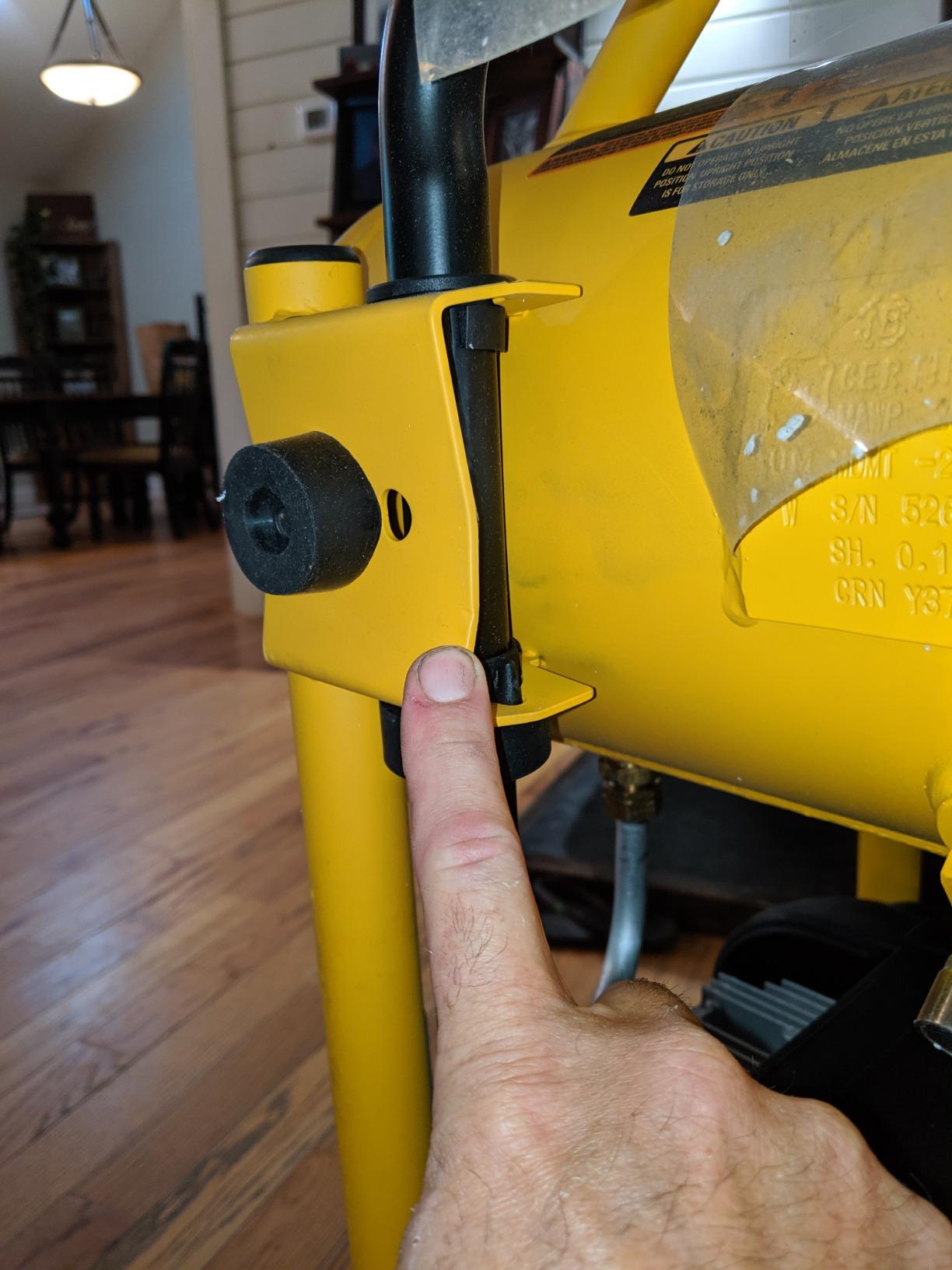

6. DEWALT D55146 Hand Carry Compressor – Best for Two-Handler Crews
DEWALT Air Compressor, 225-PSI Max, Hand Carry with Wheels, 4-1/2 Gallon (D55146)
225 psi max
5 CFM airflow
4.5 gallon tank
Oil-free pump
88 lbs
10 inch wheels
Pros
- 5 CFM and 225 psi give the most usable air in the group
- Wheels make it the easiest heavy unit to move
- Large readable gauges behind a protective panel
- Oil-free pump keeps delivered air clean
- Two output ports run two hoses
- Owners report 5 to 10 plus years of service
Cons
- Draws close to a full 15 A and needs a dedicated circuit
- 88 lbs is heavy to load without a ramp
- 3 in 1 industrial couplers reject common high-flow connectors
- Regulated output capped near 150 psi
- Drain petcock is hard to reach
The D55146 has the most usable air of any compressor here, and that is the entire point. It stores 225 psi and moves 5 CFM, the highest measured airflow in this group, which is what happens when you need two framing nailers running at the same time or a single gun driving long nails into hard material without pause.
It stores upright with the tank on top, which keeps the footprint small, and rolls on 10-inch non-flat pneumatic tires. For an 88 lb machine those wheels are the difference between a compressor you reposition with your foot and one you can actually move around a jobsite by yourself.
Owners rate it as a mobile workhorse that handles framing nailers and even four-man crews, and several report a decade of continuous service. The display console puts large 2-inch gauges, couplers, and the regulator behind a protective metal panel, and the high-flow coupler is designed to maximize nailer performance.
Two electrical facts decide whether this compressor works in your situation. It draws close to a full 15 amps, so it needs a dedicated circuit rather than a shared household outlet, and if you are working in a house under construction that circuit may already be committed.
The coupler situation is the quirk nobody mentions. The listed couplers are 3-in-1 industrial style and do not accept common high-flow connectors, so if you already own hose and quick-connects you may need adapters. Regulated output is also capped near 150 psi despite the 225 psi tank storage, so the extra tank pressure feeds the buffer rather than the tool.
When 225 psi earns its keep
Tank pressure is reserve air, and reserve is what lets a nailer fire instantly on the first nail of a burst rather than waiting for the pump. At 225 psi you have roughly a 50 percent larger buffer than a 150 psi compressor of the same size, and on long nail runs into dense lumber that is the difference between a satisfying rhythm and a stutter.
It also means fewer motor starts per hour, which is the single biggest factor in how long an electric compressor motor actually lasts. Fewer starts means less heat and less wear on the start components, and owners who report five to ten years of service are benefiting from the same effect.
Where it falls short
At 88 lbs it is heavy to load into a truck bed without a ramp, and owners also mention the drain petcock being hard to reach, which means you tilt the unit to drain it. Some shipments arrive with a damaged box and no manual, so inspect it before you start.
The recurring drawbacks in reviews are weight, the 15 A circuit requirement, and coupler compatibility. None of those matter much if you have site power and a ramp, and all three matter a great deal if you do not.
7. CRAFTSMAN CMXECXA02106410 6-Gallon Pancake – Best for Occasional Framing
CRAFTSMAN 6 Gallon 150 PSI Oil-Free Pancake Air Compressor CMXECXA02106410
6 gallon pancake tank
150 psi max
2.6 SCFM at 90 psi
1.0 HP oil-free motor
30.8 lbs
Pros
- Full 6 gallon tank in a small package
- 30.8 lbs with a small footprint is easy to carry
- Oil-free pump leaves no oil in the air for painting
- Dual quick couplers power more than one tool
- Handles brad nailing and tire inflation reliably
Cons
- 150 psi and 2.6 SCFM are the lowest airflow figures here
- 82 dB makes it one of the louder units
- Some buyers received a broken carry handle
- Some shipments arrived with gauge bracket damage
- A small number of owners reported the motor stopping
The CRAFTSMAN is the straightforward choice when framing is something you do on weekends rather than every day. A 6 gallon pancake tank, a 1.0 HP 120V oil-free motor, dual quick couplers, and a 30.8 lb iron body with a carry handle covers brad nailing, tire inflation, and short framing sessions comfortably.
Oil-free is the right call for a general-purpose machine, because the same tank will eventually inflate tires, blow out dust, or run a finish nailer, and you do not want oil in the air for any of those. The low-voltage start motor is also easy on household circuits, which is what you want in a basement or a garage rather than a commercial site.
At 15.8 by 16.4 by 17 inches it has a small footprint and stores in a corner easily. Buyers at the DIY end of the market describe it as a solid value unit for home and shop framing work.
Where it falls short is the same place most 150 psi pans fall short. With 150 psi max and 2.6 SCFM, it slows under heavy framing loads, and at 82 dB it is one of the loudest machines we tested. If you are framing a full wall in one session, you will feel the recovery time.
Quality control is the other theme in the negative reviews. Some buyers reported the carry handle arriving broken and replacement support being unhelpful, and a few shipments arrived with damage to the gauge mounting bracket. A small number of owners reported the motor stopping and not restarting, which on a unit this size points at the motor rather than the pump.
How to tell if this is enough for you
Occasional framing means sheathing a shed, raising a couple of walls in a basement, or building a small addition where you are nailing in sessions of an hour or two. In those conditions a 6 gallon tank with 2.6 SCFM is fine, because you are not sustaining a fire rate of nailing for long stretches.
The test is the nail length and the material. 2-inch nails into softwood will not stress this machine. 3-inch nails into dense lumber in a long continuous run will, and the machine will not break, it will simply get slower as the tank pressure falls.
Where it falls short
You should know about the shipping and quality variance before you buy, because it is the most common negative theme. Inspect the box, check the handle and gauge bracket on arrival, and keep the packaging until you have run it for a few minutes.
The 7 percent of one-star reviews in this product’s history cluster on damage and the isolated motor issues rather than on performance. Most owners are satisfied, which is why it holds a 4.5 average across 228 reviews.
8. RIDGID 6-Gallon Pancake – Best Warranty Coverage
RIDGID 6 Gal. Portable Electric Pancake Air Compressor
150 psi max
6 gallon pancake tank
0.8 HP electric motor
35 lbs
Stainless steel
3 year warranty
Pros
- Fills up extremely fast for a 6 gallon pancake
- Not excessively loud for its size
- 3 year limited warranty is the longest in the group
- Owners confirm it runs nail guns and air hammers
- Low maintenance and 35 lb weight is easy to move
Cons
- 150 psi ceiling means frequent cycling on continuous work
- Listed flow of 73.28 liters per minute is modest
- Owners rate it as better for occasional than all-day framing
The RIDGID is the odd choice on paper and the sensible choice in practice. The spec sheet does not lead the group, with 150 psi and a 0.8 HP motor, but the 3-year limited warranty is the longest coverage of any compressor in this roundup, and that matters more than raw CFM when you are buying a tool you expect to keep for years.
What owners consistently remark on is fill speed. A 6-gallon tank that refills quickly is more pleasant to work with than a larger tank that trickles, and this one fills faster than its size suggests. At 35 lbs it moves easily without a cart, and the stainless steel construction is a step up from painted steel on the budget models.
Owners confirm it runs nail guns, air hammers, and small painting jobs without trouble, and several describe it as not excessively loud for its size. That is a different claim from quiet, but at 80 dB it sits alongside the other 150 psi pans rather than above them.
What the 3-year warranty really gets you
Most competitors in this class carry a 1-year warranty, and some of the compressors here offer even less coverage on individual components. A 3-year limited warranty means the pump, motor, and tank are covered for a full framing season plus change if something fails, rather than you diagnosing a check valve and paying for it out of pocket.
It also changes how you think about total cost. A cheaper compressor that needs a regulator or a check valve replaced in year two is not cheaper in practice. Warranty length is one of the few proxies for build quality you can verify before buying.
Where it falls short
The 150 psi ceiling means the pump cycles often during continuous framing work, and the listed flow of 73.28 liters per minute is modest for sustained multi-tool use. Owners rate it as more suited to occasional than all-day framing work, and we agree.
It also carries the smallest review count in this roundup at 155, though it holds a 4.5 average with only 3 percent one-star ratings, which is a consistency record worth noting. For full-time framing every day, look at the Makita MAC2400 or the DEWALT above instead.
How to Size an Air Compressor for Framing Nailers in 2026
What size air compressor do I need for a framing nailer?
You need a compressor that delivers roughly 2 to 4 CFM at 90 PSI and stores at least 3 gallons of air. Most pneumatic framing nailers draw in that range, so any pump publishing a CFM figure at 90 PSI will run one. For a full framing day rather than a single wall, target 4 CFM or higher and a 30 gallon tank, because the tank is what carries you between pump cycles.
That is the short answer. The longer answer is that CFM and tank gallons solve two different halves of the same problem, and confusing them is the single most common sizing mistake in this category.
CFM and PSI: the two numbers that matter
CFM, or cubic feet per minute at standard conditions, is how much air the pump moves. SCFM is the same measurement corrected to standard temperature and pressure, and it is the number you should compare across brands, because marketing CFM measured at tank pressure flatters the machine.
PSI is how hard the air is pushing at your nailer. A framing nailer should be regulated to the pressure printed on its manual, which for most is somewhere in the 90 to 120 PSI range, and regulators on the compressors here are adjustable so you can set it precisely.
A quick reference for the tools you are likely to run off the same tank:
Framing nailer, 2 to 4 CFM at 90 PSI
Siding nailer, roughly 3 to 4 CFM at 90 PSI
Roofing nailer, roughly 3 to 4 CFM at 90 PSI
Finish nailer, roughly 1 to 2 CFM at 90 PSI
Brad nailer, roughly 1 to 2 CFM at 90 PSI
Framing is the demanding one. The 1 to 2 CFM figure that covers most brad and finish guns is the number a lot of budget compressor marketing is based on, and it is not enough to keep a framing gun at pace.
Does tank size affect CFM?
No, and yes, which is why the question causes so much confusion. Tank size does not change how fast your pump delivers air. What it changes is how much reserve air you have while the pump is catching up.
Think of CFM as the faucet and the tank as the bucket. A wide faucet with a small bucket runs dry constantly. A narrow faucet with a large bucket runs smoothly for a long time, then takes a long pause. For framing, bursty nailing favors a slightly larger tank because it smooths out the pause, but it cannot rescue a pump that is fundamentally too slow.
Sizing for one, two, or three nailers
For a single nailer on a weekend project, 2.5 to 3 CFM and a 3 to 6 gallon tank is genuinely enough. Framing community consensus is that nail guns are not demanding, and a small tank is often cited as sufficient for framing, siding, and finish work provided CFM keeps up.
For two nailers running at once, the arithmetic changes fast. Two guns at 3 CFM each need about 6 CFM of pump, which puts you in a completely different class of compressor, and 30 to 60 gallons of tank so neither operator is waiting. Framing data from a user running a framing nailer on a 30 gallon compressor rated at 5.5 CFM at 90 PSI covers extended continuous work, and roundup testing measured over 30 minutes of continuous framing-nailer runtime before a 30 gallon unit cycled on.
For three or more nailers, a 60 gallon tank with 15-plus CFM is the realistic starting point, and at that point you are shopping commercial equipment rather than a portable pancake. Our industrial air compressor guide covers that category if you are already there.
Oil-free or oil-lubricated?
Oil-free pumps need no maintenance, deliver clean air, and run at any angle, which is why every portable pancake in this roundup is oil-free. Oil-lubricated pumps run cooler and last longer under daily use, which is why the Makita MAC2400 is the only oiled unit here and holds the highest average rating in the group.
Forum builders also split on brand loyalty here more than almost any tool category. In r/Tools, one owner called an oiled Hitachi and Metabo decent for short money and much quieter than an older Campbell Hausfeld, while another poster in the same thread is a committed Bostitch loyalist. The honest read is that oil-free is now good enough for most framers, and oiled is worth the maintenance if you frame every day.
Compressor styles and when each one fits
Pancake compressors are the flat, 2 to 6 gallon units that dominate this roundup. They are cheap, light, and easy to move, and they suit one nailer, trim work, and mobile DIY use.
Hot dog compressors are horizontal cylindrical tanks that sit low, usually with a 3-gallon tank, and they are a good fit for a single framing gun on a home project. Twin stack compressors are the tall twin-cylinder 5 to 6 gallon format, which is the same footprint idea as a pancake with more pump underneath. Vertical compressors are larger tanks standing on end, commonly 30 to 60 gallons, and they stay stable on uneven ground where a horizontal tank will not.
Wheelbarrow compressors are gas-powered units with a wheelbarrow frame. A poster in r/Tools framing with a gas-powered Jenny wheelbarrow compressor called it overkill sometimes, and that oversizing regret is extremely common. If your site has no power, a gas unit is a legitimate answer, but a 5-6 HP electric machine is a better answer whenever you have a dedicated circuit.
Hose, regulator, and moisture control
Hose diameter is the most overlooked framing variable. A quarter-inch hose is rated for low flow and restricts the nailer, especially over distance, and a half-inch or 3/8-inch hose is what you want for a framing gun. The PORTER-CABLE includes 25 feet of hose, and the Limodot includes a 25 foot PVC hose which is the cheaper material we would replace first.
Longer runs of thin hose reduce pressure at the nailer manifold, which shows up as incomplete nail depth. If your compressor sits in the garage and the wall is in the basement, budget a heavier hose rather than more compressor. This is one area where adding capacity to the hose is far cheaper than adding capacity to the pump.
For finish work off the same tank, add an in-line moisture and oil separator. Water and oil in the lines will show up as blotchy finish work or ruined sprayer tips, and cheap oil-free compressors with small tanks push more moisture through the line. The MAC320Q’s separate tank and tool gauges help here, because you can see exactly what pressure the nailer is receiving.
Power, circuits, and noise
Every unit in this roundup runs on 120V household power, which means all of them work from a standard outlet. The draw is what separates them: the MAC320Q at 8.5 amps and the MAC2400 at 12.3 amps are easy anywhere, while the DEWALT D55146 pulls close to a full 15 amps and wants a dedicated circuit.
Motors tripping breakers on 15-amp household circuits is a common complaint, particularly when a 5-plus HP unit kicks on while you are already running saws. If your framing site has a dedicated 20-amp circuit, that removes the problem entirely.
Noise is a framing-specific issue because framing happens inside homes. The 82 dB compressors here are genuinely unpleasant in an occupied space, the 60 dB MAC320Q is the one you can work beside, and everything in between is a compromise you make based on how early you start and how close the neighbours are.
When you can skip the compressor entirely
If you are framing a small job, a single nailer, or doing repairs rather than production work, a cordless framing nailer removes the compressor from the equation altogether. Battery-driven framing guns from Senco, Milwaukee, DeWalt, and Metabo now drive the same 3-inch nails as pneumatic models, and community consensus treats them as the answer for small jobs and single nailers specifically to avoid compressor logistics.
The tradeoff is battery cost over a full day of framing, and the fact that pneumatic remains cheaper per shot once you own the compressor. Our verdict: if you frame fewer than a few walls a month, a cordless gun is the correct answer and this entire roundup is unnecessary. If you frame professionally, the compressor pays for itself.
Frequently Asked Questions
What size air compressor do I need for a framing nailer?
You need a compressor delivering roughly 2 to 4 CFM at 90 PSI with at least 3 gallons of tank capacity. Most pneumatic framing nailers fall in that 2 to 4 CFM range, so any pump publishing a SCFM figure at 90 PSI will run one. For a full framing day rather than a single wall, target 4 CFM or higher and a 30 gallon tank, since the tank carries you between pump cycles.
Is a 6-gallon air compressor sufficient for a framing nailer?
Yes, for one nailer on shorter framing work, as long as the CFM figure keeps up. The critical spec is airflow, not gallons. A 6 gallon unit publishing 4 CFM at 90 PSI will outperform a 6 gallon unit publishing 2.6 SCFM every time. Six gallons is genuinely enough for weekend framing, sheathing a shed, or raising basement walls.
Does tank size affect CFM?
No. Tank size does not change how fast your pump delivers air, it changes how much reserve you have while the pump catches up. Think of CFM as the faucet and the tank as the bucket. A wide faucet with a small bucket runs dry constantly, and a narrow faucet with a large bucket runs smoothly then pauses for a long refill. Bursty framing nailing favors a slightly larger tank to smooth out the pause.
Is a 30 gallon air compressor big enough?
For one or two framing nailers, yes. Real-world reports put a 30 gallon unit rated at 5.5 CFM at 90 PSI into extended continuous work, and roundup testing measured over 30 minutes of continuous framing-nailer runtime before a 30 gallon compressor cycled on. For three or more nailers running simultaneously you want 60 gallons and 15-plus CFM.
What PSI should a framing nailer run at?
Most framing nailers specify a working pressure between 90 and 120 PSI, and you set it on the compressor regulator rather than at the tank. The tank pressure is reserve that feeds the burst, while the regulated output is what your nailer actually sees. Compressors with separate tank and tool gauges, such as the Makita MAC320Q, make this far easier to dial in accurately.
Is oil-free or oil-lubricated better for framing nailers?
Oil-free pumps need no maintenance, deliver clean air, and run at any angle, which is why every portable pancake is oil-free. Oil-lubricated pumps run cooler and last longer under daily professional use, which is why the Makita MAC2400 holds the highest average rating in this roundup. Oil-free is now good enough for most framers, and oiled is worth the maintenance if you frame every single day.
Final Verdict for Best Air Compressors for Framing Nailers
There is no single best air compressor for framing nailers, but there is a right answer for each situation, and after weeks of comparisons the picks are clear. The PORTER-CABLE C2002-WK is our editor’s choice for anyone who needs one dependable machine for weekend framing, remodels, decks, and everything else, because 2404 reviews at a 4.6 average is the strongest reliability record in this group.
For a two-nailer crew or full-time framing, the Metabo HPT EC914S is the one to buy. It is the only pancake here rated to run two framing nailers at once, and its 200 psi and 4 CFM combination is what keeps long nails driving cleanly. If you frame every day and want the machine to outlast several compressors, the Makita MAC2400 takes the highest average rating here at 4.7 thanks to its cast iron Big Bore pump.
For occupied homes, the Makita MAC320Q at 60 dB is the only unit quiet enough to work beside, and the DEWALT D55146 carries the most usable air in the group at 5 CFM and 225 psi if you have a dedicated circuit. The Limodot LJ5120K and CRAFTSMAN cover budget DIY setups, and the RIDGID 6-Gallon Pancake wins on its 3-year warranty if you want coverage rather than peak numbers.
And if you are framing a few walls a year rather than every week, skip all of it. A cordless framing nailer removes the compressor, the hose, the trip hazards, and the noise in one move, and that is the correct answer more often than the forums suggest. For the full framing nailer side of the equation, our framing nailer roundup has the models we would pair with each compressor above.
