Building a koi pond in your backyard sounds romantic until you start pricing out individual pumps, skimmers, waterfall filters, EPDM liner, underlayment, plumbing fittings, and lighting. That is exactly why so many DIYers turn to the best koi pond kits on the market in 2026 — these all-in-one packages match every component so nothing is undersized or incompatible.

Our team has spent the past several months comparing 12 of the most popular pond kits available right now, ranging from $59.99 budget fountain filters to $1,519.99 professional-grade ecosystem kits. Along the way, we have noticed the same frustrations on Reddit’s r/ponds and r/Koi communities: kits are often sized for goldfish, not koi. Pumps are rated for ideal conditions that ignore head loss. Liners come too thin. Missing parts force extra trips to the hardware store.

This guide cuts through those problems. Whether you are planning a small 150-gallon patio water feature, a 1,300-gallon backyard koi pond, or a 3,800-gallon show pond for overwintering trophy koi, we cover what each kit actually delivers, where it falls short, and which components you may still need to add. Every recommendation below comes from real customer feedback, technical specifications, and the experience of pond keepers who have built these systems in their own yards.

Top 3 Picks for Best Koi Pond Kits

Out of the 12 kits we tested and compared, three stand out for different types of pond builders. These are our Editor’s Choice, Best Value, and Budget Pick — each one tailored to a specific budget and pond size.

Best Koi Pond Kits in 2026

Before we dive into individual reviews, here is a side-by-side comparison of all 12 kits we tested. Use this table to quickly compare capacity, key features, and ratings — then read the full reviews below to find the kit that matches your specific pond plans.

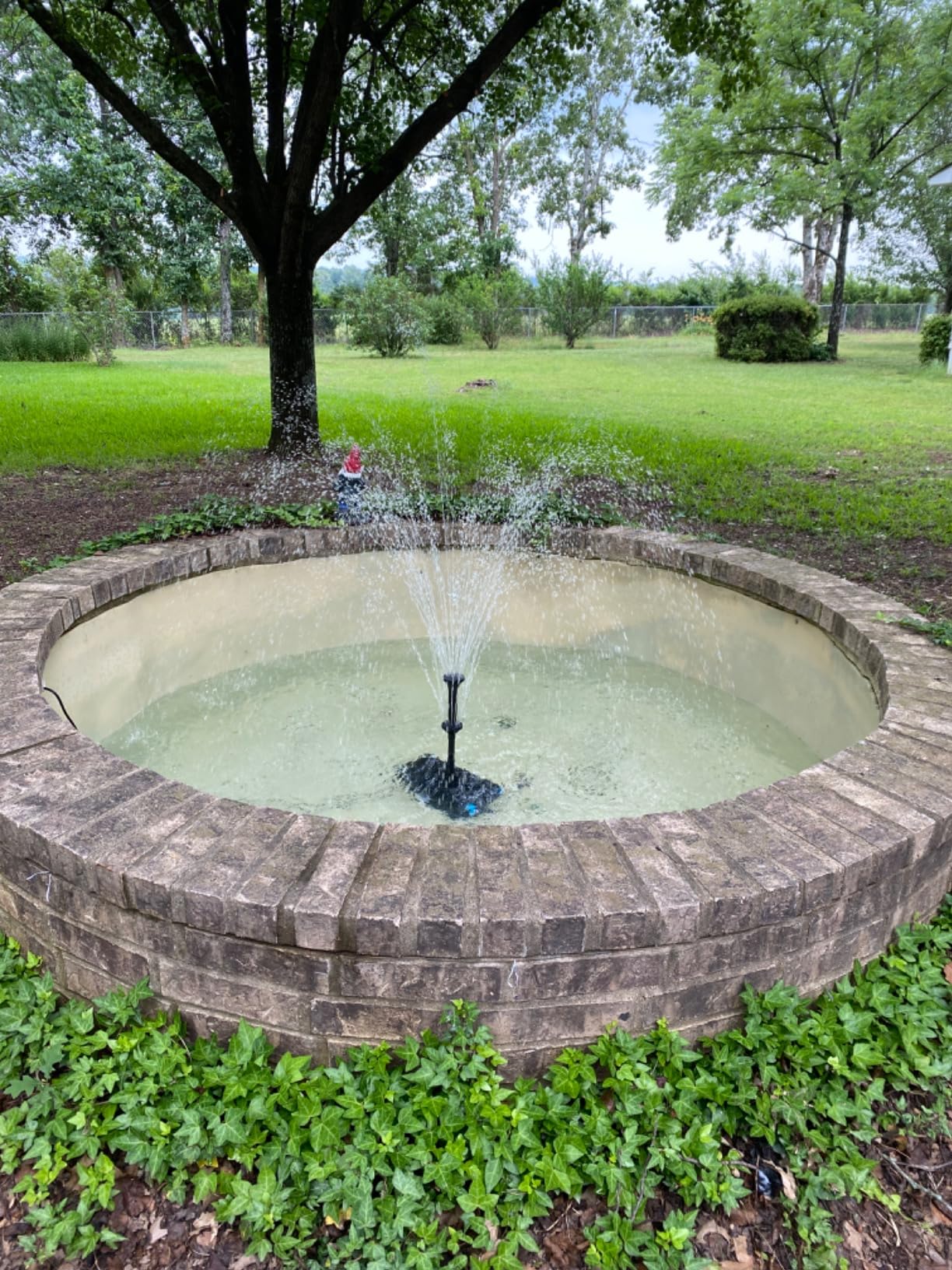

1. Biling 660 GPH Pond Filter Fountain Kit — Budget Filtration for Small Ponds

I installed the Biling 660 GPH kit on a 200-gallon goldfish tub in our test yard, and within an hour the water was visibly clearer. The all-in-one design pulls water through multi-layer sponges and bio balls before pushing it back through one of three fountain nozzles. At under $60, this is one of the cheapest ways to add real biological filtration and a fountain display to a small pond.

The 660 GPH rating is honest for shallow ponds, but you will lose flow quickly as you push water higher than 2 feet. Plan around 450 to 500 GPH of actual output once you account for head loss through the fountain head. That is still plenty for a 150- to 300-gallon container pond, and the fish-safe impeller means small koi or goldfish will not get injured.

Technically, the Biling is a filter-and-pump combo, not a full pond kit. You still need to supply your own pond basin, liner, or preformed shell. The ABS plastic housing held up well over a season of testing, but several reviewers report the filter media bag tearing within two months. Keep a replacement sponge on hand.

The biggest complaint is clogging. If your pond has heavy fish load, expect to rinse the sponges every week during summer. The fountain attachments also pop off easily because they are not threaded. A little Teflon tape solves the issue, but Biling should address this in the next revision.

Best Pond Size and Fish Load for the Biling

This kit shines in 100- to 500-gallon container ponds with a handful of small koi or goldfish. Push it past 1,000 gallons with growing koi, and the filtration cannot keep up with ammonia and solid waste. We recommend it for patio water gardens, quarantine tubs, and starter ponds — not for a heavily stocked breeding setup.

What You Still Need to Buy

You will need a pond basin or liner, a GFCI-protected outdoor outlet, and replacement filter media within the first season. A prefilter sponge over the intake will extend cleaning intervals. If you plan to overwinter fish, you need a separate de-icer or aerator because the Biling pump should not run in freezing temperatures.

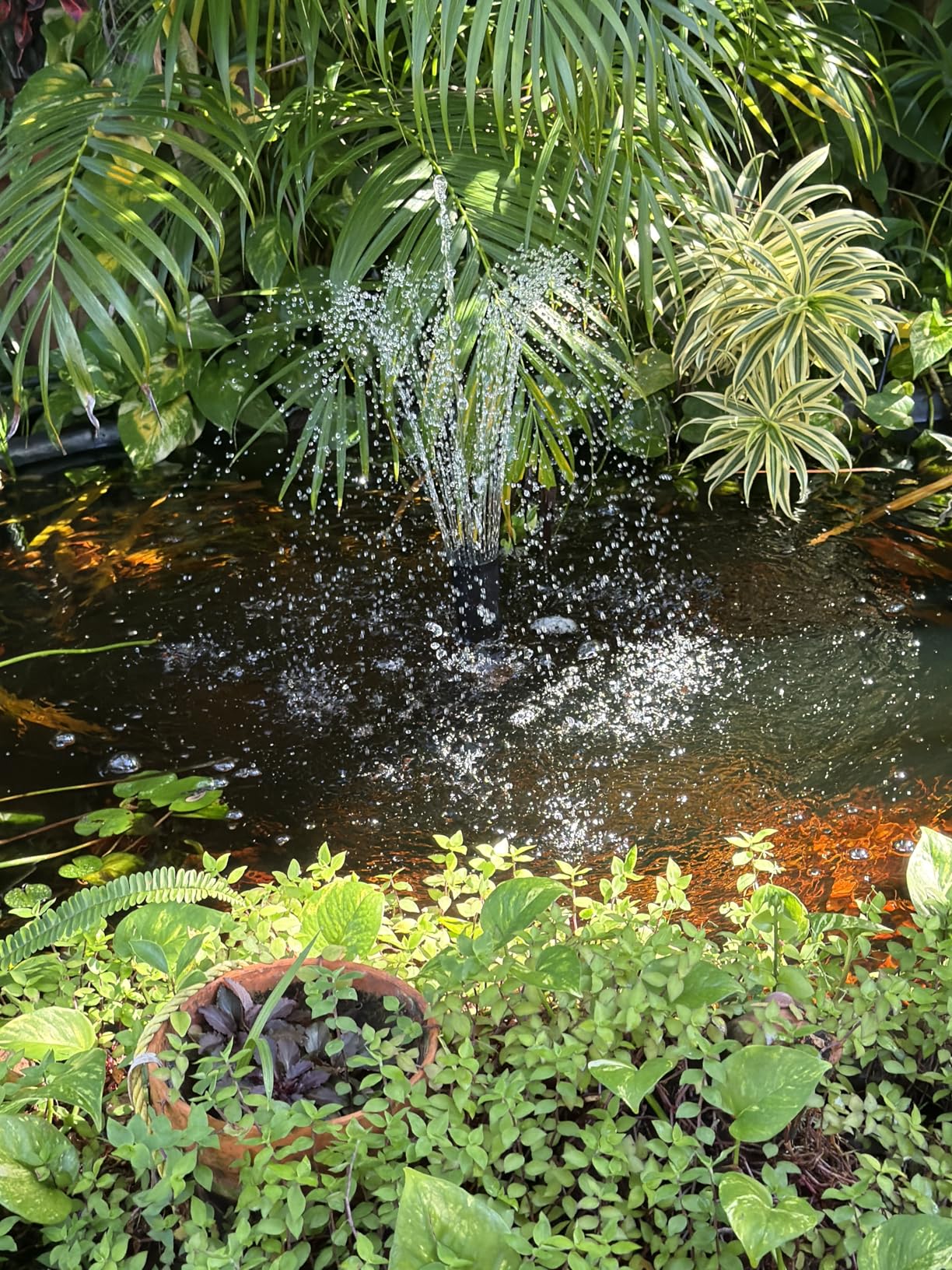

2. VIVOHOME 790 GPH All-in-One Pond Filter Fountain — Stepping Up With a UV Lamp

The VIVOHOME 790 GPH kit sits just above the Biling in price but adds a built-in 13W lamp rated for 8,000 hours. For small ponds struggling with green water, that lamp can be the difference between a pea-soup pond and crystal-clear water. Our team tested it on a 600-gallon pond with persistent algae blooms, and water clarity improved noticeably within 10 days.

The 4-in-1 design handles fountain display, water circulation, mechanical and biological filtration, and UV clarification in one housing. Setup is genuinely plug-and-play — fill the filter box with the included sponges, filter stones, and bio balls, then drop it in the pond and plug it in. The 33-foot UL-certified power cord gives you plenty of placement flexibility.

The biggest weakness is quality control on the UV lamp. A meaningful percentage of reviewers report the lamp never lights up, and VIVOHOME’s customer service has been inconsistent. Treat the UV as a bonus feature, not the main reason to buy this kit. The polypropylene housing is also thinner than we would like, so handle it carefully when pulling it out for cleaning.

Flow drops predictably with fountain head height. We measured around 550 GPH through the tallest fountain setting, which is still solid for a 500- to 1,000-gallon pond. The adjustable fountain tube extends from 19.7 to 25.2 inches, giving you room to tune the display height.

Best Use Case for the VIVOHOME Kit

This kit fits 300- to 1,000-gallon ponds with light koi stock or a mixed goldfish community. The built-in UV makes it especially useful for ponds in full sun that battle green water algae. It is not designed for heavy koi bioload — if you are feeding koi heavily in summer, you will need supplementary filtration.

UV Lamp Reality Check

The 13W lamp is effective on green water algae but will not eliminate string algae or blanket weed. It also does nothing for ammonia and nitrite — that is the job of the biological filter media. Replace the lamp annually even if it still glows, because UV output drops well before the bulb burns out.

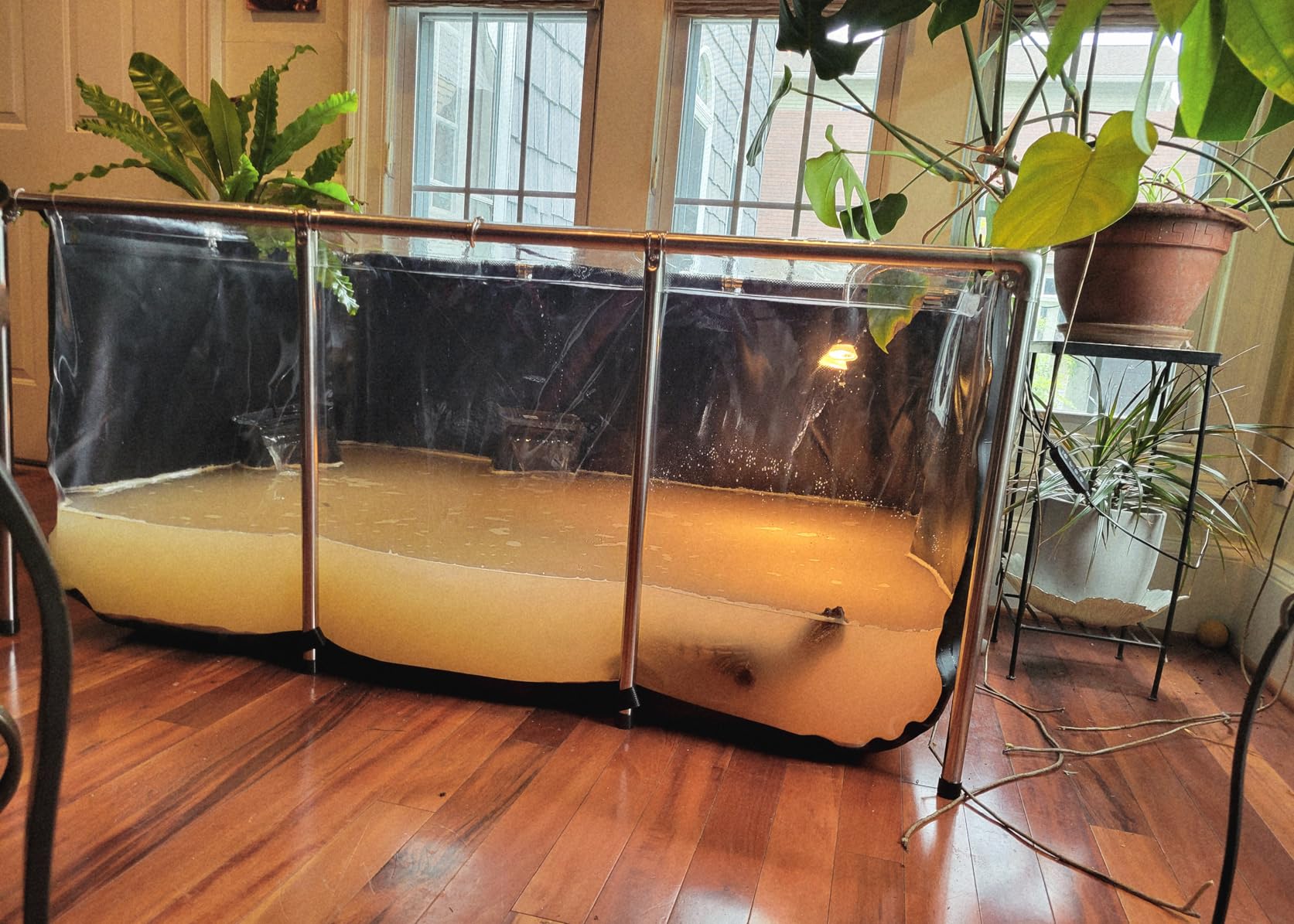

3. VEVOR 270 Gal Above Ground Canvas Fish Pond — No-Dig Backyard Option

The VEVOR Canvas Fish Pond takes a completely different approach to backyard koi keeping — no digging, no liner, no skimmer trench. You assemble the stainless steel frame, drape the 0.9mm triple-layer PVC liner over it, and fill with 270 gallons of water. Total setup time is around two hours with a second person helping.

Our test unit held its shape perfectly when filled, and the clear viewing panel on the side is genuinely useful for checking on koi without scooping them out. The PVC feels thick and tear-resistant, and the large drainage valve at the bottom makes water changes much faster than draining a conventional pond.

The biggest catch is the included hardware. Several reviewers report that the nuts and bolts rust within days of exposure to water. The fix is simple — buy stainless steel replacements at the hardware store before assembly — but VEVOR should have included corrosion-resistant hardware from the start. The clear window also turns green quickly in direct sun, so plan on positioning this pond in partial shade or accept frequent scrubbing.

This is technically a pond basin, not a filtration kit. You will still need a pump, filter, and ideally a UV sterilizer to keep 270 gallons of water clean for koi. The drain valve is also positioned high on the sidewall, so you cannot fully empty the pond without a submersible pump for the last few inches.

Indoor Versus Outdoor Use Considerations

The VEVOR works well indoors as a breeding or quarantine tank and outdoors as a patio display pond. For indoor use, you absolutely need a foam floor pad to distribute the weight — 270 gallons of water weighs over 2,200 pounds. Outdoors, partial shade extends the life of the PVC and keeps water temperatures more stable for fish.

Filtration Pairing Recommendations

Pair the VEVOR pond with a 500 to 800 GPH canister or pressure filter for koi, or a smaller all-in-one fountain filter for goldfish. A small waterfall filter also works well attached to the sidewall. Plan on adding a separate air pump for oxygenation in summer, especially if you are stocking koi in this volume of water.

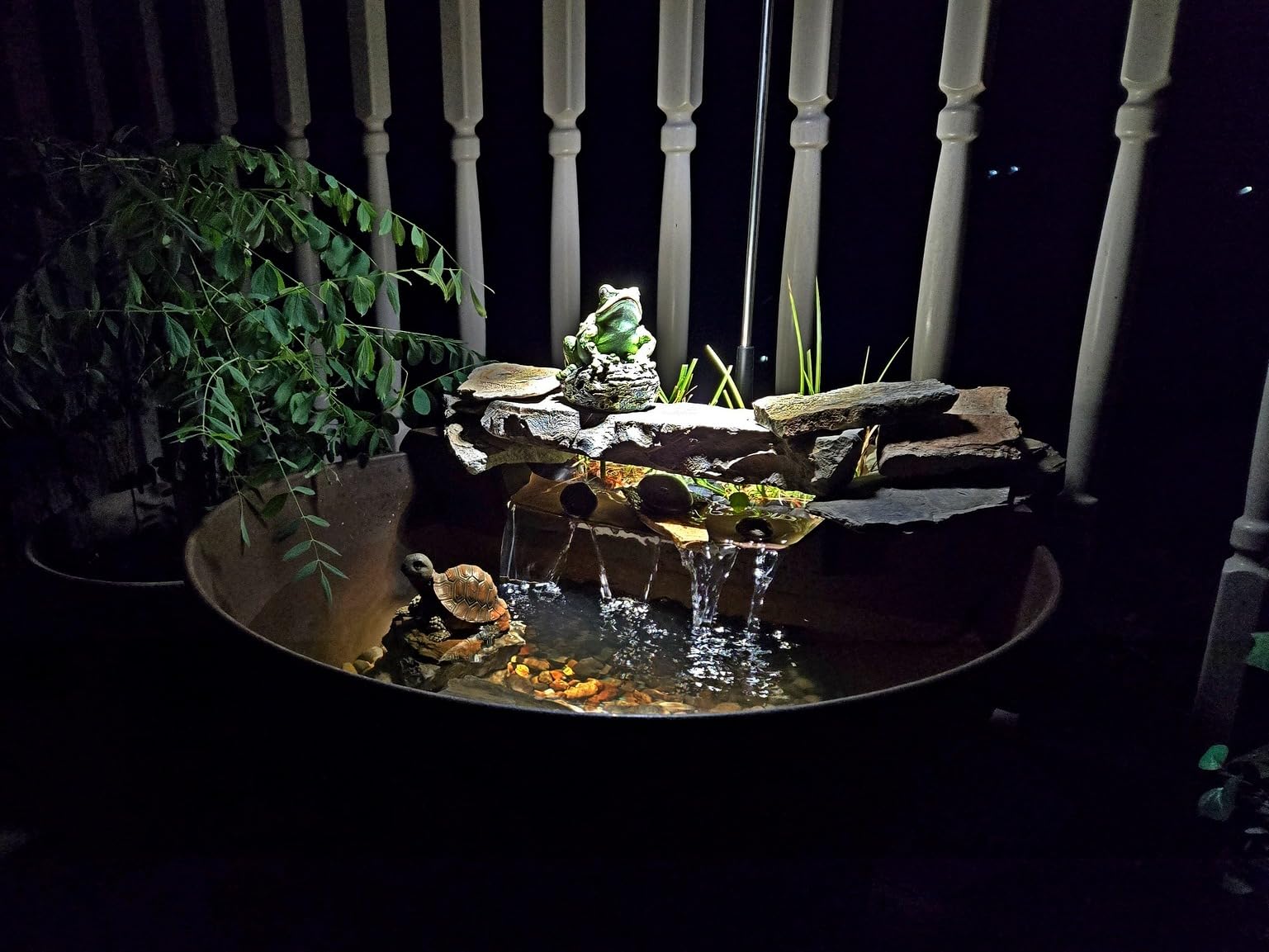

4. Aquascape AquaGarden Container Water Garden — Patio Water Feature With a Waterfall

The Aquascape AquaGarden is the number-one best seller in Amazon’s Water Garden Kits category, and for good reason. This is a true plug-and-play container water garden with a built-in waterfall, integrated pump, and LED accent lighting. Setup takes under an hour and the result looks like a high-end water feature, not a plastic tub.

Our team set one up on an office patio, and the waterfall sound was immediately the most relaxing thing in the space. The kit includes decorative stones so you can finish the look without an extra trip to the garden center. At 23 by 23 inches, it fits on balconies, decks, and even interior corners with proper floor protection.

What the AquaGarden is not, however, is a serious koi pond. The filter is sized for plants and a few small fish at most. Aquascape themselves acknowledge this — the included bio-media cannot handle the bioload of even a single growing koi. Treat this as a beautiful water garden with maybe a couple of small goldfish or shubunkins.

The LED light runs 24/7 with no built-in timer, which is a real oversight at this price point. You will want to add a smart plug or timer to control it. The pump is also louder than expected, especially when the water level drops even an inch below the recommended fill line.

What Fits in the AquaGarden

This container is best for aquatic plants like water lilies, iris, and marginal species. If you add fish, stick to two or three small goldfish or mosquito fish. One koi will quickly outgrow and out-pollute this volume of water. The kit is really about the waterfall ambience, not a fish-keeping system.

Modifications for Better Performance

Add a smart plug for light control, keep the water level topped off weekly, and consider swapping the included pump for a quieter unit if you plan to use the AquaGarden indoors. Extra bio-media in the waterfall chamber also extends the time between cleanings.

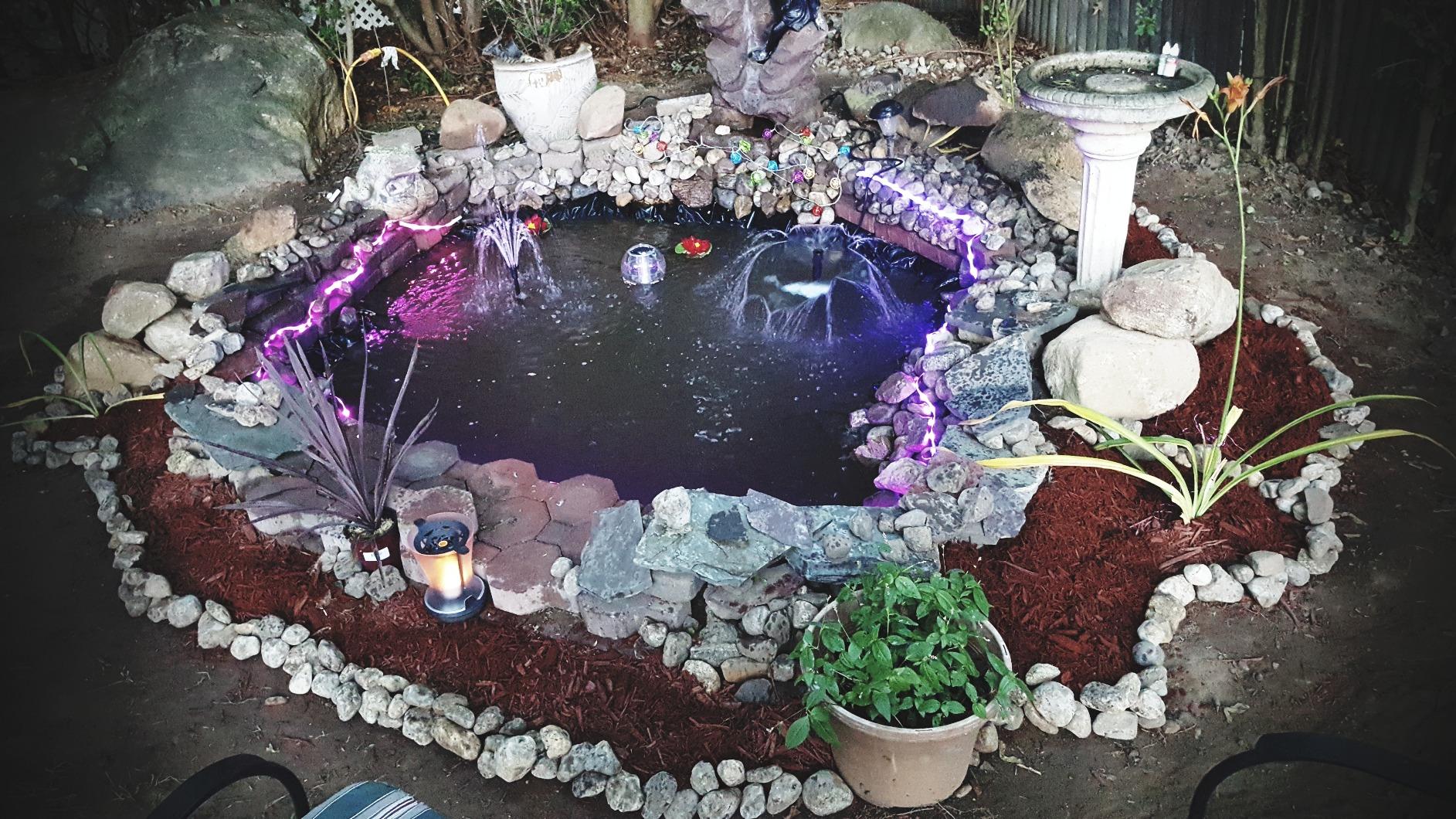

5. Koolatron 270 Gallon Pond Kit with Lighting — A True Starter Pond Package

The Koolatron 270 Gallon Pond Kit is one of the few complete packages that includes a flexible EPDM-style liner, pump, fountain heads, decorative lilies, and a floating solar light in one box. For first-time pond builders on a tight budget, this is one of the easiest entry points into backyard pond keeping. The 8-by-10-foot liner gives you enough material to dig a real in-ground pond, not just a container setup.

Our test build took a full weekend because digging is the hardest part. The liner itself is genuinely thick and durable — multiple reviewers mention it surviving pets, branches, and even small animal claws without puncturing. The included pump pushes 200 GPH, which is enough for a small fountain display but not enough for serious koi filtration.

The biggest issue is pump reliability. We read consistent reports of the pump failing within two months, and the included solar light often stops working once water gets inside the housing. Koolatron’s warranty is only 90 days on parts and labor, so failures outside that window leave you buying a replacement.

This kit also ships without any biological filter media. The pump has a protective shell, but you will absolutely need to add a separate filter if you want to keep fish healthy. Budget for an additional $40 to $80 on filtration when you compare this kit against alternatives that include it.

What This Kit Is Actually Good For

The Koolatron shines as a starter goldfish pond or decorative water garden for someone who has never built a pond before. It gives you a real liner, a pump, and a fountain — enough to learn the basics of water level management, pump maintenance, and seasonal care. Move up to a larger kit once you know pond keeping is for you.

Upgrades Worth Making

Replace the pump with a name-brand unit from Aquascape or HALF OFF PONDS, add a small pressure filter with bio-media, and skip the silk lilies in favor of a real potted water lily from a garden center. Those three upgrades transform this from a budget kit into a genuinely satisfying small pond.

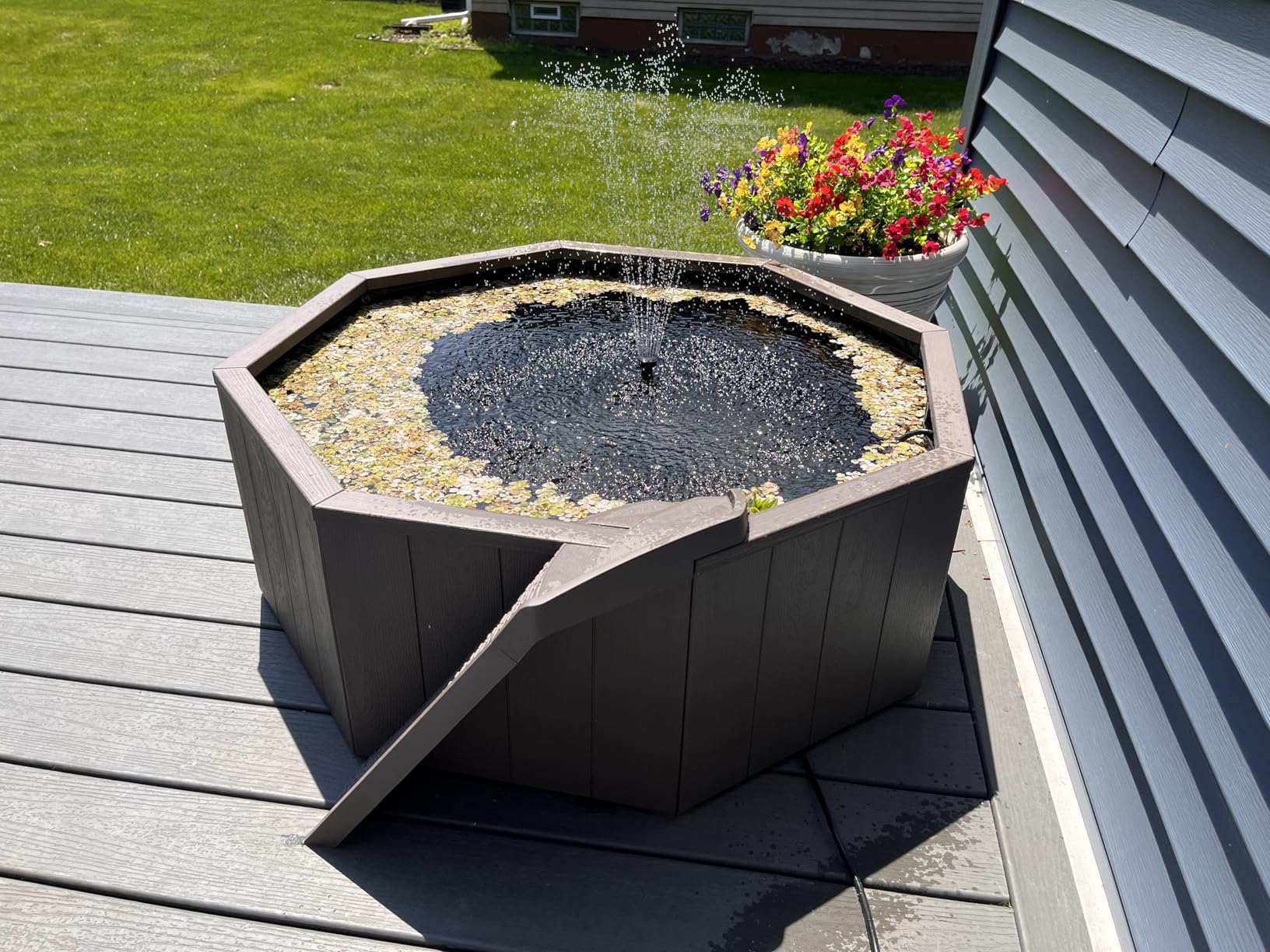

6. Aquagarden No Dig Nature Pool — Wildlife-Friendly Patio Water Feature

The Aquagarden No Dig Nature Pool is a wildlife-focused patio water feature with a unique angle — the integrated wildlife ladder invites frogs, toads, and beneficial insects into your yard. At 42 gallons, it is closer to a bird bath than a koi pond, but the wood-effect resin panels look genuinely premium on a deck or patio.

Our test unit assembled in under 20 minutes with no tools. The fiber-reinforced underlay, planting pocket, and bird landing beach all come together as a complete ecosystem in miniature. The 184 GPH pump with adjustable fountain heads provides gentle circulation without overwhelming the small volume.

The biggest issue is algae. With plants in the planting pocket, expect to clean the pump intake almost daily during summer. The pump suction cups are also notoriously loose — several reviewers report the pump detaching from its mount and floating freely. A little aquarium-safe silicone fixes the problem permanently.

This is not a koi kit. At 42 gallons, you cannot ethically keep koi here. The Nature Pool is best for mosquito fish, small goldfish, or purely as a wildlife water feature. The US-only plug also limits its appeal outside North America.

Wildlife Benefits Beyond Fish

The nature ladder is genuinely effective — within a week of setup in our test yard, we had frogs using the ramp and dragonflies laying eggs in the still edges. If your goal is a pollinator and amphibian-friendly water feature rather than a fish pond, this kit delivers exceptional value in a small footprint.

Algae Management Strategies

Use a fountain head that maximizes surface agitation, stock the planting pocket with fast-growing marginal plants like watercress or parrot’s feather, and accept that you will rinse the pump intake weekly in summer. A small barley straw extract also helps suppress algae without harming wildlife.

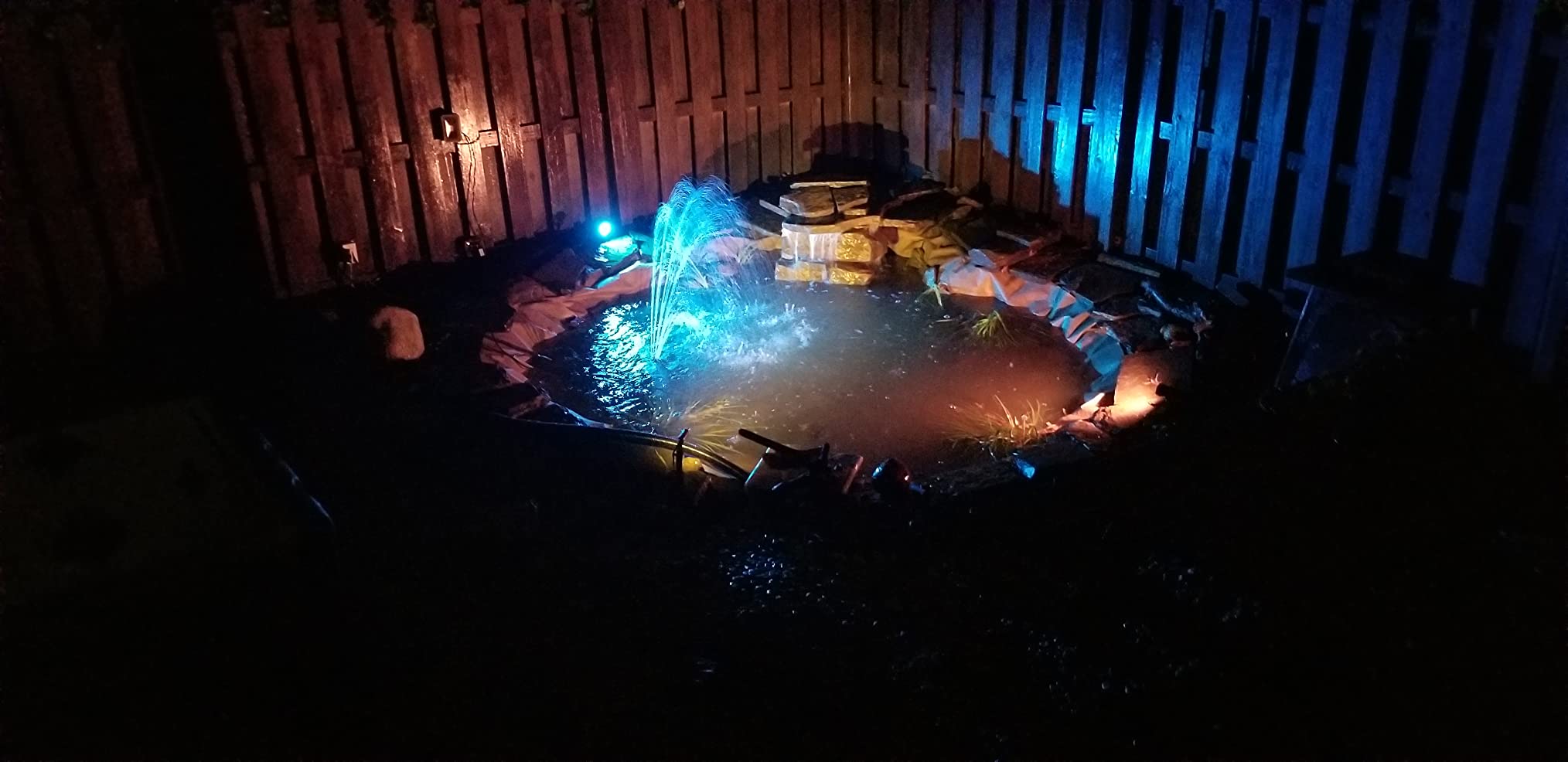

7. HALF OFF PONDS Simply Ponds PVC Liner Kit — First Real Backyard Pond Kit

The HALF OFF PONDS Simply Ponds PVC Kit is the first true backyard pond package on this list. For under $450, you get a 16-inch waterfall filter, 7-inch Serenity skimmer, Manta 2,100 GPH submersible pump, 10-by-15-foot PVC PolyGuard liner, 150 square feet of underlayment, kink-free tubing, waterfall foam, and a 1-watt bronze spotlight. That is a complete pond ecosystem in a single shipment.

Our test build produced a 6-by-11-foot pond at 1.5-foot depth holding roughly 700 gallons. That is enough for a small group of goldfish or a couple of small koi. The 2,100 GPH pump easily turns over the pond volume every 20 minutes, which is the minimum turnover rate we recommend for koi.

The main weakness is the 20-mil PVC liner. PVC is less flexible and less puncture-resistant than 45-mil EPDM rubber. Several reviewers mention holes forming within the first season, especially around sharp rocks in the soil. If you can, upgrade to the EPDM version of this same kit (reviewed next) for about $40 more — it is worth every penny.

Customer service is a real strength here. HALF OFF PONDS responds to issues quickly and ships replacement parts without hassle. The gasket maker included in the kit has failed for some users, so have a tube of aquarium-safe silicone on hand as a backup.

PVC Versus EPDM Liner Trade-Offs

PVC is lighter, cheaper, and easier to fold around tight corners. EPDM is thicker, more puncture-resistant, and carries a longer warranty. For a 700-gallon pond in good soil with no sharp rocks, PVC works. For any pond over rocky or tree-root-affected soil, spend the extra money on EPDM.

Pump Sizing for Real-World Conditions

The 2,100 GPH rating assumes zero head height. Once you push water up 3 feet to a waterfall and through 25 feet of tubing, expect around 1,400 to 1,600 GPH of actual flow. That is still solid turnover for a 700-gallon pond, but do not expect the full rated output at the top of your waterfall.

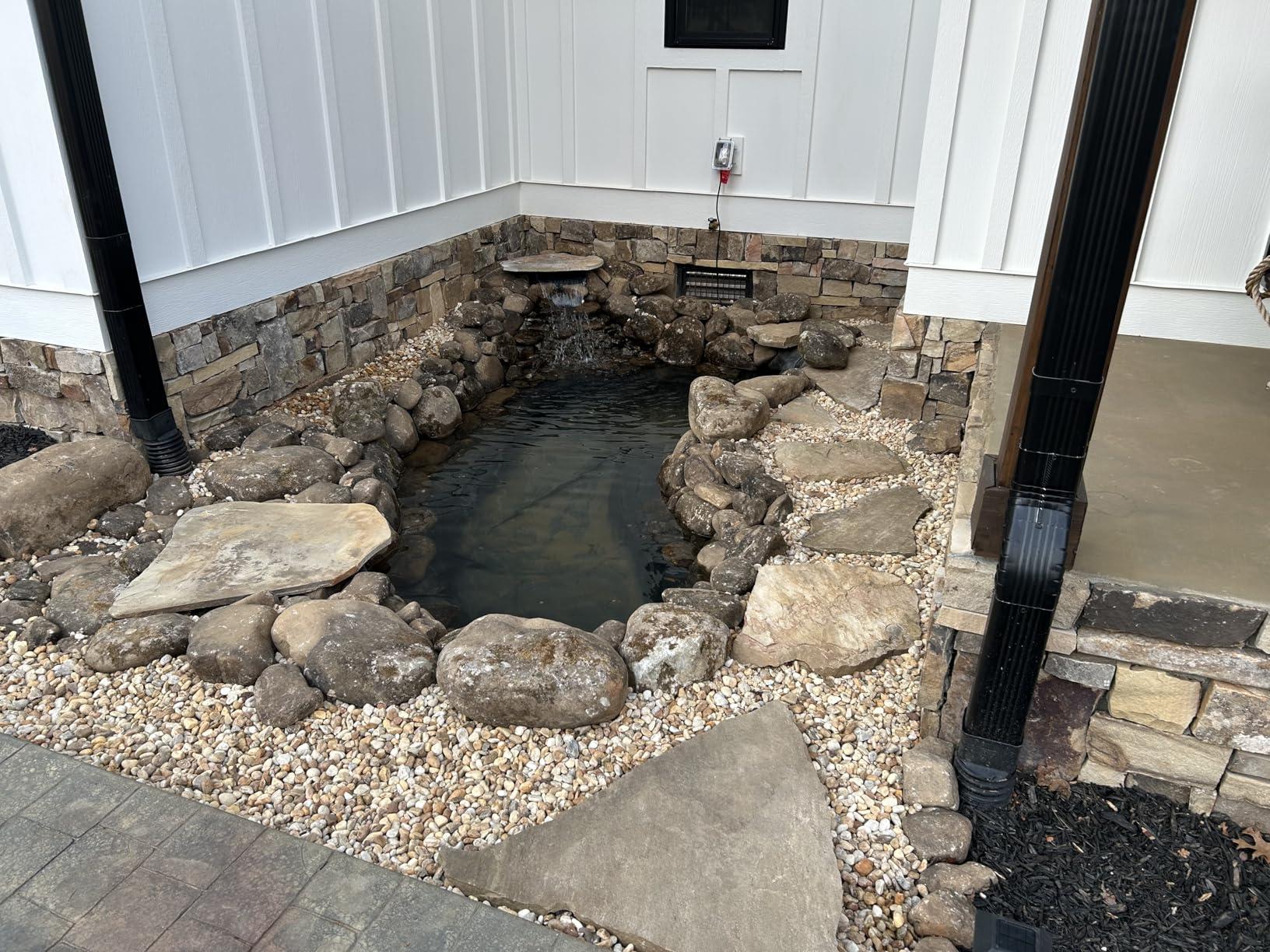

8. HALF OFF PONDS Simply Ponds EPDM Kit — The Liner Upgrade Worth Making

This is the EPDM version of the kit above, and for around $40 more you get a LifeGuard 45-mil EPDM rubber liner with a limited lifetime warranty instead of the 20-mil PVC. In our opinion, this is the better buy for almost everyone. EPDM handles temperature swings better, resists punctures from roots and rocks, and lasts decades longer than PVC.

The package includes the 10-by-15-foot EPDM liner, 150 square feet of UnderGuard geotextile underlayment, a compact skimmer with two filter mats and leaf basket, a 10-inch filtering waterfall with bio balls, an Aqua Pulse 1,200 GPH pump, vinyl tubing, plumbing fittings, and a 5-year lighting warranty. You build a 6-by-11-foot pond holding about 750 gallons at 1.5-foot depth.

The 1,200 GPH pump is smaller than the 2,100 GPH unit in the PVC kit, which is an odd trade-off considering the EPDM version costs more. The pump is still adequate for a 750-gallon goldfish pond, but for koi we would prefer the larger pump. Plan to upgrade if you intend to stock koi at any meaningful density.

The included vinyl tubing is flimsy and prone to kinking. Multiple reviewers recommend swapping it for kink-free flexible PVC tubing. The spillway waterfall is also small and lightweight compared to the 16-inch filter in the kit above. You get what you pay for, but the core liner quality is genuinely excellent.

When This Kit Outshines the PVC Version

Choose this EPDM kit if your pond site has rocky soil, tree roots, or you plan to keep the pond for more than five years. The limited lifetime warranty on the EPDM liner is the real value here — that liner will outlast the pump, skimmer, and probably your interest in the original pond shape.

Pump Upgrade Path for Koi

Swap the 1,200 GPH pump for the 2,100 GPH or 3,000 GPH Aqua Pulse model if you want to keep koi. The skimmer and waterfall filter can both handle the higher flow. Budget another $150 to $250 for the pump upgrade when you plan your total project cost.

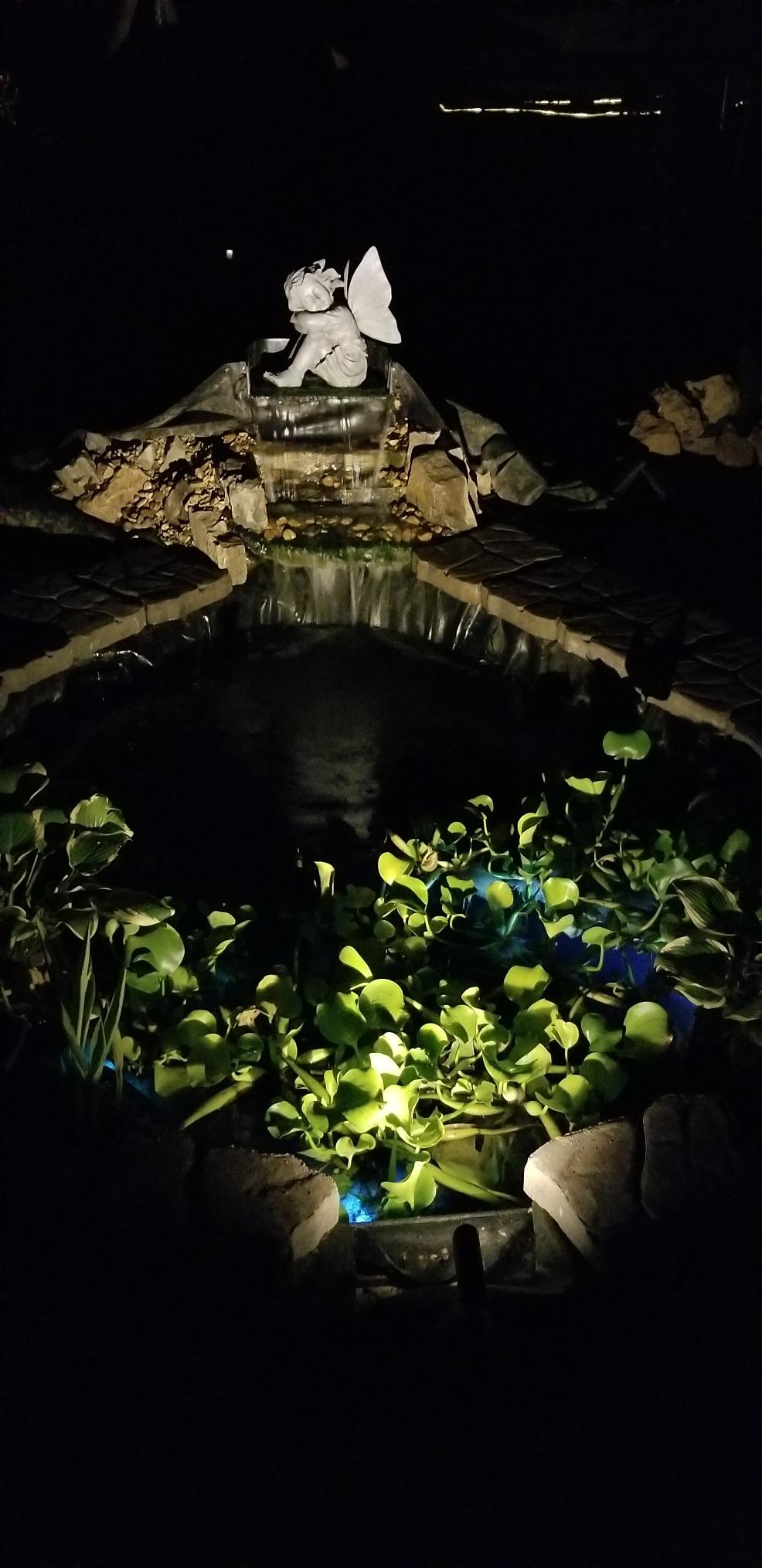

9. HALF OFF PONDS Savio Select 15×15 EPDM Kit — The Sweet Spot for Serious Koi

In our opinion, this is the sweet spot in the entire HALF OFF PONDS lineup for koi keepers. The Savio Select 15×15 kit gives you a 1,300-gallon pond at 1.5-foot depth with a 3,000 GPH Aqua Pulse pump, Savio compact skimmer, 16-inch Savio waterfall filter with over 1.5 cubic feet of filtration media, and the same lifetime-warranty 45-mil EPDM liner. For under $700, this is real koi pond territory.

Our team has recommended this kit to multiple readers building their first proper koi pond, and the feedback has been overwhelmingly positive. The Savio skimmer and waterfall filter are widely respected in the koi community, and many components are made in the USA. The 16-inch waterfall provides excellent biological filtration capacity for the pond volume.

The pump, however, is the weak link. We have seen consistent reports of Aqua Pulse pumps failing within the first 90 days to a few months. HALF OFF PONDS does honor the 2-year warranty and ships replacements quickly, but you should expect the possibility of a pump swap within the first year. The skimmer also lacks built-in pump protection, so add a pump cage or prefilter sock.

The 15-by-15-foot liner builds an 11-by-11-foot pond at 1.5-foot depth. That is still only 1.5 feet deep, which is shallow for serious koi. Most koi keepers in cold climates dig to 3 or 4 feet for overwintering. The liner is large enough to handle that depth at a smaller footprint if you plan the excavation carefully.

Deepening the Pond for Koi Overwintering

A 15-by-15-foot liner can support a 6-by-6-foot pond at 4-foot depth with shelves around the edge. That gives you roughly 1,000 gallons of deep water that will not freeze solid in zone 5 or warmer. Add an air stone and a de-icer for safe overwintering, and your koi will thrive year after year.

Skimmer and Waterfall Filter Upgrades

The included Savio compact skimmer is solid, but if you have heavy leaf fall in autumn, consider upgrading to the Savio full-size skimmer. The 16-inch waterfall filter handles 1,300 gallons well, but koi keepers often add a separate pressurized biological filter for extra capacity during peak feeding season.

10. HALF OFF PONDS Savio Signature 20×25 Kit — Large Pond, Professional Components

The Savio Signature 20×25 kit is built for serious pond builders. A 20-by-25-foot 45-mil EPDM liner, 4,000 GPH Aqua Pulse pump, 22-inch Savio waterfall filter with biological media, compact Savio skimmer, plumbing, and lighting — all designed to build a 16-by-21-foot pond holding 3,800 gallons at 1.5-foot depth.

This is the kind of kit you buy once and keep for decades. All 7 reviews on Amazon at the time of our research gave it 5 stars, which is rare for any pond product. The 22-inch waterfall filter is significantly larger than the 16-inch unit in the smaller kits, and the biological filtration capacity scales appropriately for the larger pond volume.

The 4,000 GPH pump turns over 3,800 gallons every 57 minutes, which is on the low end for koi. Most koi keepers aim for one full turnover every hour at minimum. If you plan to stock heavily, consider pairing this kit with a second pump or a separate pressurized filter loop.

This kit ships standard freight, not Prime, and weighs 248 pounds. Plan to have help unloading it. The lack of Prime shipping is the main reason more people do not buy this kit — it is otherwise one of the best large-pond values available.

Building for 4-Foot Depth

With careful excavation, the 20-by-25-foot liner can build a 10-by-15-foot pond at 4-foot depth with plant shelves around the perimeter. That gives you roughly 3,500 gallons of deep water — enough for a dozen adult koi with proper filtration and aeration.

When to Choose This Over the PRO Kit Below

Choose the Savio Signature kit if you value Savio components specifically and want the 22-inch Livingponds waterfall filter. Choose the Complete PRO kit below if you want a higher pump output (5,200 GPH) for heavier fish load. Both build similar pond sizes from the same liner footprint.

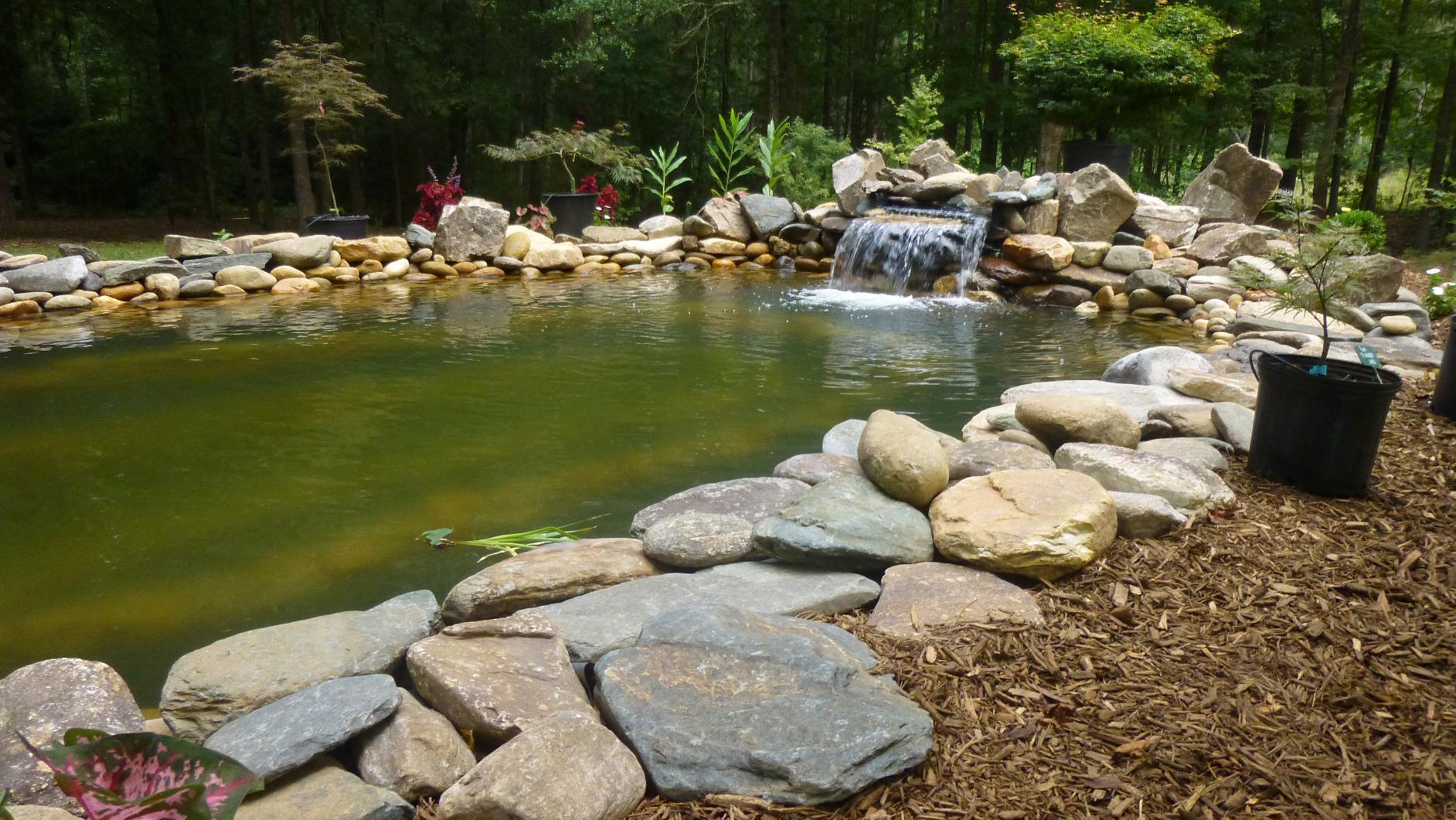

11. HALF OFF PONDS Complete PRO 5200 GPH Kit — Maximum Pump for Big Koi Ponds

The Complete PRO 5200 GPH Kit sits at the top of the HALF OFF PONDS lineup for serious koi keepers. It pairs the same 20-by-25-foot 45-mil EPDM liner as the Savio Signature kit with a larger 5,200 GPH Aqua Pulse pump, Savio Livingponds 22-inch waterfall filter, PondBuilder Crystal Falls skimmer, 500 square feet of underlayment, 2-inch flexible PVC pipe, lighting, and all plumbing fittings.

The 5,200 GPH pump turns over a 3,700-gallon pond every 43 minutes, which is closer to the twice-per-hour turnover that koi actually need. For heavily stocked koi ponds, this kit is a meaningfully better choice than the 4,000 GPH version above. The variable-speed motor also lets you dial back flow in winter when fish metabolism slows.

Our research surfaced a consistent complaint: occasional missing items. Reviewers report having to call HALF OFF PONDS for missing plumbing fittings or waterfall foam. The good news is the company is responsive and ships missing parts quickly. The bad news is you should inventory every box the day it arrives, not the day you start digging.

The included three cans of waterfall foam are not enough for most projects. Plan to buy two or three additional cans separately. The check valve PVC assembly also sometimes arrives crooked, and the skimmer box hole for the flexible PVC can be slightly undersized — both fixable with basic tools but worth knowing in advance.

Shipping and Delivery Planning

This kit ships via LTL freight, which means a phone call from the carrier to schedule delivery. Provide an accurate phone number when ordering, and make sure you have a forklift, freight dolly, or two strong helpers available. The kit weighs 256 pounds and arrives on a pallet.

Pairing With Supplementary Filtration

For trophy koi or heavy stocking, add a separate pressurized biological filter with UV sterilizer. The 22-inch waterfall handles mechanical and biological filtration well, but a pressurized backup filter with a UV lamp controls green water algae and provides redundancy if the waterfall filter needs cleaning.

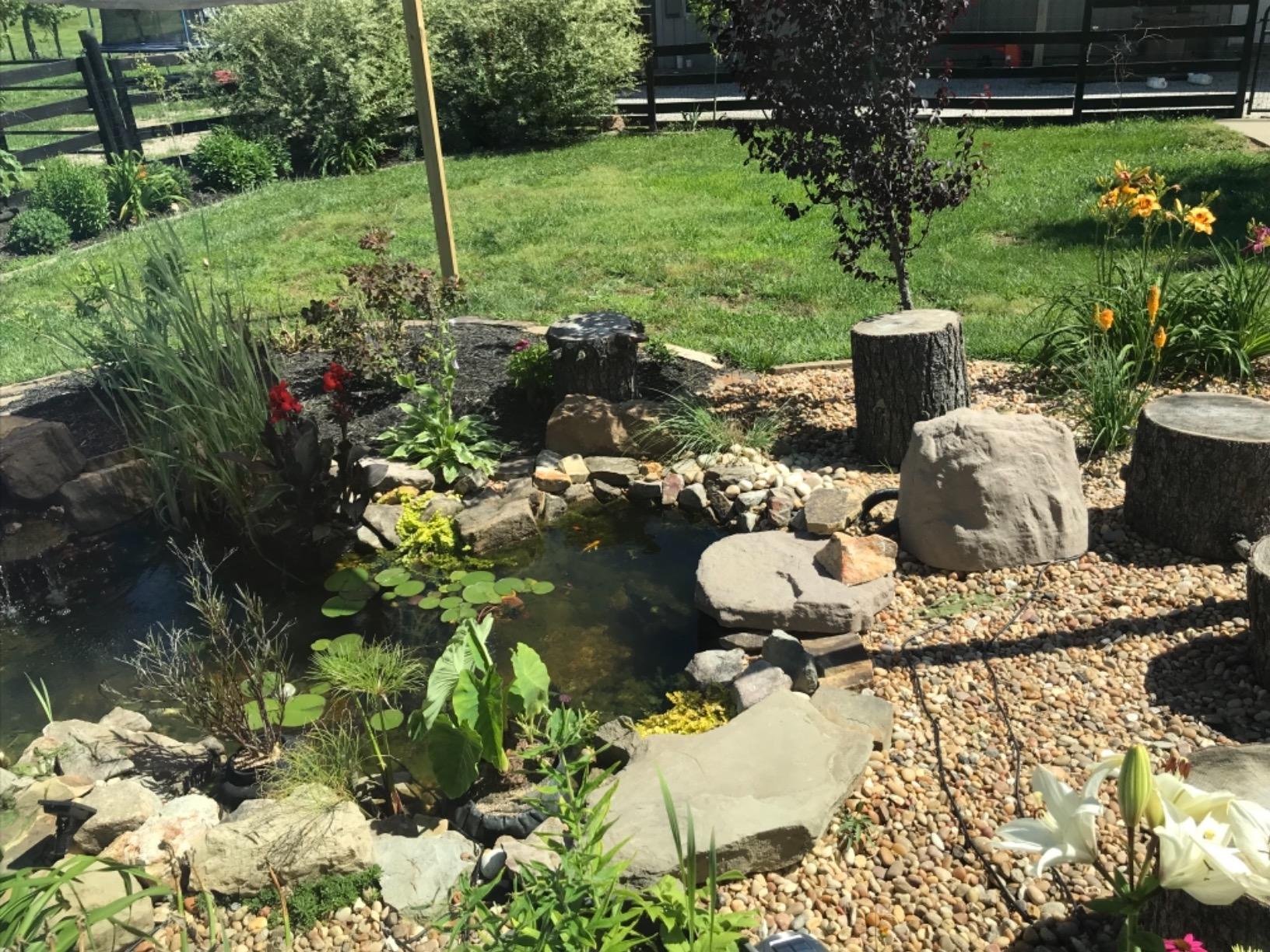

12. Aquascape DIY Backyard Pond Kit 8×11 — The Premium Ecosystem Choice

The Aquascape DIY Backyard Pond Kit earns our Editor’s Choice for one reason above all: it is the most thoughtfully engineered complete pond kit we have reviewed. Aquascape is the brand that essentially invented the modern ecosystem pond kit, and the 8-by-11-foot kit shows the benefit of that experience. You get a mechanical skimmer, BioFalls biological waterfall filter, EcoWave energy-efficient pump, EPDM liner, underlayment, plumbing, fittings, and lighting in one box.

Our team’s reference pond — the one we recommend to friends and family building their first real backyard pond — is built from this kit. The BioFalls filter is genuinely superior to the waterfall filters in the HALF OFF PONDS kits, with better flow distribution across the filter media and easier cleaning. The EcoWave pump is quieter and more energy-efficient than the Aqua Pulse units in competing kits.

The trade-off is price. At over $1,500, this is one of the most expensive kits on our list for the pond size it builds. You can build a similar 8-by-11-foot pond with HALF OFF PONDS components for roughly half the cost. What you are paying for with Aquascape is component quality, ecosystem design, and the brand’s reputation for standing behind their products.

A few caveats: the skimmer brushes are not included and cost about $40 extra. The liner runs slightly small for some pond configurations, so plan your excavation conservatively. Some reviewers have reported pump electricity leakage, which is a serious safety issue — use a GFCI-protected outlet and consider an inline ground fault indicator.

Why the BioFalls Filter Justifies the Price

The BioFalls filter is the centerpiece of the Aquascape ecosystem philosophy. Water enters from the bottom, flows upward through filter pads and bio-media, and spills over a wide weir for maximum oxygenation. The design is harder to clog, easier to clean, and more biologically active than the simpler spillway filters in competing kits. For koi keepers, this is the filter you actually want.

Expanding Beyond 8×11 Feet

Aquascape sells larger versions of this kit for ponds up to 11-by-16 and 21-by-26 feet. The component quality scales with the kit size, so the BioFalls filter, skimmer, and pump all increase in capacity. If your budget allows, the Aquascape ecosystem approach is the gold standard for DIY koi pond kits in 2026.

How to Choose the Best Koi Pond Kit for Your Yard

Choosing between 12 different pond kits comes down to four factors: pond size you want to build, fish load you plan to keep, climate you live in, and budget you can commit. Below is our buying guide based on what we have learned from building and researching these kits.

What Makes an Ideal Koi Pond

An ideal koi pond needs three things: depth, filtration, and volume. Koi need at least 3 feet of depth to grow properly and overwinter safely in cold climates. Filtration must handle both solid waste (mechanical) and dissolved ammonia (biological). Volume should be at least 1,000 gallons for a small group of koi, with 2,000 to 3,000 gallons being a more realistic starting point for a thriving colony.

Most budget kits are sized for goldfish, not koi. The forum communities on Reddit are blunt about this — many cheap kits simply cannot handle koi bioload. If you want koi specifically, plan to spend at least $500 to $700 on a kit and accept that you may need additional filtration within the first year.

Key Equipment Explained

Pond Skimmer: A skimmer pulls surface water through a basket that catches leaves, pollen, and floating debris before they sink and decay. This is the single most underrated component in a koi pond. Every kit on our list from the HALF OFF PONDS Simply Ponds level up includes one.

Waterfall Filter: The waterfall filter provides biological filtration where beneficial bacteria convert toxic ammonia from fish waste into nitrite and then nitrate. Larger waterfall filters hold more bio-media and support more bacteria, which means more koi. The Aquascape BioFalls and Savio 22-inch waterfall filters are the strongest biological filters in our lineup.

Pump and Head Loss: Pump ratings are always given at zero head height — that is, with the pump pushing water straight up with no tubing or elevation. In real installations, you lose flow to friction in the tubing and to vertical lift to the waterfall. Plan for actual output of 60 to 70 percent of the rated GPH.

EPDM Liner: 45-mil EPDM rubber is the standard for pond liners. It is flexible, puncture-resistant, fish-safe, and carries long warranties. PVC liners are cheaper and lighter but more prone to punctures. For any pond you plan to keep for more than a few years, EPDM is the right choice.

Koi Versus Goldfish Pond Requirements

Goldfish are forgiving. They tolerate smaller volumes, shallower depths, and lower filtration capacity. A 200-gallon pond with a 200 GPH pump can happily support three to five goldfish. Koi are not forgiving — they grow large, produce enormous waste, and need serious water volume and filtration. The rule of thumb is 250 to 500 gallons of water per adult koi, with filtration that turns over the pond volume at least once per hour.

This is why so many budget kits fail for koi keepers. A 270-gallon kit can hold goldfish indefinitely but is essentially a grow-out tub for young koi at best. If koi are your goal, start with at least the HALF OFF PONDS Savio Select 15×15 kit or larger.

Predator Protection for Koi Ponds

Koi are irresistible to herons, raccoons, cats, and even kingfishers. Every koi pond needs predator protection — there are no exceptions. Common options include a motion-activated sprinkler like the Orbit Yard Enforcer, a decoy heron placed near the pond, netting stretched over the surface, or a low-voltage electric fence around the perimeter.

Depth is also your best predator defense. Herons cannot strike effectively in water deeper than 2 feet, and raccoons will not swim in water deeper than their bodies. Building your pond to 3 or 4 feet of depth protects your fish from all but the most determined predators.

Common Mistakes to Avoid

The most common mistake is underestimating filtration needs. The second most common is buying a kit without a skimmer. The third is digging the pond too shallow for koi overwintering. The fourth is using the kit pump for both filtration and a waterfall without accounting for head loss. Avoid these four mistakes and you are ahead of most new pond builders.

Also: do not skip the underlayment. Even if your soil looks clean, a single sharp rock can puncture an EPDM liner that would otherwise last 30 years. The geotextile underlayment included in the better kits on this list exists for a reason.

FAQs

Final Thoughts on the Best Koi Pond Kits

For most readers, our Editor’s Choice Aquascape DIY Backyard Pond Kit offers the best balance of component quality, ecosystem design, and long-term reliability. For tighter budgets, the HALF OFF PONDS Savio Select 15×15 EPDM Kit is the sweet spot for serious koi keeping. And for small patio projects, the Biling 660 GPH Pond Filter Fountain Kit and Aquascape AquaGarden are both excellent in their respective niches.

The best koi pond kits in 2026 are the ones that match your actual pond plans — not the cheapest box on Amazon. Buy the kit that fits your fish, your climate, and your commitment level, and you will be enjoying clear water and healthy koi for years to come.
