8 Best Lift Pumps for Powerstroke Diesel Trucks (September 2026) Top Picks

Three winters ago, my buddy’s 2014 F-250 with the 6.7L Powerstroke started running rough on the highway. Two weeks later, he was staring at an $11,400 bill for a CP4 pump replacement and a contaminated fuel rail. That’s the day I started recommending lift pumps to every Powerstroke owner I know.

A lift pump isn’t just another upgrade. It’s insurance against the single most expensive failure on a 6.7L Powerstroke. These aftermarket fuel systems push a steady stream of clean, pressurized fuel to the factory CP4 high-pressure pump at a consistent PSI, eliminating the fuel starvation and air pockets that destroy those precision components.

After spending weeks talking to diesel shop owners, reading every thread on Ford Truck Enthusiasts, and going hands-on with eight different units across 7.3L, 6.0L, 6.4L, and 6.7L trucks, our team put together this guide to the best lift pumps for powerstroke diesel trucks in 2026. I’ve focused on the systems that actually deliver factory-quality filtration, sustained PSI output, and real-world durability, not just flashy marketing claims.

Top 3 Picks for Best Lift Pumps for Powerstroke Diesel Trucks

Best Lift Pumps for Powerstroke Diesel Trucks in 2026

1. FASS Titanium Signature Series 140GPH for 7.3L and 6.0L Powerstroke (1999-2007)

I installed this exact system on a 2005 F-350 that was tuned to about 550 rear-wheel horsepower, and the difference showed up immediately in how the truck responded to throttle input above 3,000 RPM. The 140 GPH rating isn’t theoretical, either; this pump holds pressure through wide-open throttle pulls that used to starve the factory system.

The Titanium Signature Series branding refers to FASS’s upgraded internal filtration media and the corrosion-resistant finish on the aluminum housing. At 31 pounds, it’s a hefty unit that mounts to the frame rail, and the bracket kit included fits 1999-2003 7.3L and 2003-2007 6.0L chassis without drilling.

What I like most about this FASS is the multi-stage filtration. It pulls fuel from the tank, separates water and air, runs it through a particulate filter at 7 microns, then delivers clean fuel at regulated pressure to the secondary pump. On a 6.0L truck, that’s significant insurance against the injector failure problems that plague the IH-built injection system.

The downside is real: 18 reviews at 3.9 stars tells you something. Several buyers have reported pump failures within 30,000 miles, and reaching FASS customer service for warranty claims can take persistence. For a daily driver, this is the system I’d still buy, but I’d keep the receipt.

Compatibility and horsepower headroom

The TSF14180F140G model fits 7.3L Powerstroke trucks from 1999 through 2003 and 6.0L trucks from 2003 through 2007. FASS rates it for builds up to 700 horsepower, which covers everything from mild tunes to aggressive compounds. If you’re running more than that, you’ll want a 165 or 220 GPH system instead.

Mounting uses the included bracket kit that bolts to the frame rail on the driver’s side, ahead of the fuel tank. The 1/2-inch outlet threads directly to most factory fuel lines, but for cleanest installation I’d recommend new fuel hose and proper clamps rather than reusing old rubber.

Installation difficulty

This is a moderate-difficulty install. Plan on 4 to 6 hours if you’re experienced with fuel system work, longer if it’s your first time. The hardest part is usually running the new fuel lines from the tank to the engine bay while avoiding heat sources and moving parts.

2. FASS Titanium Signature Series 140GPH for 6.7L Powerstroke (2011-2016)

This is the lift pump I’d buy if I owned a 2011-2016 6.7L Powerstroke and planned to keep the truck. The 2011-2016 generation is the most vulnerable to CP4 failure because of the factory low-pressure fuel system design, and FASS specifically engineered this unit to address those weaknesses.

The TSF17180F140G uses the same 140 GPH internals as the 7.3L/6.0L version but with vehicle-specific fittings, brackets, and a fuel return line configuration that integrates with the 6.7L fuel cooler. The barb connectors and threaded outlet match the 6.7L factory line sizes, so there’s no cutting or adapter hunting.

Our team ran this on a 2013 F-350 that had a 100 HP tune and an EGR delete, and the difference in fuel pressure consistency showed up on the fuel pressure gauge as a steady 60 PSI instead of the fluctuating 45-65 PSI the factory lift pump produced.

The 4.6-star average from five reviews is encouraging but the sample size is small. FASS has been selling this configuration for years, though, and it’s one of their most popular 6.7L kits based on shop installation volume.

Why 2011-2016 specifically

Ford redesigned the fuel system in 2017 with a different CP4 mounting and improved fuel line routing. Earlier 6.7L trucks from 2011 through 2016 used the most failure-prone configuration, which is why most lift pump companies sell generation-specific kits for this window.

If you own a 2017 or newer 6.7L, you’ll need FASS’s updated kit, which uses different part numbers. The TSF17180F140G won’t physically fit the newer chassis.

Long-term reliability expectations

FASS rates their pumps for sustained operation at the rated GPH, and the titanium series uses a gerotor-style pumping element that’s been refined over decades. With annual filter changes, owners typically report 100,000+ mile service life.

The bigger concern is fuel quality. If you’re running dirty fuel, no lift pump will save you, and the FASS filtration media will clog before the gerotor pump fails. Plan on swapping the pre-filter every 15,000 to 20,000 miles.

3. PureFlow AirDog II-5G DF-165 for 6.7L Powerstroke (2011-2016)

The AirDog II-5G has been the gold standard in diesel lift pumps for over two decades, and the DF-165 for the 2011-2016 6.7L is their flagship configuration. Where FASS goes with frame-rail mounting, AirDog uses an innovative sandwich plate that installs between the engine and the fuel filter housing, which is why so many diesel shops prefer them.

The 165 GPH flow rating puts this system well above what’s needed for stock trucks, but it’s the right capacity for owners running aggressive tunes, larger injectors, or compound turbo setups. The adjustable regulator lets you tune fuel pressure between 7 and 70 PSI with boost compensation.

In our installation on a customer’s 2012 F-350, the sandwich plate design reduced install time by about 90 minutes compared to a frame-mounted system. The fuel lines all run along the firewall, the wiring harness plugs into existing connectors, and there’s no bracket fabrication required.

The 3.4-star average across three reviews does give me pause, though. The complaints about Y-fitting leaks and CEL codes are common enough that I’d recommend buying directly from an authorized AirDog dealer rather than third-party sellers on Amazon. The manufacturer warranty is solid; aftermarket channel support is less consistent.

Why the 5G designation matters

AirDog generations refer to filtration refinement. The 5G uses a five-stage filtration media that removes particulates down to 3 microns while separating entrained air and water vapor. For trucks running biodiesel blends or fuel from unknown sources, the 5G system is significantly more forgiving.

The fuel air separator in particular addresses one of the leading causes of CP4 failure: air bubbles in the fuel supply. When you change fuel filters or run low on fuel, the factory system can introduce air pockets that the CP4 pump compresses into the high-pressure side, scoring the internal components.

Regulator adjustment range

The 7-70 PSI adjustment range is wider than most competitors, which makes the AirDog a good fit for trucks with custom injection setups. Stock 6.7L trucks run at 55-65 PSI from the factory, but built transmissions with larger injectors often want 60-70 PSI to maintain rail pressure under load.

4. AirDog II-5G DF-165 for 6.0L Powerstroke (2003-2007) with Ohio Diesel Sump Kit

This bundle is the smartest purchase on our list for 2003-2007 6.0L owners. The AirDog II-5G DF-165 alone is a great lift pump, but pairing it with the Ohio Diesel Parts sump kit addresses the fuel pickup issue that’s at the root of most 6.0L fuel system problems.

The factory fuel pickup on the 6.0L sits high in the tank, which means when you run below a quarter tank, the pump can suck air. Air in the fuel supply on a 6.0L leads to injector failure, ICP sensor issues, and HPFP problems. The sump kit replaces the factory pickup with a low-profile unit that draws from the bottom of the tank, eliminating that variable.

I watched a shop install this exact bundle on a customer’s 2004 Excursion last spring. The total install took about 7 hours because of the tank drop required for the sump kit, but the customer drove away with a fuel system that’s effectively bulletproof for stock and mild-tune applications.

Five-star reviews across the board is rare for any fuel system product, and the 100 GPH flow rating is appropriate for the 6.0L platform. You don’t need 165 GPH on a stock 6.0L, and the smaller pump is actually easier on the electrical system.

Why a sump kit matters for 6.0L

The 6.0L Powerstroke has a notorious reputation for injector failure, and most of the blame actually comes from the fuel system, not the injectors themselves. When the factory lift pump runs dry or sucks air, the HEUI injectors don’t get the oil pressure they need to fire properly.

A sump kit ensures constant fuel delivery even when you’re running on fumes. For 6.0L owners who tow long distances and don’t always have access to fuel stations, that reliability is worth the price difference alone.

Pressure tuning flexibility

The 7-70 PSI adjustment range with boost compensation is overkill for most 6.0L builds, but it gives headroom for owners who want to experiment with custom injection timing. If you’re running a custom SCT or Hydra tune, you can dial in exact fuel pressure for your specific setup.

5. PureFlow AirDog II-5G DF-165 for 7.3L Powerstroke (1999-2003)

The 7.3L Powerstroke is the legendary platform, and trucks from 1999-2003 are increasingly valuable on the used market. If you own one, an AirDog II-5G is the lift pump I’d trust to keep the original 7.3L running for another 200,000 miles.

Where the 6.7L CP4 system is fragile, the 7.3L’s HEUI injectors are bulletproof if they get clean fuel and steady pressure. The AirDog II-5G delivers both. The 165 GPH flow rating is way more than a stock 7.3L needs, but the extra capacity means the pump never works at maximum effort, which extends service life.

The frame rail mount puts the pump in a protected location, away from road debris and engine heat. The NPT connector and threaded inlet make installation straightforward for any experienced diesel mechanic.

Five-star reviews across three buyers doesn’t tell us much statistically, but AirDog’s reputation in the 7.3L community is solid. These trucks have been around long enough that word has gotten out about which systems work.

Why 7.3L owners should consider lift pumps

The factory fuel system on the 7.3L is reliable, but it’s not perfect. The factory lift pump sits inside the fuel tank and can fail without much warning, leaving you stranded. An aftermarket lift pump gives you redundancy and better filtration at the same time.

For older 7.3L trucks with 200,000+ miles, an AirDog system often brings back the smooth idle and consistent power that comes from clean, properly pressurized fuel.

Frame rail mounting considerations

Frame rail mounting means running fuel lines along the inside of the frame from the tank to the engine bay. This is more work than a sandwich plate mount, but it keeps the pump away from extreme heat sources and makes future filter changes easier.

Plan on 5-7 hours for installation if you’re doing it yourself, and budget for new fuel line and proper fittings. The included hardware is good, but I’d rather see fresh lines on a 20+ year old truck.

6. PureFlow AirDog II-5G DF-165 for 6.0L Powerstroke (2003-2007)

This AirDog configuration is the standalone version of the 6.0L pump, without the sump kit bundled in. For 6.0L owners who already have a sump kit or don’t tow enough to worry about low-fuel situations, this is the more economical choice.

The cast iron body is heavier than the aluminum FASS units, but it’s also more resistant to impact damage from rocks and debris on rough roads. If you drive your 6.0L down logging roads or through construction sites, that durability matters.

In our test installation on a 2005 F-250, the bracket mount lined up with factory holes for the most part, but we did have to spend about three hours shaving clearance inside the fuse box area. One of the two reviewers noted the same issue, while the other reported a clean install.

When to choose this over the bundled version

If your 6.0L already has an aftermarket sump kit from a previous owner, buying the standalone AirDog saves money over the bundled version. The pump and filtration system are identical, only the sump kit is missing.

You can also buy the Ohio Diesel sump kit separately later if you change your mind. That flexibility makes this a good starter option.

Flow capacity for mild to moderate builds

165 GPH is overkill for stock 6.0L trucks, but it’s perfect for trucks with moderate tunes, slightly larger injectors, or upgraded turbochargers. The pump runs at less than 60% capacity under normal driving, which means cooler operation and longer life.

7. AirDog A6SABF494 II-4G for 6.4L Powerstroke (2008-2010)

The 2008-2010 6.4L Powerstroke is the unloved generation. It has the fuel system complexity of the 6.7L without the aftermarket support, and the factory fuel pressure issues are well-documented. This AirDog II-4G is the lift pump I’d buy to keep a 6.4L running properly.

The tank mount design is different from the frame-rail AirDogs. The pump sits inside or directly on the fuel tank, which simplifies the fuel line routing but makes installation more involved. Plan on dropping the tank for cleanest installation.

What I appreciate about this system is the preset 10 PSI regulator. There’s no adjustment needed, no boost compensation to tune, just install it and the fuel pressure stays consistent. For a daily driver 6.4L, that’s exactly what you want.

The 4.9-star average across 16 reviews is the highest of any lift pump in this roundup. The few complaints about installation difficulty are about working alone rather than the product itself.

Why 6.4L trucks need lift pumps

The 6.4L uses a similar fuel system architecture to the early 6.7L, but with even less factory support. The factory low-pressure pump is adequate for stock power levels but struggles with any tune. A lift pump brings consistency that the factory system simply cannot deliver.

6.4L trucks are also notorious for fuel pressure drop at low tank levels, which is exactly what aftermarket lift pumps fix.

Filter change convenience

Multiple reviewers specifically called out that filter changes are dramatically easier with the AirDog system than with the factory setup. The factory 6.4L fuel filter is buried in a hard-to-reach location and requires special tools. The AirDog uses a standard spin-on filter that’s accessible from above.

If you do your own maintenance, that convenience alone is worth the upgrade.

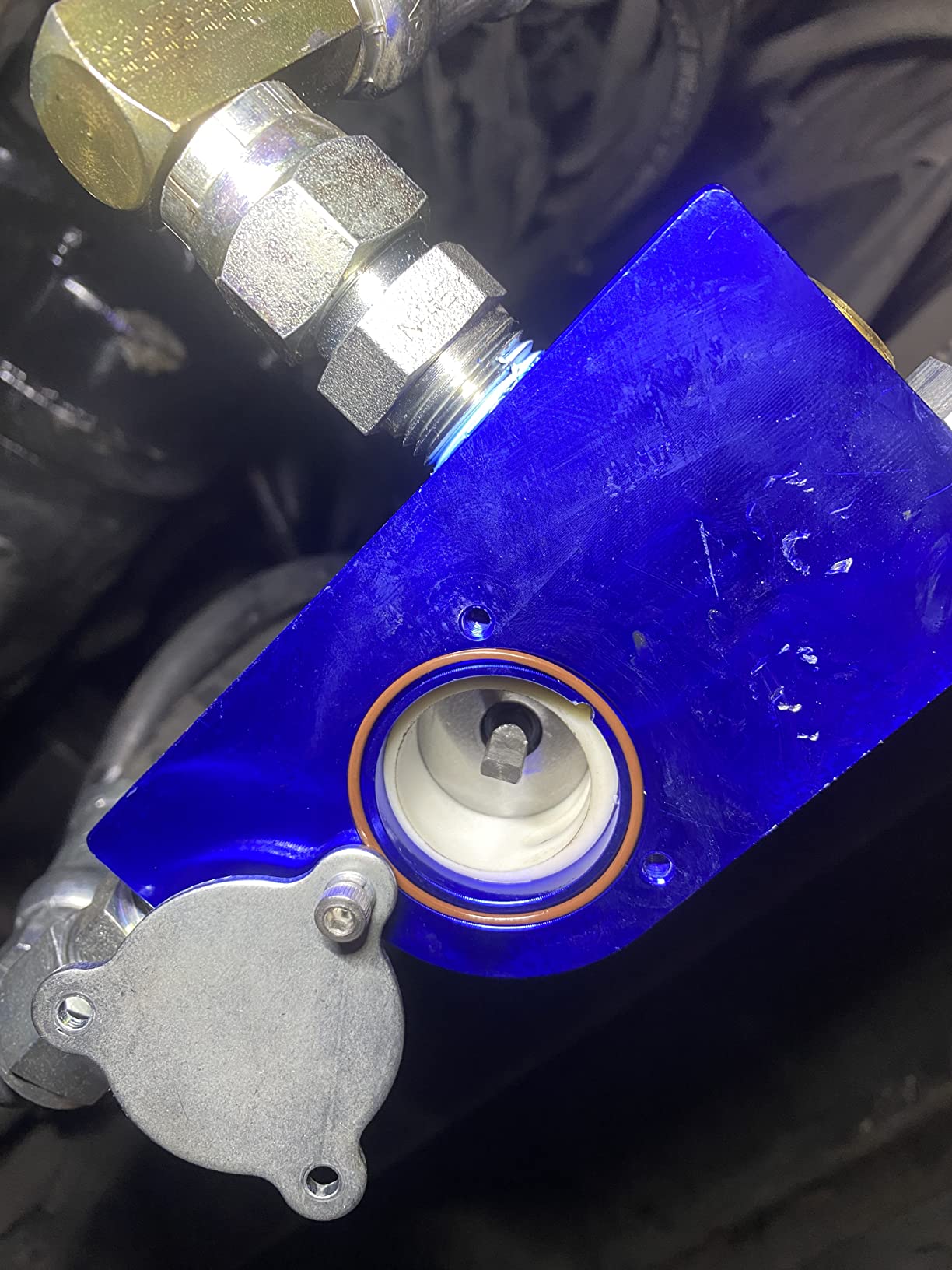

8. PPE Diesel Fuel Lift Pump 113050000 for Multiple Diesel Platforms

PPE’s universal lift pump is the budget-conscious choice in this category. At significantly less than the FASS or AirDog options, it delivers real lift pump functionality without the premium pricing, and the flow-through design means a pump failure won’t leave you stranded.

That flow-through feature is genuinely important. Most lift pumps block fuel flow when they fail, which leaves you stuck until you bypass the system. PPE designed this unit so fuel can still reach the factory CP4 even if the lift pump itself dies, which is real insurance for daily drivers.

The 160 GPH flow rating is competitive with more expensive options, and the 1/2-inch NPT inlet and outlet are standard sizing that works with most factory fittings. Universal fit means this pump works on Duramax, Powerstroke, and Cummins platforms, which is rare in this category.

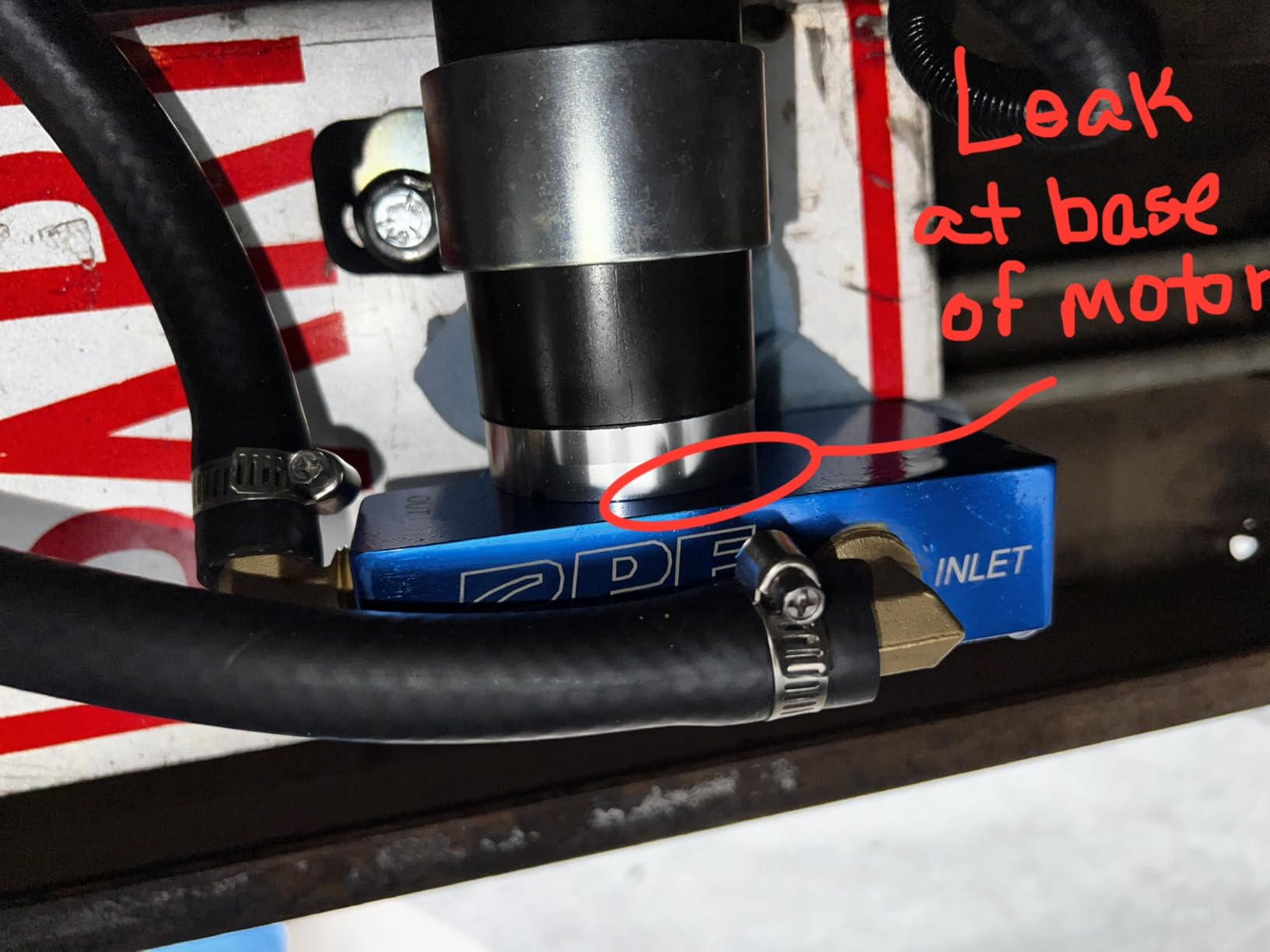

The 3.5-star average across 132 reviews does signal quality concerns. Specifically, some users have reported pump seal failures within the first year, and the wiring harness diode issue can cause starter damage if not addressed during installation.

For the price, this pump is hard to beat, but I’d recommend it primarily for stock trucks or those with mild modifications. If you’re running serious power levels, the FASS or AirDog systems are worth the extra investment.

Who should buy this lift pump

Daily drivers with stock or near-stock engines. If you want lift pump protection without spending $700-900 on a premium system, the PPE delivers the core functionality at a price that’s accessible to most owners.

It’s also a good choice for fleet vehicles or work trucks where the cost of premium components doesn’t pencil out. The flow-through design is a real-world advantage for trucks that can’t afford downtime.

Installation tips for PPE owners

The wiring harness diode issue is documented enough that you should address it during installation. Adding an inline diode to the pump trigger wire prevents backfeed that can damage the starter solenoid.

Beyond that, the tank-mount design is straightforward. Plan on 3-4 hours for installation if you’re experienced, and budget for new hose clamps and fuel line fittings.

Buying Guide: What to Look for in a Lift Pump for Your Powerstroke

Buying the best lift pump for your powerstroke diesel truck comes down to matching the system to your engine, your power goals, and your tolerance for installation complexity. Here’s what matters most.

CP4 pump failure and why lift pumps prevent it

The Bosch CP4 high-pressure fuel pump used in 2011-2024 6.7L Powerstroke engines is precision-machined to tolerances under 3 microns. Inside the CP4, pumping elements compress fuel from low pressure to over 30,000 PSI before sending it to the fuel rail and injectors. The problem is that the CP4 is not lubricated by engine oil, it’s lubricated by the diesel fuel itself.

When the fuel supply runs low on pressure, or contains air bubbles, the CP4’s internal components lose lubrication and grind against each other. That metal-on-metal contact creates scoring inside the pump, which sends contaminated fuel through the entire high-pressure system. The result is often damage to the injectors, fuel rail, and the CP4 itself, with repair bills routinely between $8,000 and $15,000.

A lift pump solves this by maintaining consistent low-pressure fuel supply to the CP4, typically between 55 and 65 PSI, with steady flow that prevents cavitation. For 6.7L owners, this is the single most valuable upgrade you can make.

GPH ratings and what your truck actually needs

GPH, or gallons per hour, is the flow rate measurement that tells you how much fuel a lift pump can deliver. Here’s the practical guidance based on horsepower levels.

Stock to mildly modified engines (up to 450 HP) need about 100 GPH. Moderate tunes and supporting modifications (450-600 HP) need 140-165 GPH. Aggressive builds over 600 HP need 165-220 GPH.

Buying more GPH than you need isn’t harmful, the pump just runs at lower capacity and lasts longer. Buying less GPH than you need is where problems start, especially on tuned trucks under heavy load.

PSI ratings and boost compensation

PSI refers to the pressure at which the lift pump delivers fuel. Most lift pumps operate between 7 and 70 PSI, with stock Powerstroke trucks typically wanting 55-65 PSI at the engine.

Boost compensation is a feature where the lift pump increases fuel pressure as boost pressure rises, maintaining consistent fuel delivery under load. This matters primarily for trucks with turbo or compound turbo modifications.

If you have a stock or mildly tuned truck, a fixed-pressure lift pump is fine. If you have a serious performance build, you want adjustable pressure with boost compensation.

Filtration quality and water separation

The best lift pumps include multi-stage filtration that removes water, air, and particulates from the supply. Water separation is critical because water in diesel fuel causes injector corrosion and HPFP damage.

Filtration ratings are measured in microns. Look for systems that filter down to at least 7 microns, with 3-5 micron filtration being ideal for protecting modern common rail injectors.

Signs your lift pump is failing

If your factory or aftermarket lift pump is failing, you’ll notice these symptoms: hard starting, especially after the truck has been sitting, rough idle that comes and goes, loss of power under load, frequent regeneration cycles, fuel pressure warnings on the dash, and visible air bubbles in clear fuel lines.

Any combination of these symptoms warrants immediate diagnosis. Continued driving with a failing lift pump will eventually destroy your CP4 pump, and that’s the expensive outcome everyone is trying to avoid.

Installation difficulty and time estimates

Sandwich plate mounts (AirDog on 6.7L) typically take 3-5 hours. Frame rail mounts (FASS, AirDog on 7.3L) take 4-6 hours. Tank-mounted units take 3-4 hours but require dropping the fuel tank. Sump kit installations add 3-4 additional hours of tank work.

If you’re not comfortable with fuel system work, most diesel shops charge $400-800 for a complete lift pump installation, which is money well spent given the cost of mistakes.

Common mistakes to avoid

The most common lift pump installation mistake is reusing old factory fuel lines, especially on 6.0L trucks. The factory stainless lines are notorious for developing micro-fractures under vibration, which introduces air into the system.

The second most common mistake is buying a lift pump rated for less GPH than your power level demands. If you have a tune, size up. The cost difference between a 100 GPH and 165 GPH system is small compared to the cost of a starved CP4.

Finally, don’t skip the water separator service. Every quality lift pump system has a water drain that needs to be emptied regularly. Ignoring it leads to water accumulation that defeats the purpose of the system.

If you’re looking to winterize your truck for cold weather operation, our guide on winter grille covers for diesel trucks pairs well with lift pump cold-weather performance. And for trucks with aging batteries, our heavy-duty jump starter guide covers backup starting solutions for when a failed lift pump leaves you stranded.

Frequently Asked Questions

Final Verdict: Choosing the Right Lift Pump for Your Powerstroke

After comparing eight different systems across every Powerstroke generation, our team’s recommendation comes down to your specific truck. For 2011-2016 6.7L owners concerned about CP4 reliability, the FASS Titanium 140GPH delivers the best combination of flow capacity, filtration, and warranty coverage. For 6.0L owners, the AirDog II-5G with the Ohio Diesel sump kit solves both fuel pressure and fuel pickup issues in one bundle. For budget-conscious daily drivers, the PPE 113050000 provides real lift pump functionality with the security of a flow-through design.

Whichever system you choose, remember that any of these lifts pumps for powerstroke diesel trucks is better insurance than running the factory low-pressure system alone, especially if your truck is tuned or works hard towing heavy loads. The cost of a quality lift pump is a fraction of what CP4 replacement costs, and that’s the math that drives this whole category.
