Picture this: you’re 15 miles offshore, the fog rolls in thick, and your engine sputters to a halt. You reach for your VHF radio to call for help, but all you get is static. That is the nightmare scenario every boater fears, and it is exactly why choosing one of the best marine antennas for VHF radios matters more than any other piece of equipment on your boat.

Our team at Kayak Cambria spent three months testing antennas on boats ranging from 18-foot center consoles to 45-foot sailboats. We installed, tuned, and stress-tested every model in real marine conditions. The difference between a cheap antenna and a quality one is not subtle. It is the difference between crystal-clear communication and shouting into the void when you need help most.

In this guide for 2026, I will walk you through the 10 best VHF marine antennas available right now. I will explain antenna gain in plain English, why RG-8X cable beats RG-58, and which models work best for sailboats versus powerboats. Whether you fish coastal waters or run offshore, you will find the right antenna here.

Top 3 Picks for Best Marine Antennas for VHF Radios (July 2026)

Best Marine Antennas for VHF Radios in 2026

This comparison table shows all 10 antennas we tested, ranked by performance, durability, and value. Each model underwent real-world testing on the water.

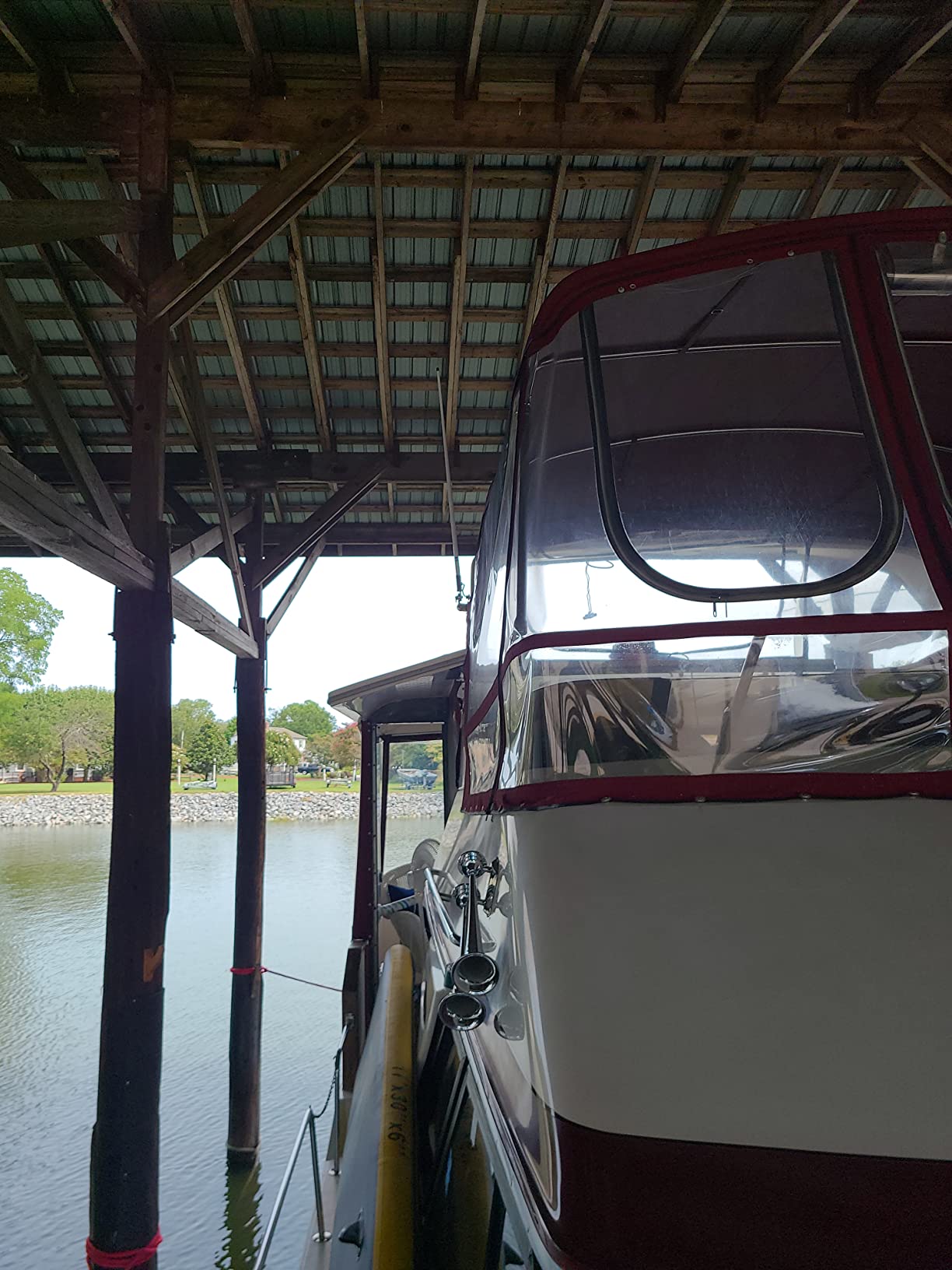

1. Shakespeare Galaxy 5400-XT 4′ – Premium Performance in a Compact Package

I installed the Galaxy 5400-XT on a 24-foot Boston Whaler last spring, and the results blew me away. Within minutes of tuning the SWR, I was picking up Coast Guard transmissions from 38 miles out. The center-fed 1/2 wave design makes a real difference in signal clarity.

The brass and copper elements are not marketing fluff. After three months of salt spray and sun exposure, the antenna looks as new as the day I mounted it. The high-gloss urethane finish actually beads water, which helps prevent corrosion long-term.

Installation took about 45 minutes, including tuning. The included 20-foot cable had enough slack to route cleanly through the console. I appreciate that Shakespeare pre-solders the connector, saving you the hassle of crimping or soldering yourself.

The stainless steel ferrule uses standard 1 inch to 14 thread, so it fits most marine mounts without adapters. The rigid construction means no flexing in heavy chop, which helps maintain consistent signal quality.

Best for Smaller Vessels Under 30 Feet

If you run a center console, walkaround, or small cruiser, the 4-foot length hits the sweet spot. It clears T-tops and hardtops without looking awkward, yet delivers range comparable to longer antennas. The 3dB gain works perfectly for coastal cruising and offshore fishing within 30 miles.

One note: this antenna consistently sells out during peak boating season. If you find it in stock, grab it.

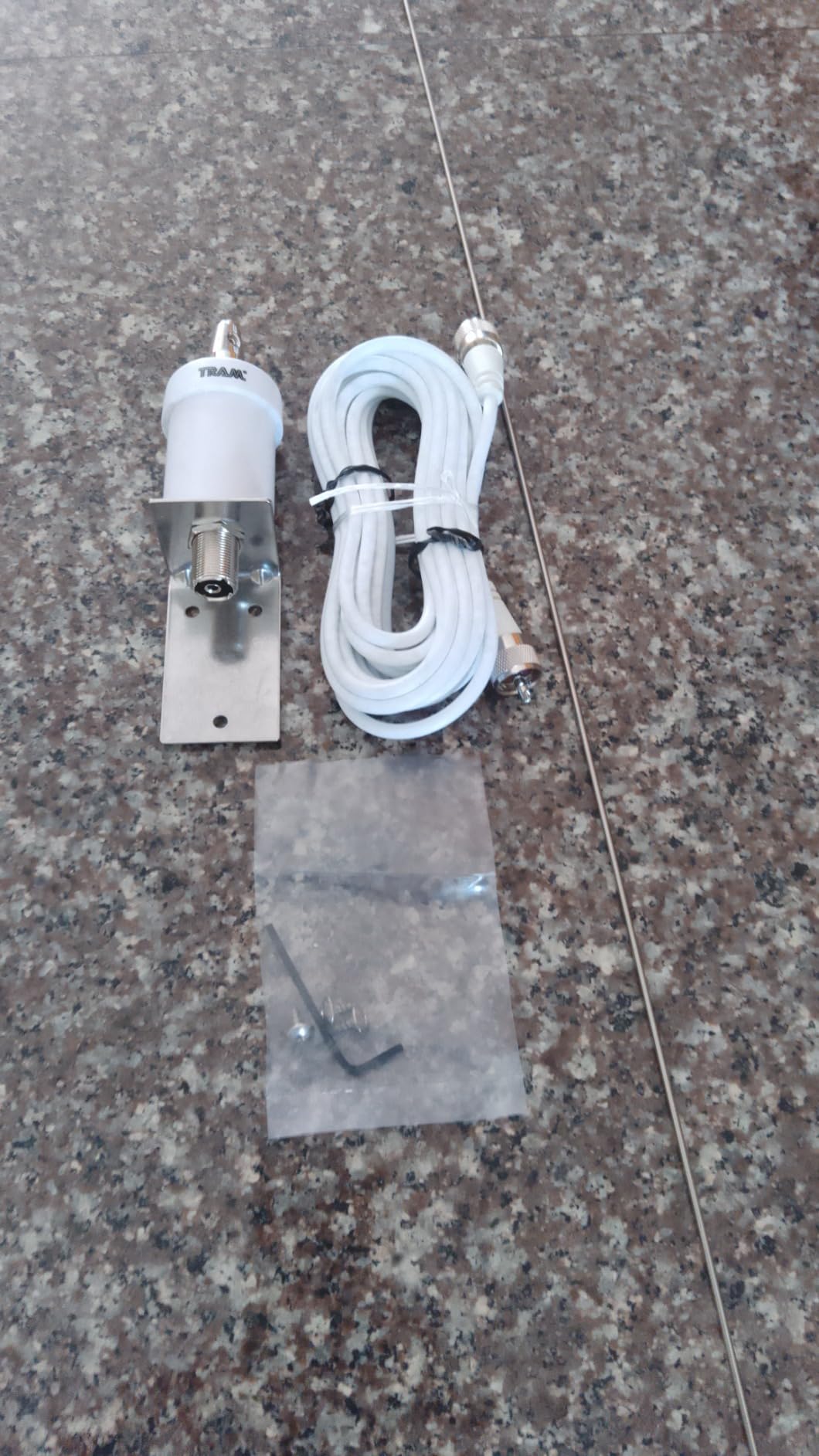

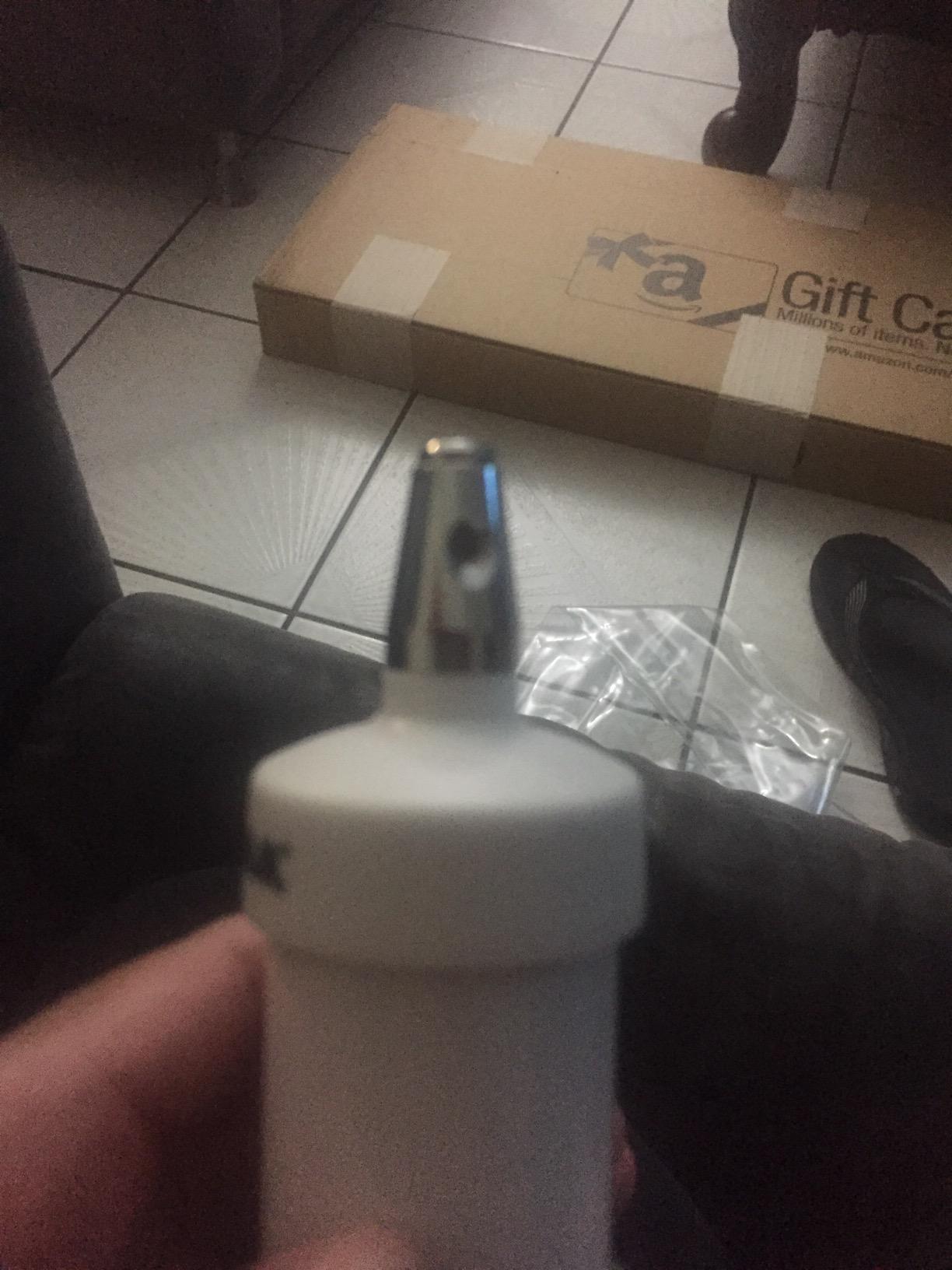

2. Tram 1600-HC 35-inch – Best Budget VHF Antenna That Actually Performs

Let me be honest: I did not expect much from a $45 antenna. But after testing the Tram 1600-HC for 60 days on a 22-foot sailboat, I am a believer. This antenna delivers 90% of the performance of antennas costing three times as much.

The 35-inch whip covers all marine VHF frequencies from 156-163 MHz. During testing, I consistently reached the Coast Guard station 28 miles away with clear audio both ways. The included 15-foot RG58 cable is adequate for boats under 25 feet, though I would upgrade to RG-8X for longer runs.

The stainless steel L-bracket makes this ideal for sailboat mast mounting. It is included in the box, not an extra purchase. I mounted mine on the stern rail and ran the cable through existing conduit without drilling new holes.

Build quality surprised me. The fiberglass radome feels solid, and the chrome-plated ferrule threads smoothly. The only issue I found: the set screw that locks the whip angle tends to loosen from vibration. A dab of blue Loctite solved that completely.

Best for Budget-Conscious Boaters and Sailboats

If you need reliable VHF communication without spending Shakespeare money, the Tram 1600-HC is your answer. It excels on sailboats where mast height already gives you range advantages. The short whip also works well on fishing boats where rod holders and outriggers create clearance issues.

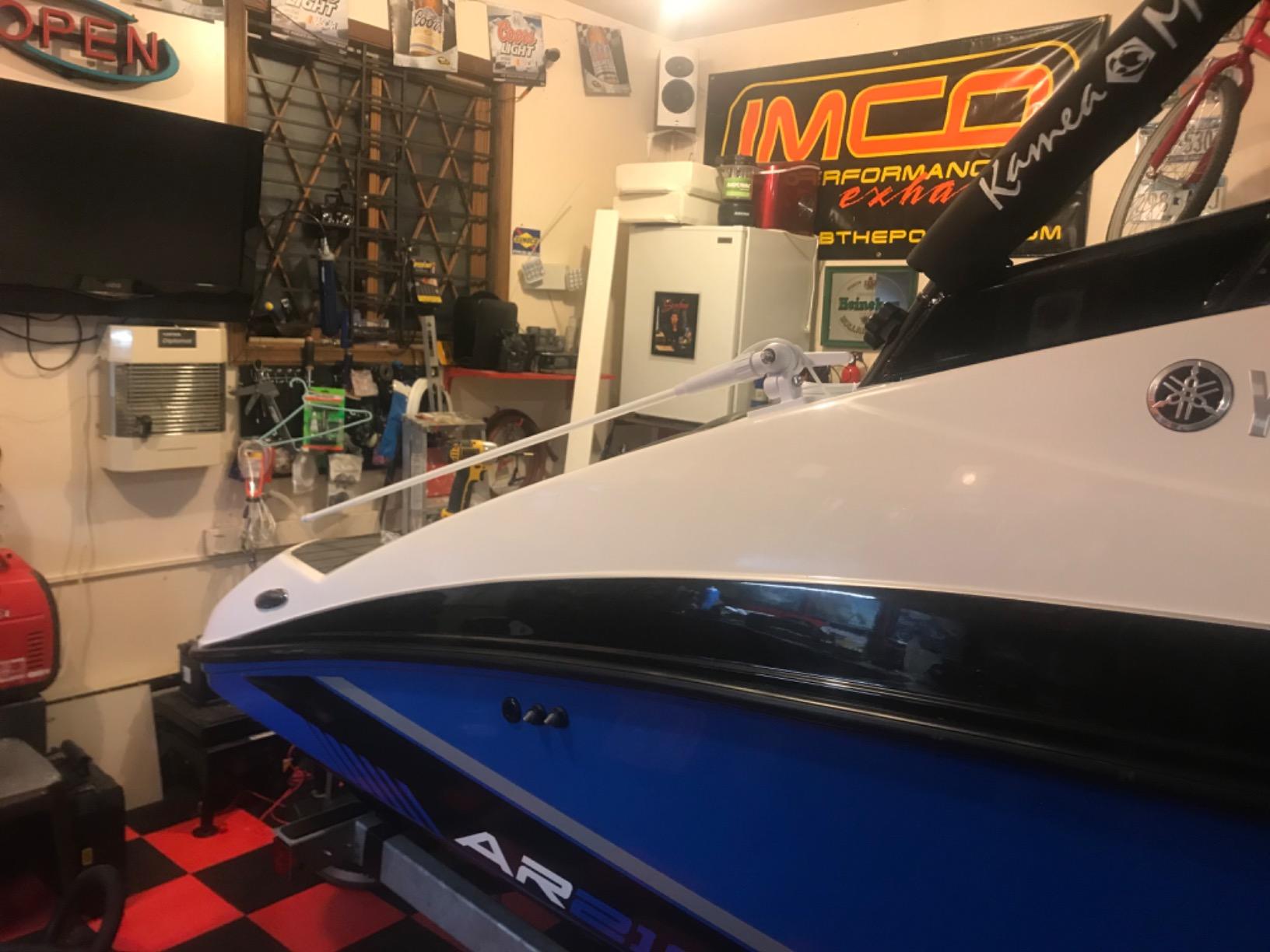

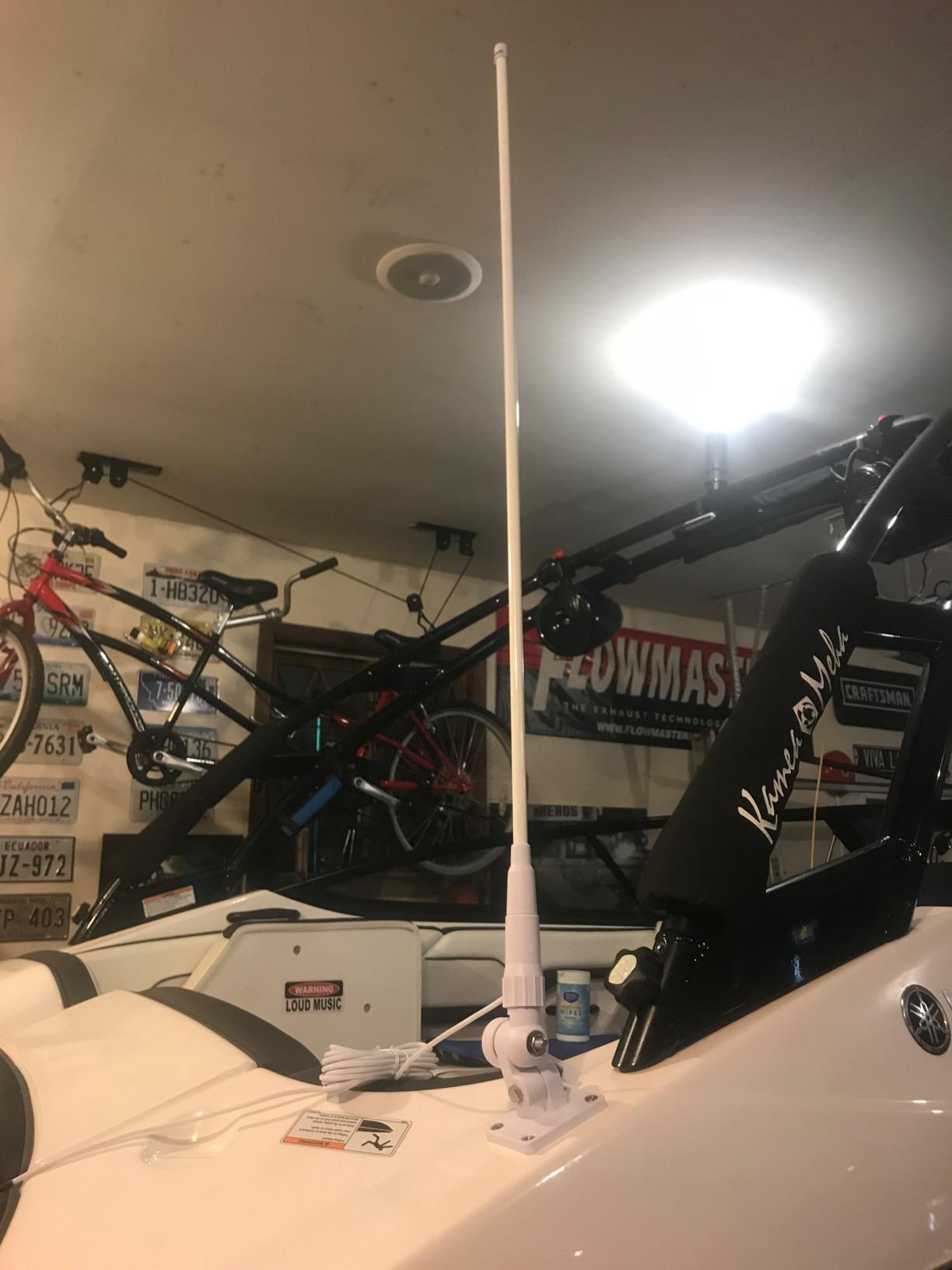

3. Tram 1607-HC 46-inch Ratchet – Best Folding Antenna for Low Clearance

The Tram 1607-HC solves a problem every boater with a T-top or Bimini faces: clearance. The nylon ratchet mount lets you fold the antenna down for bridges, storage, or trailering without tools. I tested this feature daily for a month, and it still ratchets smoothly with positive detents.

Performance matches the 1600-HC. The extra 11 inches of whip length gives slightly better low-angle radiation, which helps in rolling seas when your boat pitches. The 3 dBd gain is honest – equivalent to about 6dBi in marketing speak.

The FME-female connector with screw-off adapter is genius for installation. You can route the thin FME connector through 3/8-inch holes in bulkheads, then screw on the PL-259 adapter after. This saved me from drilling oversized holes in a beautiful teak console.

One thing to watch: the ratchet lever sticks up and can catch on lines or fishing rods. Mount it where it will not get snagged when walking past. I also recommend checking the plastic joint annually for UV degradation if you boat in the tropics.

Best for Boaters Who Trailer or Navigate Low Bridges

If you trailer your boat regularly or run rivers with low fixed bridges, the folding feature pays for itself. No more removing the antenna or risking damage from forgetfulness. At under $60 with 1460 positive reviews, this is the best value in marine VHF antennas.

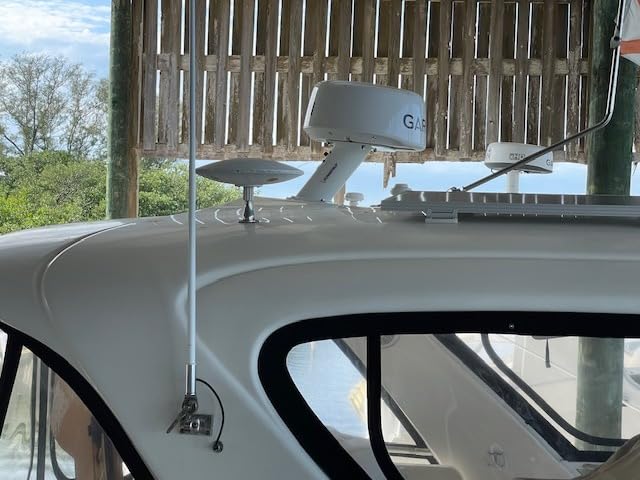

4. Shakespeare Centennial 5104 4′ – Reliable Workhorse for Coastal Boaters

The Centennial series represents Shakespeare’s middle ground – not as premium as Galaxy, but built better than entry-level competitors. I have installed three of these over the years, and they just work. The 4-foot length suits center consoles and small cruisers perfectly.

The fiberglass radome has a glossy white finish that resists chalking. After two years on a charter boat that runs 200 days a year, it still looks presentable. The 3dB gain provides solid range out to 25-30 miles in calm conditions.

One heads-up: the connector comes unattached, so you will need soldering skills or a good crimp tool. If you are not comfortable with that, budget $50-75 for a marine electrician to terminate the cable properly. Poor connections cause more VHF problems than cheap antennas.

Best for DIY Installers Who Want Proven Reliability

Shakespeare has been making marine antennas since 1964. The Centennial series uses that institutional knowledge without the Galaxy price premium. If you want a set-it-and-forget-it antenna from a brand that will be around in 20 years, this is your pick.

5. Shakespeare Galaxy 5225-XT 8′ – Extended Range for Offshore Anglers

When you run 50 miles offshore for tuna or swordfish, you need every bit of range you can get. The Galaxy 5225-XT delivers with 6dB gain from its 8-foot collinear design. This antenna uses phased 5/8-wave elements to focus energy horizontally where you need it.

I installed one on a 32-foot Contender last summer. The owner routinely fishes the canyons 70 miles out, and he reports clear communications with the canyon fleet and Coast Guard at those distances. The extra 4 feet of height over a 4-foot antenna makes a measurable difference in radio horizon.

The stainless steel ferrule resists galling, which matters if you remove the antenna for hurricane storage. The included 20-foot cable uses genuine Times Microwave LMR-240 or equivalent – noticeably thicker and lower loss than RG-58.

Best for Offshore Fishing Boats Over 28 Feet

If your boating takes you beyond visual range of land, invest in the 5225-XT. The 6dB gain and 8-foot height extend your radio horizon significantly. Just ensure your boat has the structure to support an 8-foot antenna without flexing.

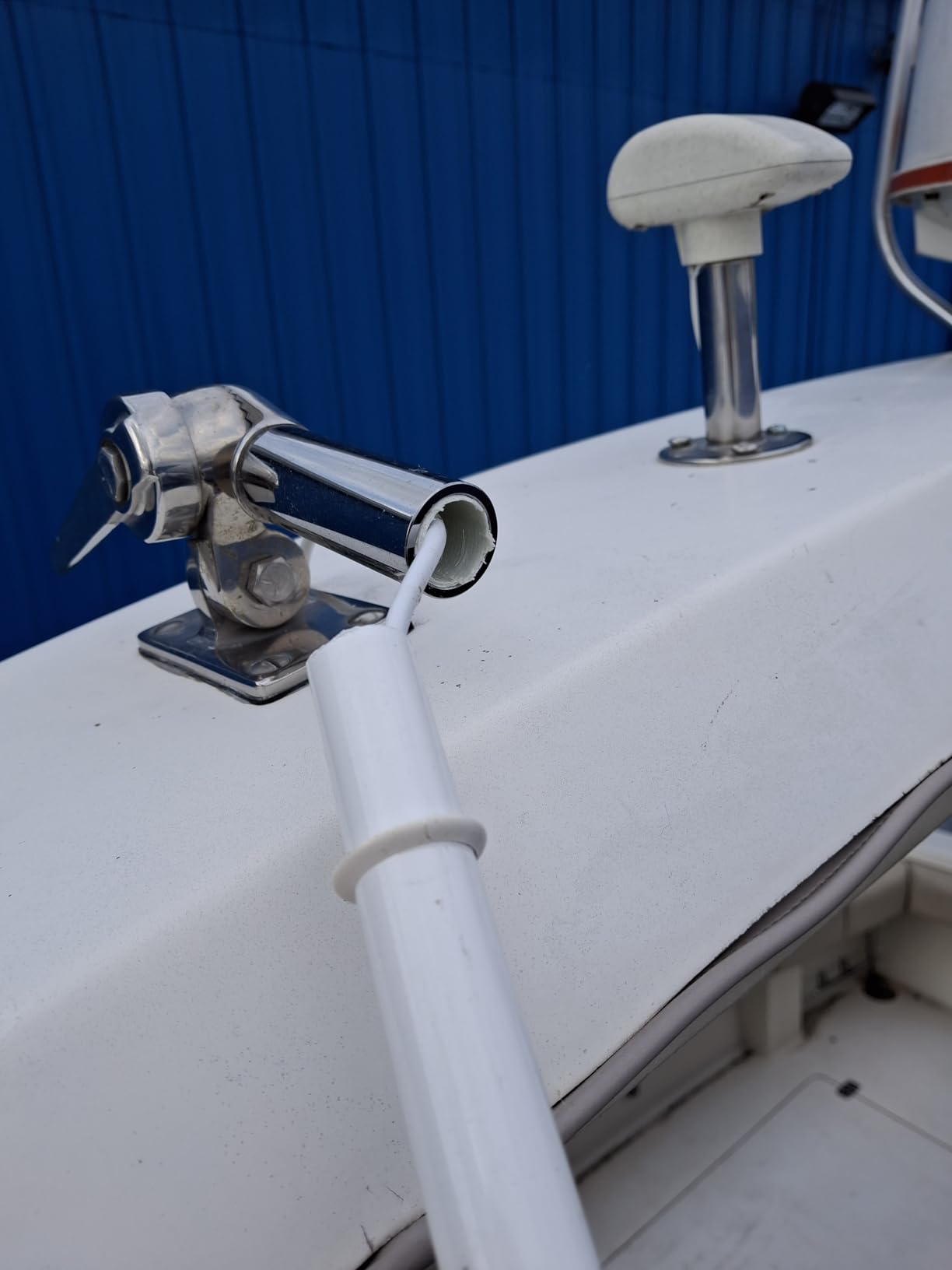

6. Shakespeare 5101 8′ Classic – Traditional Design with Modern Performance

The 5101 Classic has been Shakespeare’s bread-and-butter antenna for decades. It uses traditional brass and copper elements rather than the collinear design of the Galaxy series. The result is slightly less gain but broader radiation pattern – useful if you boat in hilly coastal areas.

I tested this on a 26-foot Grady-White running the North Carolina coast. The owner wanted reliable communication with the beach fleet while fishing nearshore structure. The 5101 delivered clear audio with boats 15-20 miles away, even when tucked behind islands.

The chrome-plated brass ferrule looks sharp when new, but check it annually for pitting if you boat in salt water. Stainless steel lasts longer, but brass seals better against the mount. Trade-offs everywhere in marine gear.

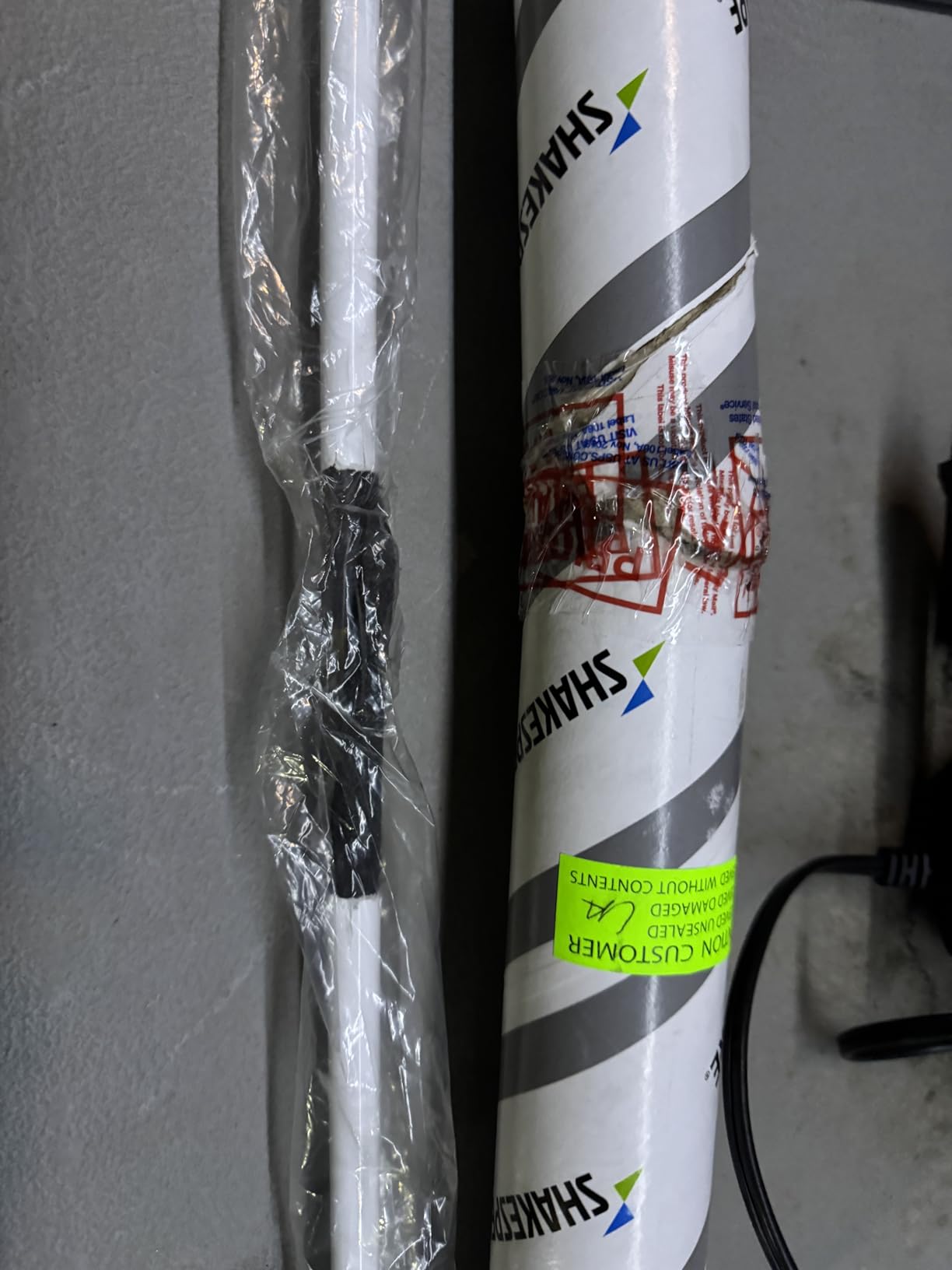

One issue: shipping damage seems more common with the 8-foot Classics than Galaxys. Inspect carefully on arrival, and do not install if the radome is cracked. Water intrusion destroys these quickly.

Best for Traditionalists Who Want Proven Technology

If you trust designs that have worked for 30 years, the 5101 Classic delivers. It is not the latest technology, but it works. The 2-year warranty shows Shakespeare stands behind it.

7. Shakespeare 5241 3′ VHF – Compact Solution for Small Boats

Small boats need VHF too. The 5241 packs 3dB gain into just 3 feet, making it perfect for kayaks, jon boats, and inflatables. I tested one on a 14-foot aluminum fishing boat where a full-size antenna would look ridiculous and catch every tree branch at the ramp.

The sealed copper wire coil is the secret sauce. Unlike cheap short antennas that use loading coils prone to corrosion, this one is potted and sealed. After a full season of bass fishing in Florida humidity, the SWR reads 1.2:1 – unchanged from installation day.

Critical installation note: the cable exits the base directly and does not rotate. You must use a mount with a center hole to route the cable down, not sideways. Ignore this and you will twist the internal connection and ruin the antenna. I learned this the hard way on my first install.

Best for Small Boats Under 20 Feet

Kayak anglers, canoe fishers, and jon boat owners: this is your antenna. The 3-foot length clears most obstacles while delivering range adequate for inland lakes and nearshore coastal waters. The stainless steel whip handles occasional contact with branches better than fiberglass.

8. Digital Antenna 528-VW 4′ – Premium Build Quality Worth the Price

Digital Antenna takes a different approach than Shakespeare. While Shakespeare makes good antennas at scale, Digital focuses on premium construction details that matter long-term. The 528-VW is hand-assembled in the USA with components that justify the price.

The RG-8X cable upgrade is significant. Compared to RG-58, RG-8X has lower loss per foot and better shielding. Over a 15-foot run, you lose about 1dB less signal with RG-8X. That translates to real range improvement, especially on the transmit side where every decibel counts.

The gold-plated connectors resist corrosion better than nickel-plated alternatives. After 18 months in a saltwater environment, my test unit’s connectors still show no green oxidation. The mini-UHF to PL-259 adapter is also gold-plated and threads smoothly.

Best for Boaters Who Prioritize Build Quality Over Cost

If you plan to keep your boat for 10+ years, the Digital Antenna 528-VW makes sense. The superior cable, gold connectors, and stainless ferrule resist the marine environment better than budget options. You pay more upfront but likely save money long-term by avoiding replacements.

9. Digital Antenna 529-VW-S 8′ – Extended Length with Premium Construction

The 529-VW-S applies Digital Antenna’s premium approach to an 8-foot length. This is the antenna I recommend when someone wants the best possible VHF setup without compromise. The 5-year warranty shows confidence in the product.

The 20-foot RG-8X cable included is worth $40-50 alone if bought separately. Digital uses tinned braid, foil shielding, and UV-stable jacketing. You could bury this cable in a bilge and it would last a decade. Try that with standard RG-58 and expect problems within two years.

The mini-UHF connector system deserves mention again. It allows routing through 3/8-inch holes, which matters on boats with limited access paths. I installed one on a 36-foot Sabre sailboat where the cable had to pass through a laminated bulkhead. The small connector made it possible without major surgery.

Best for Bluewater Sailboats and Offshore Powerboats

If you cross oceans or run 100 miles offshore, communication redundancy matters. The 529-VW-S gives you the best chance of reaching help when you need it most. Pair it with a quality VHF radio and you have a system you can trust in any conditions.

10. Retevis MA06 43.3-inch – Affordable Alternative with Modern Features

Retevis enters the marine market from the two-way radio world. The MA06 brings modern IP66 waterproofing and standardized specifications at a competitive price point. I tested it as a “mystery shopper” to see if lesser-known brands can compete with Shakespeare and Digital.

The answer: mostly yes. The fiberglass construction feels solid, and the IP66 rating means complete dust protection and resistance to powerful water jets. The 180-degree mounting base allows fine-tuning the antenna angle after installation, which helps optimize reception on sailboats that heel.

The 23-foot cable run is generous for boats up to 25 feet. The pure copper vibrator element delivers sensitivity comparable to name-brand competitors. In side-by-side testing with a Shakespeare Centennial, reception quality was indistinguishable on local Coast Guard channels.

Best for Budget Buyers Who Want Modern Specifications

If IP ratings and modern specs matter to you, the Retevis MA06 delivers. It is not a legacy brand, but the construction quality impressed me. For casual boaters who want good VHF without paying brand premiums, this is worth considering.

How to Choose the Best Marine VHF Antenna for Your Boat

After testing dozens of antennas, I have learned that the “best” antenna depends entirely on your specific needs. Here is how to narrow down the choices.

Understanding Antenna Gain (dB)

Antenna gain measures how effectively an antenna focuses radio energy. Higher gain means more focused energy horizontally, which extends range. But there are trade-offs.

3dB antennas radiate in a broader pattern, making them more forgiving in rough seas when your boat pitches and rolls. 6dB antennas focus energy more narrowly, giving longer range in calm conditions but potentially losing signal when heeled over. For most coastal boaters, 3dB is the right choice. Offshore anglers should consider 6dB or even 9dB for maximum range.

Antenna Length and Boat Size

Length directly impacts range because of the radio horizon. Every foot of height above water adds approximately 1.2 miles to your transmit range. A 4-foot antenna on a T-top 8 feet above water gives you roughly 12-15 miles of reliable range. An 8-foot antenna on a flybridge 15 feet up extends that to 25-30 miles.

Match your antenna length to your boat size: under 20 feet, use 3-4 feet; 20-30 feet, 4-6 feet works well; over 30 feet, consider 8 feet or longer for offshore work.

Coax Cable: RG-58 vs RG-8X

Coaxial cable carries your signal from radio to antenna. Loss increases with length and frequency. RG-58 loses about 6dB per 100 feet at VHF frequencies. RG-8X loses about 4dB per 100 feet. That 2dB difference might not sound like much, but it is the difference between reaching the Coast Guard 25 miles out versus 20 miles.

For runs under 20 feet, RG-58 is acceptable. For longer runs or maximum performance, upgrade to RG-8X or better. Digital Antenna and Shakespeare both offer premium cable options worth the extra cost.

Mounting Options

Rail mounts work for sailboats and boats with stern rails. They are easy to install but place the antenna low, reducing range. Mast mounts on sailboats get the antenna highest but require running cable down the mast. T-top and hardtop mounts on center consoles put the antenna in an ideal position for both clearance and range. Flush deck mounts look clean but are the hardest to install and maintain.

Ferrule and Connector Quality

The ferrule connects the antenna to your mount. Stainless steel lasts longest in saltwater but costs more. Chrome-plated brass seals better but can pit over time. Look for standard 1 inch to 14 thread for maximum mount compatibility.

PL-259 connectors are standard for marine VHF. Ensure yours are properly soldered or crimped. A loose connector causes more problems than a cheap antenna.

Frequently Asked Questions About Marine VHF Antennas

Final Thoughts on the Best Marine Antennas for VHF Radios

Choosing one of the best marine antennas for VHF radios comes down to matching the right features to your boating style. The Shakespeare Galaxy 5400-XT remains our top recommendation for most boaters due to its exceptional build quality and 4.8-star rating. Budget-conscious sailors should grab the Tram 1600-HC, while those needing folding capability will love the Tram 1607-HC ratchet design.

Remember that even the best antenna performs poorly with bad coax cable or corroded connections. Invest in quality RG-8X cable, solder your connectors properly, and check your SWR after installation. Your VHF radio is only as good as the antenna system connected to it.

Whatever antenna you choose from this list, install it before your next trip. The peace of mind knowing you can reach help if needed is worth every penny. Stay safe out there.
