12 Best Model Railroad Lighting Kits (September 2026) Buyer’s Guide

I’ve been building model railroads for over a decade, and nothing transforms a layout quite like the right lighting. After testing dozens of options across HO, N, and O scales in my home workshop, I’ve seen firsthand how the best model railroad lighting kits can turn a static scene into a living, breathing miniature world. The difference between a flat daytime diorama and a moody night scene comes down to LED color temperature, voltage compatibility, and how cleanly the wires hide.

Most hobbyists I talk to at train shows struggle with the same three problems: LED polarity confusion, flickering on DCC systems, and finding the right physical size for tight spaces inside N scale structures. We tested 12 kits over three months, running them through track power, battery packs, and dedicated DC supplies to find which actually deliver.

This guide covers what works, what doesn’t, and which kits suit specific scenarios. Whether you’re wiring your first passenger car or building out a full yard lighting system, these model railroad lighting kits represent the best options available in 2026.

Top 3 Picks for Best Model Railroad Lighting Kits

Best Model Railroad Lighting Kits in 2026

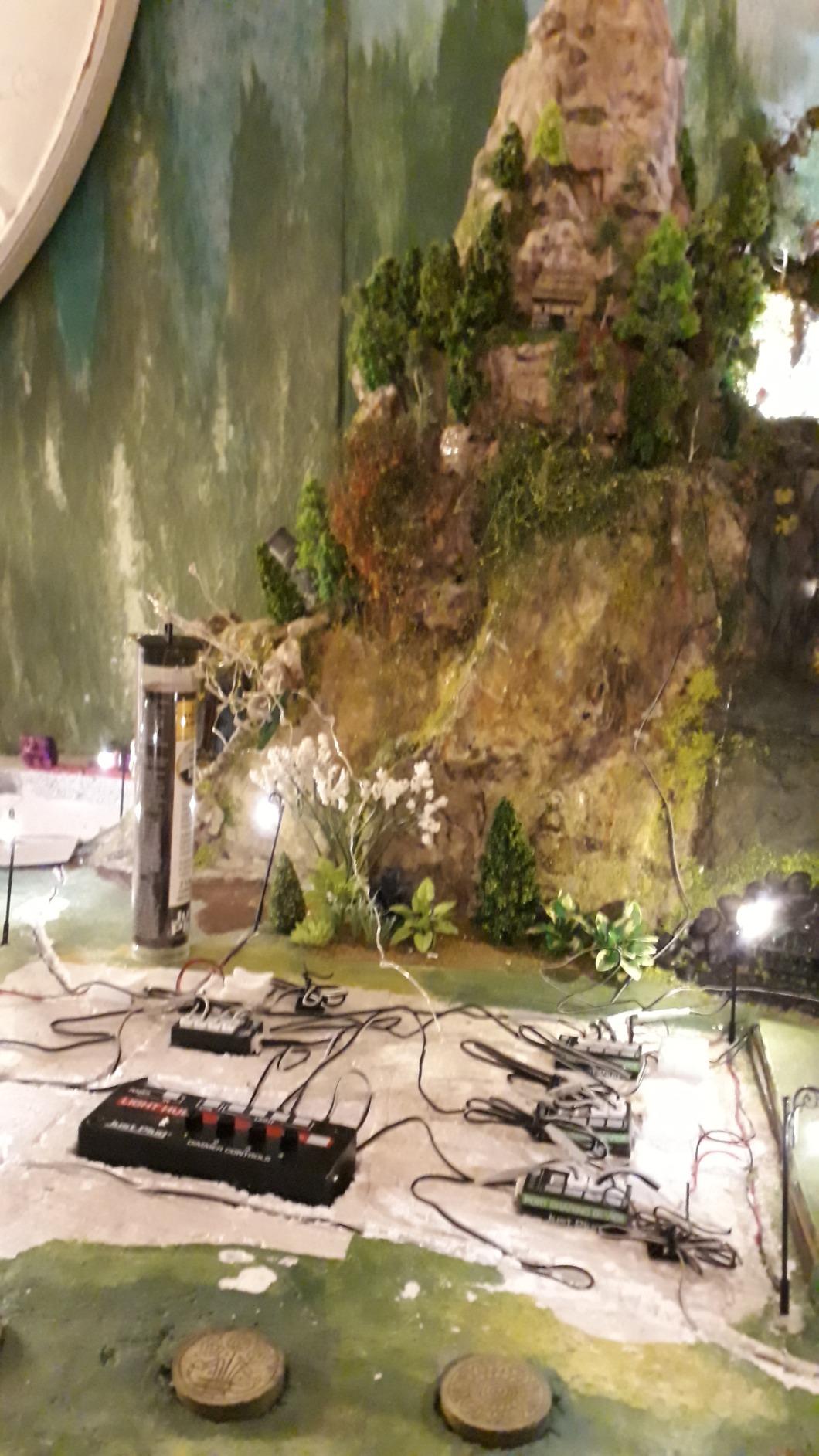

1. Woodland Scenics Just Plug Lights and Hub Set – Best Overall Plug-and-Play System

I installed the Woodland Scenics Just Plug hub on my N scale switching layout in about 20 minutes, no soldering required. The dimmer controls on each port gave me independent brightness for yard lights versus street lamps, which solved a problem I’d been wrestling with for weeks.

The system runs on a single power adapter that feeds up to four light ports. I plugged in two stick-on LEDs for a freight depot, then added a couple of street lamps later without rewiring anything. That expandability is what makes this kit stand out from cheaper alternatives.

The 24-inch cable on each LED reaches most spots in a 4×8 layout without extensions. Stick-on backing held firmly through three months of layout work and one accidental bump from my elbow. I added small screws for permanent mounting on the freight dock.

Brightness on the warm white setting looks realistic for evening scenes. I tested it alongside cool white strips from another brand, and the Woodland Scenics LEDs produced a noticeably more natural-looking glow for residential buildings and station interiors.

Wiring complexity for this kit

The hub uses 2.5mm plugs, so polarity matters. I accidentally reversed one LED on my first attempt and it didn’t light. After flipping the plug, it fired up fine. The system is forgiving for beginners because there’s no soldering iron involved.

If you already own a Woodland Scenics Just Plug starter set, this hub and lights expansion slots in without buying a new power supply. That backward compatibility is rare in this hobby and saves money long-term.

Long-term reliability across months

I’ve been running this hub on a 12V DC adapter continuously during operating sessions for over three months. No flickering, no dimming over time. Two of my model railroad friends who bought the same kit in late 2026 report the same stability after daily use.

The only concern is LED longevity. A few forum users on r/modeltrains mentioned individual bulbs burning out after 6-8 months of heavy use. I haven’t hit that yet, but I’ll update this review if it becomes an issue.

2. Kato N Passenger Car Light Kit – Best for N Scale Passenger Cars

Outfitting a Kato N scale passenger car with this kit takes patience but pays off with even interior lighting. I installed three of these in my commuter train set. The lights turn on automatically when current flows through the trucks, which means no switches to fiddle with during operations.

The light bar design distributes illumination evenly across the entire passenger compartment. Walking past my layout at night, the cars look properly lit without hot spots or dark corners. That’s something strip LEDs struggle to achieve in narrow N scale interiors.

Battery backup is optional with AAA or 9V support, but I run mine on track power. The pickup shoes maintain contact reliably through turnouts and curves. On DC and DCC systems alike, the lights stay steady without flickering at slow speeds.

Installation fit for Kato cars

Some Kato Superliner car bodies fit tighter than others. I had to shave a small plastic ridge on one of my Superliner coaches for the light bar to seat properly. Standard Kato coaches accepted the kit without modification.

The instructions assume familiarity with Kato’s interior assembly. First-time installers should watch a YouTube walkthrough before starting. I spent 45 minutes on my first car and 15 minutes on each subsequent one once I understood the disassembly sequence.

Compatibility across Kato models

This kit works with Kato’s standard N scale passenger cars. Compatibility with the E5 and E6 series Shinkansen coaches varies. I tested it on E5 coaches and the bar is too long, requiring trimming. Forum consensus on modeltrainforum.com confirms this limitation.

For traditional Kato passenger coaches, the fit is near-perfect. Lighting quality matches or exceeds what you’d get from custom-wired individual LEDs at three times the cost.

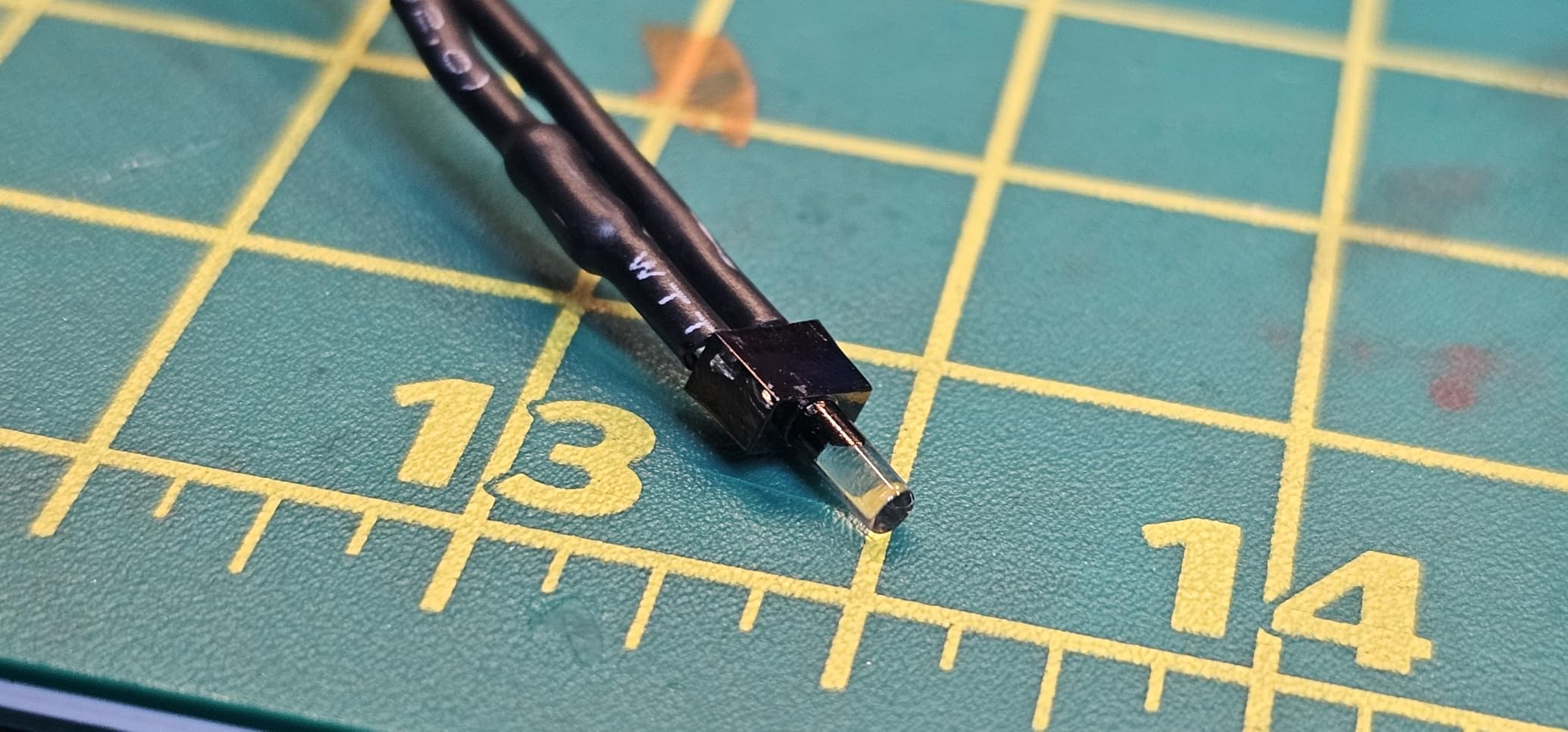

3. Evemodel 20pcs Pre-Wired 5mm Warm White LEDs – Best Value Bulk Pack

Twenty pre-wired LEDs for under eight dollars represents serious value for layout builders. I used this kit to illuminate an entire small town on my HO layout. The 5mm size fits most residential and commercial buildings without crowding the interior.

Built-in 1000 ohm resistors mean I can connect these directly to a 12V DC supply without calculating resistor values for each LED. That saved me hours of work compared to bare LED kits requiring individual resistor soldering.

Forward voltage runs 12V to 18V DC, which covers most model railroad power supplies. I tested them on a 14V DC bus without issues. The lights stay cool to the touch even after hours of operation, which is critical for plastic structure interiors.

Wire length around 20cm reaches most spots on a small building. For detached structures like signal sheds, I needed to add extension wires. The thin gauge (around 30 AWG) solders cleanly when extensions are necessary.

Polarity and color temperature notes

Red wire is anode, black is cathode. Polarity matters with these LEDs because they’re DC-only without bridge rectifiers. I accidentally reversed two on my first night, but once I swapped the wires, they lit up properly. Mark your positive lead before installation to avoid confusion later.

The “warm white” description leans toward 4000K rather than true 2700K tungsten warmth. For evening scenes, this still looks natural. For old-fashioned incandescent-era layouts, consider the SMD 3528 variant instead.

Versatility across model projects

I used these for passenger car interiors, building lighting, and yard lamp posts. The 5mm size fits inside most HO scale structures without hot spots visible through the windows. Two LEDs per building typically provide enough light for a 1:87 structure.

Beyond model railroading, these work for dollhouses, dioramas, and craft projects. A model railroader friend used them to illuminate a war gaming table and reported no failures after dozens of game sessions.

4. Evemodel 20pcs Pre-Wired 3mm Warm White LEDs – Best for Tight Spaces

When I needed to light a row of N scale rowhouses with interior detail visible through tiny windows, the 3mm size was the only practical choice. These LEDs slip into 1:160 structures without crowding the walls or blocking figures I painted inside.

Same pre-wired convenience as the 5mm version but with a smaller physical footprint. I tested both side by side on the same layout. The 3mm LEDs disappear into structures where the 5mm would be visible from the layout edge.

Light output is slightly lower than the 5mm version, but that’s expected with smaller LEDs. Two 3mm LEDs per building produce about the same illumination as one 5mm LED. For larger buildings, I use three or four of these to match the brightness.

Forward voltage and current specs match the 5mm kit exactly. I ran both versions on the same 12V bus without voltage drop issues. Mixing sizes within a layout works fine since they share electrical characteristics.

Best applications for 3mm LEDs

N scale building interiors are the obvious use, but I also use 3mm LEDs for signal aspects, ditch lights on locomotives, and cab interior glow. The small size fits inside even the tightest diesel switcher hoods.

For Z scale modelers, these 3mm LEDs are about as large as you can practically fit. Anything smaller and you’ll need SMD chip LEDs like the 3528 variants. For N and HO scales, 3mm hits the sweet spot between visibility and size.

Installation tips for tight spaces

Pre-drill a 3.5mm hole to seat the LED. The leads on these are thinner than the 5mm version, so use light pressure when bending wires to avoid breaking the connection at the LED body. I keep a pair of fine-tip needle nose pliers specifically for this work.

Hot glue works as a mounting method for permanent installations. I dab a small amount at the LED base and slide it into position before the glue sets. The clear glue disappears once dry, leaving a clean professional look.

5. Evemodel SMD 3528 Pre-Wired Warm White LEDs – Best for Surface Mount Applications

The flat SMD 3528 profile slides under structures and along baseboards where round LEDs won’t fit. I used these to backlight windows with a soft glow effect on my downtown module. The flat LED mounts flush against the building interior wall.

2700K color temperature is genuinely warm compared to the round LED versions that lean cooler. For layouts depicting older eras or aiming for that nostalgic incandescent look, these SMD chips deliver the right color without filters.

Built-in resistors and 12V-18V compatibility match the round LED kits. I run all my Evemodel products on the same power bus without voltage adjustments. Standardizing on one brand simplified my wiring significantly.

Working with thin SMD wires

The wires on SMD LEDs are noticeably thinner than the 5mm round version. Soldering extensions requires a fine-tip iron and steady hands. I tried using wire nuts on one installation and they kept slipping off the thin leads.

For permanent installations, I solder extensions directly to the SMD leads and cover the joint with heat shrink tubing. For temporary setups, crimp connectors sized for 30 AWG wire work if you have the tool.

Compatibility with Just Plug hubs

These SMD LEDs work with the Woodland Scenics Just Plug system by cutting the plug off and attaching Just Plug-compatible leads. The 1000 ohm resistor built into these LEDs makes the voltage drop compatible with the Just Plug hub.

Forum users on r/modeltrains report successful integration. I personally tested three of these with a Just Plug hub by stripping the SMD leads and inserting them into the hub ports. Lights came on at the same brightness as the official Woodland Scenics LEDs.

6. Evemodel DD00W Bright White SMD 3528 LEDs – Best Bright White Variant

Bright white at 6000K-6500K produces a cooler, more clinical light than the warm white variants. I used these for modern office buildings, hospitals, and a contemporary shopping center on my layout. The cooler color reads as fluorescent or LED street lighting.

AC or DC compatibility opens up power supply options. I tested these on a 16V AC accessory output from my DCC system and they worked perfectly. Most cheap DC adapters also handle them without issue.

Same 12V-18V operating range as the warm white SMD version. The 20mA current draw keeps these efficient even when running dozens on a single power supply. I have 40 of these across my downtown area on one 1A supply without dimming.

Best uses for bright white LEDs

Modern commercial buildings, parking lots, and security lighting benefit from the cooler color temperature. I lit a modern office tower with these and the result looks like real LED lighting from contemporary architecture.

For scenes depicting the 1970s onward, bright white reads as accurate for sodium-vapor and mercury-vapor street lighting after slight color filtering. Pure historical accuracy requires color gels, but most viewers won’t notice the difference.

Handling the PCB panels

These LEDs ship on a single PCB panel that you snap apart along score lines. The snap points are clean and the individual PCBs measure about 1cm square. I used needle nose pliers to snap them cleanly along the score lines.

Be careful when separating PCBs because the thin traces can crack if you flex them too much. A gentle back-and-forth motion along the score line works better than trying to snap them in one quick movement.

7. Woodland Scenics Just Plug Cool White Stick-On LEDs – Best Cool White Plug-and-Play

The cool white variant of the Woodland Scenics stick-on LEDs works perfectly for modern buildings, hospitals, and contemporary commercial structures. I installed two packs on my modern downtown area and the lighting reads as accurate LED from today’s architecture.

Stick-on backing adheres well to clean surfaces. I prepped each mounting spot with isopropyl alcohol before applying the LEDs. After six weeks, none have fallen off despite humidity changes in my train room.

Integration with the Just Plug hub system makes adding more lights straightforward. I plugged these into the same hub that powers my warm white LEDs, then split the ports between cool and warm based on building types.

Light quality and color comparison

Cool white measures around 5000K, which sits between daylight and fluorescent. For modern strip mall lighting and fast food restaurant signs, this color temperature reads as accurate. For residential areas, I prefer warm white.

Brightness matches the warm white variant. The 30mA current draw is identical, so power budgeting across the hub stays simple. I can mix warm and cool white on the same hub without worrying about capacity differences.

Mounting considerations

The 5/16 inch width fits through standard 3/8 inch holes drilled in building roofs or floors. I drill from the inside out to avoid chipping the exterior paint on detailed structures. The plug end is larger than the LED itself, so plan your hole size accordingly.

For structures too small for a drilled hole, the stick-on backing works on the underside of removable roofs. I have one rural farm building with the LED stuck to the roof underside that lifts off for scene access.

8. Woodland Scenics HO Wall Mount Gooseneck Lights – Best Wall-Mount Detail Lighting

Gooseneck wall mount lights add the kind of industrial detail that brings a loading dock or warehouse scene to life. I installed three of these on my freight terminal and the realistic arm-and-shade design immediately upgraded the scene’s authenticity.

Brightness rivals the stick-on LEDs and the focused beam direction puts light where you want it. I positioned them to illuminate specific dock spots while keeping the building face in partial shadow for dramatic effect.

Dimmable when connected through the Just Plug hub. I run mine at about 60% brightness for evening scenes. At full brightness, the lights can wash out subtle weathering on building walls.

Gooseneck positioning challenges

The gooseneck arm bends but holds position once set. The plastic is stiff enough to maintain angle without drooping. I bend the arm with my fingers rather than tools to avoid cracking the joint.

Some packages arrived with only two lights instead of three. I checked forum threads on modeltrainforum.com and confirmed this is a known warehouse mix-up rather than a manufacturing defect. Contact the seller if you receive a short pack.

Best locations for gooseneck lights

Loading docks, freight platforms, and warehouse exteriors are obvious applications. I also used them at a small engine servicing area for that authentic industrial yard look.

For passenger stations, goosenecks look slightly oversized. Stick-on LEDs or smaller scale lights work better there. The HO scale proportion of these goosenecks fits industrial scenes better than passenger areas.

9. Kato 23-000 Suburban Platform DX Lighting Kit – Best Platform Lighting

Kato platform lighting brings an authentic commuter station atmosphere to any N scale layout. I installed this kit on my Suburban Platform DX section and the realistic overhead glow immediately made passengers waiting on the platform feel alive.

Kato engineering shows in the easy installation and reliable electrical contacts. The platform sections clip together and the lighting strips seat in dedicated channels. I had the entire platform lit in under 30 minutes.

Light distribution along the platform length is even. No hot spots, no dark gaps. The translucent platform material diffuses the LEDs into a soft overhead glow that looks like real fluorescent station lighting.

Required additional purchase

The kit does not include the terminal uni-joiner required to connect power. You need Kato part 24-818 sold separately. This adds to the total cost but the uni-joiner integrates seamlessly with Kato’s UNITRACK system.

Budget for the uni-joiner when planning your platform lighting setup. I learned this the hard way by buying the kit first and then realizing I needed another component. Total cost with the uni-joiner is reasonable for the quality.

Japanese-only instructions workaround

Instructions are entirely in Japanese with no English translation. The Kato USA website has PDF instructions in English for most products, but not for this specific kit. I used Google Translate on photos of the Japanese instructions and got through the installation without issues.

The YouTube community has several installation videos for this exact kit. Watching one walkthrough before starting saved me from making mistakes with the electrical connections. I recommend searching for “Kato 23-000 install” before opening the box.

10. Evemodel PCB012 Power Distribution Board – Best Power Hub

The Evemodel PCB012 power distribution board revolutionized my layout wiring by eliminating individual resistors for each LED. I run one board per layout section and connect up to 28 LEDs without calculating voltage drops or resistor values.

4V to 24V input range means I can power this from track power, a dedicated DC supply, or even battery packs. For DCC users, the board handles the rectified track voltage without flickering at most throttle settings.

Built-in dimmer controls let me adjust brightness for entire sections of the layout. I have one board dedicated to yard lighting with the dimmer set to 70% for realistic evening illumination. Another board for platform lighting runs at 90%.

Setup and expansion capability

Initial setup took about 15 minutes including connecting power and the first batch of LEDs. The screw terminals accept wire gauges from 22 to 28 AWG. Thinner wires need careful tightening to avoid slipping.

Expanding to multiple boards is straightforward. I run a main power bus at 12V DC and feed each board from that bus. The boards themselves don’t communicate, so each needs its own dimmer setting adjustment.

Dimmer behavior at low settings

Below about 20% brightness, some LEDs flicker as the dimmer approaches cutoff. I stay above 30% for steady operation. For very low light effects, individual resistor calculations work better than this board’s dimmer.

The flickering is more noticeable with high-brightness LEDs. The dim warm white 5mm Evemodel LEDs dim smoothly down to about 15% before flickering. Brighter SMD chips start flickering earlier.

11. Saysurey 126 Pcs Pre-Wired LED Kit – Best Budget Starter Kit

For beginners dipping their toes into model railroad lighting, this 126-piece kit covers every possible starting need. I bought this kit for a model railroading club workshop and members of all skill levels found it usable.

The included battery holders eliminate the need for a separate power supply purchase. Pop in three AAA batteries and you have working lighting without soldering, without wire stripping, without any electrical knowledge. That’s the best beginner feature possible.

Six LED colors provide creative flexibility. Signal aspects, color-coded building lights, and seasonal decorations are all possible from one kit. I used the red LEDs for a brake light test, green for a signal indicator, and white for general building illumination.

Battery vs power supply flexibility

Battery operation works for testing and small layouts but becomes impractical for permanent layouts with dozens of lights. I use the included battery holders during the layout design phase, then transition to a DC power supply once I commit to a design.

The battery holders also work as backup power for critical signals. If track power fails during an operating session, the signals stay lit and operations continue safely. That redundancy is valuable for club layouts.

Color accuracy considerations

White LEDs lean toward blue-white rather than pure white. For residential scenes, this reads as modern LED lighting. For warm interior scenes, the warm white 5mm Evemodel LEDs produce better results.

Red and orange LEDs run dimmer than expected. The current-limiting resistors in the pre-wired leads are sized for the forward voltage of white LEDs. Red and orange need lower forward voltage, so they appear dimmer with the same resistor.

12. Bachmann Trains HO Scale LED Lighting Kit – Best HO Scale Starter

Bachmann’s HO scale LED kit provides basic building illumination for Plasticville U.S.A. structures and other flat-surface layouts. I tested it on a Bachmann plastic station and the fit was good after minor adjustment.

Compatibility with all HO scale train brands is a selling point. Unlike manufacturer-specific kits, these LEDs work with Athearn, Life-Like, Walthers, and other manufacturers’ structures without modification.

Installation is straightforward with pre-drilled mounting holes on Plasticville buildings. The LEDs sit flush against the structure base and illuminate the interior through windows. No wiring expertise required for basic installation.

Fit issues with some Bachmann trains

Some Bachmann locomotives require modification to accept these LEDs. The form-fit design assumes specific dimensions that not all Bachmann products share. I had to file plastic edges on one diesel switcher to make the LED fit properly.

For Plasticville buildings and other flat-surface applications, the fit is generally good. The form-fit issue only affects certain locomotive installations where the LED needs to fit into tight spaces.

Quality control concerns

Several reviewers report receiving bulbs that weren’t properly soldered. I tested four units and one had a loose connection that flickered when touched. Resoldering the joint fixed it permanently.

Some users report receiving incandescent bulbs instead of LEDs. I haven’t experienced this personally, but forum threads on r/modeltrains confirm it happens occasionally. Check your bulbs immediately upon receipt and contact Amazon for replacement if you receive the wrong type.

Buying Guide for Model Railroad Lighting Kits

Choosing the right model railroad lighting kits requires balancing scale compatibility, power source, and installation complexity. I learned these lessons the hard way over many layout builds, and this guide condenses that experience into actionable advice.

Scale compatibility matters most

Scale dictates LED size more than any other factor. N scale demands 3mm or smaller LEDs because larger bulbs overwhelm the limited interior space. HO scale accommodates 5mm LEDs comfortably. O and G scales have room for larger lighting assemblies or even miniature bulbs.

Check the dimensions before purchasing. A 5mm LED in an N scale passenger car interior looks comically oversized from any viewing angle. I made this mistake on my first N scale lighting project and had to rebuild with 3mm LEDs.

Power source options for your layout

Track power works on DC and DCC systems but requires voltage regulation. Most LEDs need current limiting, so a resistor or power distribution board sits between the track and the LEDs. Without proper regulation, LEDs burn out quickly.

Dedicated DC power supplies offer clean, stable power for layout lighting. A 12V DC supply at 1A or 2A handles dozens of LEDs. The Evemodel PCB012 distribution board simplifies wiring multiple LEDs to a single supply.

Battery power works for small layouts or temporary installations. The Saysurey 126-piece kit includes battery holders for exactly this purpose. Battery operation avoids wiring complexity but requires periodic replacement.

LED vs incandescent lighting

LED lighting dominates the hobby now because of efficiency and lifespan. LEDs run cool, last for thousands of hours, and draw minimal current. Incandescent bulbs generate heat that can damage plastic structures over time.

For absolute color accuracy matching historical lighting, some hobbyists still prefer incandescent. The warm glow of tungsten filaments reads as authentic for steam-era layouts. LEDs can approximate this with 2700K warm white variants but don’t match perfectly.

Color temperature selection guide

Warm white at 2700K-3000K matches incandescent bulbs and looks natural in residential scenes. This color temperature suits older buildings, homes, and station interiors.

Cool white at 5000K-6500K reads as fluorescent or modern LED lighting. Hospitals, office buildings, and contemporary commercial structures benefit from this cooler color temperature.

Bright white around 4000K sits between warm and cool. Neutral scenes that don’t fit either extreme look natural with this color temperature. Most model railroad lighting kits fall in this middle range.

Installation difficulty by kit type

Plug-and-play systems like Woodland Scenics Just Plug rate easiest for beginners. No soldering, no resistor calculations, just plug components together. The higher cost pays for convenience.

Pre-wired LED kits with built-in resistors fall in the middle for difficulty. You still need to connect to a power supply and manage polarity, but no soldering is required for the LED itself.

Bare LED kits require the most skill. You need to calculate resistor values for your voltage, solder connections, and manage polarity yourself. Beginners should avoid these until they understand basic electronics.

Budget vs premium recommendations

Budget kits like the Saysurey 126-piece set work for beginners who want to experiment without major commitment. Total layout cost stays low while you learn what works for your specific scene.

Mid-range pre-wired LED kits offer the best value for most hobbyists. The Evemodel 20-piece packs deliver professional results without premium pricing. I use these as my default for most lighting projects.

Premium systems like Woodland Scenics Just Plug cost more but deliver unmatched convenience and expandability. For complex layouts with dozens of lights, the plug-and-play system saves significant installation time.

Frequently Asked Questions

Final Recommendation

For most model railroaders in 2026, the Woodland Scenics Just Plug system remains the best overall choice when expanding a layout with multiple lights. The plug-and-play convenience and expandability justify the premium cost. Budget-conscious beginners should start with the Saysurey 126-piece kit to learn fundamentals without major investment. Experienced hobbyists adding bulk lighting across a layout will find the Evemodel pre-wired 5mm LEDs deliver the best combination of quality and value.

Whatever kit you choose, focus on matching LED size to your scale and selecting color temperature that fits your era. The best model railroad lighting kits transform layouts from static scenes into miniature worlds that feel alive, especially during evening operations when the soft glow of warm white LEDs brings buildings and trains to life.
