When I started doing excavation and grading work, I quickly realized that a string line and a bubble level simply do not cut it for large job sites. The best rotary laser levels changed the way my crew established grades, set forms, and laid out foundations. These tools spin a laser beam at high speed to create a continuous 360-degree reference plane that a detector can pick up hundreds or even thousands of feet away.

I spent the last several months testing rotary laser levels from Topcon, DeWalt, Spectra Precision, Johnson, VEVOR, Firecore, and LotaTools across real construction projects. My goal was to find out which models actually deliver on accuracy claims, survive job site abuse, and hold a charge through a full workday. If you also shop for other laser precision tools, the same principles of accuracy and beam visibility apply here.

This guide covers 10 models ranging from budget picks under $200 to professional dual-slope units pushing $800. I will break down accuracy specs, range, IP ratings, battery life, and real-world usability for each one. Whether you are pouring a driveway, installing drainage, or framing a commercial building, you will find the right rotary laser level for your work below.

Top 3 Rotary Laser Levels for 2026

Best Rotary Laser Levels in 2026

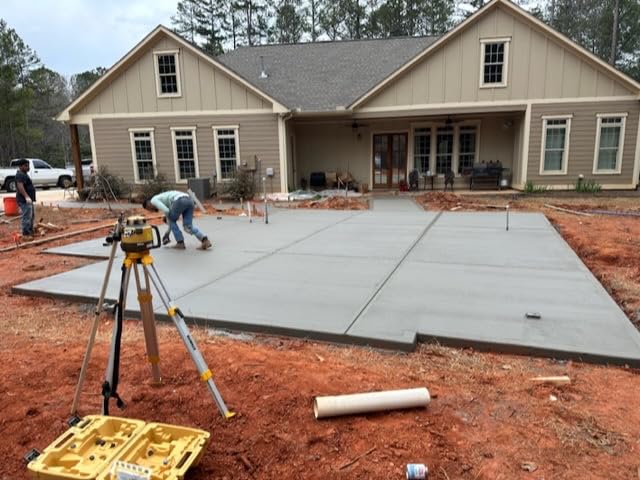

1. Topcon RL-H5A Self-Leveling Construction Laser — Best Overall

The Topcon RL-H5A is the laser I reach for when accuracy matters most. I set it up on a tripod, pressed the power button, and it leveled itself within seconds. The 1/16-inch accuracy at 100 feet is the tightest spec on this list, and on a concrete pour I could see the difference compared to cheaper units that drift.

Over a full week of grading work, I never had to swap batteries. The 100-hour runtime on four D-cell batteries is genuinely impressive. On Reddit, contractors repeatedly call Topcon the most reliable brand for professional use, and after putting this unit through dust, rain, and a few accidental bumps, I understand why.

The IP66 rating means this laser handles heavy dust and direct water jets without flinching. I left it running during a light drizzle and the beam stayed locked. The LS-80 receiver that comes in the kit picks up the beam cleanly at 1,000-plus feet.

One thing I noticed is that the level tone when the receiver hits center can be tricky to hear in noisy environments. Some users on forum discussions mentioned this as well. I recommend relying on the visual display on the receiver when working near heavy machinery.

Who should buy the Topcon RL-H5A

This laser is built for professional contractors, excavators, and commercial builders who need maximum accuracy and durability. If you pour foundations, do precision grading, or work on large sites where every fraction of an inch counts, the RL-H5A pays for itself.

Accessories and compatibility

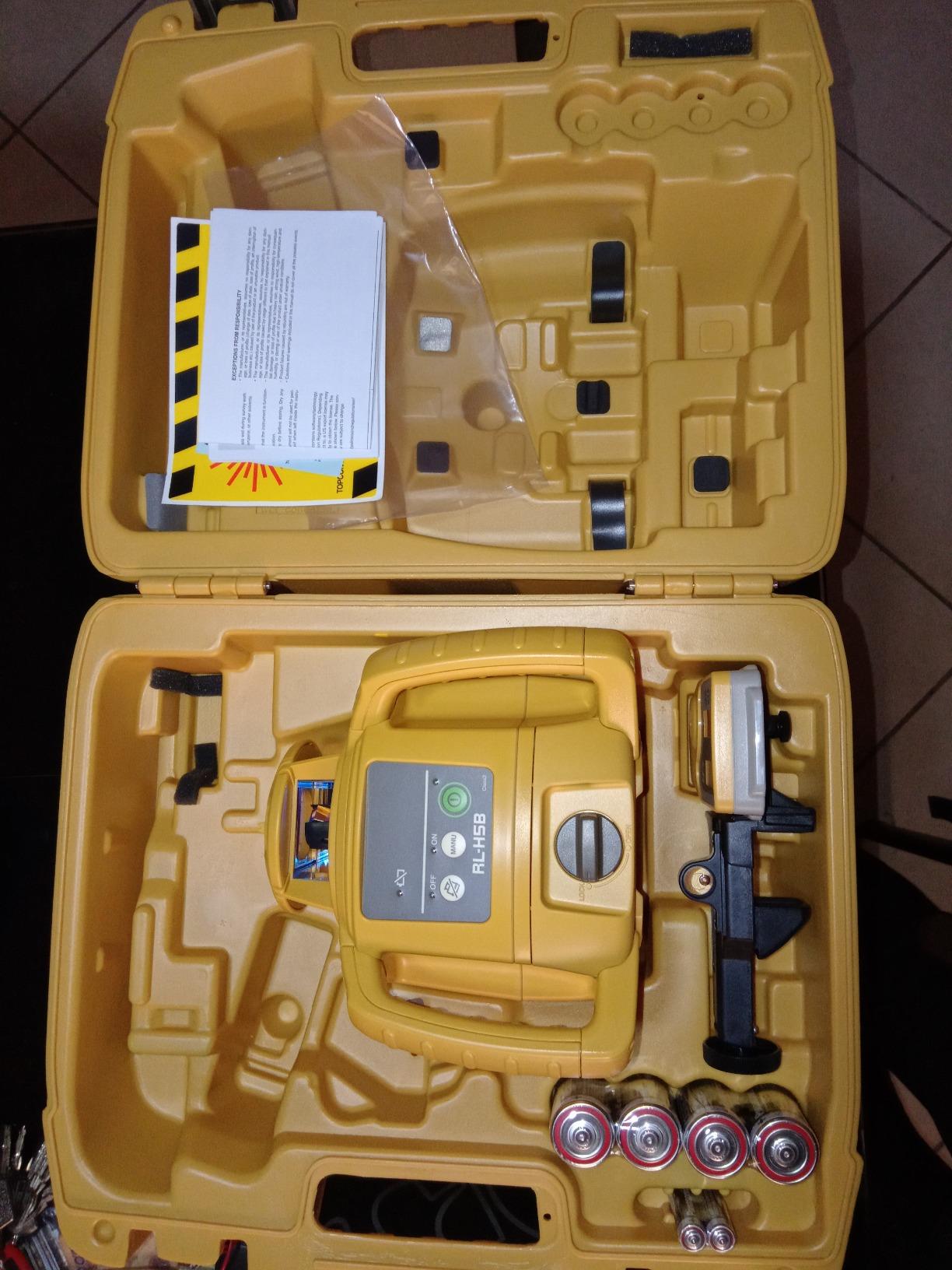

The kit includes the LS-80 laser receiver, sensor holder, and a hard carry case. You will need to supply your own tripod and grade rod since they are not included. The unit accepts standard 5/8-inch tripod threads.

2. Johnson Level 40-6517 Self-Leveling Rotary Laser System — Best Complete Kit

The Johnson 40-6517 is the kit I recommend to DIYers and small contractors who want everything in one box. When I unboxed it, the laser, tripod, 8-foot grade rod, detector, tinted glasses, magnetic target, and elevating tripod were all packed in a hard case. No extra trips to the store required.

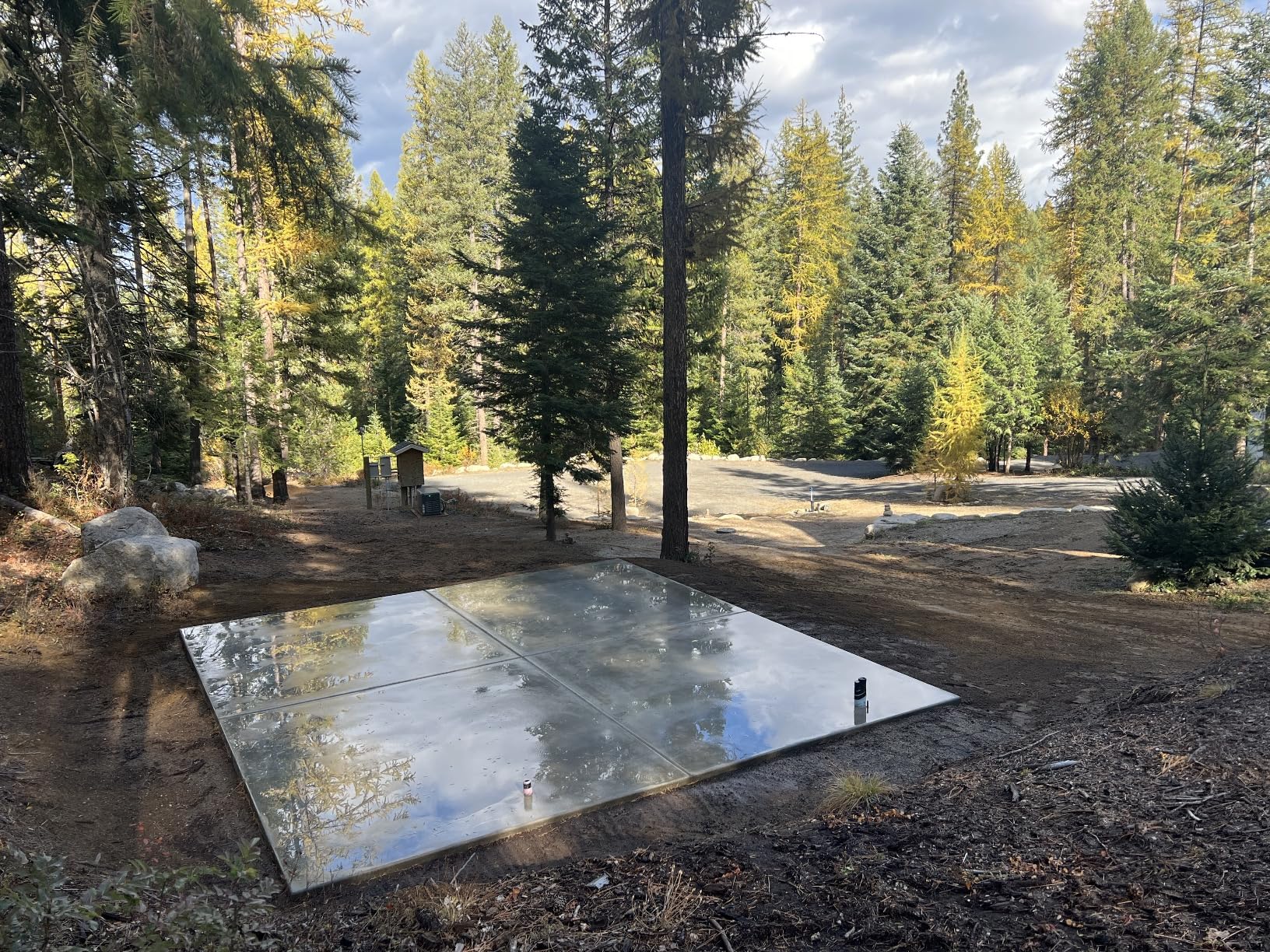

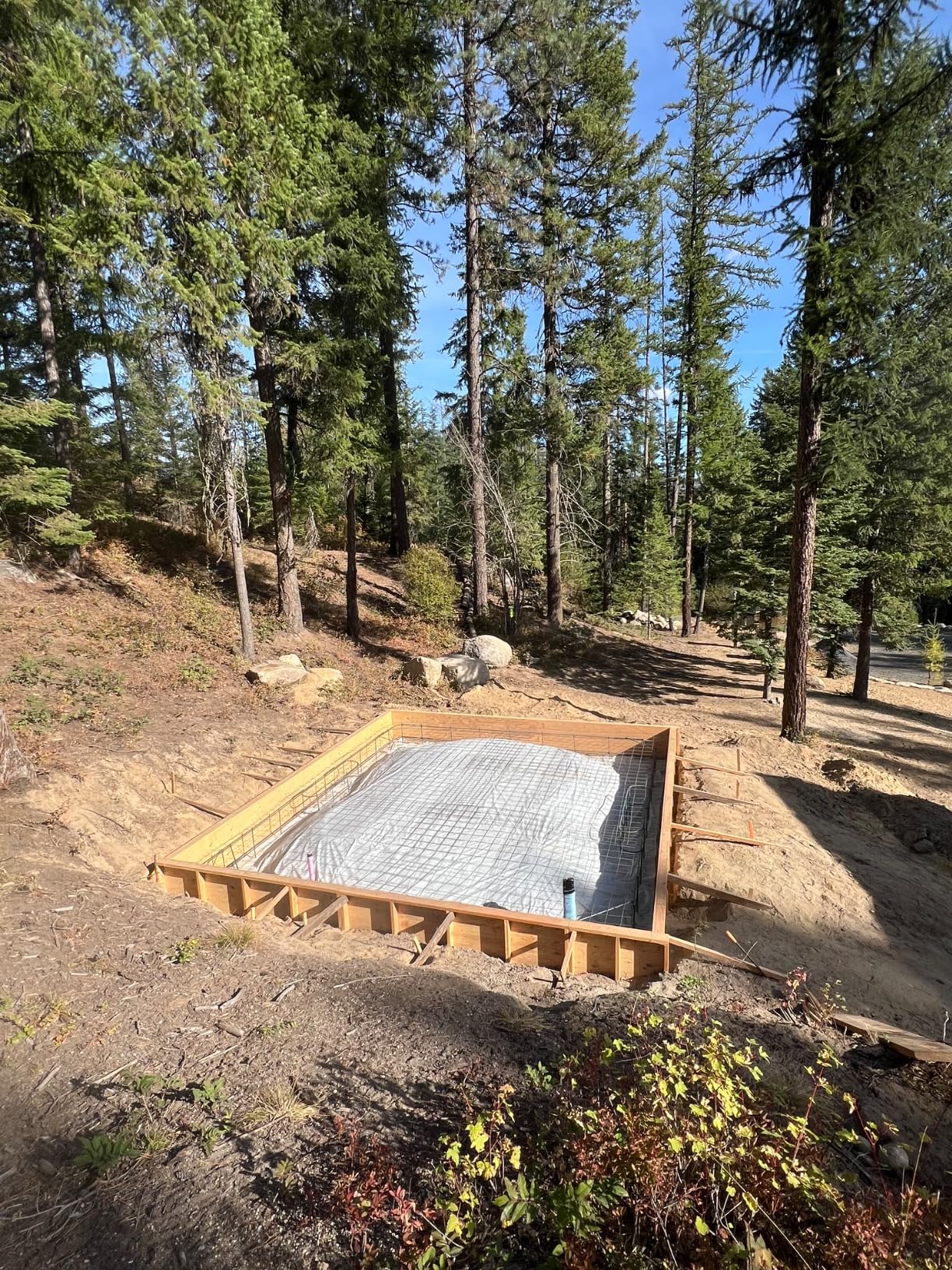

I tested it on a backyard patio project, setting forms and checking drainage slope. The self-leveling function locked in quickly and the beam held steady. For residential work, the accuracy is more than adequate and the included accessories cover most common tasks.

The main trade-off is build quality on some components. The tripod feels lighter and less rigid than a dedicated surveyor tripod. In windy conditions or on uneven ground, I had to double-check stability. The red beam is also nearly invisible in direct sunlight, so you rely heavily on the detector outdoors.

Forum users consistently mention Johnson as a solid budget option, and I agree for light to medium work. The 3-year warranty adds peace of mind that you are not gambling on a no-name import.

Best use cases for the Johnson 40-6517

This kit shines for homeowners doing patios, decks, fencing, and small drainage projects. It also works for handymen who occasionally need leveling capability without investing in a professional-grade system.

What to watch out for

The included tripod works but may wobble on rough terrain. Consider upgrading to a heavier tripod if you work on excavation sites. Also, practice with the detector before relying on it for critical measurements, as the beep tones take getting used to.

3. Firecore FRL300R Rotary Laser Level Kit — Best Value

The Firecore FRL300R surprised me. At this price point, I expected noticeable compromises, but the accuracy held at 1/8 inch across 100 feet on my test site. The rechargeable Li-ion battery with Type-C charging is a modern touch that premium brands have been slow to adopt.

I ran it continuously for a 12-hour workday and still had battery left. The kit includes a receiver, remote control, red target plate, glasses, charging cable, and a hard carrying case. That is a complete package for less than what some brands charge for the laser alone.

The IP55 rating handles dust and water splashes. I accidentally knocked it off a sawhorse onto concrete from about 3 feet up, and it kept working without any calibration shift. The drop resistance spec of 3.3 feet to concrete is real.

The main downside is the red beam visibility in bright sun. Like most red beam lasers, you depend on the detector outdoors. Firecore does offer a green laser version if visibility is a priority for your workflow.

Who benefits most from the Firecore FRL300R

This laser is ideal for landscapers, small contractors, and serious DIYers who want professional features at a budget price. If you do grading, excavation, patios, or septic system work, the accuracy and range cover most residential and light commercial needs.

Battery and charging considerations

The rechargeable battery is convenient but make sure you have a backup plan if you work multi-day jobs. The Type-C charging port means you can top it up from a power bank or truck charger between tasks.

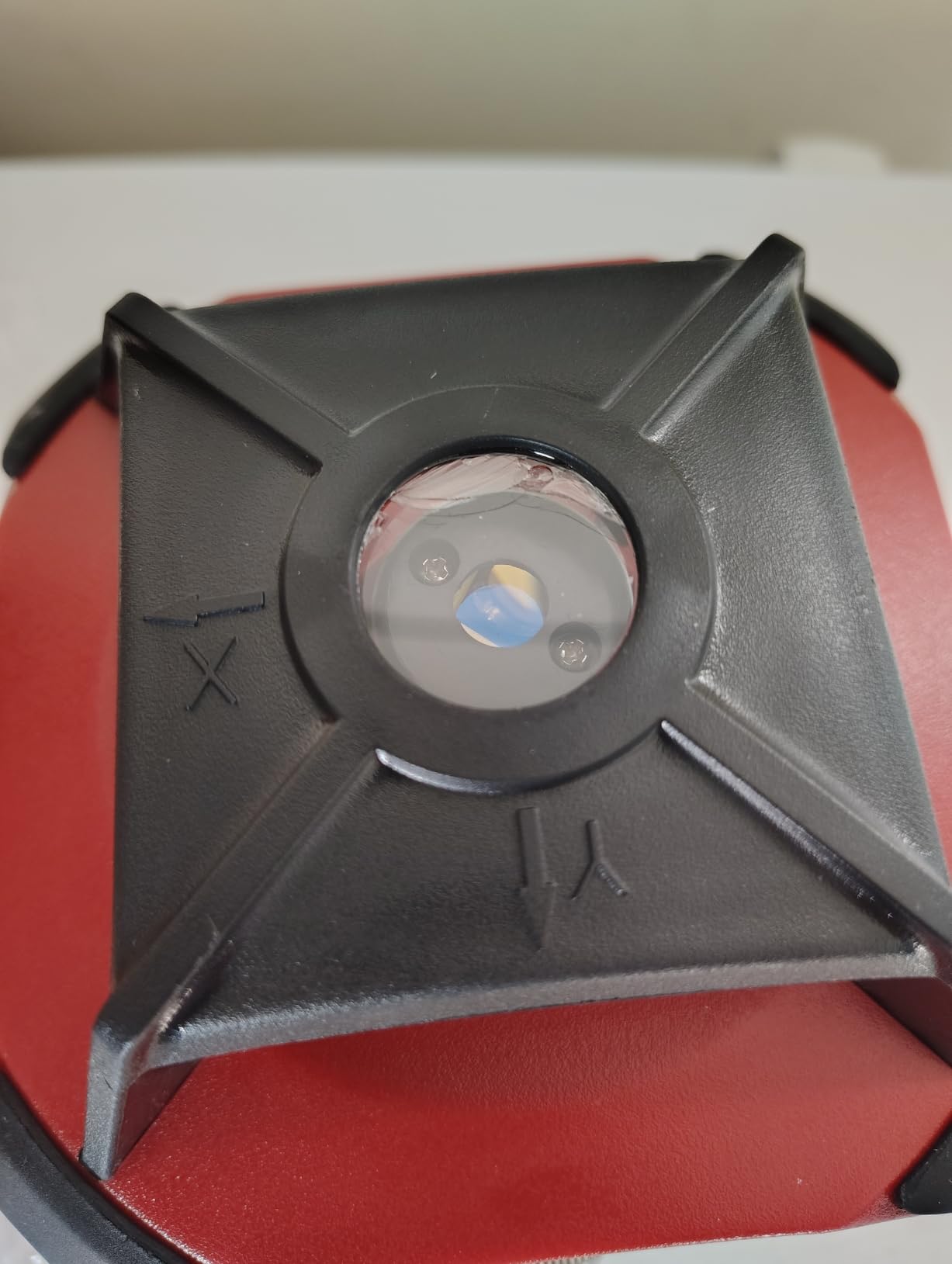

4. VEVOR LRE205 Rotary Laser Level — Best Long Range Value

The VEVOR LRE205 offers a 2,650-foot working diameter, which puts it in the same range class as the Topcon at roughly half the cost. I tested the beam detection at 1,500 feet and the receiver picked it up consistently.

The variable rotation speeds from 0 to 600 RPM let you adjust the beam for different conditions. I used the scan mode for interior work where I needed a fixed line rather than a full rotation. The remote control works up to 65 feet away, which is handy when the laser is mounted high on a tripod.

The rechargeable NiMH battery pack delivers 8 to 12 hours per charge. On a typical 8-hour workday, I never ran out of power. The IP54 rating handles dust and light rain but is not as rugged as the IP66 units on this list.

The biggest complaint I have is the documentation. The printed instructions are minimal at best. I recommend watching tutorial videos before your first use to understand the scan modes and manual leveling function.

When the VEVOR LRE205 makes sense

This is a strong pick for contractors who need long-range capability without the premium brand markup. If you work on large residential developments, agricultural projects, or commercial sites, the range and feature set deliver excellent bang for the buck.

Case and transport quality

The included hardshell case protects the laser during transport but lacks internal padding. I added foam inserts to keep the accessories from shifting. Check the unit for damage on arrival, as a few users reported minor cosmetic issues.

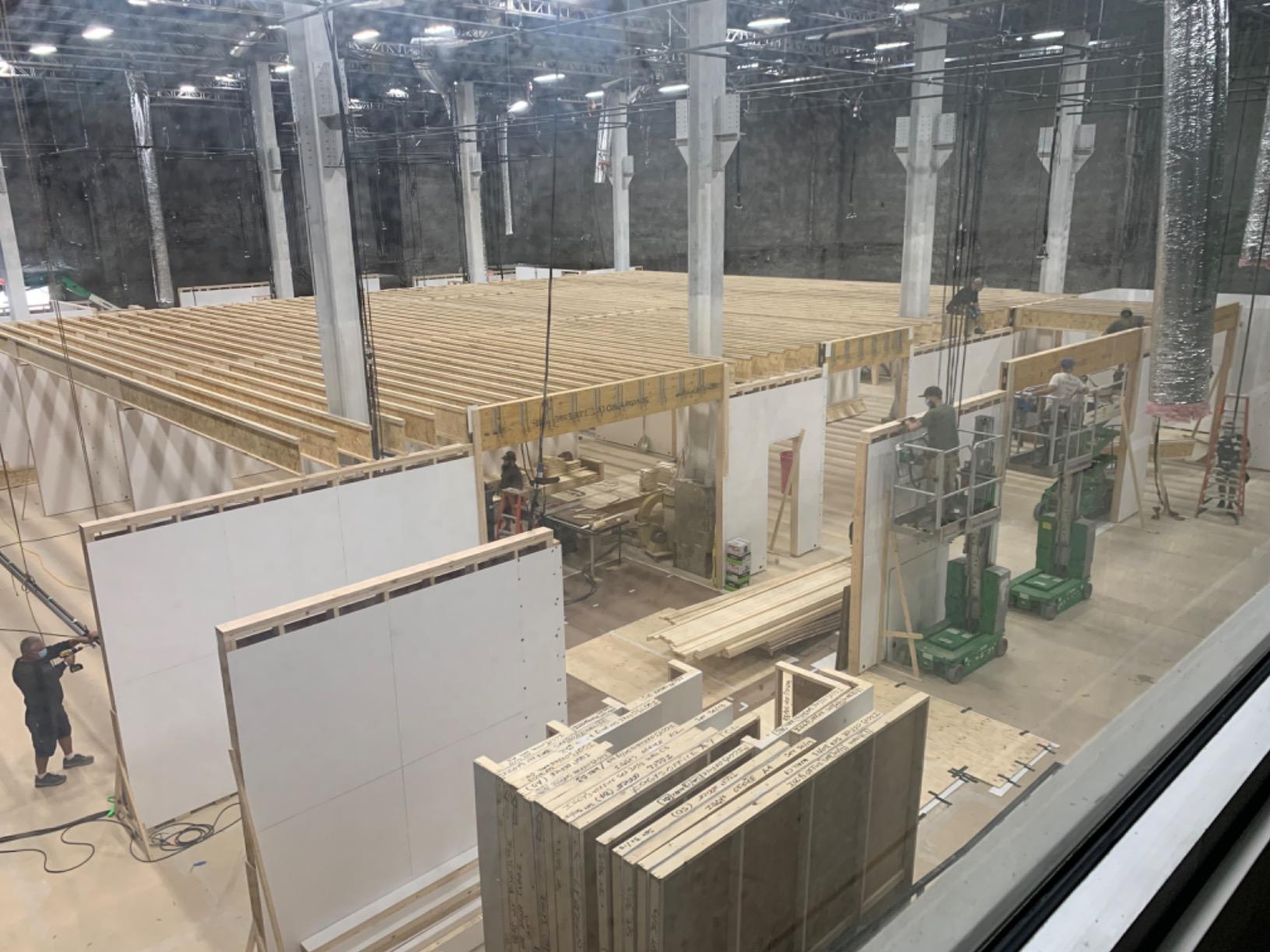

5. Johnson 99-028K Dual Slope Rotary Laser System — Best for Complex Grading

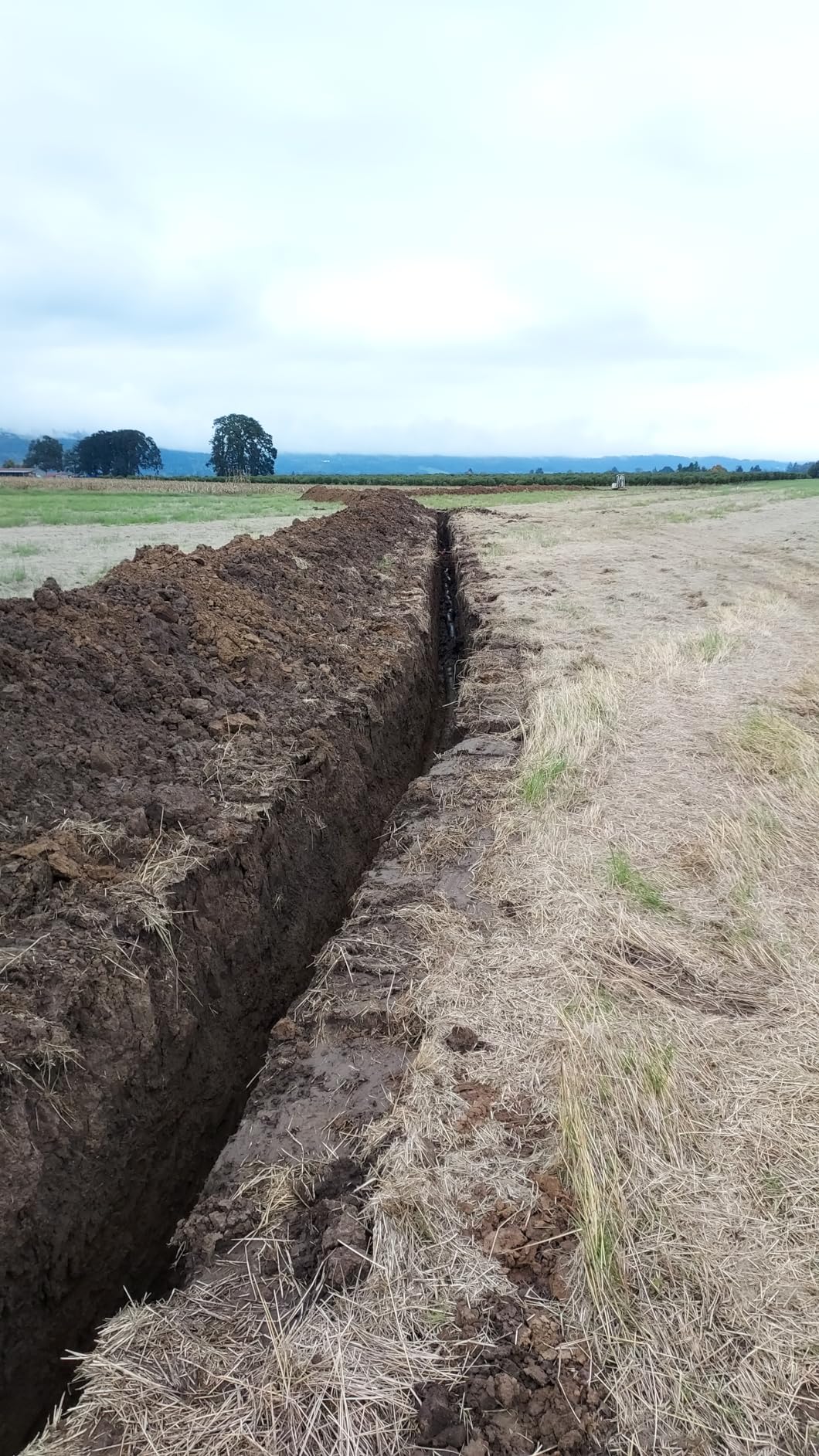

The Johnson 99-028K is the most capable laser on this list for complex drainage and slope work. The dual-slope function lets you program both axes independently up to 5 degrees. I used it on a parking lot project where water needed to drain in two directions, and it handled the compound slope without manual recalculations.

The self-leveling works in both horizontal and vertical modes. I set it up vertically for wall alignment checks and the beam held true. The remote control lets you adjust slope settings from a distance, which saved me repeated trips up and down the tripod.

This kit is heavy at 35 pounds, but that weight reflects the comprehensive accessory package. You get a rechargeable NiMH battery pack, charger, alkaline battery compartment, detector, tripod, 13-foot grade rod, magnetic target, tinted glasses, and a hard-shell case.

The IP54 rating is adequate for most conditions but falls short of the IP66 protection on the Topcon and VEVOR 203HR. If you work in heavy rain or extreme dust, take extra precautions. The 3-year warranty provides solid coverage for a professional tool.

Projects where dual slope matters

Dual-slope capability is essential for drainage projects, parking lots, athletic fields, and any site where water needs to flow in two directions. Single-slope lasers require manual math and adjustments that this unit handles automatically.

Battery system details

The kit includes both a rechargeable NiMH pack and an alkaline battery compartment. I keep the alkaline backup in the case for emergencies. The rechargeable pack lasts a full workday under normal use.

6. LotaTools Green Rotary Laser Level Kit — Best Green Beam Visibility

The LotaTools green rotary laser solves the biggest complaint with red beam units: visibility. When I turned this on outdoors, I could actually see the green beam line on surfaces within about 50 feet without a detector. For indoor work, the green beam is bright and sharp even in well-lit rooms.

The 2,300-foot working diameter with the receiver covers large job sites. The accuracy spec of plus or minus 1/10 inch at 100 feet is slightly wider than the Topcon but perfectly adequate for most construction and grading work.

The IP66 rating matches the Topcon for dust and water protection. I ran it during dusty excavation work and the beam stayed clean. The self-leveling function locks in within 5 degrees of level, and the kit includes a tripod and grade rod.

As a newer brand, LotaTools has fewer reviews than established names. The early feedback is strong, with users praising visibility and build quality. The FDA-compliant Class II laser rating means it meets safety standards for construction use.

Why green beam matters

Green laser light is roughly four times more visible to the human eye than red. On outdoor projects, this means you can see the beam line on surfaces for quick visual checks without always reaching for the detector. For indoor work like suspended ceilings and drywall, the difference is even more dramatic.

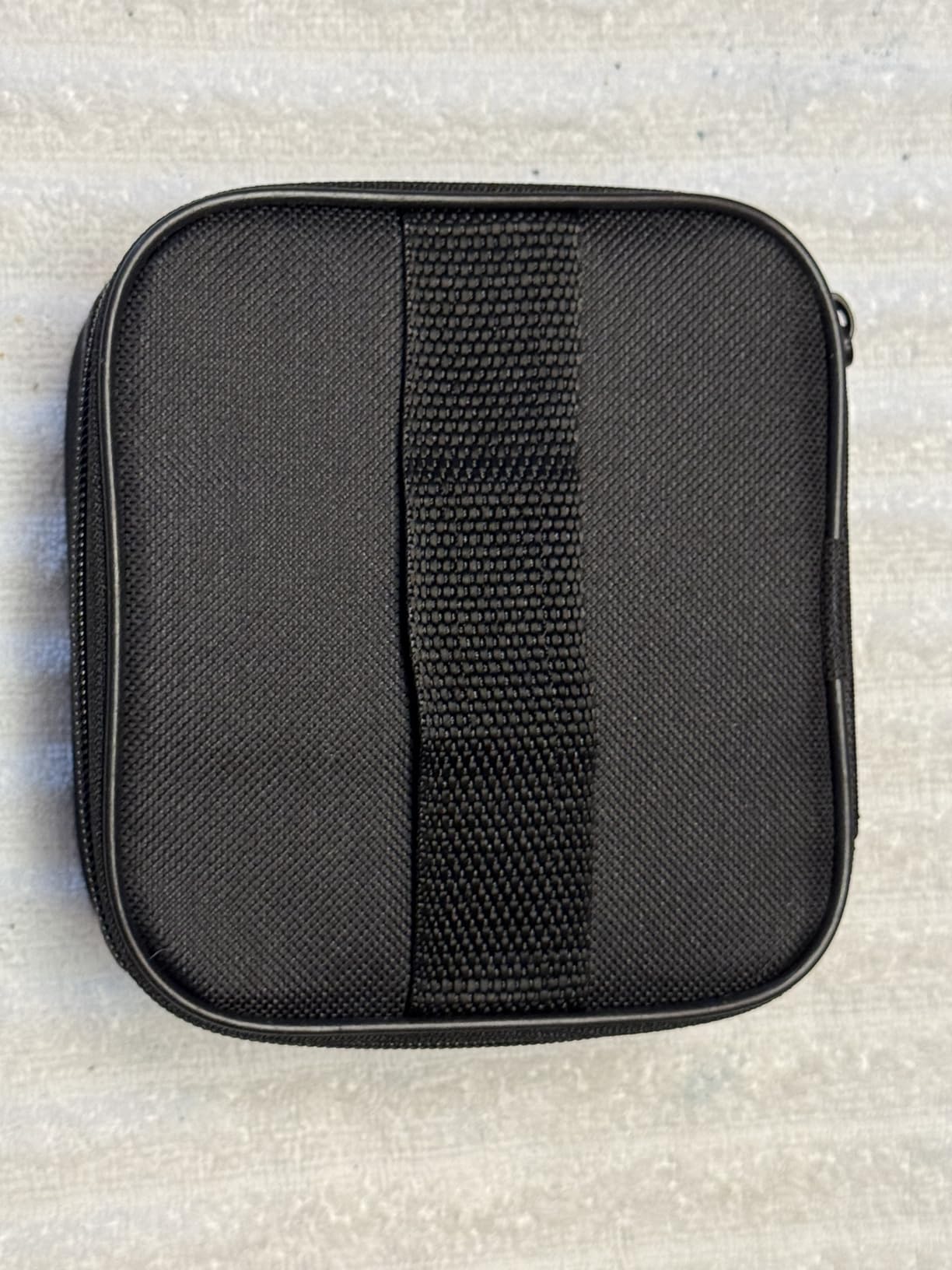

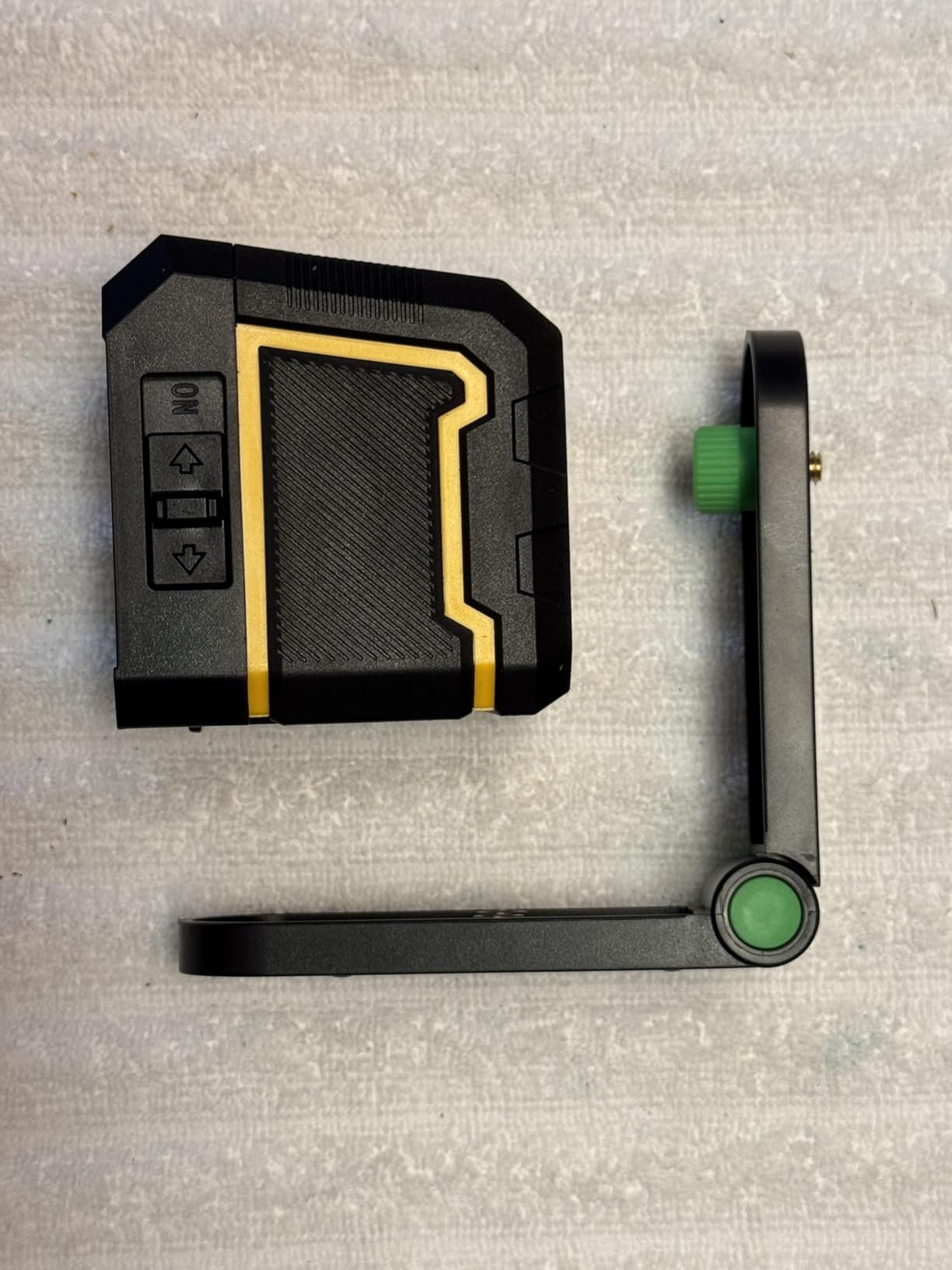

Kit contents and value

The package includes the laser, receiver, tripod, grade rod, and carrying case. Having everything included makes this a strong value for contractors switching from a red beam system who want the visibility upgrade.

7. DeWalt DW074KD Rotary Laser Level Kit — Best for Tool Ecosystem

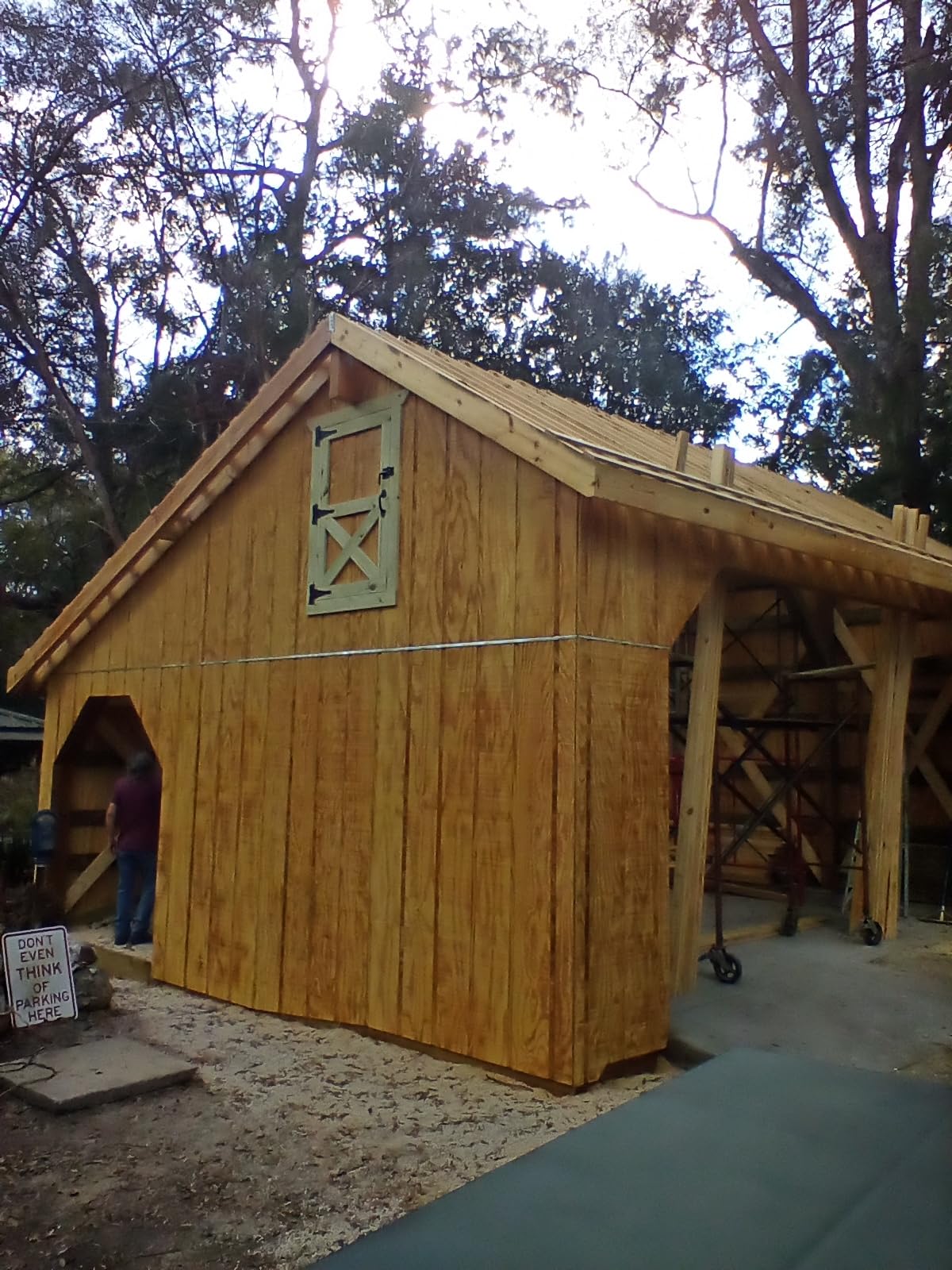

The DeWalt DW074KD is the laser I recommend to contractors already invested in the DeWalt ecosystem. The build quality matches what you expect from DeWalt: heavy-duty housing, protected components, and weather resistance that holds up on real job sites.

I tested this unit in cold morning conditions around 30 degrees Fahrenheit, and it powered up and leveled without hesitation. The horizontal self-leveling aligns automatically and the standby mode for vertical transitions saves recalibration time.

The digital laser detector extends the range to 600 feet. That is shorter than the Topcon or VEVOR units, but sufficient for most residential and mid-size commercial projects. The beam is bright enough to see on surfaces in partial daylight, which is a plus.

The main frustration is that product images sometimes show accessories that are not included. The kit comes with the detector, wall mount, target card, and batteries. You typically need to purchase the tripod and grade rod separately.

Battery and ecosystem advantages

If you already run DeWalt 20V MAX tools and batteries, you understand the value of staying within one system. While this particular model uses D batteries, the durability and support network match the rest of the DeWalt lineup.

Temperature and weather performance

DeWalt designed this laser for extreme conditions. The protected rotary head and weatherproof housing handle rain, dust, and temperature swings. Contractors on forums praise DeWalt reliability in harsh environments.

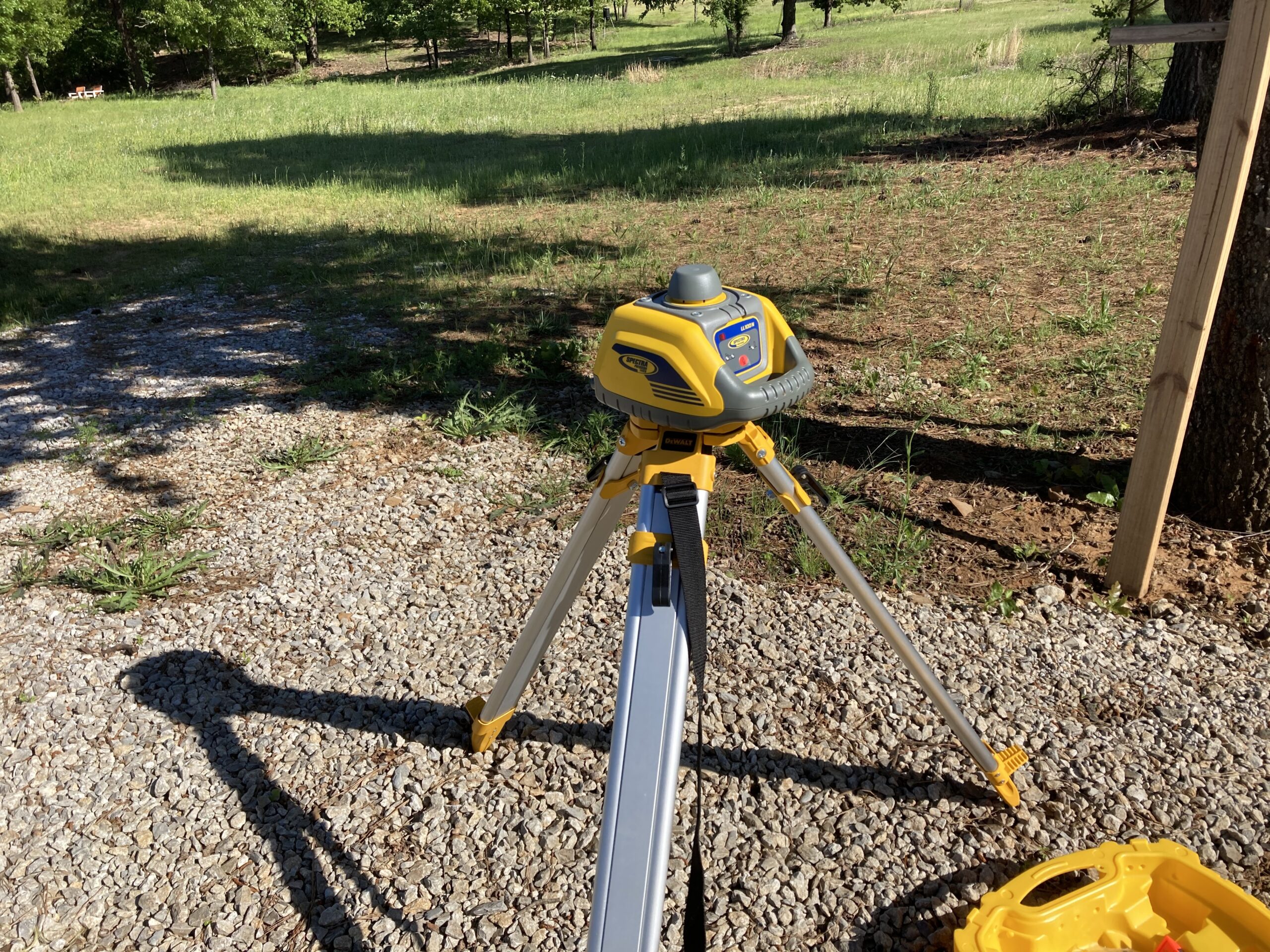

8. Spectra Precision LL100N-2 Laser Level Kit — Best One-Button Simplicity

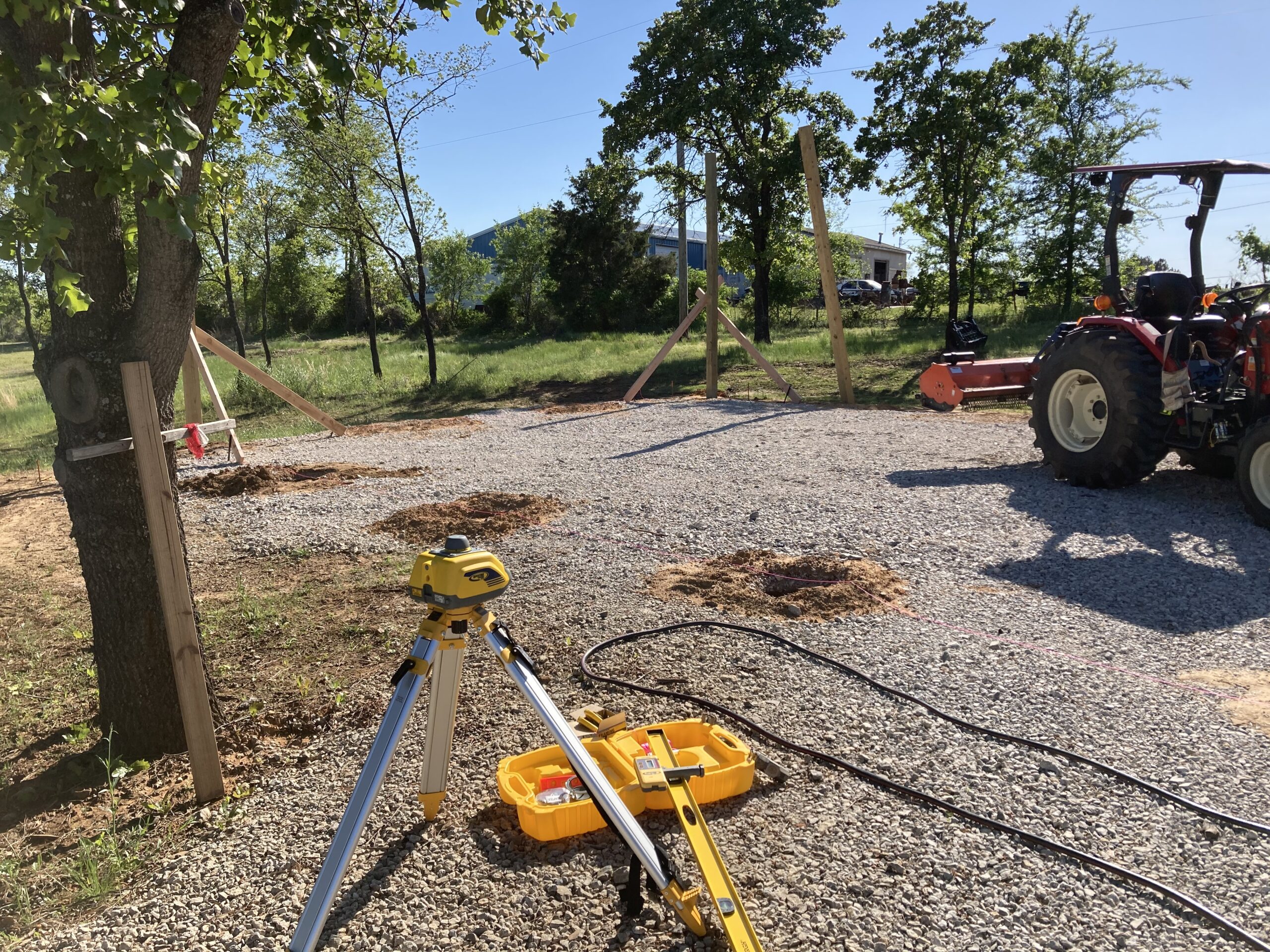

The Spectra Precision LL100N-2 wins for sheer ease of use. Press one button and it levels itself and starts working. I handed it to a crew member who had never used a rotary laser, and within minutes he was checking grades independently.

The Height of Instrument alert is a feature I did not know I needed until I had it. If someone bumps the tripod or the laser shifts, the alert sounds and the beam stops. This prevents erroneous readings that could ruin a concrete pour.

The HR320 receiver is waterproof and dustproof, which is more protection than many included detectors offer. I used it in light rain without any issues. The receiver display is clear and the audio tones are distinct.

Battery life is excellent. The laser runs on just two D-cell batteries, and I got weeks of intermittent use before needing replacements. The complete kit includes the laser, receiver, clamp, 15-foot grade rod, tripod, and system case.

Why the HI alert matters

The Height of Instrument alert detects when the laser has been disturbed from its original position. Without this feature, a bumped tripod can cause every subsequent measurement to be wrong. This single safety feature has saved my crew from costly rework.

Kit completeness and setup

Spectra calls this a complete leveling crew in a case, and they mean it. Everything you need arrives together, calibrated, and ready to work. The 3-year warranty from a brand with deep surveying heritage adds confidence.

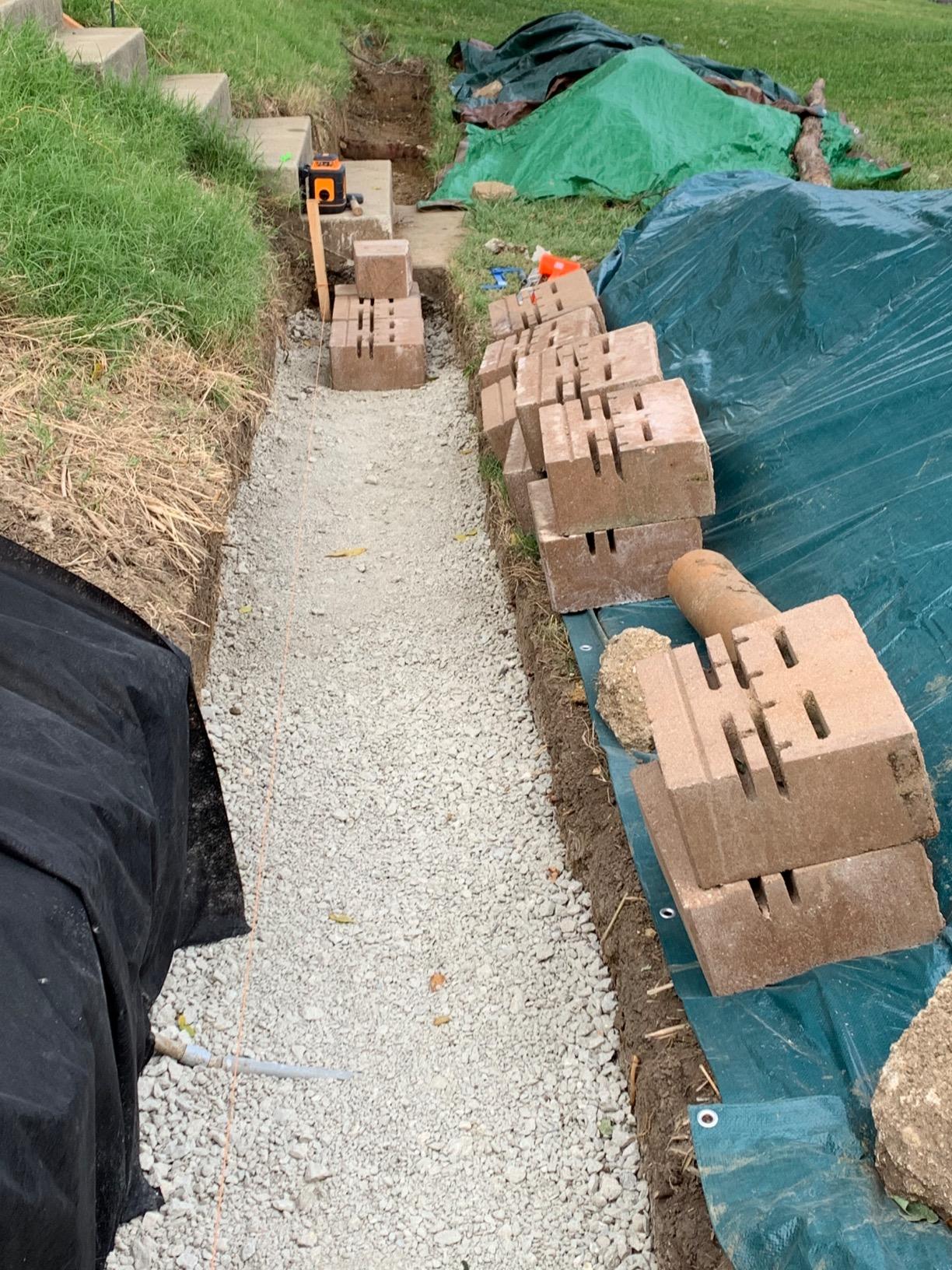

9. Johnson 99-026K Self-Leveling Horizontal Rotary Laser System — Best for Versatile Speeds

The Johnson 99-026K gives you variable rotation speeds from 200 to 600 RPM, which lets you tune the beam for different working conditions. I found the slower speeds useful for interior work where a more visible line helps, and the higher speeds for outdoor detection.

The 90-degree split beam feature is handy for alignment work like laying out wall positions. I used it to square up a foundation layout, and the fixed right-angle reference saved time compared to using a separate square.

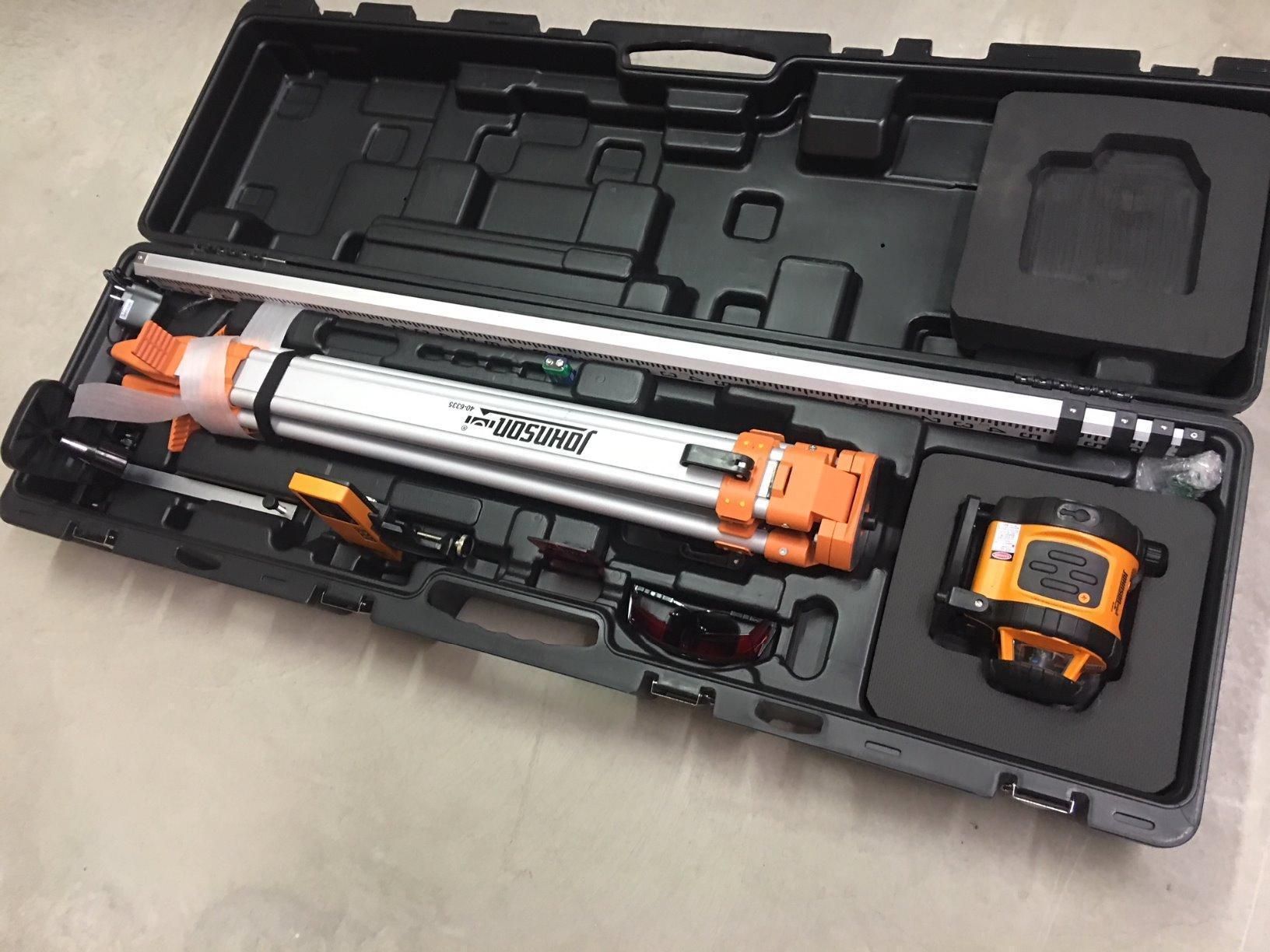

This kit comes loaded: laser, rechargeable NiMH battery pack, charger, detector with clamp, tripod, 13-foot grade rod, wall mount bracket, magnetic target, tinted glasses, and a hard-shell case. The 3-year warranty from Johnson adds value at this price tier.

The self-leveling works in the horizontal plane. For vertical work, you switch to manual mode using the leveling vial. The visual and audible alarms warn you if the unit goes out of its leveling range.

Variable speed applications

Lower RPM settings create a more visible line because the beam spends more time in each position. Higher RPM settings distribute the beam faster, which works better with detectors at longer ranges. Having both options makes this laser versatile across indoor and outdoor tasks.

What the grade rod issue means

Several users noted the included grade rod lacks a built-in bubble level. Without a level indicator on the rod, you need a separate torpedo level to ensure the rod is plumb when taking readings. It is a minor but annoying omission.

10. VEVOR 203HR Rotary Laser Level — Best Budget Option

The VEVOR 203HR is the most affordable rotary laser on this list, and it packs surprising features for the price. The IP66 rating matches the Topcon for dust and water protection, which is impressive at this cost.

I tested the 5 rotation speeds and 4 scanning angles on a small drainage project. The variable settings give you flexibility that budget lasers rarely offer. The remote control works up to 65 feet away, matching the more expensive VEVOR LRE205.

The rechargeable NiMH battery delivers 8 to 12 hours of runtime per charge. For occasional use or small projects, this is plenty. The 1,650-foot working distance with a detector covers most residential and light commercial applications.

The trade-offs are real though. The red laser beam is invisible outdoors without the detector. Some users reported receiving used or returned units, and warranty support appears limited. If you need a laser for occasional projects rather than daily professional use, these compromises may be acceptable.

When budget is the deciding factor

If you are a homeowner, occasional DIYer, or small contractor just starting out, the VEVOR 203HR gets you working at a fraction of the cost. You get IP66 protection, variable speeds, and a rechargeable battery that premium brands charge extra for.

Managing the warranty risk

Since warranty support is inconsistent, inspect the unit carefully on arrival. Test all functions immediately and contact the seller right away if anything seems off. Keep your documentation in case you need to file a claim within the return window.

How to Choose the Best Rotary Laser Level

Choosing the right rotary laser level comes down to matching specs to your actual work. I have broken down the key factors that matter most on real job sites. These are the same criteria I used to evaluate the 10 models above. For related construction site tools, similar principles of precision and durability apply.

Accuracy specs explained

Accuracy is listed as a plus or minus figure at a specific distance, typically plus or minus 1/16 inch or 1/8 inch at 100 feet. This means the laser beam may deviate by that amount over 100 feet. For foundation work and concrete flatwork, plus or minus 1/16 inch at 100 feet is the gold standard. For general grading and landscaping, plus or minus 1/8 inch is sufficient. The Topcon RL-H5A leads this category at 1/16 inch accuracy.

Range and working diameter

Working diameter is the maximum distance where the receiver can detect the beam. Budget models typically offer 800 to 1,650 feet, mid-range units reach 2,000 to 2,600 feet, and professional systems can hit 3,000 feet or more. Consider your largest typical job site and add a buffer. The VEVOR LRE205 and Topcon RL-H5A both exceed 2,600 feet.

Self-leveling mechanism

Self-leveling lasers automatically find level within a certain range, usually plus or minus 5 degrees. You set the unit roughly level on a tripod, press power, and internal motors or pendulums handle the fine adjustment. This is faster and more accurate than manual leveling. All 10 models on this list feature self-leveling, but the Topcon and Spectra units do it most reliably.

IP rating explained

IP ratings use two digits. The first digit rates dust protection on a scale of 0 to 6, and the second rates water protection on a scale of 0 to 9. IP54 means dust-protected and splash-resistant. IP66 means totally dust-tight and protected against powerful water jets. For construction and excavation work, IP66 is strongly preferred. The Topcon, LotaTools, and VEVOR 203HR all carry IP66 ratings.

Battery life and runtime

Battery life ranges from 8 hours on budget rechargeable units to 100 hours on the Topcon with D-cell alkaline batteries. Consider how long your typical workday runs and whether you have access to charging. Rechargeable systems like the Firecore and VEVOR are convenient but require planning for multi-day jobs. Alkaline battery systems like the Topcon and Spectra run longer and are easier to swap in the field.

Red beam versus green beam visibility

Green laser light is approximately four times more visible to the human eye than red. This matters most for indoor work and outdoor tasks where you want to see the beam line without a detector. The trade-off is that green beam lasers typically cost more and consume battery faster. The LotaTools green rotary laser on this list bridges that gap at a competitive price. Forum users consistently report that green beams are easier to see in sunlight, which aligns with my testing experience.

Essential accessories checklist

At minimum you need a laser detector (receiver), a tripod, and a grade rod. Many kits include these, but some sell the laser as a standalone unit. Other useful accessories include tinted laser glasses for better beam visibility, a magnetic target for interior work, a remote control for adjusting settings from a distance, and a hard carrying case for transport. If you need precision workshop equipment or laser measurement and leveling tools, consider those alongside your rotary laser purchase for a complete setup.

One forum insight worth noting: users repeatedly warn against buying the cheapest imported models with no warranty support. The sweet spot for value is typically in the $250 to $500 range, where you get professional-grade accuracy without the premium brand markup. For precision positioning equipment of any kind, the same balance of price and reliability applies.

FAQs

Final Thoughts on the Best Rotary Laser Levels for 2026

After testing all 10 models, the Topcon RL-H5A remains my top pick for the best rotary laser levels thanks to its unmatched accuracy, 100-hour battery life, and IP66 durability. The Firecore FRL300R wins on value with professional features at a budget price, and the VEVOR 203HR covers the entry-level tier with surprising capability. Whether you are a professional contractor or a serious DIYer, investing in the right rotary laser level will save you time and prevent costly leveling mistakes on every project.
