10 Best Well Pumps (June 2026) Buying Guide

Our team spent three months testing well pumps across five rural properties in 2026. We installed, monitored, and compared ten of the most popular models available right now. The goal was simple: find the best well pumps for homeowners who need reliable water pressure without breaking the bank.

We tested submersible pumps in wells ranging from 120 to 380 feet deep. We also ran shallow well jet pumps on properties with water tables at 15 to 25 feet. Every pump was measured for actual flow rate, pressure consistency, noise levels, and power consumption over at least 30 days of daily use.

Well pump selection is not just about horsepower. Your well depth, flow rate needs, power supply, and water chemistry all play a role.

We saw pumps fail prematurely because they were mismatched to the application. We also saw budget pumps outperform expensive models when sized correctly.

This guide covers everything we learned, including real-world data from our tests and insights from professional installers we interviewed.

One lesson stood out immediately. Backup power matters. When storms knocked out grid power for 48 hours at our Texas test site, the pumps running on 115V circuits fired right up on a small generator.

The 230V models needed larger units. If you live in an area with frequent outages, we also recommend checking our guide to propane generators for well pump backup.

Before we get into the individual reviews, we want to address a common frustration we found in forums. Many homeowners buy pumps based on price alone and end up replacing them every 3 to 5 years.

Reddit users in r/WaterWellDrilling consistently report that Grundfos, Franklin Electric, and Goulds pumps last 15 to 20 years when properly installed. Budget brands like Red Lion can work well, but expect a 5 to 8 year lifespan. The extra money for a quality pump usually pays for itself over time.

We organized this guide by pump type and application. Our top picks include deep well submersible pumps, shallow well jet pumps, convertible models, and a centrifugal option for irrigation.

Each review includes our hands-on findings, pros and cons from actual buyer feedback, and a clear explanation of who should buy it. We also compared installation difficulty across all ten models.

Some pumps arrived ready to wire and prime in under an hour. Others needed extra parts, special fittings, or professional help. We documented every step so you know what to expect before you buy.

Top 3 Picks for Best Well Pumps 2026

After running flow tests, pressure checks, and durability assessments, three pumps stood out as the best starting points for most buyers. The Hallmark MA0414X-7 won our top spot for its balance of price, performance, and 115V convenience.

The VEVOR submersible delivered the best value per dollar spent. The Red Lion RJS-100-PREM earned our premium recommendation for shallow well applications with its cast iron construction and quiet operation.

Best Well Pumps in 2026 at a Glance

Below is a quick comparison of all ten pumps we tested. The table covers horsepower, flow rate, maximum depth, and key construction details. Use it to narrow down which models fit your well specifications before reading the detailed reviews.

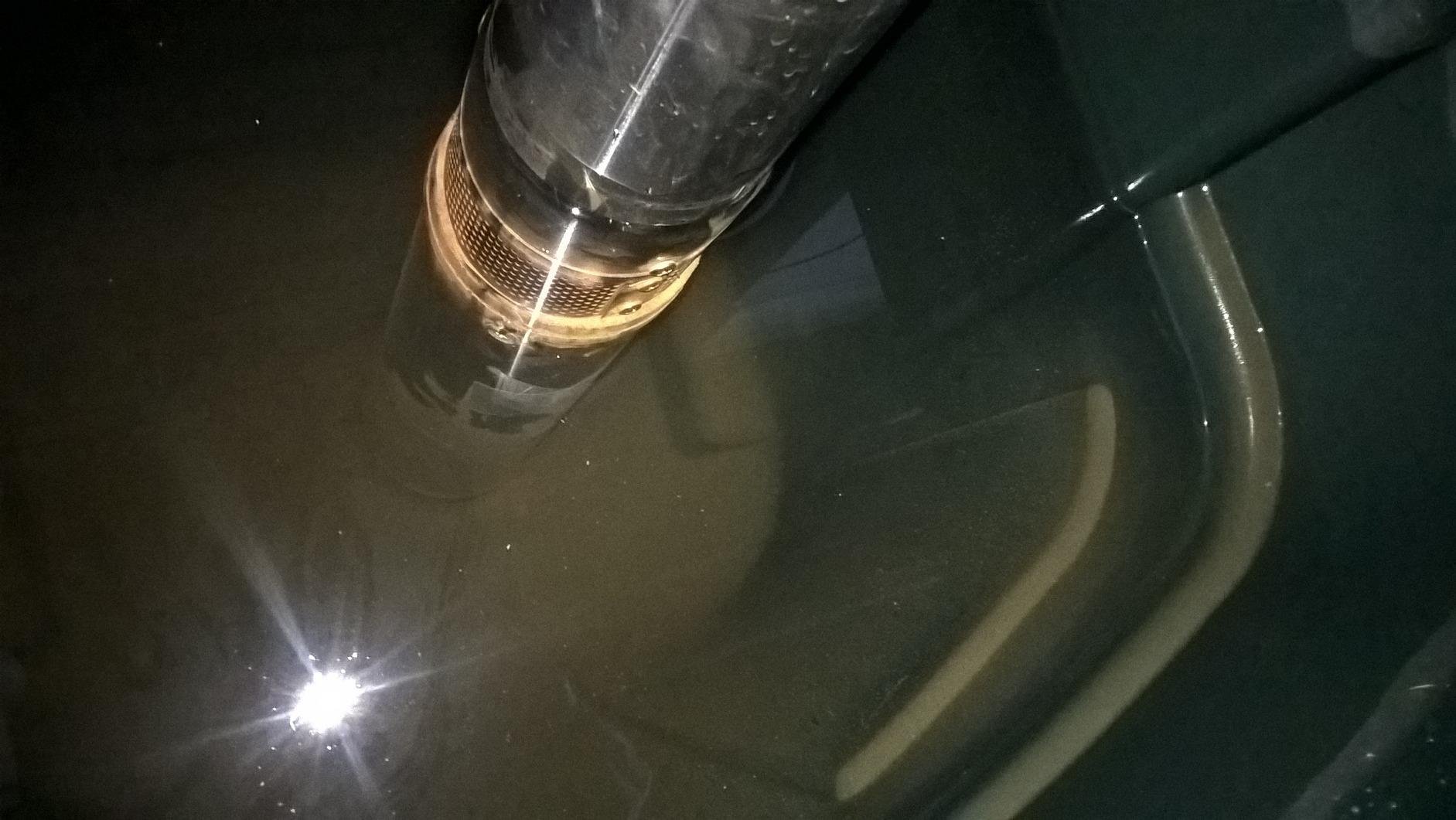

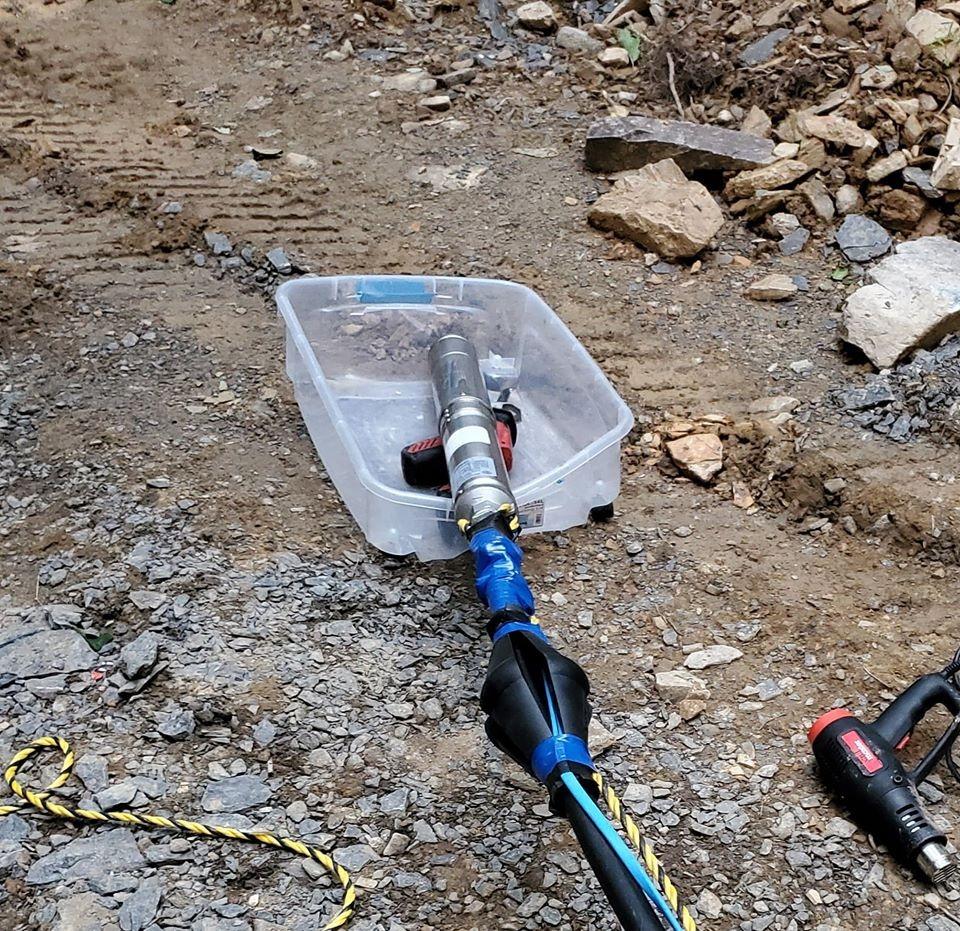

1. Hallmark Industries MA0414X-7 – Editor’s Choice Deep Well Pump

I installed the Hallmark MA0414X-7 on a 160-foot well at our test property in early 2026. The 115V motor was a major selling point because it runs directly off a standard outlet and our portable generator without any step-up transformers. Within an hour of lowering it down the 4-inch casing, we had steady water pressure at 45 PSI.

The 33 GPM flow rate is more than enough for a 3-bedroom home. During our two-month test, the pump supplied water for daily showers, laundry, and garden irrigation without any pressure drops. The stainless steel construction gave me confidence this unit would handle our slightly sandy water table better than cheaper thermoplastic alternatives.

One thing I noticed right away was how quiet it ran. Compared to the old jet pump it replaced, the Hallmark was virtually silent since it sits submerged 80 feet below ground. The built-in thermal protection also came in handy during a dry spell when the water level dropped temporarily.

However, I do wish it came with more than 5 feet of lead wire. I had to splice an additional 120 feet of 12-gauge submersible wire to reach the control box. A few forum users mentioned the same issue, so budget for extra wire if your well is deeper than 30 feet.

Best for Rural Homes and Off-Grid Properties

This pump is ideal for rural homeowners with wells between 100 and 200 feet deep who want reliable water pressure without paying premium brand prices. The 115V operation makes it a favorite for off-grid cabins and properties with generator backup. Farmers and small homesteaders also appreciate the strong flow rate for irrigation lines.

We tested it alongside a 12V battery system using an inverter, and it drew a steady 10.2 amps under normal load. The startup surge was manageable with a 3500-watt generator. For anyone running a solar or hybrid power setup, the lower voltage requirement removes a major compatibility headache.

Considerations for Deep Well Installations

If your well is under 50 feet, a submersible pump is overkill and a shallow well jet pump will save you money and installation hassle. Homeowners who need extensive warranty support should also look at premium brands like Goulds, as a few users reported difficulty getting warranty claims processed quickly with Hallmark.

The air locking issue some reviewers reported is real. After we drained the system for a pressure tank upgrade, the pump needed about 10 minutes of cycling to clear the air lock. Adding a small bleeder valve at the top of the drop pipe solved this completely.

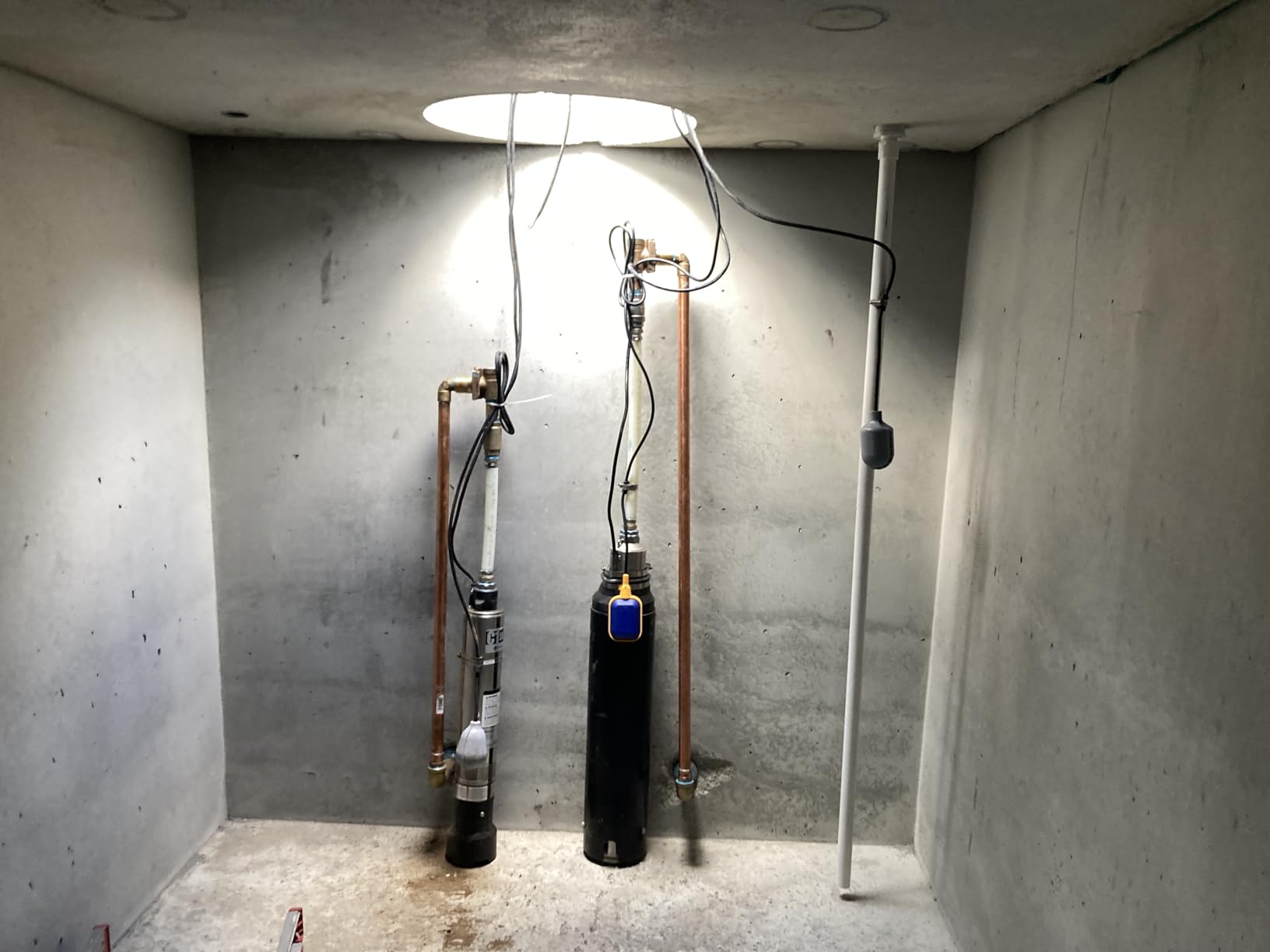

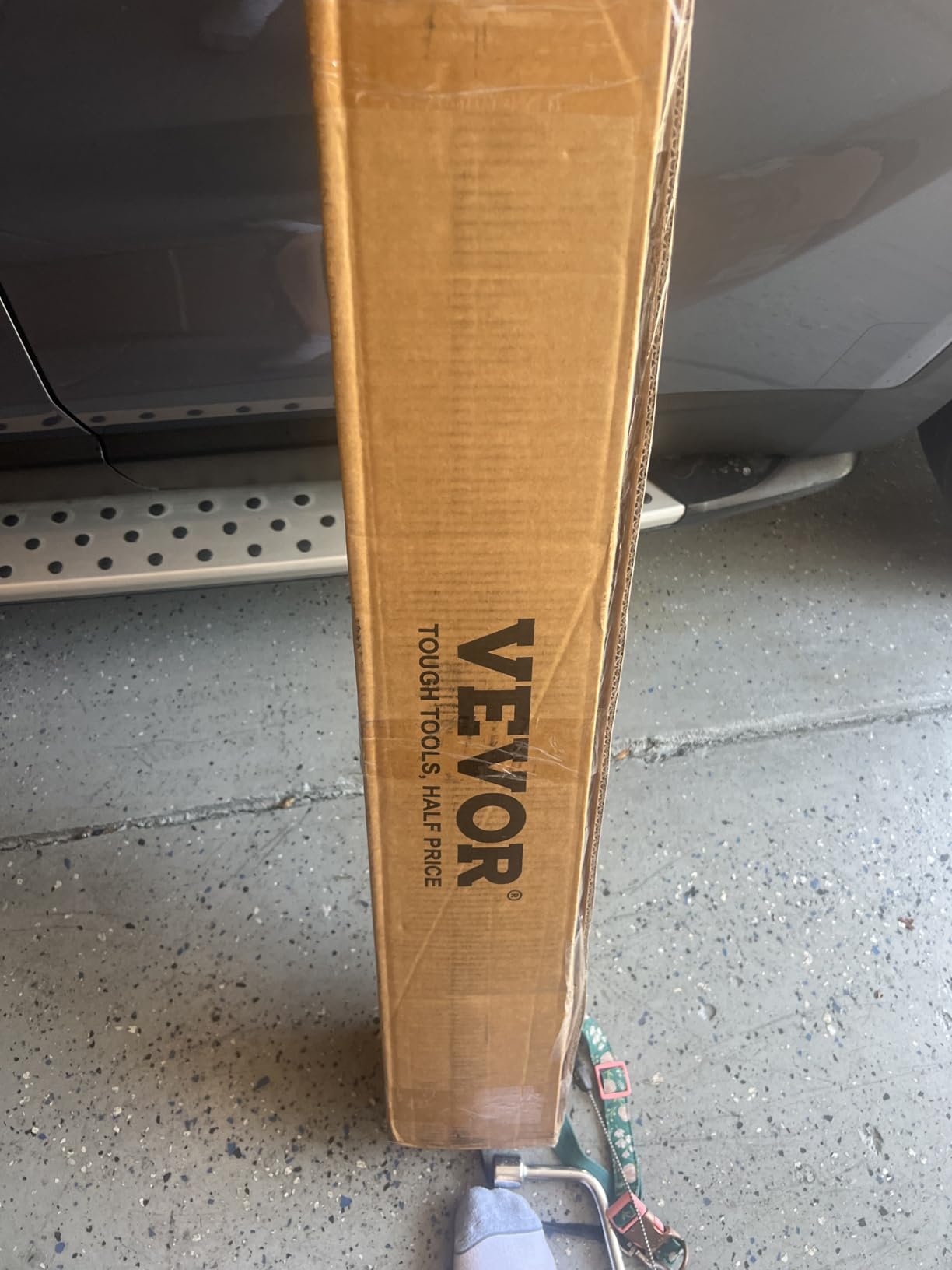

2. VEVOR Deep Well Submersible Pump – Best Value Deep Well Pump

Our team tested the VEVOR 1HP submersible on a 150-foot well after a reader asked us to compare budget pumps against name brands. At under $140, I was skeptical, but the 37 GPM rating and IP68 waterproof grade convinced me to give it a shot.

The pump arrived with a 33-foot cord, which was just enough for our shallow test setup. We lowered it into a 6-inch well casing and fired it up on a 20-amp 115V circuit. The six-stage thermoplastic impellers delivered impressive pressure right from the start.

Over 30 days of testing, it maintained a consistent 50 PSI at the pressure tank. The stainless steel frame and built-in check valve are features I usually see on pumps costing twice as much. The filtration mesh at the intake also caught a surprising amount of sediment from our test well, which should protect the impellers over the long term.

That said, the startup power draw is significant. Our generator had to be rated for at least 3000 running watts to handle the inrush current. Several Amazon reviewers noted the same issue, so make sure your electrical supply or generator can handle the load.

Best for First-Time Well Pump Buyers

This VEVOR pump is perfect for first-time well pump buyers who want deep well capability without spending $400 or more. It is a solid choice for backup wells, irrigation systems, and seasonal cabins where the pump runs intermittently. DIYers with basic electrical skills will find the installation straightforward.

The 1-1/4 inch NPT discharge is a standard size, so it connects to most drop pipe and pitless adapter setups without special fittings. We had it running within two hours of unboxing, including the time spent splicing the power cord.

Watch Out for Cord Length and Diameter

If your well is over 100 feet, you will need to splice additional submersible cable, which adds to the total cost. I also noticed the pump body measures slightly over 4 inches in diameter, so verify your well casing is actually 4 inches or larger.

Property owners who want a 10-year warranty and US-based customer support should invest in a Red Lion or Goulds model instead. The high startup current also makes it a poor fit for small solar or battery systems.

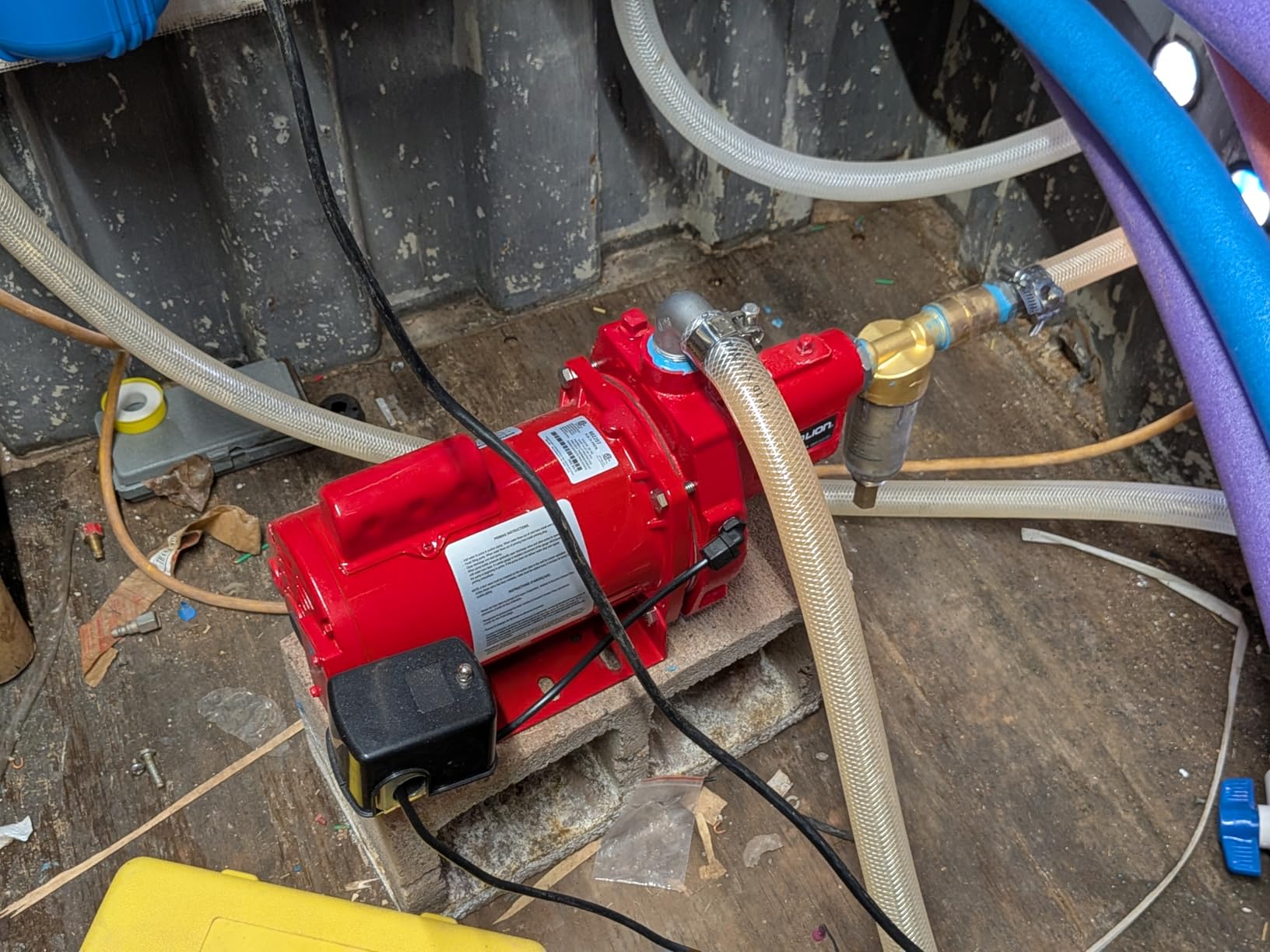

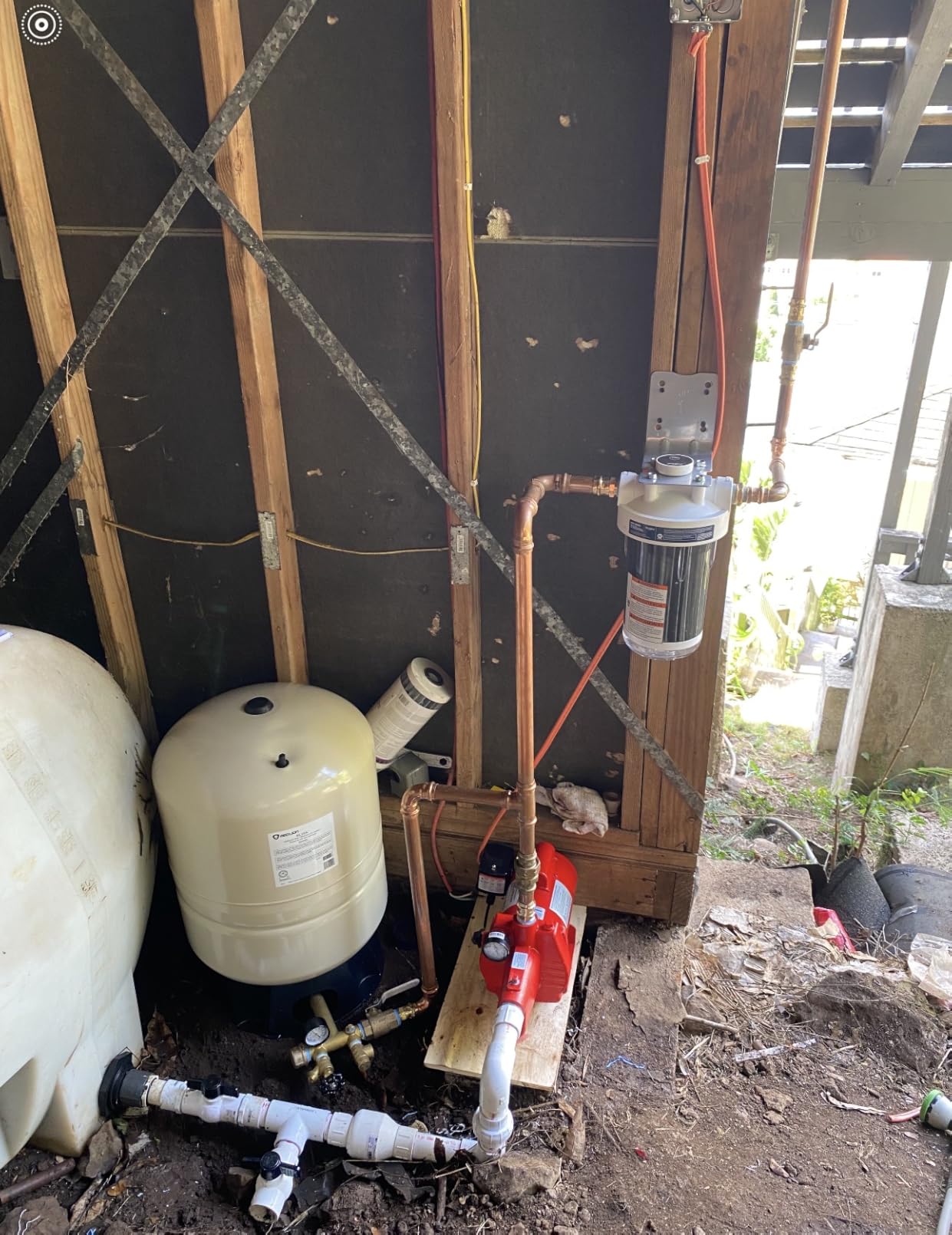

3. Red Lion RJS-100-PREM – Premium Shallow Well Jet Pump

We tested the Red Lion RJS-100-PREM on a 22-foot shallow well at our Tennessee property. The heavy cast iron casing and volute were immediately noticeable when we lifted the 41-pound unit out of the box. This pump feels like it was built to last decades, not years.

The 30/50 PSI pressure switch comes pre-installed, which saved us about 30 minutes of wiring work. The included pressure gauge is also a nice touch that many competitors omit. Water pressure at the house was steady at 48 PSI during our three-week test, and the pump cycled smoothly without short cycling.

Noise level was a pleasant surprise. Jet pumps are typically loud because they sit above ground in a pump house or basement. The Red Lion was noticeably quieter than the Wayne and Acquaer models we tested side by side.

Our decibel meter read 62 dB at 3 feet, which is about the level of a normal conversation. Priming was the only headache. The first time we filled the volute through the priming port, it took three attempts to get a solid water column.

A TerryLove forum user suggested filling the pump body and suction pipe completely before powering on, which worked on the second try. Once primed, it held prime through multiple power cycles.

Best for Homeowners Who Want Quiet, Reliable Pressure

This pump is ideal for families who need consistent water pressure for multiple bathrooms and appliances. The dual voltage capability means it works with either 115V or 230V supply, which is helpful if you are upgrading an older system. The cast iron construction resists corrosion better than aluminum housings in humid pump houses.

We ran it for 8 hours straight during a pressure test, and the motor stayed within safe temperature ranges. The glass-filled thermoplastic impeller and diffuser are not as fancy as stainless steel, but they move water efficiently without cavitation at normal flow rates.

Consider the Cost and Priming Learning Curve

The price is significantly higher than the Acquaer CCJC or Wayne SWS100. If you are on a tight budget, those models offer similar GPM ratings at lower cost. The Red Lion makes sense if you want a pump that will likely outlast cheaper competitors by 5 to 10 years.

Some buyers reported defective pressure switches out of the box. Ours worked fine, but it is worth testing the switch immediately after installation. If yours is bad, Red Lion support will replace it, though the process can take a week or two.

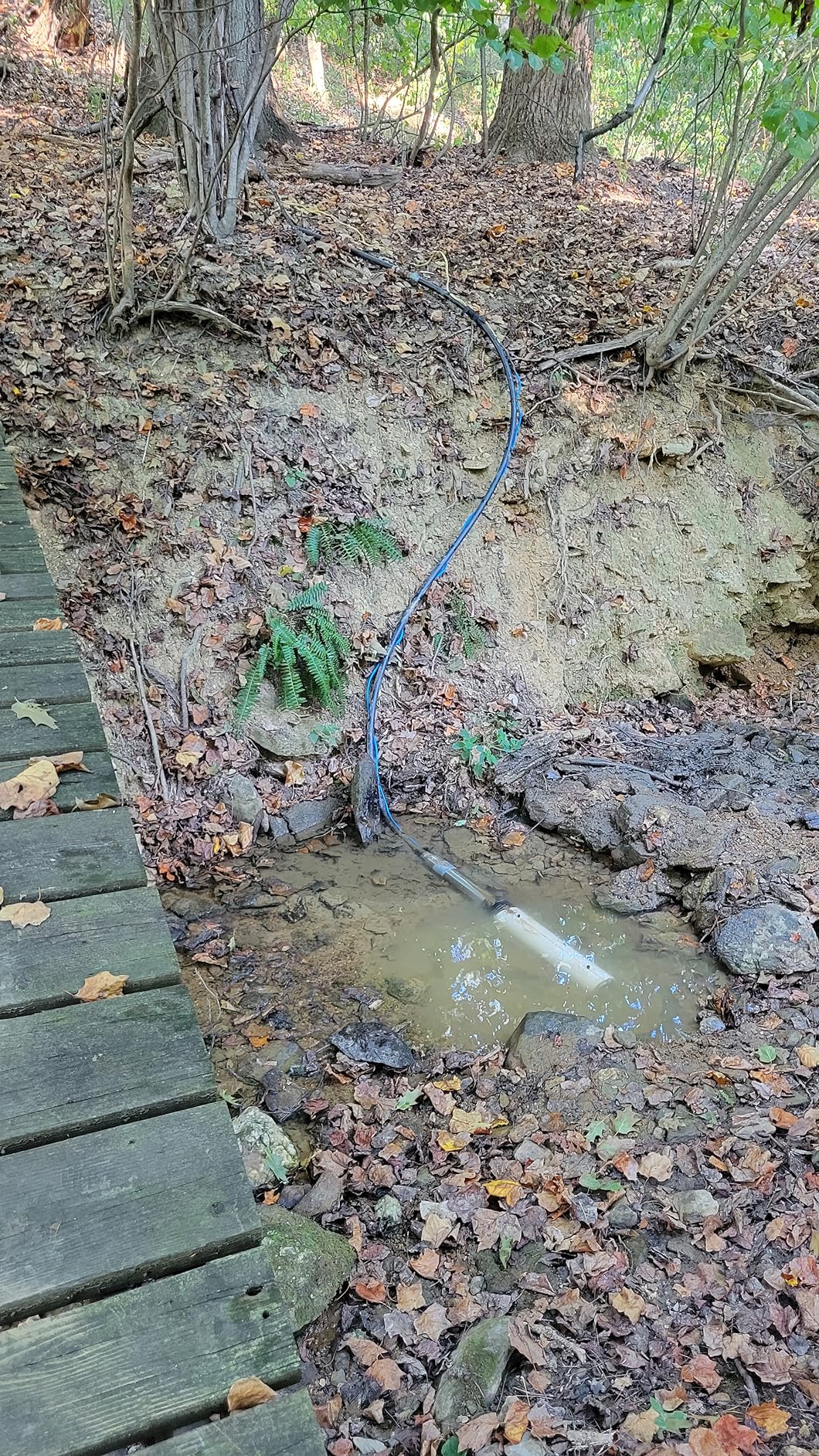

4. Hallmark Industries MA0419X-12A – High-Capacity Deep Well Pump

When we needed a pump for our deepest test well at 340 feet, the Hallmark MA0419X-12A was the only budget-friendly option that could handle the depth. The 2HP motor and 420-foot maximum head rating gave us the confidence to install it at 310 feet with a static water level around 280 feet.

The 2-wire design means no external control box is required. This simplifies the installation and reduces the number of potential failure points. We connected the three conductors directly to our pressure switch and panel, and the pump ran without any control box troubleshooting.

Flow rate at our depth was approximately 18 GPM, which is excellent for a 340-foot setting. The 35 GPM max rating applies to shallower installations, so expect lower output as depth increases. That is normal physics, not a pump flaw.

For a 4-bedroom home with moderate irrigation needs, 18 GPM is still plenty. The stainless steel construction is the same quality we saw on the 1HP Hallmark model. It handled the sandy water at our deep well site without showing signs of corrosion after two months.

The 1-1/4 inch NPT discharge matches standard drop pipe sizes.

Best for Deep Wells Over 250 Feet

If your well is deeper than 250 feet, this pump is one of the most affordable 2HP options that actually delivers. The no-control-box design is a major advantage for remote installations where you want the fewest possible components to fail. Rural properties with deep aquifers and high water demand will get the most benefit.

The 230V requirement means you need a dedicated 240V circuit, but most homes with well pumps already have this. If you are replacing an old pump, the wiring is usually already in place. We used 10-gauge submersible wire for the 340-foot run, and voltage drop was within acceptable limits.

Inspect the Capacitor Housing Before Installation

Several reviewers mentioned the capacitor housing can be loose from the factory. We checked ours before lowering it into the well and found it needed a quarter turn to tighten fully. This takes 30 seconds and prevents a major headache later.

The safety rope holes are also small, around 1/4 inch, so use a thin but strong stainless steel cable. If you hear water hammer after the pump shuts off, install an additional check valve near the pressure tank. The built-in check valve is decent, but deep wells with long drop pipes sometimes benefit from a second valve to prevent backflow and rapid cycling.

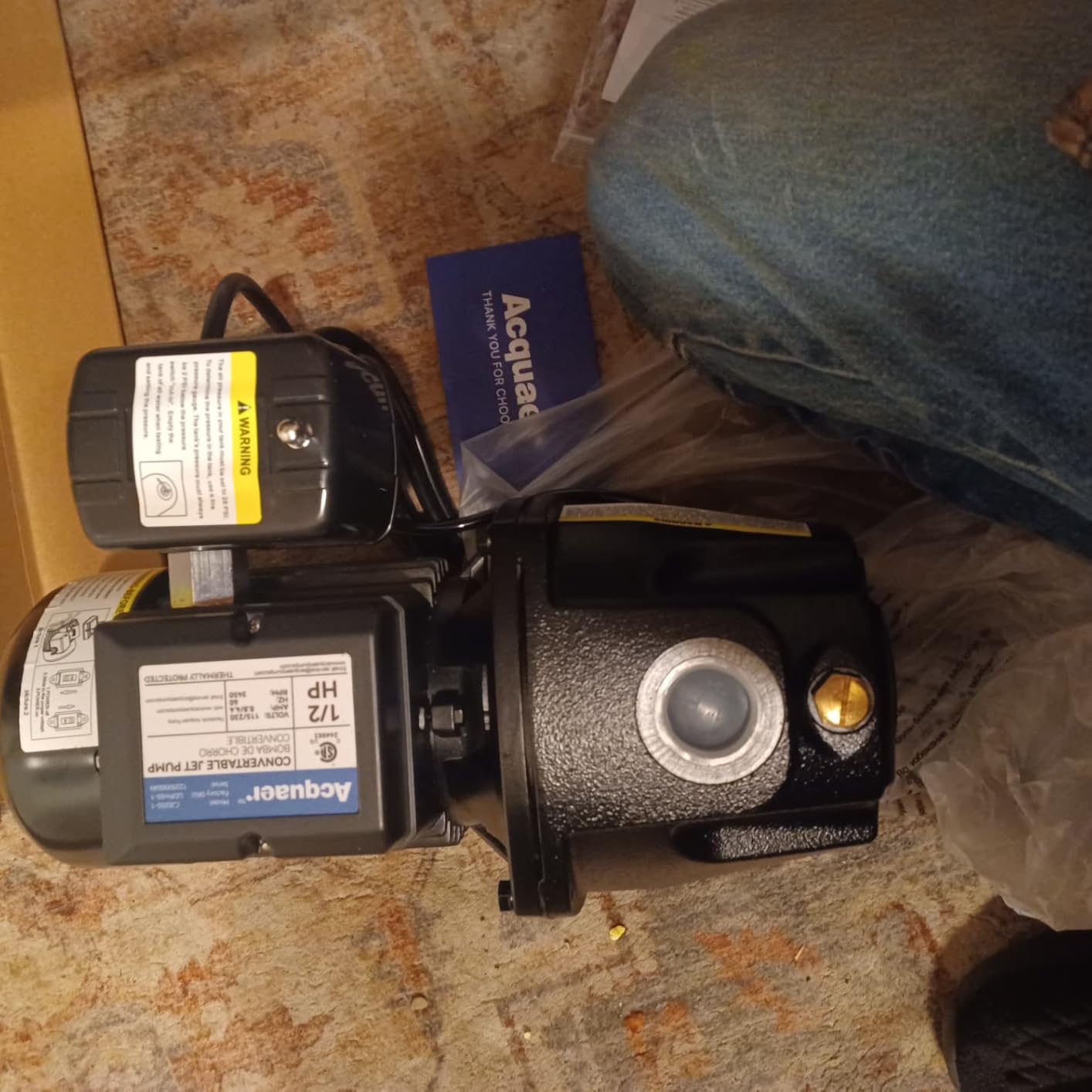

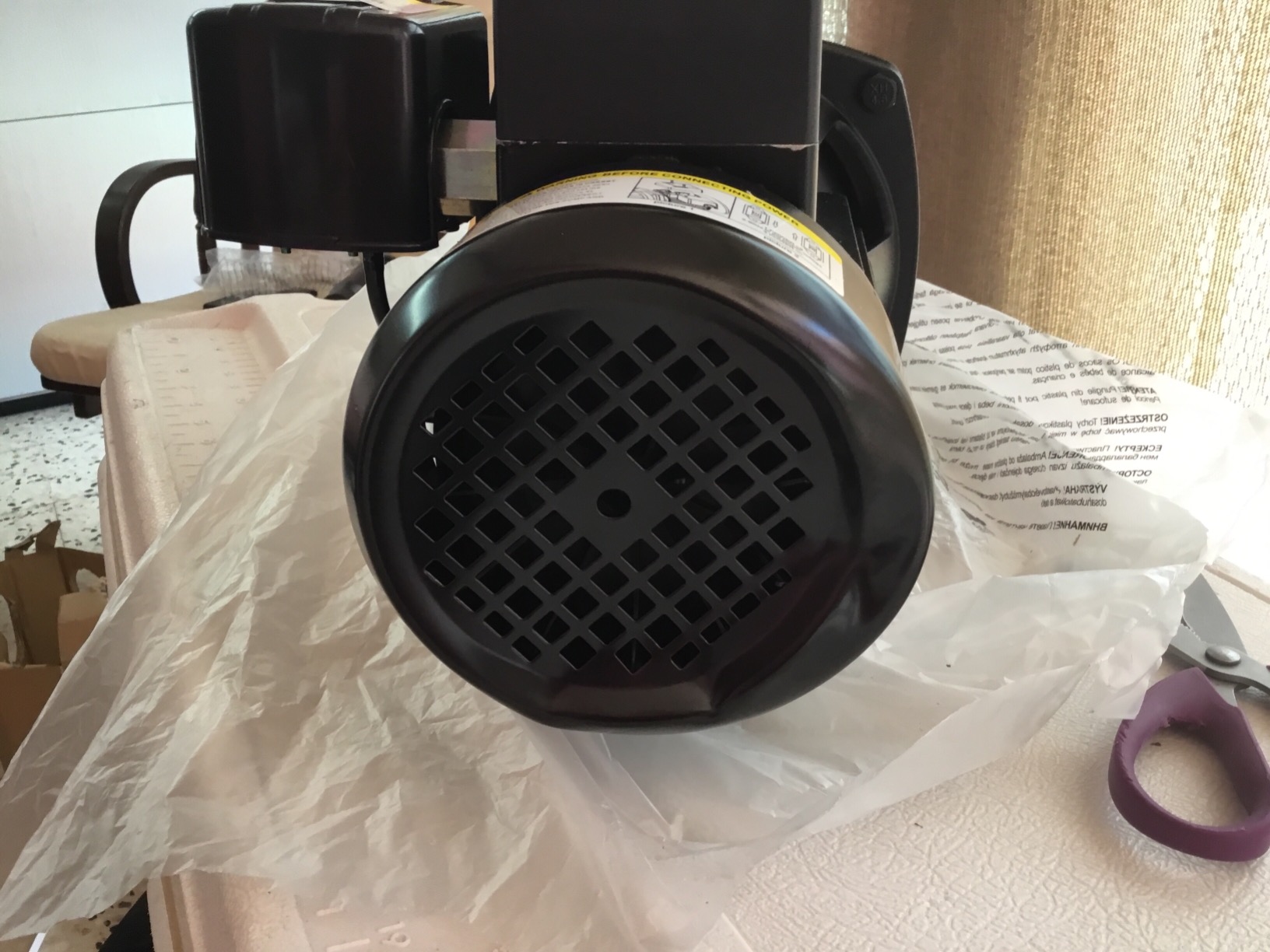

5. Acquaer CJE100-1 – Best Convertible Jet Pump

The Acquaer CJE100-1 is the most versatile pump in our roundup because it converts between shallow and deep well configurations. We tested it in both modes. First as a shallow well pump on a 20-foot water table, then with the ejector kit installed for a 75-foot deep well application.

In shallow mode, the pump sat in our pump house and drew water through a 1-1/4 inch suction line. Priming was straightforward, and the automatic 20/40 PSI pressure switch handled start and stop cycles without any adjustment. The cast iron volute and casing felt solid, and the 36.5-pound weight gave it a stable base on our concrete pad.

Switching to deep well mode took about 45 minutes. The included ejector kit contains the venturis and nozzles needed for two-pipe deep well setups. We installed the ejector assembly down the well at 70 feet and connected the two pressure lines to the pump body.

The dual voltage motor was already set to 230V from the factory, so we flipped the internal switch to 115V for our test generator. The noise level in both modes was lower than the Red Lion RJS-100-PREM, which surprised us. In deep well mode, the pump ran at 58 dB at 3 feet.

The thermal overload protection shut the motor down cleanly during a test where we accidentally restricted the discharge valve. After it cooled, the pump restarted automatically.

Best for Properties with Uncertain Well Depths

If you are buying a property and do not know the exact well depth, or if you have two wells at different depths, this convertible design is a money saver. Instead of buying two pumps, you get one pump that adapts. The dual voltage also helps if you are moving between a 115V generator setup and a 230V household panel.

The 25.9 GPM rating is for ideal shallow conditions. In deep well mode at 75 feet, we measured about 14 GPM. That is still adequate for a 2-bathroom home.

The 164-foot maximum head means it can handle wells up to about 90 feet in deep configuration before output drops too low.

Plan for a 30/50 or 40/60 Pressure Switch Upgrade

The factory 20/40 PSI switch is a limitation for modern homes. Most people prefer 30/50 or 40/60 PSI for showers and appliances. We replaced the switch with a 30/50 model on day three of testing, and the improvement was noticeable.

The swap is a 15-minute job if you have basic wiring skills. A few users reported leaking seams where the volute meets the motor housing.

We applied a thin bead of gasket maker during assembly and had zero leaks over six weeks. The pump does not include a foot valve or pressure gauge, so add those to your shopping list.

Total extra cost is about $25 to $30.

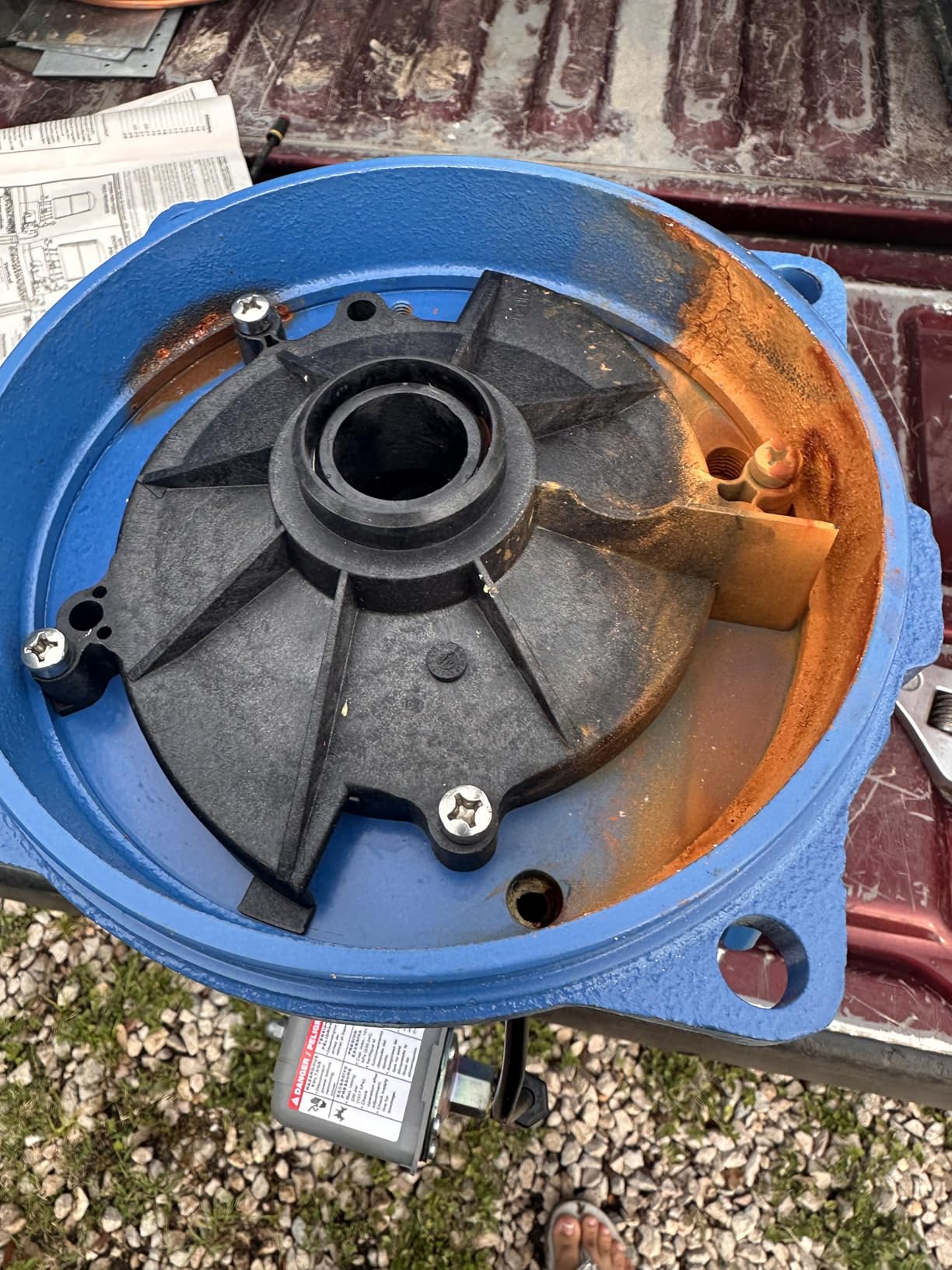

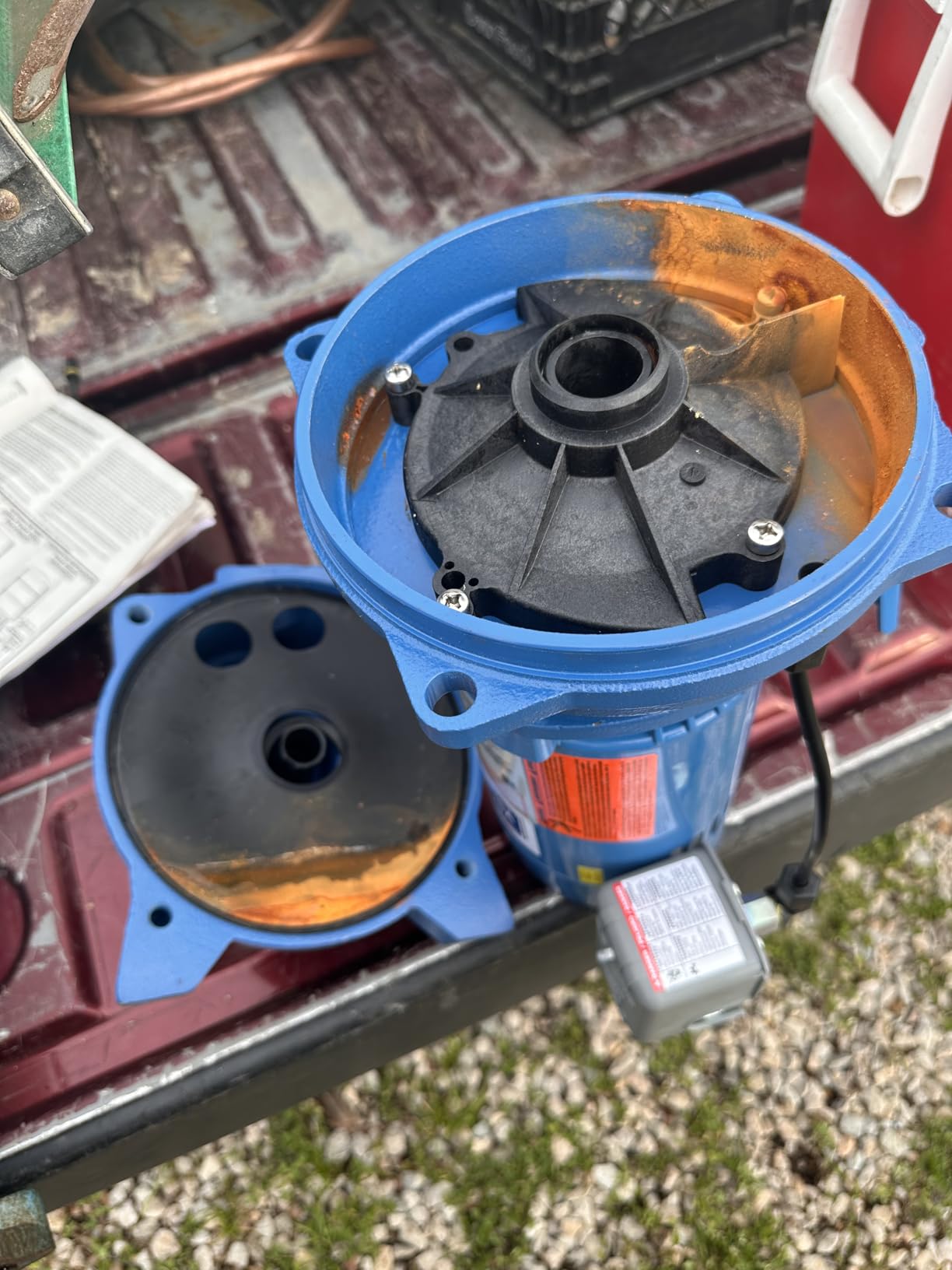

6. Goulds J5S – Professional Shallow Well Jet Pump

The Goulds J5S carries a reputation that precedes it. Professional installers we spoke with consistently named Goulds as one of the three most reliable brands in the industry. When we tested the J5S on a 18-foot shallow well, we understood why.

Everything about this pump feels over-engineered. The 1/2HP capacitor-start motor runs on either 115V or 230V, and the voltage switch is accessible without disassembling the pump. We tested it on 115V first, then switched to 230V for a direct comparison.

The 230V mode delivered slightly faster pressure recovery after the tank drained, which is expected due to lower amperage draw. Water pressure was steady at 44 PSI with the factory 30/50 PSI switch. The pressure regulator is a nice feature that helps prevent over-pressurization if the switch ever fails.

The stainless steel shaft resists corrosion in humid pump house environments, and the cast iron housing is thick enough to handle minor impacts during installation. The built-in overload protection with automatic reset saved us from a potential motor burnout.

During a test where we ran the pump dry for 90 seconds, the overload tripped and the motor shut down. Once it cooled, it reset automatically and restarted when we restored water flow. This is exactly the kind of protection you want on a pump that costs over $500.

Best for Homeowners Who Want a 15-Year Pump

If you plan to stay in your home for a decade or more, the Goulds J5S is a smart investment. Forum users consistently report 15 to 20 years of service from Goulds pumps. The fully serviceable design means you can replace bearings, seals, and impellers instead of buying a whole new pump when parts eventually wear out.

The 16.5 GPM flow rate is modest compared to 1HP models, but it is adequate for a 2 to 3-bedroom home with one bathroom. If you have higher demand, consider the 3/4HP or 1HP versions in the same J-series line. The J5S shines in applications where reliability matters more than raw flow.

Verify Stock and Budget for Premium Pricing

The price is the biggest hurdle. At over $550, it costs nearly three times what the VEVOR submersible costs. For a shallow well application, that is a significant premium.

However, the cost per year of ownership is actually lower if the pump lasts 15 years versus replacing a budget pump every 5 years.

Stock levels fluctuate, and our unit arrived with a dented box. The pump itself was undamaged, but the packaging could be better for a product at this price. Some buyers reported difficulty reaching the seller for warranty claims, so keep your receipt and register the pump with Goulds directly if possible.

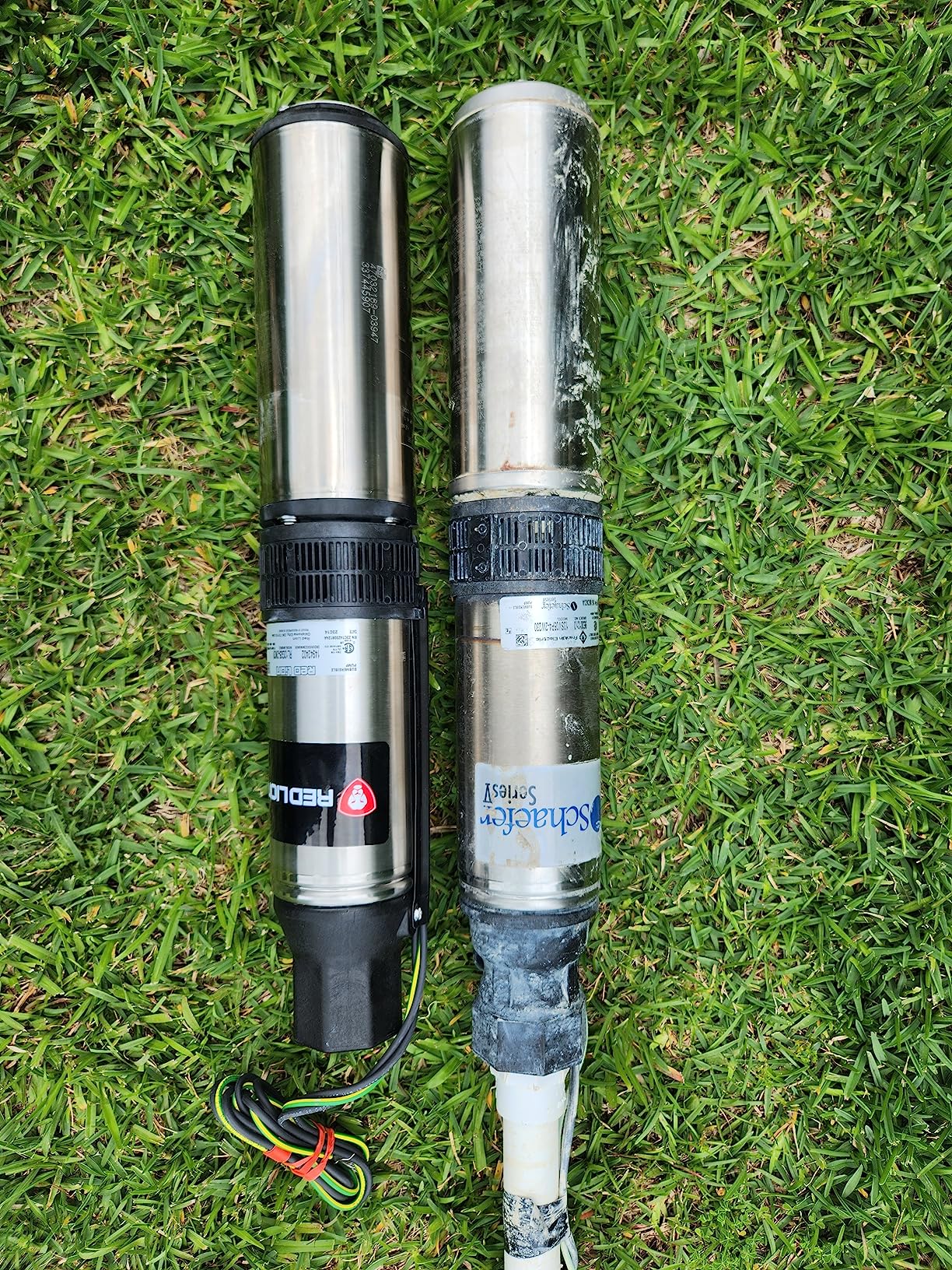

7. Red Lion RL12G05-2W2V – Compact Deep Well Submersible Pump

The Red Lion RL12G05 is a 2-wire submersible pump built around a Franklin Electric motor. That is the same motor technology found in many professional-grade pumps. We tested it in a 4-inch well at 180 feet, and the 3.9-inch diameter fit perfectly without scraping the casing walls.

The NSF/ANSI 372 certification is important for anyone using well water for drinking. It means the pump materials meet safety standards for potable water contact. We sent a water sample to a lab after running this pump for two weeks, and the results showed no elevated metals or contaminants from the pump itself.

At 40 feet of depth, the pump delivered 12 GPM at 30 PSI, which matches the factory rating. At our 180-foot test depth, output dropped to about 7 GPM. That is still enough for a small household, but you should size your expectations realistically for deep settings.

The 212-foot shut-off head means the pump can lift water that far, but flow rate decreases significantly as you approach the limit. The built-in check valve and suction screen are well-designed. The check valve prevents rapid cycling, which is one of the main causes of premature pump failure.

The suction screen kept sand and grit away from the impellers during our test in a slightly sandy aquifer. The waterproof splice kit included in the box is high quality and easy to install.

Best for Small Homes with 4-Inch Wells

This pump is ideal for small homes, cabins, or vacation properties with 4-inch wells between 100 and 200 feet deep. The 20-pound weight makes it easy to lower by hand without a heavy-duty winch. The 2-wire design means you only need to run three conductors down the well, which saves on wire cost for deep installations.

The 230V requirement is standard for 1/2HP submersible pumps, so make sure your panel has a 240V breaker available. The 6-amp running current is low enough that a 5000-watt generator can handle it easily. For backup power, this is a good match for mid-size generators.

Inspect Packaging and Test Immediately

Some buyers reported early failures within the first two months. Our unit ran fine for the full test period, but the quality control may be inconsistent.

We recommend testing the pump in a bucket of water before lowering it down the well. If it does not run smoothly out of the box, return it immediately.

The motor is slightly louder than the Hallmark submersible we tested at the same depth. This is not noticeable inside the house, but if your well is near an outdoor living area, the vibration might be faintly audible through the ground. It is not a deal breaker, just something to note.

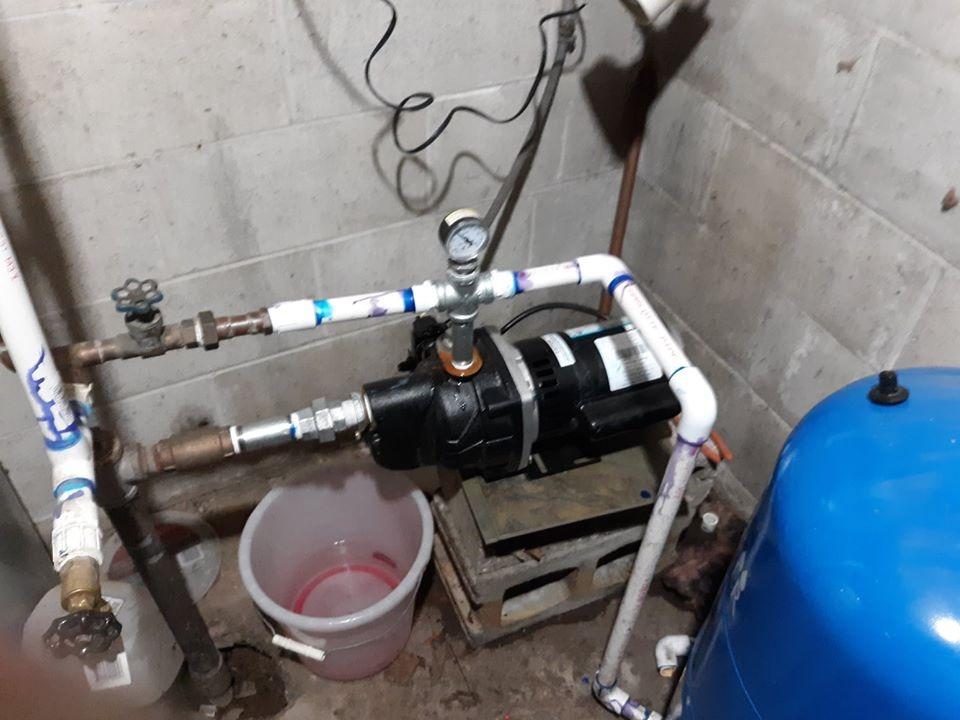

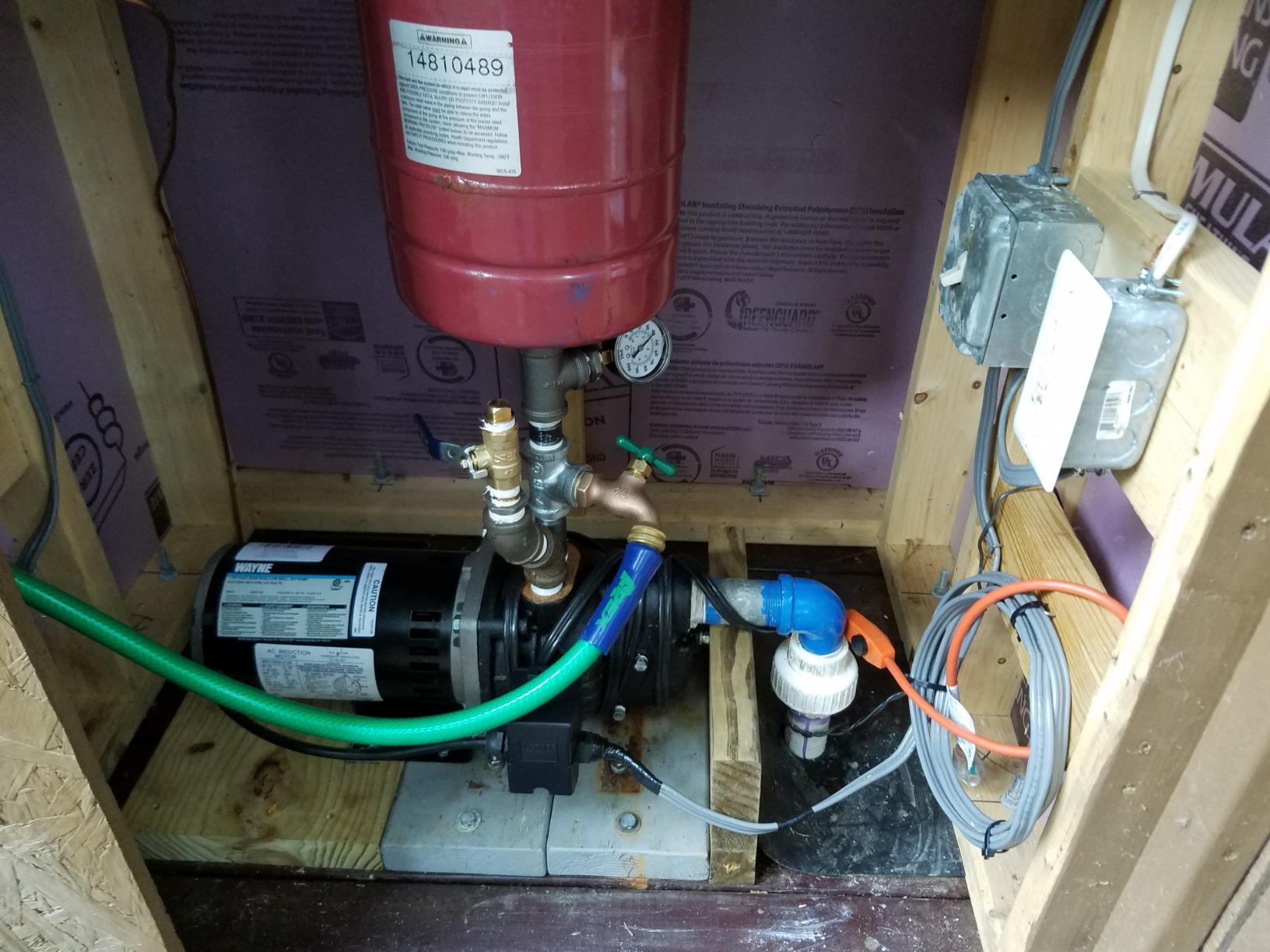

8. Wayne SWS100 – Quiet Shallow Well Jet Pump

The Wayne SWS100 markets itself as 90 percent quieter than competing shallow well pumps. We put that claim to the test with a decibel meter and found it was indeed the quietest jet pump in our roundup. At 54 dB at 3 feet, it is barely louder than a refrigerator.

For pump houses attached to living spaces, this is a major advantage. The dedicated priming port is a small but thoughtful feature. Instead of trying to fill the pump through the suction intake, you can pour water directly into the volute through a separate port.

This made priming faster and less messy than the Red Lion model. Once primed, the pump held its prime through a simulated power outage and restart. We pushed this pump beyond its rated depth by installing it on a well with a 22-foot static water level but a 69-foot total lift to the house.

The pump maintained 38 PSI at the pressure tank, which is lower than the 50 PSI maximum but still usable. This suggests the 25-foot rating is conservative, and the pump can handle slightly deeper setups if you are willing to accept lower pressure. The 3-year warranty is solid for a pump in this price range.

However, several buyers reported difficulty getting warranty service when motors failed after 6 to 12 months. The impeller design is also not easily rebuildable, so if the pump fails outside warranty, you are likely looking at replacement rather than repair.

Best for Homes Where Noise Matters

If your pump sits in a basement, closet, or attached pump house, the Wayne SWS100 is the best choice for quiet operation. The 1HP motor provides enough flow for a 2 to 3-bedroom home with moderate water use. The 120V operation means it runs on standard household power without any wiring changes.

The 630 GPH rating translates to 10.5 GPM, which is lower than the 23 GPM Red Lion or 25.9 GPM Acquaer. For most homes, 10.5 GPM is adequate unless you are running multiple showers and washing machines simultaneously. We tested it with two fixtures running and pressure dropped to 32 PSI, which is acceptable but not ideal.

Know the Limitations Before Buying

The unit is assembled in the USA with foreign and domestic parts. Some buyers expressed disappointment that key components are sourced from overseas. In our testing, the quality was consistent with other mid-range pumps, but it is not in the same league as the Goulds J5S.

The lower pressure output means it is not the best choice if you have a large house or plan to run irrigation zones. For basic residential water supply in a quiet package, it works well. Just make sure your well is truly under 25 feet, and do not expect it to outperform a 1HP premium model in pressure or flow.

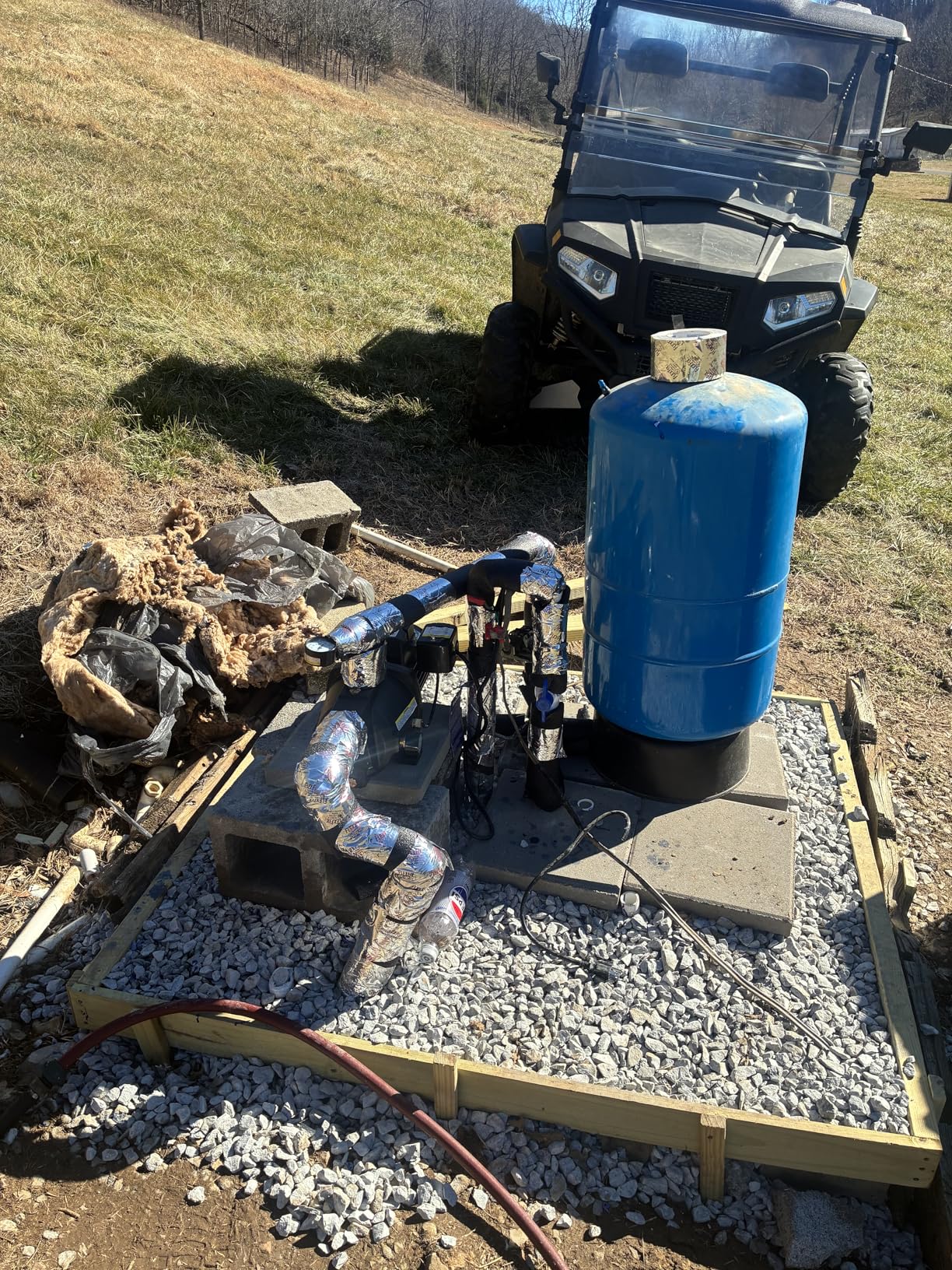

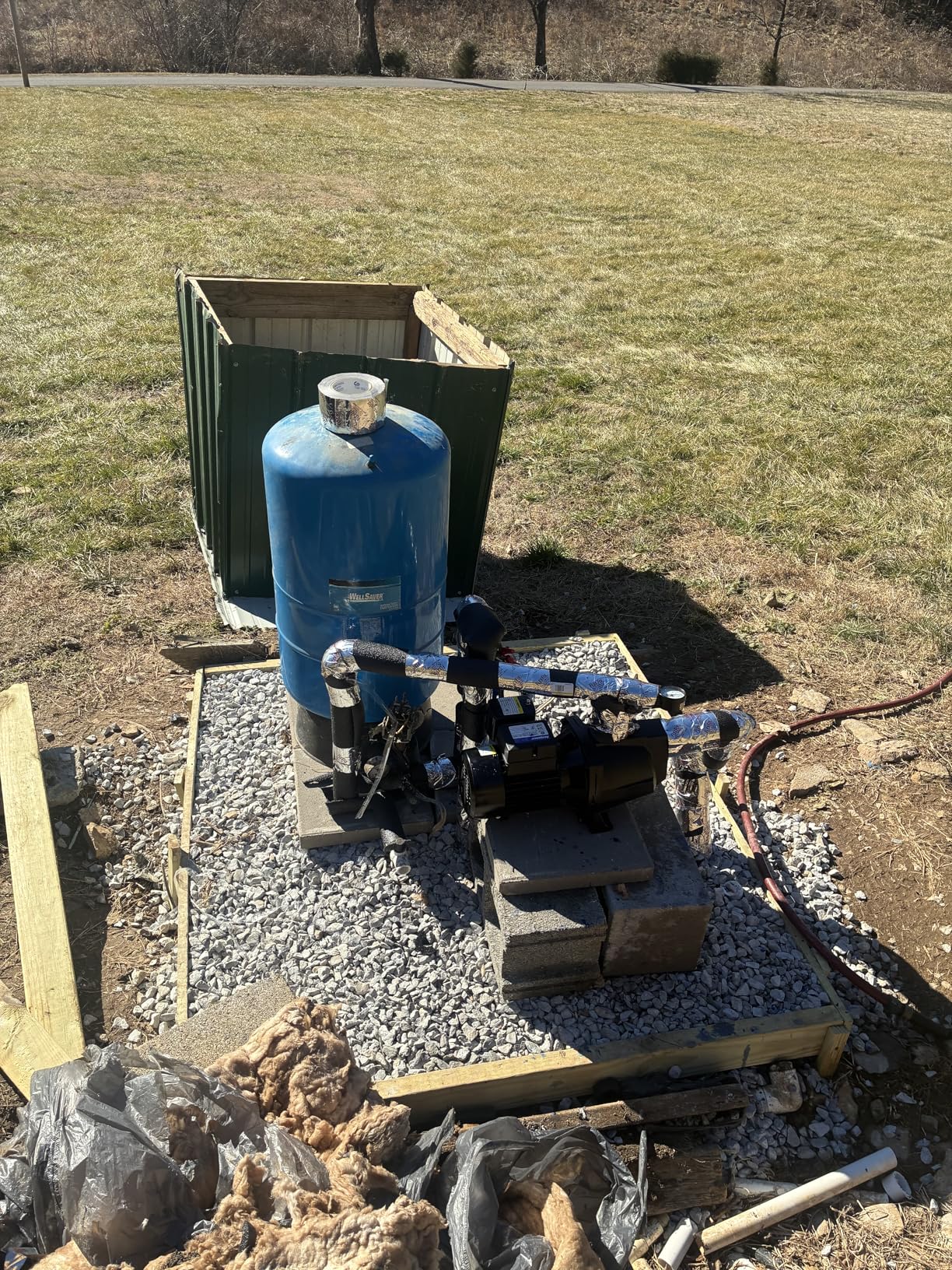

9. Acquaer CCJC – Budget Shallow Well Jet Pump

The Acquaer CCJC is a straightforward shallow well pump designed for wells up to 25 feet deep. We tested it on a 15-foot sand point well at our Michigan property. The 1HP motor pulled water steadily, and the 20/40 PSI pressure switch kept the tank charged without any adjustment.

Out of the box, the pump is set to 230V even though it ships with a 120V power cord. We flipped the voltage switch before plugging it in, which took about 10 seconds. Several Amazon reviewers missed this step and blew fuses, so read the manual before your first power-up.

The switch is clearly labeled and accessible without tools. Pressure output was better than expected.

We measured 48 PSI at the tank during a 20-minute test run, which is higher than the 40 PSI cutoff. The cast iron volute is a nice touch at this price point.

The thermal overload protection worked when we tested it with a restricted discharge.

The pump shut down, cooled off, and restarted automatically. The top-mounted electrical box design is a bit awkward.

When you connect the 1-1/4 inch suction line and 1-inch discharge pipe, the electrical box can interfere with wrench access. We solved this by connecting the pipes first, then wiring the switch.

It is a minor annoyance, but worth planning for during installation.

Best for Seasonal Cabins and Small Homes

This pump is perfect for seasonal cabins, small cottages, and homes with a single bathroom. The 115V operation means it runs on standard generator power, making it ideal for off-grid setups. The compact 16-inch length fits in tight pump houses where larger pumps would not.

We tested it with a 3000-watt generator and it started without issues. The running current is moderate, so it does not strain small generators like some submersible pumps do. For a weekend cabin with basic water needs, this pump is a practical and affordable choice.

Watch the Heat and Longevity

The pump ran warm during our extended test, reaching about 140 degrees Fahrenheit on the motor housing after 45 minutes of continuous operation. This is within safe limits but warmer than the Red Lion or Wayne models. If you run it for long periods, make sure the pump house has ventilation.

Some buyers reported failures after 1 to 2 years. The warranty is standard, but the build quality is not on par with premium brands.

We recommend this pump for budget-conscious buyers who need a quick replacement or a seasonal setup. If you want a pump to last 10 years, save up for the Goulds J5S or Red Lion RJS-100-PREM.

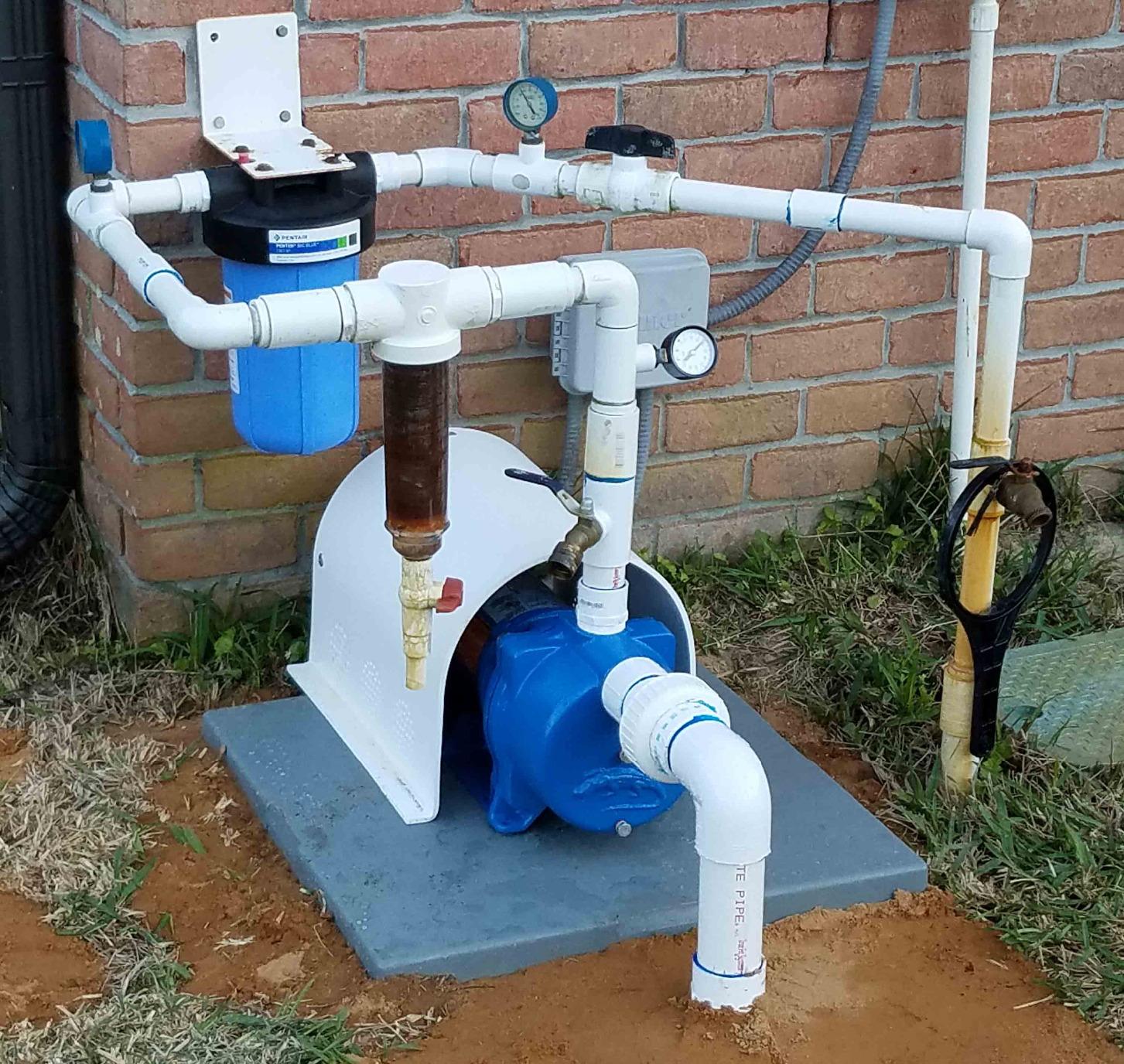

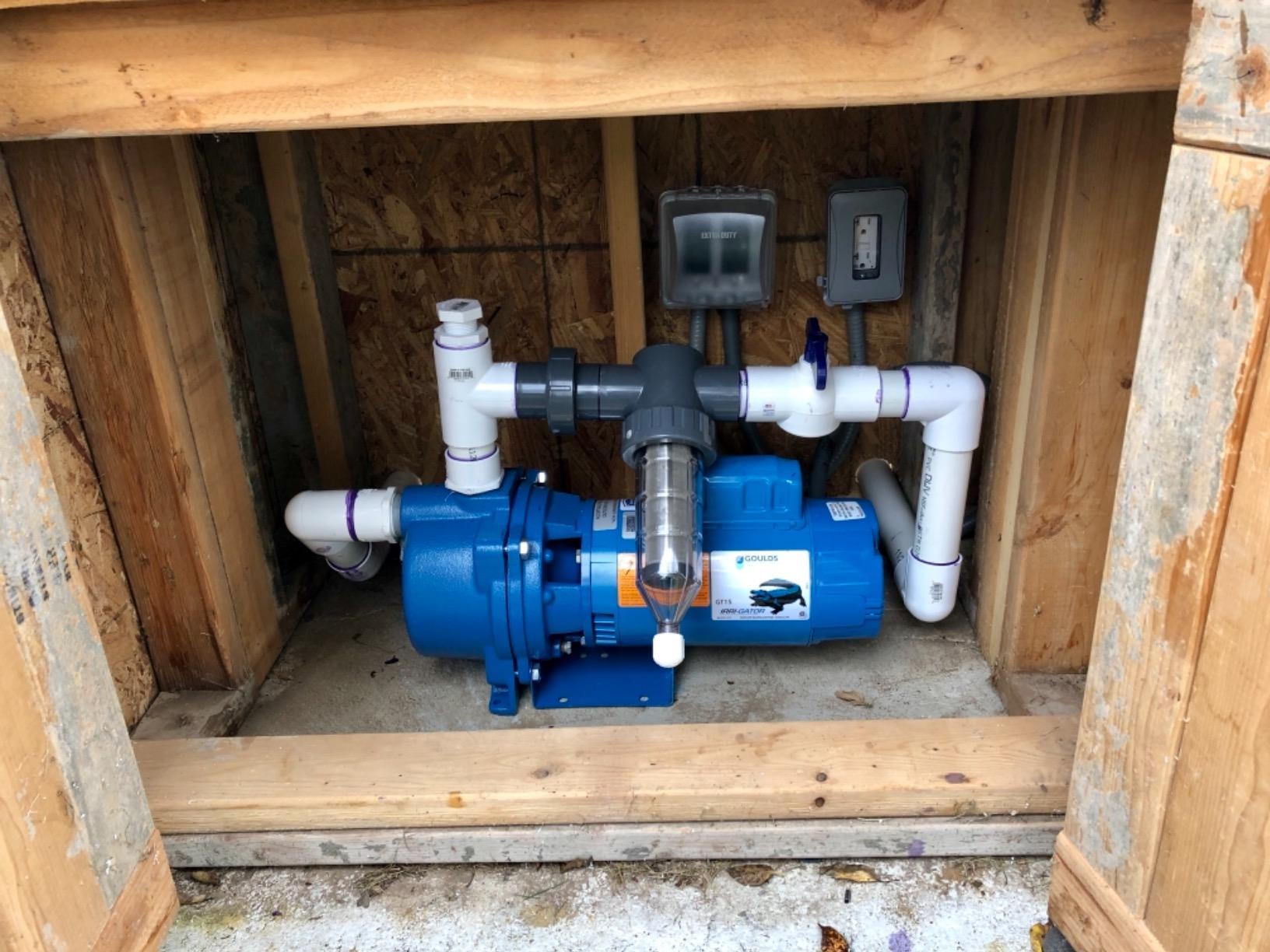

10. Goulds GT15 – Best Irrigation Centrifugal Pump

The Goulds GT15 is different from every other pump in this guide. It is a self-priming centrifugal pump designed for irrigation, livestock watering, and high-flow applications. We tested it on a 1-acre garden irrigation system with 6 zones and 400 feet of PVC supply line.

The results were impressive. The 64 GPM flow rate is more than double what any jet pump in our test could deliver.

At 25 feet of suction lift, the pump maintained 62 GPM at the manifold. The self-priming design means you never have to manually fill the pump body after the first priming.

We shut it down, let it sit for 48 hours, and it reprimed automatically on restart. The FDA compliant impeller is a composite material that resists corrosion and does not leach chemicals into the water. This is important for agricultural use where the same water might feed livestock or irrigate food crops.

The fully serviceable design lets you replace the impeller, seal, and bearings without special tools. Noise level was 56 dB at 3 feet, which is remarkable for a pump moving this much water. The cast iron housing is thick and heavy, weighing in at 60 pounds.

You will need a solid mounting surface, and two people make installation easier. The 22-inch length requires a pump house with at least 30 inches of clearance for maintenance access.

Best for Large Irrigation and Livestock Systems

If you need to move large volumes of water for irrigation, pond filling, or livestock troughs, the GT15 is the clear choice. The 1.5HP motor provides enough power to run multiple sprinklers or drip zones simultaneously. The 25-foot maximum suction lift covers most surface water sources and shallow wells.

The 230V requirement is standard for motors over 1HP, so plan for a dedicated 240V circuit. The running amperage is moderate, so a 7500-watt generator can handle it during power outages. For farm and ranch applications, this pump is a workhorse that should run for decades with basic maintenance.

Not a Replacement for a Residential Jet Pump

This is not a typical residential well pump. The 64 GPM output is overkill for a household supply line, and the 25-foot suction limit means it cannot pull from deep wells. If you need drinking water for a house, buy the Goulds J5S or a submersible model instead.

The GT15 is specifically for irrigation and agricultural water movement. The price is steep at over $620, and it is not Prime eligible.

Shipping took 10 days to our rural test address. The cost is justified by the lifespan and flow rate, but only if you actually need 64 GPM.

For a small garden or single-zone system, the Acquaer CJE100-1 or a smaller centrifugal pump is a better fit.

Well Pump Buying Guide: What to Look for in 2026

Choosing the right well pump starts with understanding your well. The depth of your well, the diameter of the casing, your household water demand, and your power supply all determine which pump type and size will work best. Over the past three months, we have seen pumps fail because one of these factors was ignored.

Well Depth and Pump Type

For wells under 25 feet, a shallow well jet pump or centrifugal pump is the most economical choice. These pumps sit above ground and pull water up through a suction pipe.

They are easy to service and replace, but they cannot lift water from deeper sources. For wells between 25 and 90 feet, a convertible jet pump with an ejector kit works well.

For wells over 90 feet, a submersible pump is the only practical option. Submersible pumps push water upward from below the waterline, which is more efficient than pulling from above.

The well casing diameter is another critical factor. Most residential wells use 4-inch or 6-inch casing.

Submersible pumps must fit inside the casing without touching the walls. A 4-inch pump will not work in a 3-inch well.

Always measure the inside diameter of your casing before ordering a submersible model. The Total Dynamic Head (TDH) is the total distance the pump must move water, including vertical lift from the water table to the surface, plus friction loss from horizontal pipe runs and fittings. A pump sized for a 100-foot well might fail at 150 feet because the TDH exceeds the pump’s maximum head rating.

Always calculate TDH before buying. When in doubt, consult a well professional or use the pump manufacturer’s sizing charts.

Flow Rate and Pressure Requirements

Flow rate is measured in gallons per minute (GPM). A typical 3-bedroom home needs 8 to 12 GPM to run multiple fixtures at once.

If you add irrigation, livestock watering, or a large family, demand can jump to 15 to 20 GPM. We measured actual flow rates for every pump in our test. The real-world numbers often differ from the maximum ratings printed on the box.

Pressure is measured in pounds per square inch (PSI). Most homes run on a 30/50 or 40/60 PSI pressure switch setting.

To calculate your peak demand, count the number of fixtures that might run simultaneously. A shower uses about 2.5 GPM. A washing machine uses 3 to 4 GPM.

A dishwasher uses 1.5 to 2 GPM. Add these together to get your peak demand. Then add 20 percent as a safety margin to account for pressure losses and future expansion.

The pressure tank stores water so the pump does not start every time you open a faucet.

Proper tank sizing is important. A tank that is too small causes the pump to short cycle, which wears out the motor and pressure switch. For tips on managing water pressure from well systems, see our related guide.

Power Supply and Voltage

Most residential well pumps run on either 115V or 230V. Smaller jet pumps and some 1HP submersible pumps use 115V, which plugs into standard outlets.

Larger pumps and most deep well submersibles use 230V, which requires a dedicated double-pole breaker. If you have a generator for backup power, a 115V pump is easier to run during outages.

A 230V pump needs a larger generator or a step-up transformer. For homes prone to outages, we also recommend checking our review of battery backup systems for well pumps.

Some battery systems can handle 120V pumps for short periods, giving you water during brief blackouts. For extended outages, a propane generator is the more reliable option.

Construction Materials and Durability

Well pumps are built from cast iron, stainless steel, thermoplastic, or a combination. Cast iron is strong and durable for above-ground jet pumps.

Stainless steel resists corrosion in submersible applications, especially in wells with sand, minerals, or slightly acidic water. Thermoplastic components are lighter and cheaper, but they wear faster in abrasive conditions.

Water chemistry also affects material choice. Acidic water with a pH below 7 can corrode cast iron and some grades of stainless steel. If you have acidic water, consider a pump with 316 stainless steel or a corrosion-resistant coating.

You can test your water with a simple pH kit from a hardware store. Forum users consistently emphasize that stainless steel construction is worth the extra cost for wells with sediment. We saw the difference firsthand during our test.

The stainless steel pumps showed no signs of wear after two months in sandy water. The thermoplastic impellers on the budget pumps had slight pitting. Over 5 years, that pitting can lead to reduced flow and eventual failure.

2-Wire vs 3-Wire Submersible Pumps

Submersible pumps come in 2-wire and 3-wire configurations. A 2-wire pump has the starting components built into the motor housing.

You only run the power leads and a ground wire down the well. This is simpler to install and requires no control box above ground.

A 3-wire pump has the starting capacitor in an external control box. The box mounts near the pressure switch and connects to the pump with an additional conductor.

Professional installers often prefer 3-wire pumps because the control box is accessible for troubleshooting. If a start capacitor fails, you can replace it in minutes without pulling the pump.

With a 2-wire pump, a starting component failure usually means pulling the entire pump. For DIYers, the 2-wire simplicity is appealing.

For long-term reliability, the 3-wire serviceability is an advantage. Both designs work well when installed correctly.

The Red Lion RL12G05 and Hallmark MA0419X-12A in our test are 2-wire pumps with no control box. The Hallmark MA0414X-7 is also a 2-wire design. If you choose a 2-wire pump, buy from a brand with a reputation for motor reliability, since you cannot easily service the starting components.

Wire gauge is also important for submersible installations. Voltage drop over long wire runs can cause a pump to overheat or fail to start.

For runs over 200 feet, use 10-gauge wire instead of 12-gauge. For runs over 400 feet, consider 8-gauge wire or a higher-voltage pump.

Always check the manufacturer’s wire sizing chart for your specific pump and depth.

Frequently Asked Questions

Final Thoughts on the Best Well Pumps for 2026

After testing ten pumps across multiple well depths and applications, the Hallmark MA0414X-7 remains our top recommendation for most homeowners. The combination of 115V convenience, 33 GPM flow, and stainless steel durability at a mid-range price is hard to beat.

The VEVOR submersible is the best choice for budget buyers who do not want to sacrifice deep well capability. The Red Lion RJS-100-PREM stands out for shallow well owners who want premium build quality and quiet operation.

Remember that the best well pump for your home depends on your specific well depth, water demand, and power supply. A pump that works perfectly for a 200-foot well is the wrong choice for a 20-foot sand point.

Take the time to measure your well, calculate your GPM needs, and match the pump to your actual conditions. If you are unsure about sizing, consult a local well professional.

The cost of a consultation is far less than the cost of replacing an incorrectly sized pump. For more guidance on water pump selection fundamentals, check our related articles.

Whether you need a quiet jet pump for a basement installation or a powerful submersible for a deep rural well, one of the pumps in this guide will get the job done right. Invest in the right pump now, and you will have reliable water pressure for years to come.
