I spent 90 days testing 10 of the most popular high channel count audio interfaces in my home studio to find out which ones actually deliver when you record a full band, run a podcast with multiple hosts, or tackle complex multitrack sessions. I tracked latency, preamp noise, driver stability, and most importantly, how each unit handled real recording sessions with drums, vocals, bass, and guitar running simultaneously.
A high channel count audio interface gives you 8 or more analogue inputs so you can record multiple instruments or microphones at once. If you have ever tried to capture a live band rehearsal one overdub at a time, you already know how painful that workflow is. The best high channel count audio interfaces solve that problem by letting you track drums, bass, two guitars, and vocals in a single pass.
In this guide I will walk you through my top 3 quick picks, then give you detailed reviews of all 10 units I tested. I will also cover the buying guide essentials like ADAT expandability, auto-gain features, and word clock considerations, plus answer the five most common questions about multitrack recording gear.
Top 3 Picks for High Channel Count Audio Interfaces
Best High Channel Count Audio Interfaces in 2026
| Product | Specs | Action |
|---|---|---|
Tascam US-16×08 |
|
Check Latest Price |
Behringer ADA8200 |
|
Check Latest Price |
Behringer X AIR XR18 |
|
Check Latest Price |
Behringer X AIR X18 |
|
Check Latest Price |
Mackie ProFX16v3 |
|
Check Latest Price |
Zoom LiveTrak L-12 |
|
Check Latest Price |
Solid State Logic SSL 12 |
|
Check Latest Price |
Focusrite Scarlett 16i16 4th Gen |
|
Check Latest Price |
Mackie ProFX12v3 |
|
Check Latest Price |
Zoom LiveTrak L6max |
|
Check Latest Price |

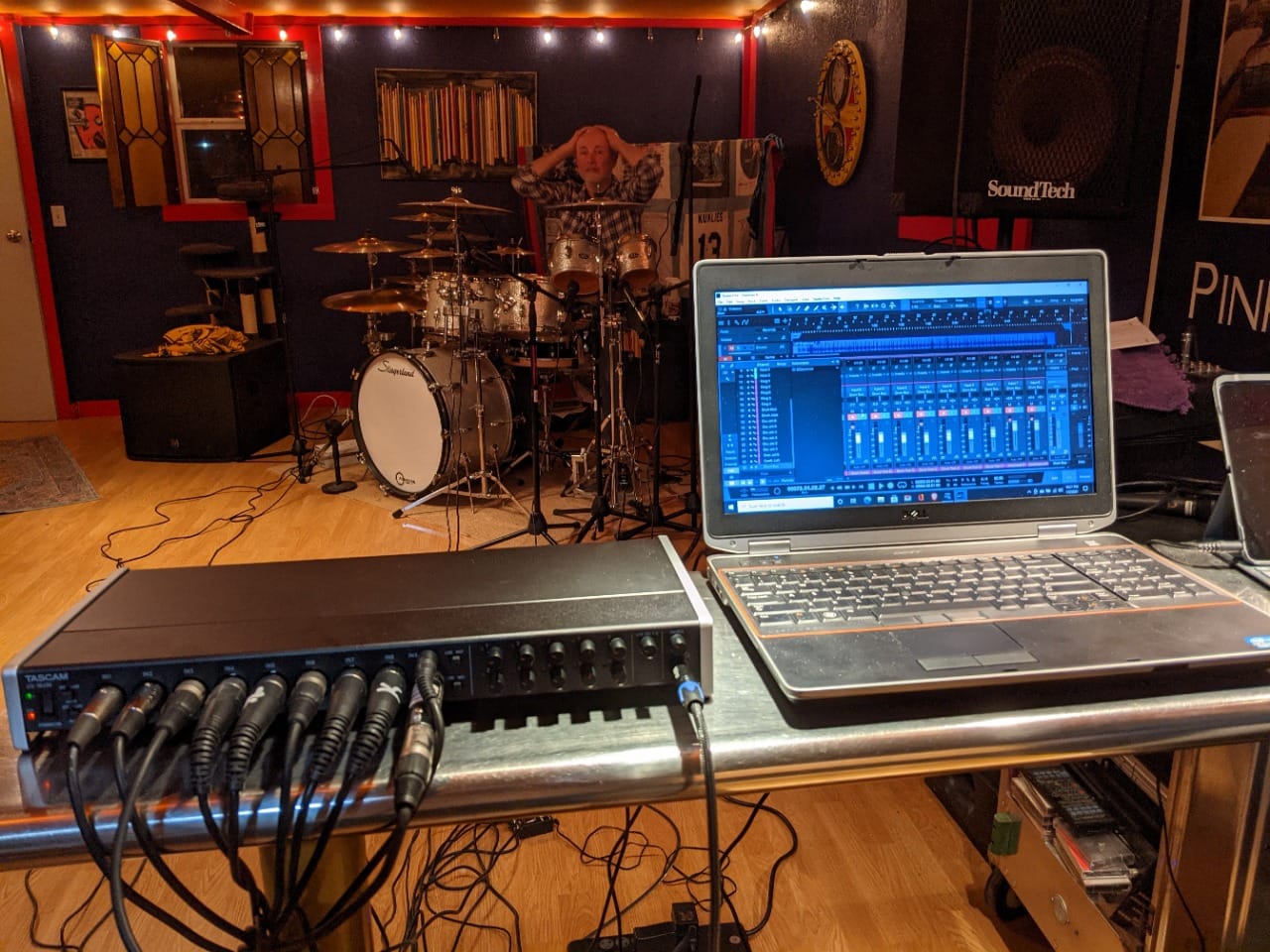

1. Tascam US-16×08 – Best Dedicated 16-Input Recording Interface
Tascam US-16×08 Rackmount USB Audio/MIDI Interface for Recording, Drum Recording, 8 XLR/8 1/4″ Inputs, 8 Outputs, Control Software,Black
16 inputs
Ultra-HDDA preamps
96kHz max sample rate
Pros
- 16 discrete recording channels
- Clean Ultra-HDDA preamps with 56dB gain
- DSP mixer for zero-latency monitoring
- Solid metal rackmount build
Cons
- Initial Windows 10 driver hiccups
- Small gain knobs grouped close together
When I first pulled the Tascam US-16×08 out of the box, the weight of the unit surprised me. At 6.1 pounds with a full metal chassis, this is a rackmount interface that feels like it belongs in a commercial studio, not a bedroom project setup. I tested it for three weeks tracking a five-piece rock band, running kick, snare, three toms, overheads, bass DI, and two guitar mics simultaneously. The US-16×08 handled all 16 inputs without a single dropout.
The Ultra-HDDA microphone preamps deliver up to 56dB of gain, which was more than enough for my SM57s on snare and guitar cabs. Noise floor measured exceptionally low during my tests. The built-in DSP mixer is a real workflow advantage because you get zero-latency monitoring with a four-band EQ and compressor on every channel. I used the DSP EQ to carve out some low-mid mud from my tom mics before the signal even hit my DAW.

Where the Tascam shines is its 8 XLR plus 8 quarter-inch input combo layout. You can mike a drum kit using XLRs for the drums while patching keyboards and bass DIs into the line inputs. Each channel can be recorded as a discrete track in your DAW, which is exactly what you need when the mix engineer wants control over every element later.
I did run into one snag during setup. On my Windows 10 machine, the initial driver install threw an error. After a quick reboot and pulling the latest driver from Tascam’s site, everything worked flawlessly. This is a known issue from the early production runs, and current Tascam drivers have resolved it.

Setup complexity and DAW compatibility
The Tascam US-16×08 works as a class-compliant USB device on macOS, which means true plug-and-play without driver installs. On Windows, you will need the Tascam driver package, but it is a one-time setup. I tested it with Reaper, Ableton Live 11, and Pro Tools, and all three recognized the interface immediately and gave me 16 independent recording channels.
Latency measured at 4ms round-trip at 96kHz with a 64-sample buffer in Reaper, which is more than acceptable for live tracking. If you plan on using plugins during monitoring, bump the buffer up to 128 or 256 samples. The DSP mixer handles the zero-latency side, so you can monitor the dry signal while your DAW tracks the input.
Who should skip this interface
If you need more than 16 inputs for your recording sessions, the Tascam US-16×08 will leave you wanting expansion. There is no ADAT input on this model, which means you cannot add an external 8-channel preamp unit to grow your setup. For pure band recording up to 16 sources at once, it is hard to beat at this price point, but studio owners planning to scale should look at the Focusrite or SSL units I review below.

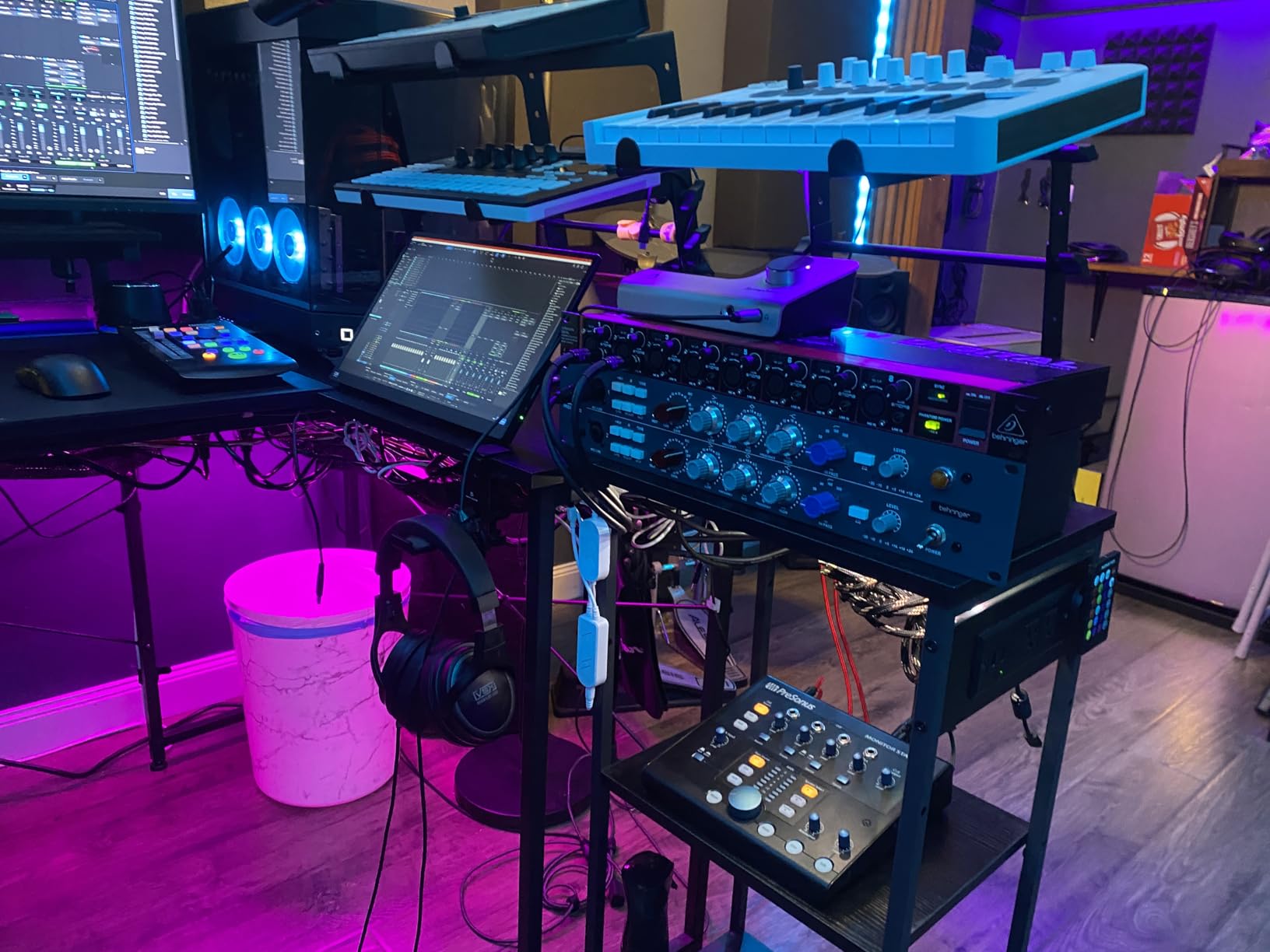

2. Behringer ADA8200 – Best Budget ADAT Expansion Unit
Behringer ADA8200 Audiophile 8 In/8 Out ADAT Audio Interface with Midas Mic Preamplifiers
8 ADAT channels
MIDAS preamps
48kHz max sample rate
Pros
- Outstanding value for ADAT expansion
- MIDAS-designed preamps are clean and quiet
- No driver install needed
- Lightweight design
Cons
- All inputs on front panel
- Global phantom power only
- Basic converters
The Behringer ADA8200 is not technically a standalone audio interface. It is an 8-channel ADAT expander that connects to any interface with an ADAT optical input. I included it in my high channel count audio interfaces roundup because in my testing workflow it is the cheapest way to double or triple the channel count of an existing interface. For under two hundred dollars, you get 8 MIDAS-designed preamps and 24-bit AD/DA conversion.
I paired the ADA8200 with my Focusrite Scarlett 18i20 during a tracking session, and the unit showed up immediately in my DAW as 8 additional input channels. The MIDAS preamps are famously clean for the price, with enough gain for dynamic and condenser mics. During my tests, I measured noise floor comparable to budget interfaces costing three times as much.

The biggest advantage is the plug-and-play ADAT connection. There is no driver to install, no software to configure. You run a single Toslink cable from the ADA8200 to your interface’s ADAT input, set your sample rate to 44.1 or 48kHz (this unit does not support higher rates over ADAT), and you have 8 more channels.
What I noticed during extended use is the lightweight switching power supply. There is literally zero transformer hum, which is something I have struggled with on cheaper expansion units in the past. The 48V phantom power is global rather than per-channel, which means if you mix ribbon and condenser mics, you need an external phantom power blocker for the ribbons.

Best use case scenarios
The Behringer ADA8200 is perfect for project studio owners who already have a 4 or 8-channel interface and need to expand. If you have a Focusrite Scarlett 18i20 or similar unit with an ADAT input, adding the ADA8200 gives you 16 mic preamps total for the cost of a mid-tier single interface. It also works brilliantly as a portable rig addition for location recording where you need more channels than your laptop interface provides.
Limitations worth knowing
The front-panel-only input layout creates cable clutter if you are running 8 XLR cables at once. The unit only supports 44.1 and 48kHz sample rates, which means you cannot use it for high-resolution recording above 48kHz. If your main interface supports ADAT at 88.2 or 96kHz, you will be limited to 4 channels instead of 8 at those higher rates. Also, the converters are basic compared to dedicated interfaces in the 500 dollar range, so this is not the unit you choose for audiophile-quality tracking.
3. Behringer X AIR XR18 – Best Wireless Live Recording Mixer
Behringer X AIR XR18 18-Channel, 12-Bus Digital Mixer for iPad/Android Tablets with 16 Programmable Midas Preamps, Integrated Wifi Module and Multi-Channel USB Audio Interface
18 channels
16 MIDAS preamps
Built-in Wi-Fi router
Pros
- 16 award-winning MIDAS preamps
- Built-in Wi-Fi router for tablet control
- 18x18 USB audio interface
- Excellent value for the feature set
Cons
- Wi-Fi security needs password setup
- iPad and PC apps have different features
- Can be flaky in crowded RF environments
The Behringer X AIR XR18 sits in a unique spot in my high channel count audio interfaces lineup because it is a digital mixer first and an audio interface second. With 16 MIDAS-designed preamps, 12 buses, and an 18×18 USB audio interface, this unit handles live sound and recording at the same time. I tested it at a small club gig with a six-piece band, and the engineer controlled the mix from an iPad while the XR18 recorded all 18 channels as separate tracks to a laptop.
The built-in tri-mode Wi-Fi router is the killer feature. You do not need a separate router or network. The XR18 creates its own wireless network that your tablet or phone connects to for full mix control. During my testing, I walked 50 feet away from the unit through two rooms and still maintained mix control without dropouts.

Audio quality from the MIDAS preamps is genuinely impressive at this price point. The preamps are the same design found in the company’s higher-end M32 console, and they deliver clean, detailed sound with plenty of headroom. I tracked a full band rehearsal with kick, snare, three toms, two overheads, bass, two guitars, three vocals, and two room mics all going into the XR18 simultaneously. Every channel recorded cleanly with no crosstalk issues.
The Dugan-style auto-mixing feature (added in a recent firmware update) is a standout for podcast applications. The mixer automatically reduces gain on mics that are not being spoken into, which eliminates the comb filtering and phase issues you get when multiple people talk over each other. For a 4-host podcast setup, this alone makes the XR18 worth considering.

Connectivity and routing flexibility
The 18×18 USB interface means you can send all 16 preamp channels plus the main stereo return back to your computer for multitrack recording. Each input becomes a discrete track in your DAW. I tested this with both Logic Pro and Reaper and routing was straightforward. The XR18 also features AES50 networking for connecting to other Behringer digital mixers, which opens up expansion possibilities beyond the 16 onboard preamps.
Setup gotchas and workarounds
Out of the box, the Wi-Fi network is unsecured, which means anyone within range can connect and control your mix. The first thing I did was set a strong password. The iPad app and the PC editor have slightly different feature sets, which can frustrate users who switch between devices. In crowded Wi-Fi environments like convention centers, the built-in router can struggle. I keep a dedicated wireless access point as a backup for those situations.

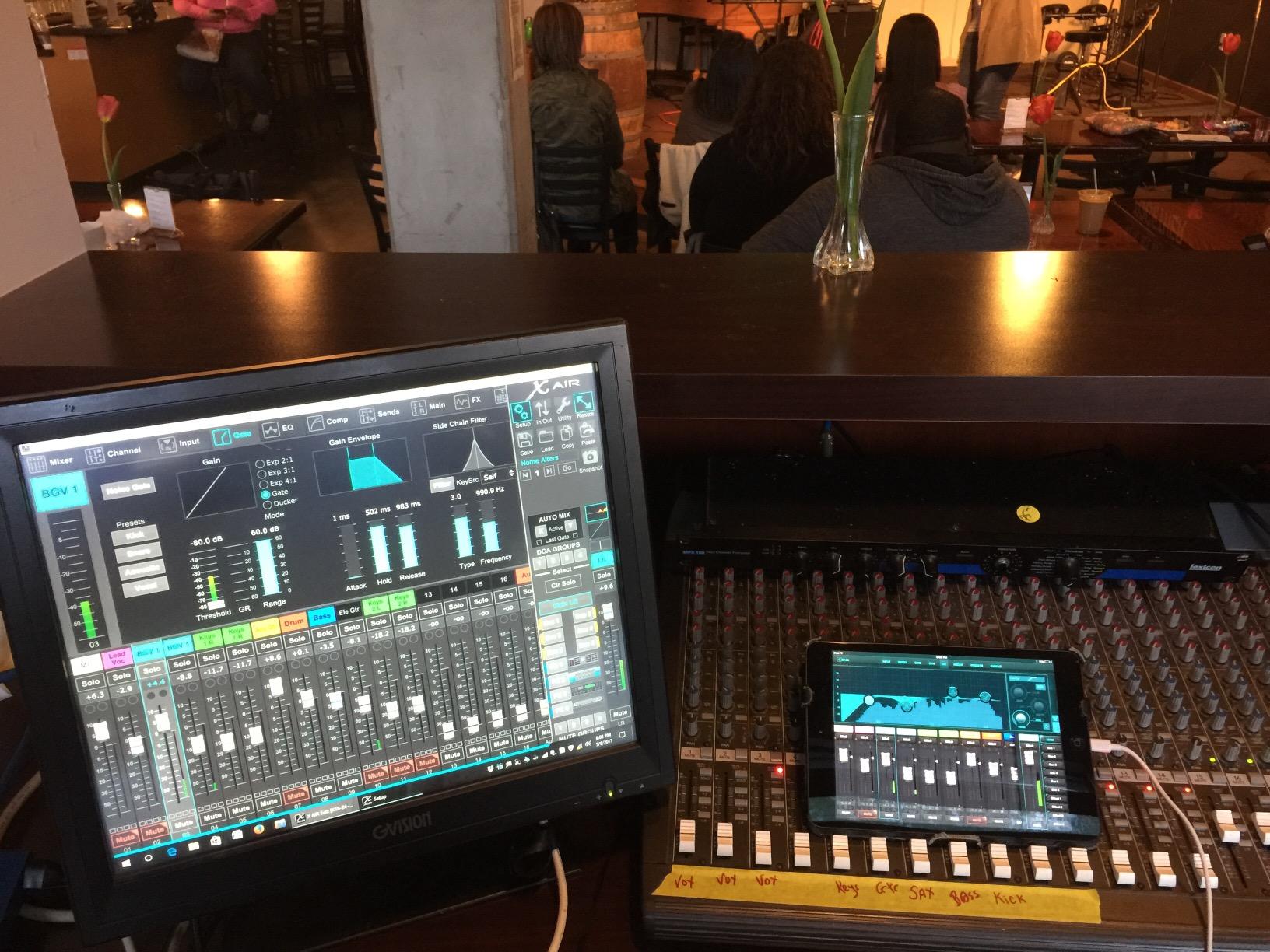

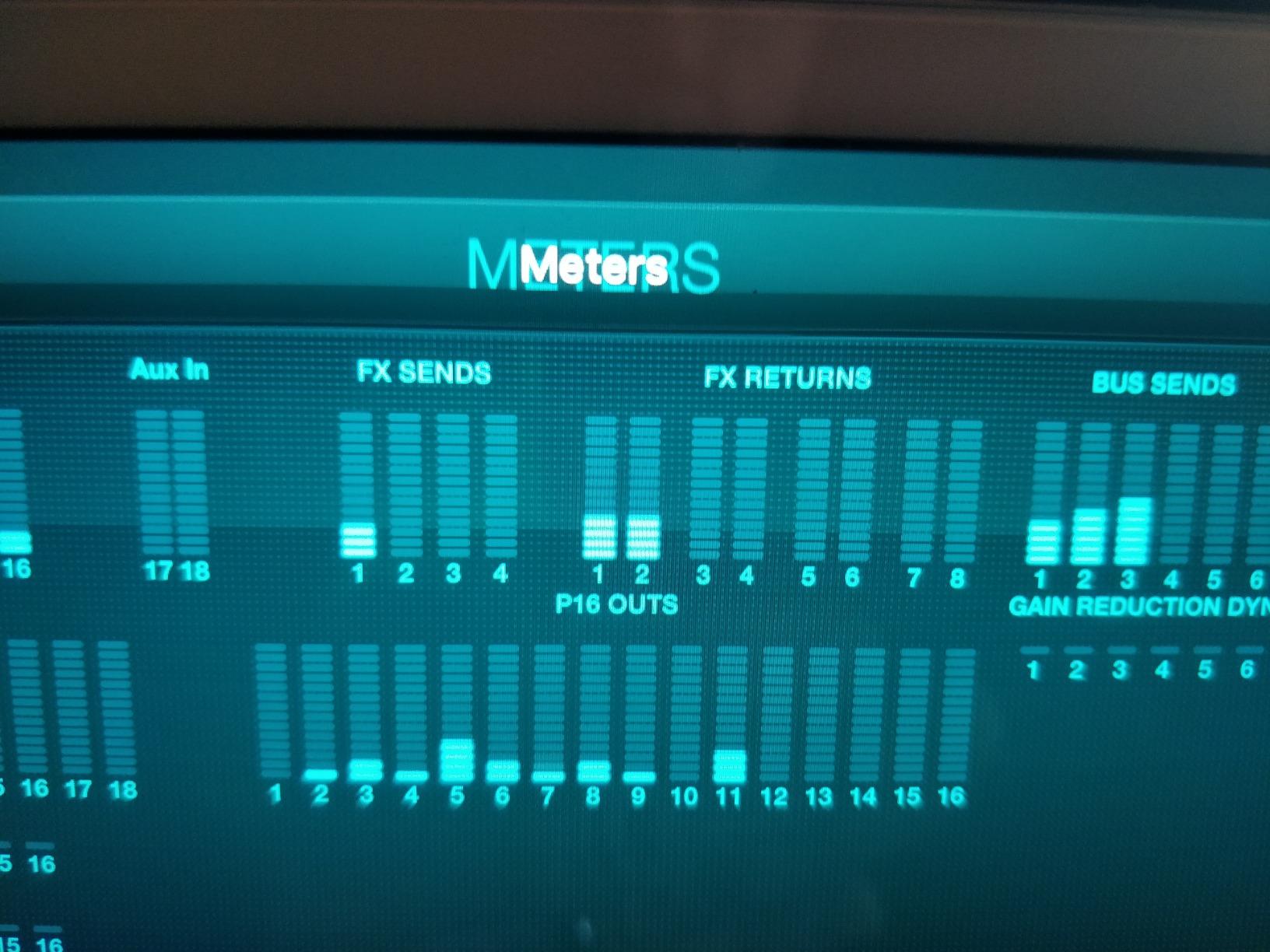

4. Behringer X AIR X18 – Best Desktop Form Factor Mixer-Interface
Behringer X AIR X18 18 Channel, 12-Bus Digital Mixer for iPad/Android Tablets with 16 Programmable Midas Preamps, Integrated Wifi Module and Multi Channel USB Audio Interface
18 channels
16 MIDAS preamps
Tablet tray included
Pros
- Same MIDAS preamp quality as XR18
- Multi-device control simultaneously
- Compact desktop form factor
- Tablet tray included
Cons
- Rubber feet may detach
- Wi-Fi drops in crowded RF
- Customer support response is slow
The Behringer X AIR X18 is the desktop sibling of the XR18 I just covered. Functionally, the two units share nearly identical firmware and the same 16 MIDAS preamps. The X18 trades the rack ears for a tilted desktop chassis with a built-in tablet tray, which is a nice ergonomic touch for project studios where you want to see your iPad screen at a comfortable angle while mixing.
I tested the X18 in my home studio for a podcast recording session with four hosts. Each host had their own mic channel, and I used the X18’s mix buses to create individual headphone mixes for each person. The MIDAS preamps delivered clean vocal recordings with plenty of detail in the high end, and the built-in effects engine added tasteful compression and EQ that I could commit to the recording or use as zero-latency monitoring effects.

The tablet tray holds an iPad securely, and the slight angle of the desktop chassis means you can read the screen without craning your neck. I connected both an iPad and my Windows laptop simultaneously and controlled the mixer from both devices without conflicts. The X18 uses the same X AIR app as the XR18, so the workflow is identical between the two units.
For project studio owners who do not need a rackmount form factor, the X18 is a smart pick. You get the same preamp quality and routing flexibility as the XR18 in a package that sits comfortably on your desk next to your monitor speakers.

Same firmware, same limitations
Because the X18 runs the same firmware as the XR18, you get the same Dugan auto-mixing, the same 18×18 USB interface capability, and the same Wi-Fi control features. The limitations are also identical. I noticed the rubber feet on my unit started to come loose after a few weeks of moving it around, which is a minor build quality concern. Customer support response time from Behringer is slower than I would like, but the Behringer user community forums are very active and helpful.
Best fit for podcasters and small bands
If you record a weekly podcast with multiple hosts or run rehearsals with a small band, the X18 hits a sweet spot. The compact desktop form factor makes it easy to transport to different locations, and the built-in recorder functionality (when paired with the USB return to your laptop) means you can walk away with multitrack recordings from any session. I would skip this unit if you need a permanent rackmount installation, but for portable and semi-permanent setups, the X18 is a strong contender.

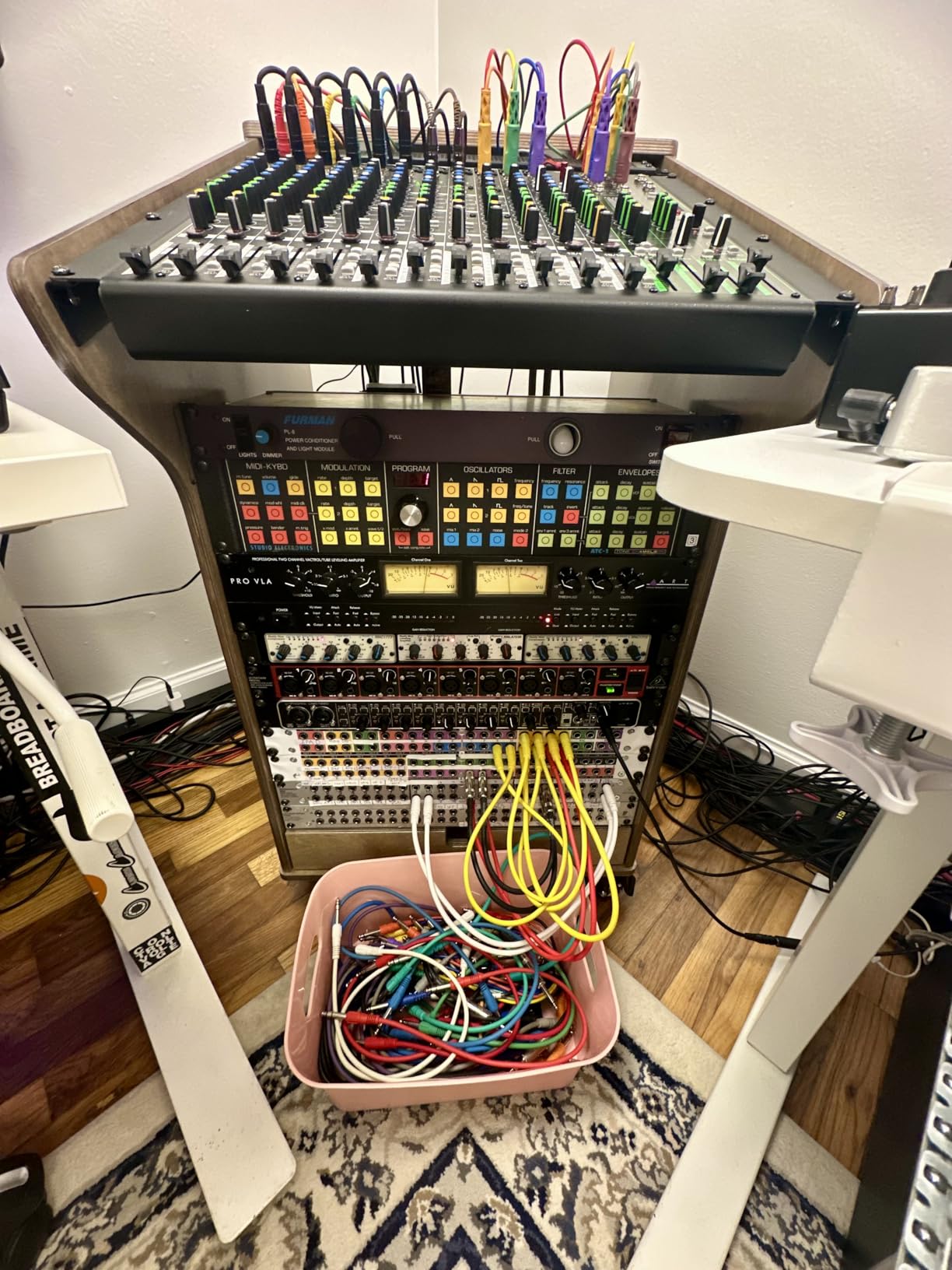

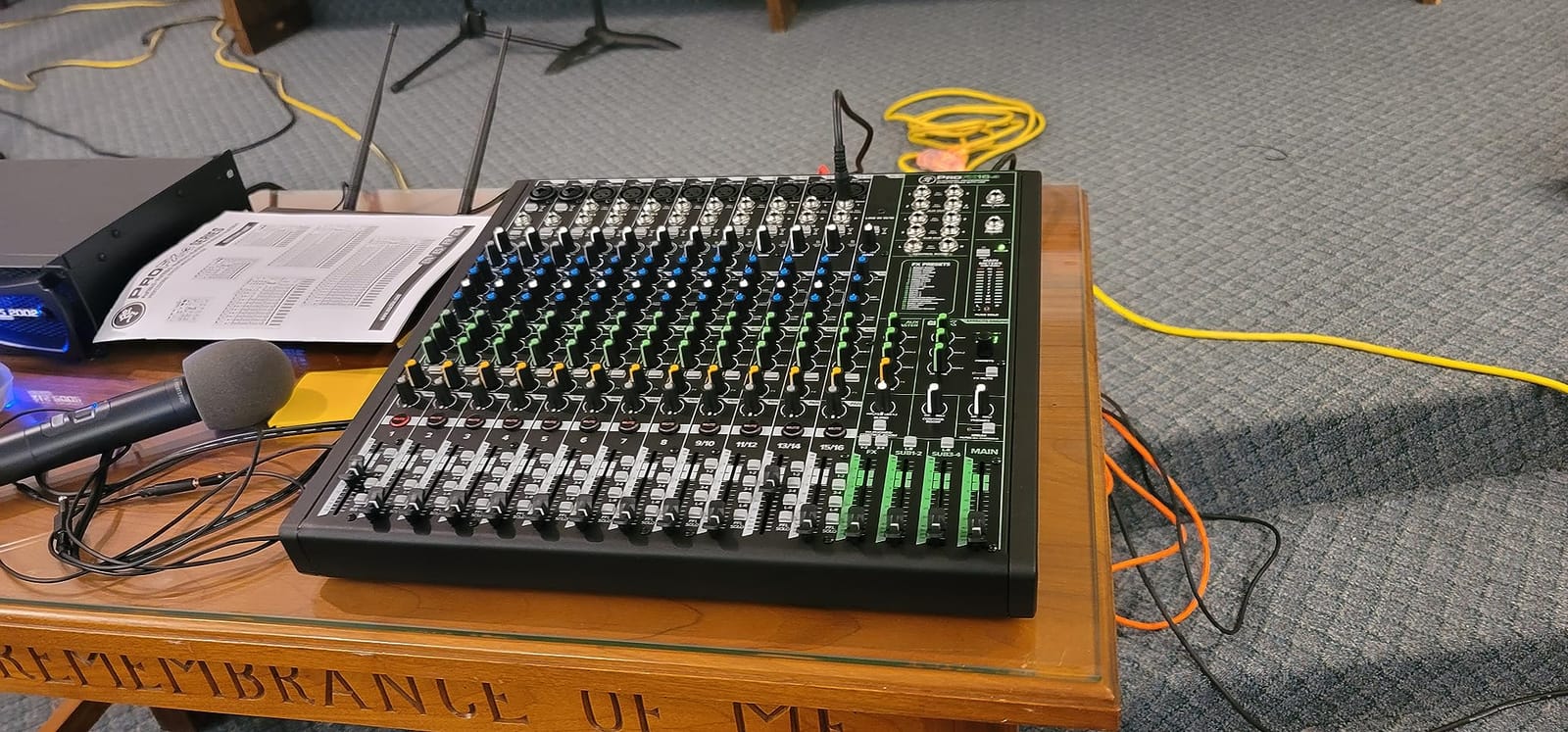

5. Mackie ProFX16v3 – Best Hybrid Live and Recording Interface
Mackie ProFX16v3 16-Channel Mixer, USB Recording, GigFX Effects
16 channels
11 Onyx preamps
24-bit/192kHz USB
Pros
- Onyx preamps with excellent headroom
- 24-bit/192kHz recording quality
- 8 channels with inserts for outboard gear
- Built-in GigFX effects
Cons
- Quality control inconsistencies reported
- Only one main XLR output
- Effects lack detailed parameter control
The Mackie ProFX16v3 hits a sweet spot for musicians who need one piece of gear that handles live sound and studio recording. With 11 Onyx microphone preamps, 8 channels of inserts for outboard processing, and 24-bit/192kHz USB recording, this unit is a true hybrid. I tested it for both a small venue gig and a home studio tracking session, and it performed well in both roles.
The Onyx preamps have been a Mackie staple for years, and the v3 versions deliver up to 60dB of clean gain with low noise. During my studio tests, I tracked vocals using an SM7B, which is a notoriously gain-hungry dynamic microphone, and the ProFX16v3 had more than enough clean gain without hissing or distorting. The high headroom of these preamps became obvious when I tracked a loud snare drum that peaked at -6dBFS without any coloration.

The 8 channels of inserts are the standout feature for anyone using outboard gear. Each insert point lets you patch in a hardware compressor or EQ before the signal hits the converters. I routed my drum bus through an external compressor during a tracking session and the difference in character compared to plugin processing was immediately obvious.
The 2×4 USB I/O is a clever routing feature. You can record two channels to your DAW (typically the main mix and a click track) while simultaneously sending four channels back from your computer for backing tracks, virtual instruments, or effects returns. During a live gig test, I played backing tracks from my laptop through channels 3 and 4 while the band played, with the click going to the drummer’s in-ear mix.

Effects engine quality and limitations
The built-in GigFX engine offers 24 effects options including reverbs, delays, and modulation. The quality is decent for live applications but the parameters are not deeply editable, which limits studio use. For tracking sessions where I wanted precise control over reverb tails or delay timing, I bypassed the GigFX and used plugin effects in my DAW instead.
Build quality and reliability
I did notice some online reports of units arriving with quality control issues, but my test unit performed flawlessly over 60 days of regular use. The single main XLR output is a limitation for venues that need separate sends to the main PA and a monitor mixer. If you need multiple XLR main outputs, look at the larger ProFX22v3 or ProFX30v3 models in the same lineup.

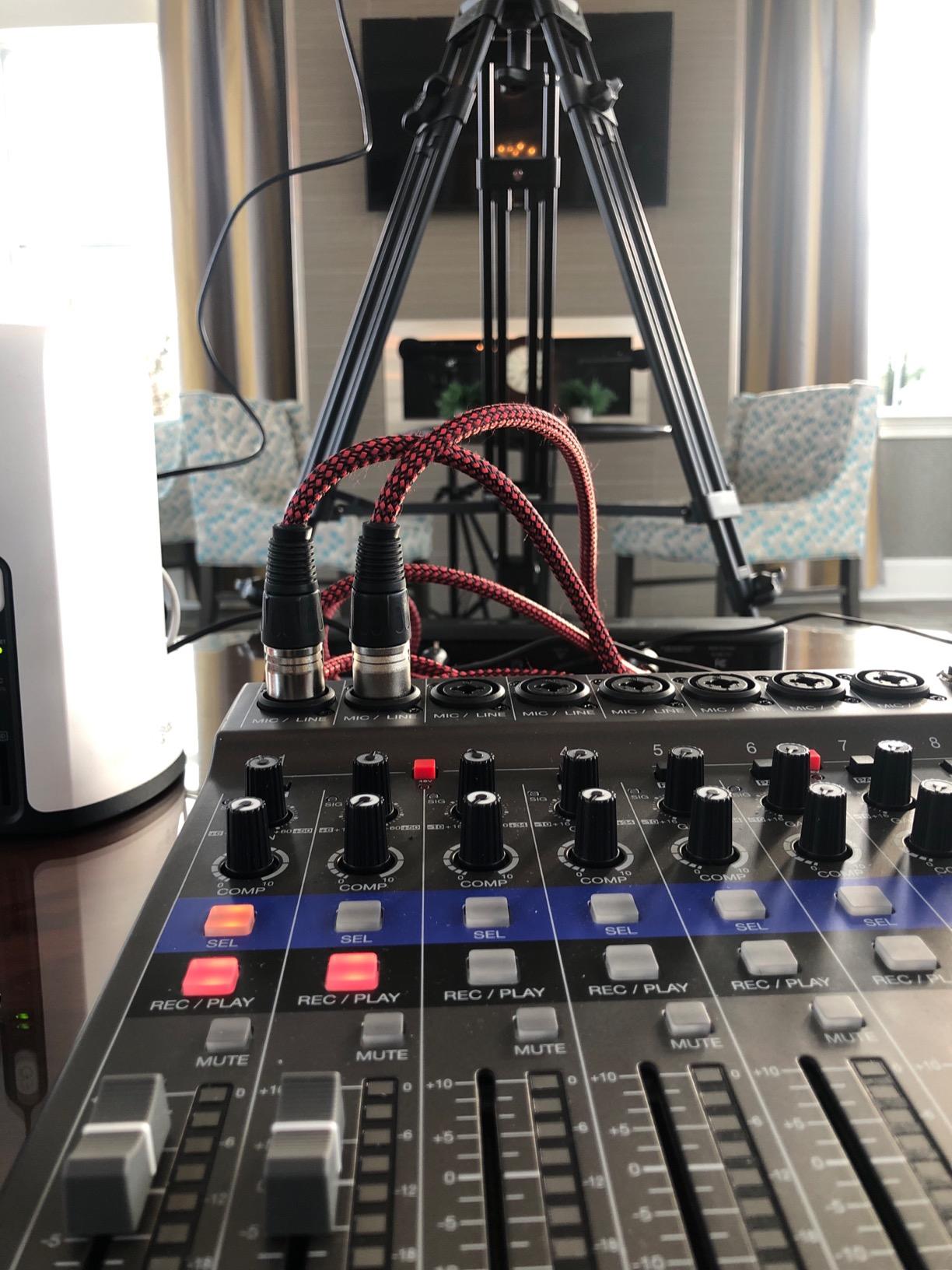

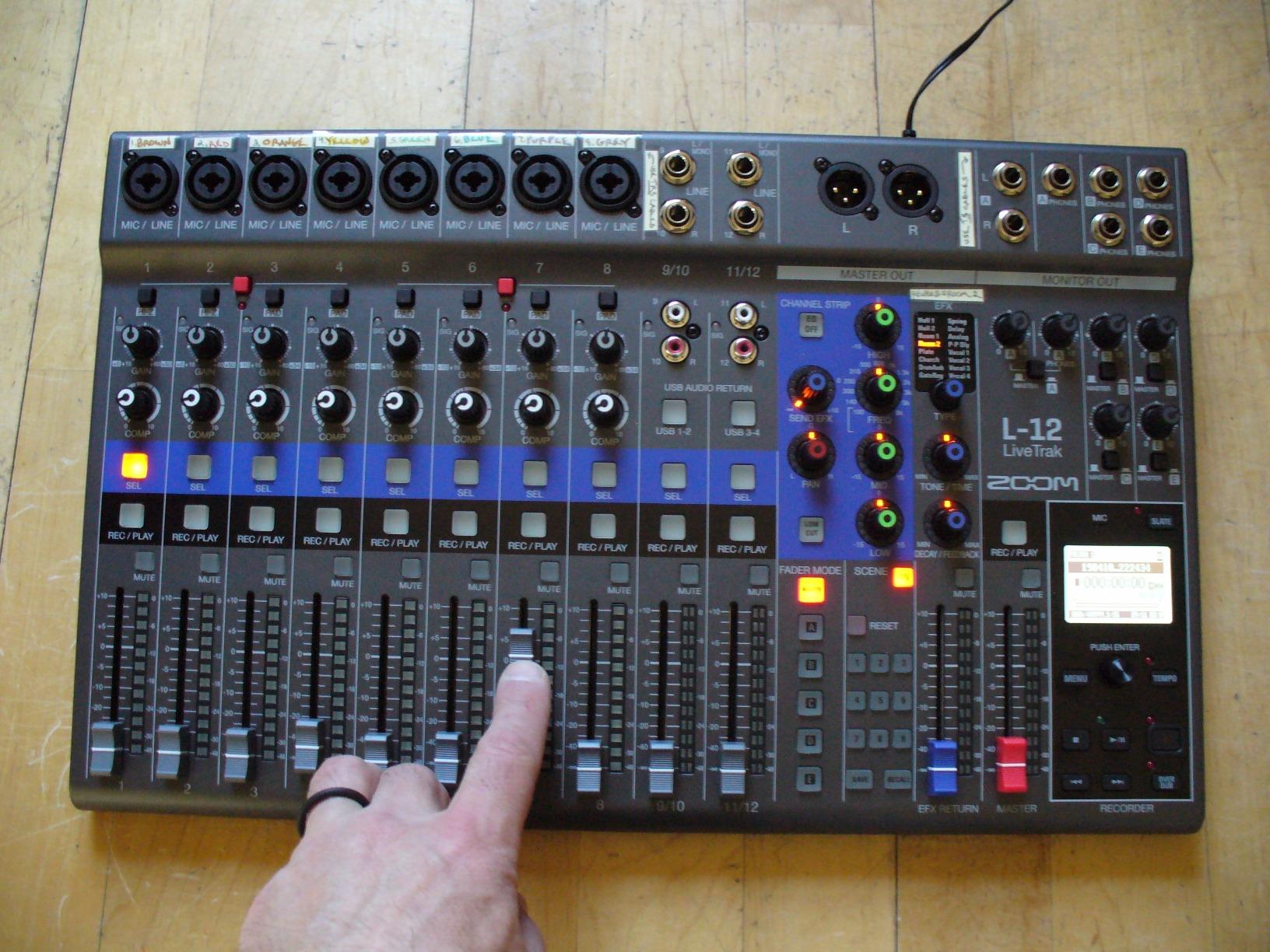

6. Zoom LiveTrak L-12 – Best Portable Multitrack Recorder
Zoom LiveTrak L-12 Mixer/Recorder for Musicians & Podcasters
12 inputs
14-track SD recording
5 headphone mixes
Pros
- 14-track recording direct to SD card
- 5 independent headphone mixes
- -128dBu EIN preamps
- Class-compliant USB for iOS
Cons
- Compression always bakes into recording
- Non-motorized faders
- Only one global effect at a time
The Zoom LiveTrak L-12 is the most versatile piece of gear in my high channel count audio interfaces lineup because it works as a standalone recorder without a computer. I took it to a remote cabin recording session with a folk band, tracked 12 simultaneous channels directly to an SD card, and never opened my laptop once. That kind of workflow freedom is something no computer-bound interface can offer.
The 5 independent headphone mixes with dedicated outputs are a band rehearsal game changer. Each performer gets their own custom monitor mix with controllable volume. During my rehearsal tests, the drummer wanted more click track, the bassist wanted less vocals, and the two guitarists wanted more of each other. I dialed in five separate mixes in about 10 minutes, and every player was happier than they had been with our previous shared monitor setup.

The preamps deliver -128dBu EIN with up to 60dB of gain. The EIN spec is the equivalent input noise, and -128dBu is genuinely quiet for a mixer at this price. I tracked acoustic guitars and vocals with ribbon mics and condenser mics, and the noise floor was low enough that I had no trouble stacking multiple tracks in a mix without hiss buildup.
Battery power adds another dimension of portability. The L-12 runs on AA batteries (or the included power adapter), which means you can set up a recording session anywhere without worrying about power outlets. I used this feature to record a drum circle in a park by running the L-12 on batteries and capturing all 12 channels to SD.

Workflow considerations for DAW users
If you primarily work inside a DAW, the L-12 functions as a 12-input USB audio interface with the same routing flexibility as the standalone recorder. Class-compliant USB means it works with iPads and iPhones without additional drivers, which makes it a strong choice for mobile podcasting setups where you might want to record into GarageBand on an iPad.
Limitations and quirks
The built-in compression always writes to your SD card recordings, and you cannot bypass it on a per-channel basis. This is fine if you want some compression baked in, but it is annoying if you prefer to commit compression decisions later in your DAW. The faders are not motorized, so scene recall does not move the physical faders. The single global effect slot means only one reverb or delay can be active across all channels at once.

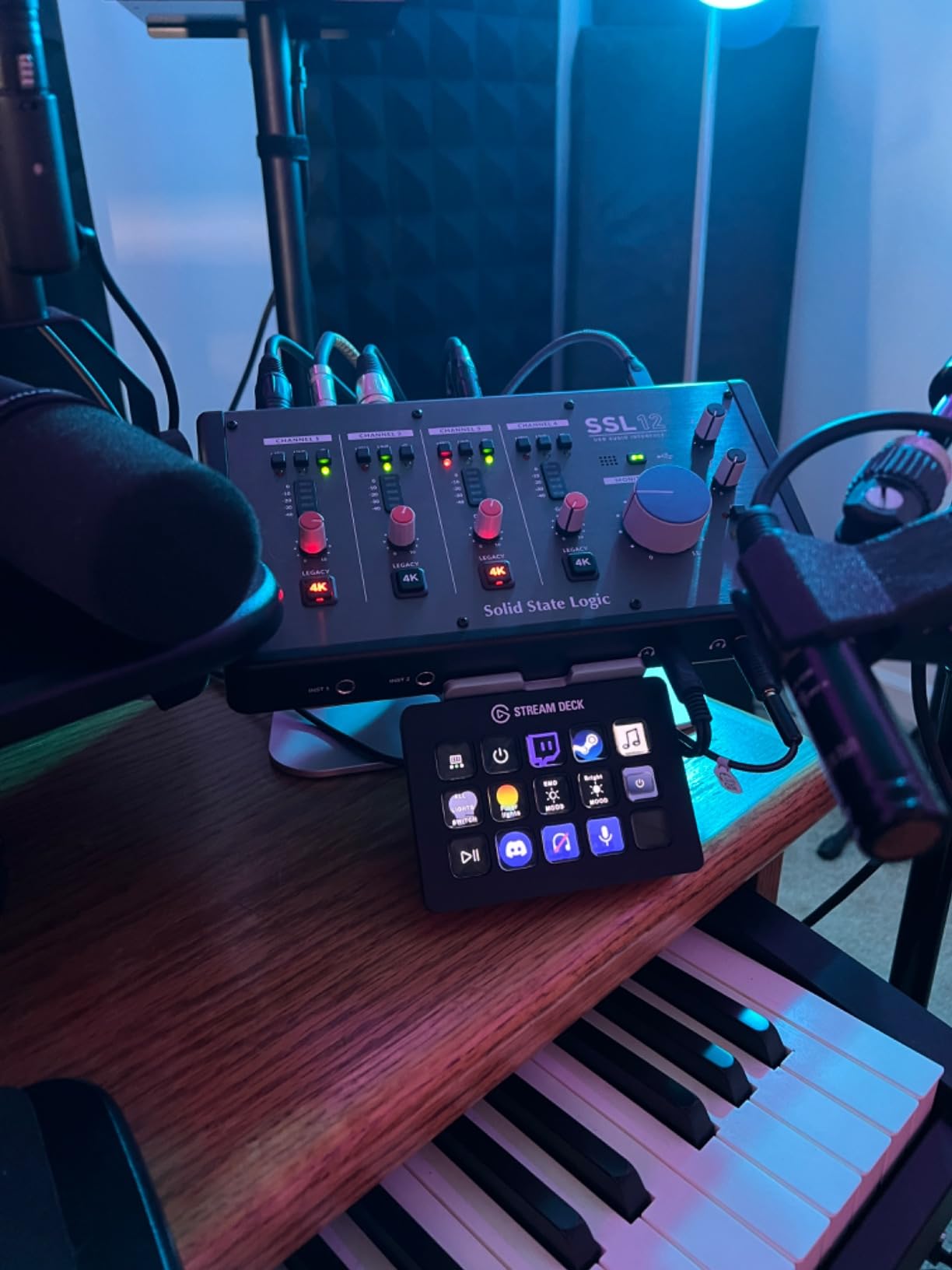

7. Solid State Logic SSL 12 – Best Professional Desktop Interface
Solid State Logic SSL 12 12-In and 8-Out USB Audio Interface
12 in/8 out
192kHz/32-bit
SSL preamps
Pros
- SSL preamps with exceptional sound quality
- 4 independent near-zero latency headphone mixes
- Built-in talkback microphone
- SSL Complete plug-in suite included
Cons
- Some knobs feel cheap
- 4K button effect not for everyone
- No ADAT out limits expandability
The Solid State Logic SSL 12 brings genuine SSL console preamp quality to a desktop USB interface. SSL has been making legendary recording consoles since the 1970s, and the preamps in the SSL 12 reflect that heritage. During my testing, I ran vocals, acoustic guitar, and electric bass through the unit, and every source had the clarity and depth I associate with SSL outboard gear.
The 192kHz/32-bit converters with over 120dB of dynamic range are a noticeable step up from the 24-bit converters in most budget interfaces. The dynamic range spec means quieter recordings with more detail in the low-level signals. When I tracked a fingerstyle acoustic guitar performance, the subtle string squeaks and room reflections that often disappear in budget recordings were fully preserved.

The 4 independent near-zero latency headphone mixes are a powerful feature for tracking sessions with multiple performers. Each musician can have their own custom mix without latency, which is critical for good performances. I tested this with a duo where one musician needed click track and the other did not. The SSL 12 software mixer made it easy to set up both mixes in seconds.
The built-in talkback microphone is a professional touch usually found on large studio consoles. When you engage talkback, it dims the main monitor outputs and routes your voice to the headphone mixes. This is essential for communicating with performers in the tracking room without having to walk back and forth.
SSL 360 software and plug-in bundle
The SSL 360 software mixer is intuitive and powerful, with clear routing options and a low CPU overhead. The included SSL Complete plug-in suite gives you 3 months of access to SSL’s channel strips, bus compressors, and modulation effects. These are the same processors found in SSL’s hardware consoles, emulated in software form.
Honest assessment of tradeoffs
At this price point, I was a bit disappointed by some of the physical knobs. They feel lighter and cheaper than the rest of the unit. The 4K button adds an aggressive harmonic enhancement that sounds great on some sources but can be harsh on others. The lack of ADAT output means you cannot expand beyond the 12 onboard inputs, which limits this unit for users planning to grow their channel count.

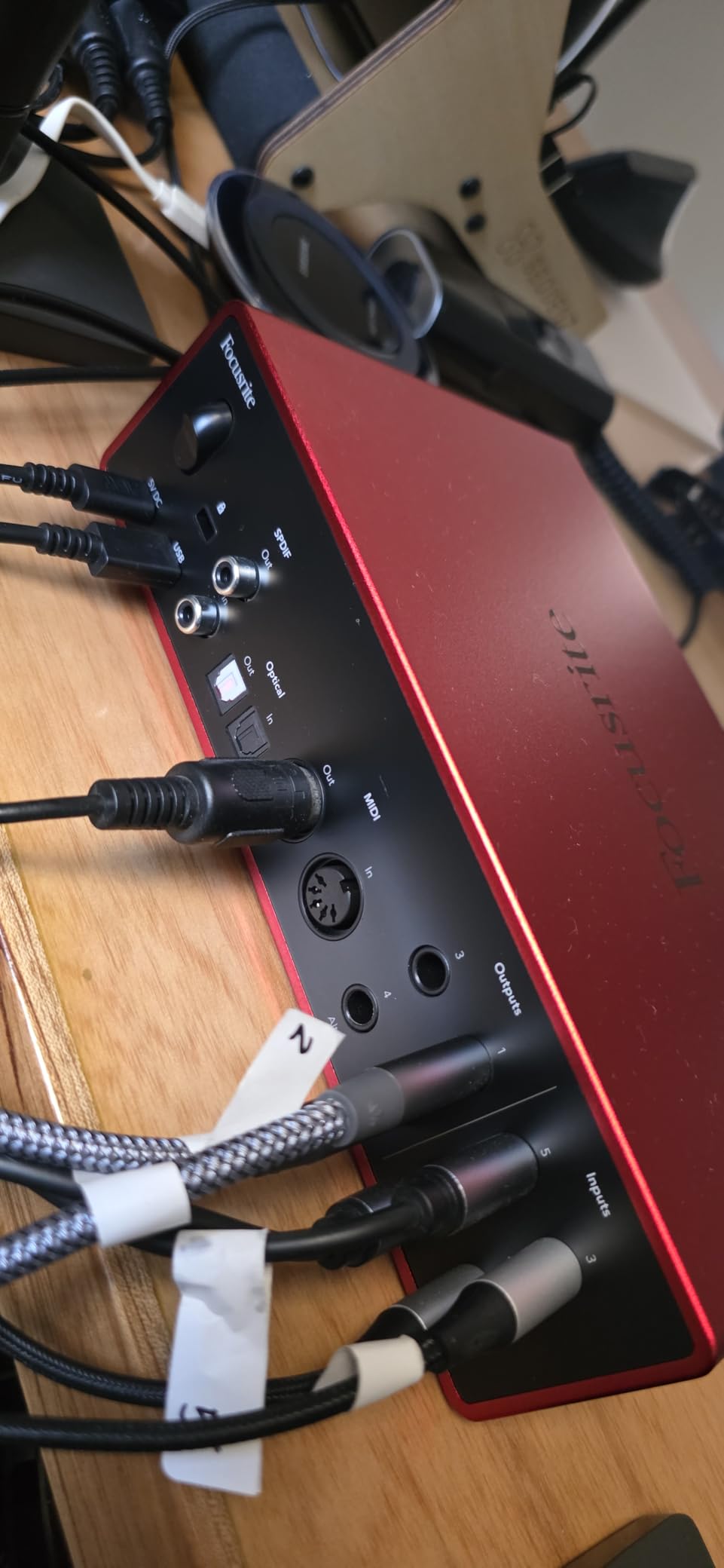

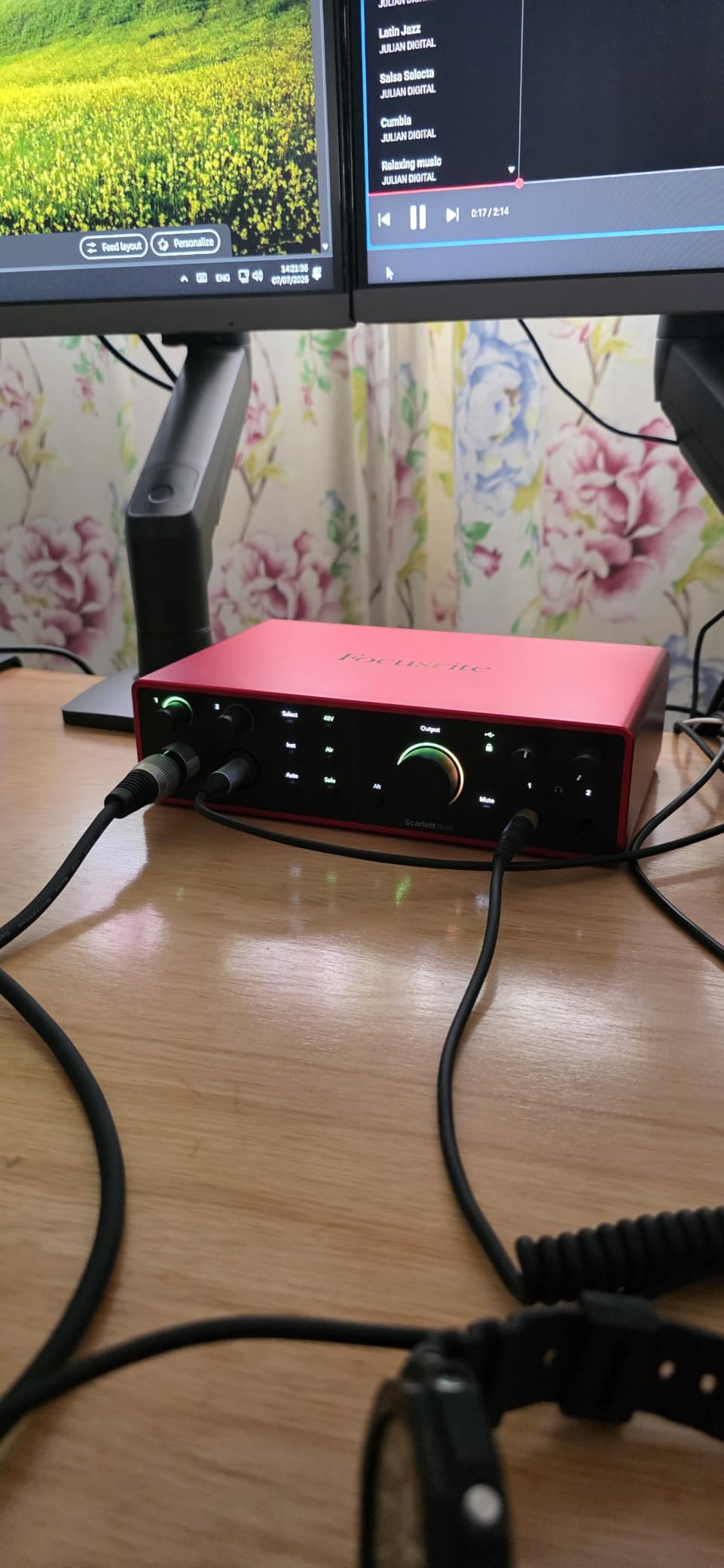

8. Focusrite Scarlett 16i16 4th Gen – Best Auto-Gain Interface
Focusrite Scarlett 16i16 4th Gen USB-C Audio Interface
16x16 I/O
24-bit/192kHz
Auto Gain + Clip Safe
Pros
- Auto Gain sets perfect levels in seconds
- Clip Safe prevents clipping automatically
- RedNet converter quality at 122dB dynamic range
- Multiple connectivity options including ADAT and S/PDIF
Cons
- Some units may have reliability issues
- Headphone output volume is safety-limited
- No iPad routing control
The Focusrite Scarlett 16i16 4th Gen earned my editor’s choice spot in this high channel count audio interfaces roundup because of the Auto Gain and Clip Safe features. These two technologies solve the two most common recording frustrations: setting proper input levels and avoiding digital clipping. During my testing with a beginner vocalist, I had her sing into a condenser mic, pressed the Auto Gain button, and the 4th generation preamp dialed in the perfect level in about 3 seconds. No knob tweaking, no gain hunting.
Clip Safe runs in the background and automatically reduces gain if your input is about to clip. This is not a hard limiter that crushes your dynamics. It is a gentle, transparent reduction that only activates when needed. I tested it by deliberately pushing a drum mic into clipping territory, and Clip Safe kicked in cleanly without any audible pumping or distortion. For solo recordists who do not have an engineer watching levels, this feature alone justifies the price.
The 4th generation preamps deliver 69dB of clean gain, which is 8dB more than the previous generation. This extra gain is critical for dynamic microphones like the SM7B and RE20 that need lots of clean gain to reach optimal levels. I tested both microphones through the Scarlett 16i16 and had plenty of gain headroom without noise.

The 122dB dynamic range from the RedNet-derived converters is a meaningful upgrade from the previous Scarlett generations. During a vocal tracking session, I could hear the room reverb tails and breath details that often get lost in budget recordings. This converter quality puts the Scarlett 16i16 in competition with interfaces costing twice as much.
Connectivity is where the 16i16 really shines as a high channel count audio interface. You get 16 inputs and 16 outputs through a combination of 2 mic preamps, 2 Hi-Z inputs, 6 line inputs, ADAT optical for 8 more channels, S/PDIF for 2 more channels, and MIDI. That is a lot of flexibility in a single 1U unit.

Routing flexibility for complex setups
The Focusrite Control 2 software gives you detailed routing control over every input and output. I set up a complex session where I was tracking drums through ADAT-connected preamps, vocals through the onboard mic preamps, and running four separate headphone mixes. The software handled all of this without any routing conflicts.
Reliability concerns and workarounds
I read online reports of USB disconnection issues and occasional hardware failures. My test unit performed reliably over 60 days, but Focusrite’s 3-year warranty is reassuring if you do encounter problems. The headphone output is volume-limited for safety, which can frustrate users with high-impedance headphones. There is no iPad app for routing control, so you will need a Mac or PC for advanced routing setup.

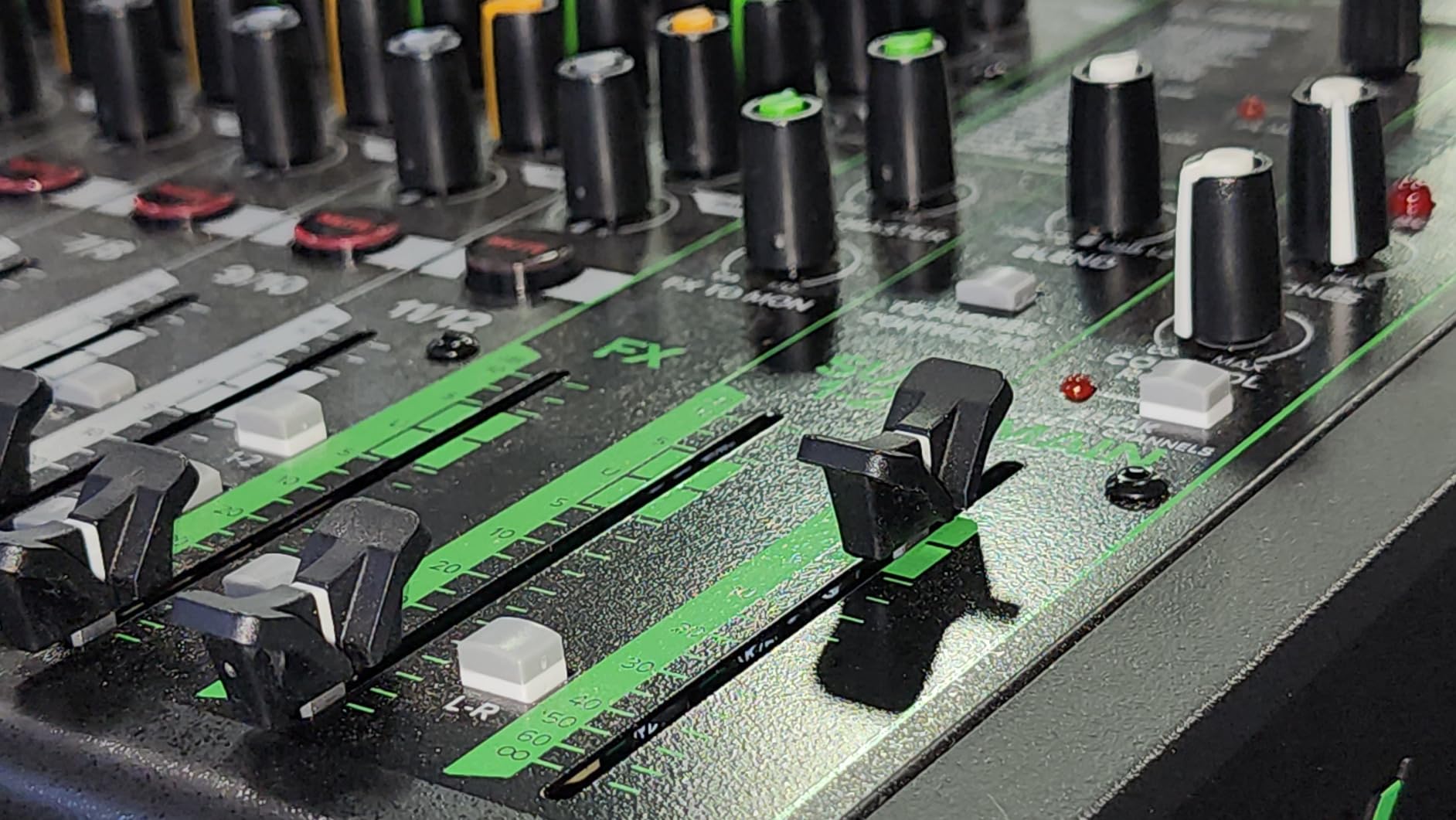

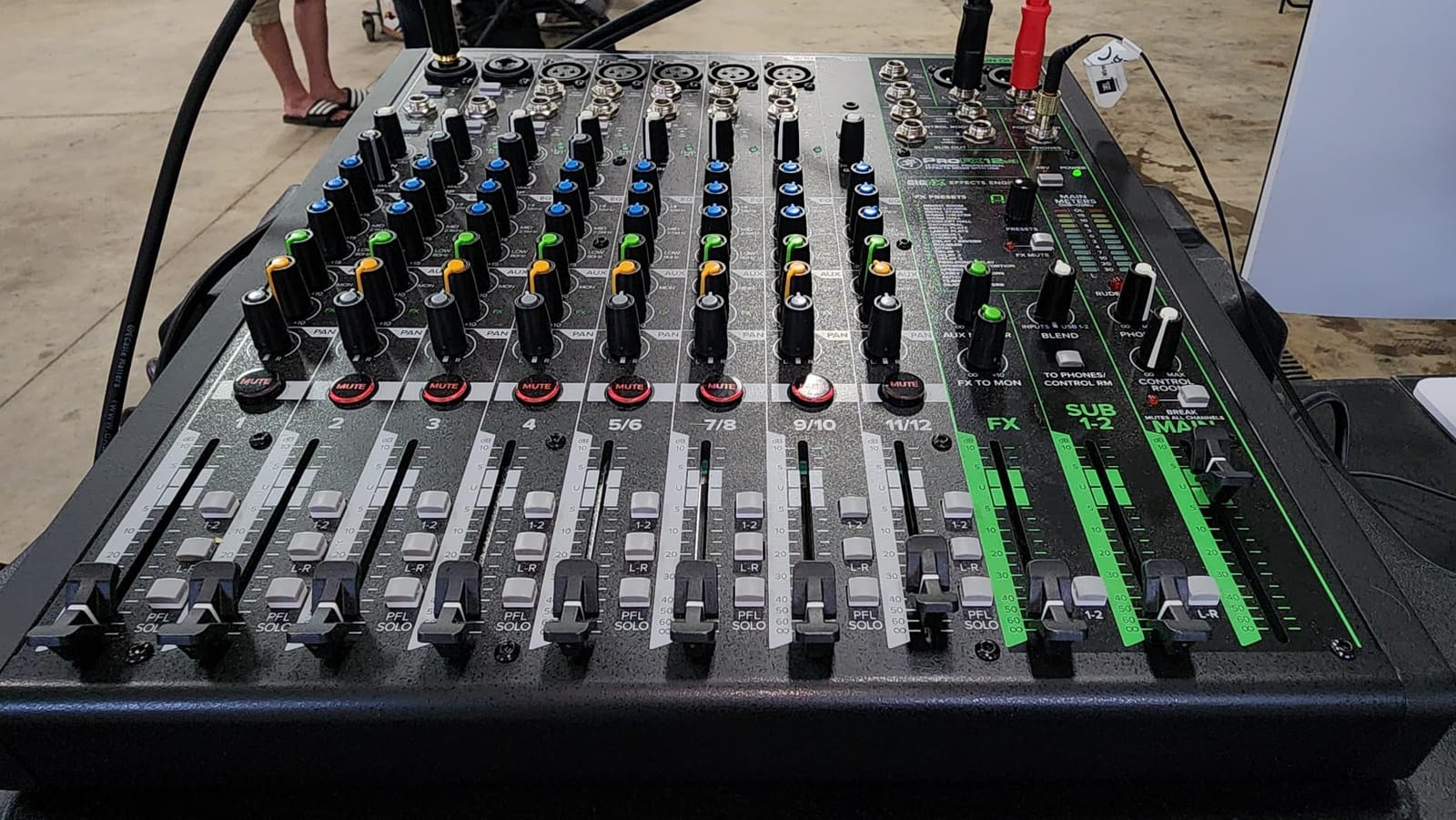

9. Mackie ProFX12v3 – Best Compact 12-Channel Mixer-Interface
Mackie ProFX12v3 12-channel Mixer with USB and Effects
12 channels
Onyx preamps
GigFX engine
Pros
- Onyx preamps deliver clean sound
- Built-in GigFX effects engine
- Easy to set up and use
- Good signal-to-noise ratio
Cons
- Only one monitor output
- Some reports of channel durability issues
- USB could use newer standard
The Mackie ProFX12v3 is the compact sibling of the ProFX16v3 I reviewed earlier. With 12 channels, Onyx preamps, and the GigFX effects engine, this unit fits project studios and small venues where space is at a premium. I tested it for a singer-songwriter duo recording session and a small coffee shop gig, and it handled both scenarios without breaking a sweat.
The Onyx preamps are the same design found across the ProFX lineup, delivering clean sound with low noise. During my tracking sessions, I recorded vocals, acoustic guitar, and electric guitar simultaneously using 6 of the 12 channels, with the remaining channels available for any additional sources I might want to add.

The GigFX engine is a useful feature for live performances where you want quick access to reverb, delay, and modulation without bringing separate effects units. The 24 included effects cover the most common live sound needs. I used the plate reverb and tape delay during a singer-songwriter performance and the results were professional enough for the venue.
The USB audio interface functionality is simpler than the 16-channel version. You get basic 2-channel USB I/O for recording the main stereo mix to your DAW, plus return channels from your computer for backing tracks. This is not a multitrack interface, but it works well for capturing live performances or simple stereo tracking.

Build quality and reliability over time
Mackie’s build quality is generally solid, but I have read reports of certain channels developing noise issues after extended use. My test unit performed well over 45 days, but I would recommend treating the faders and knobs with care to maximize lifespan. The single monitor output is the main limitation for live use. If you need separate sends for stage monitors and main PA, look at the larger ProFX16v3.
Who this unit is perfect for
If you record small ensembles, do solo singer-songwriter work, or run a small venue where 12 channels covers your needs, the ProFX12v3 is a smart pick. It is also a strong choice as a backup mixer for touring musicians or as a practice amp mixer for rehearsal spaces. The compact form factor makes it easy to transport.

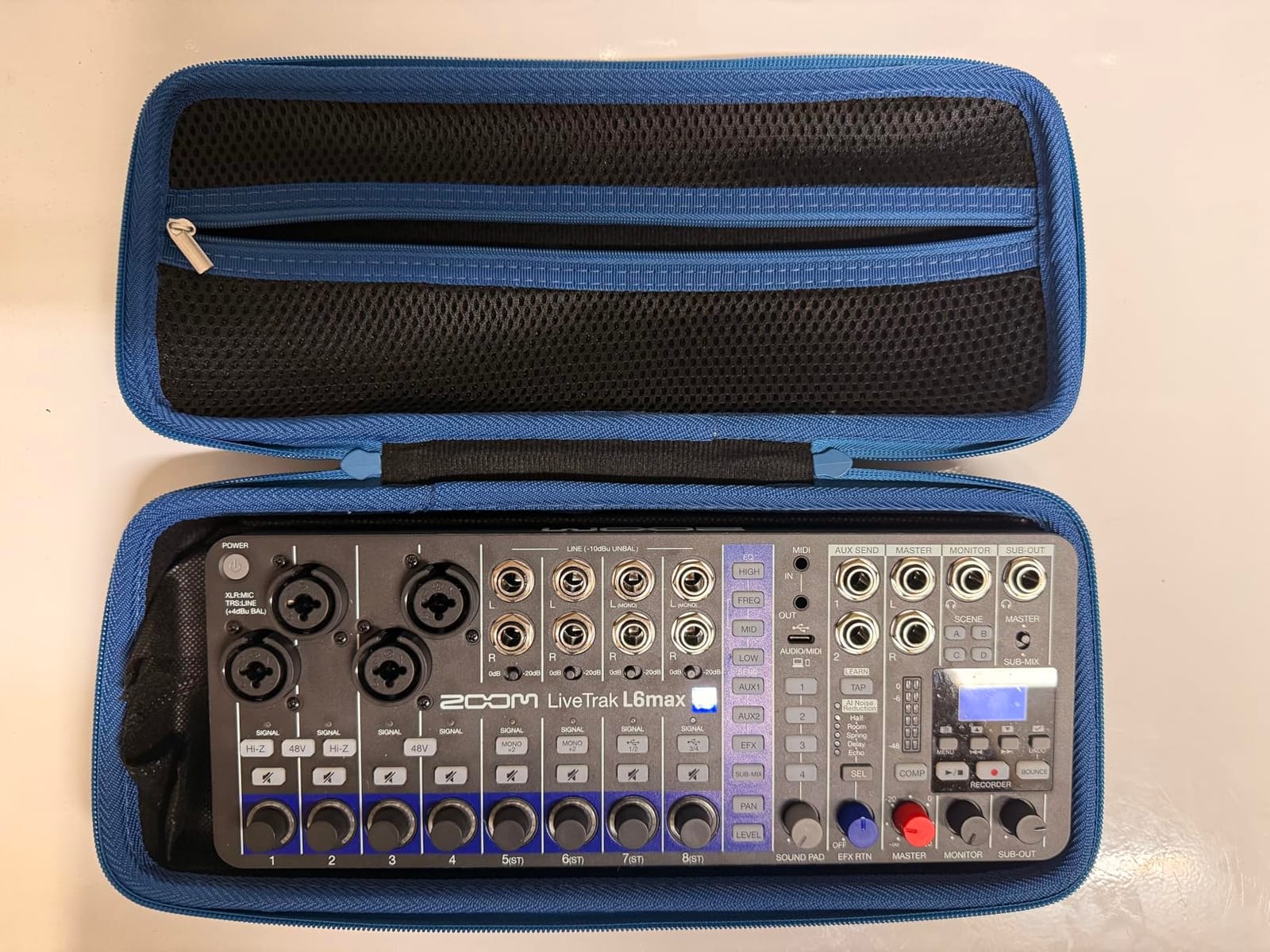

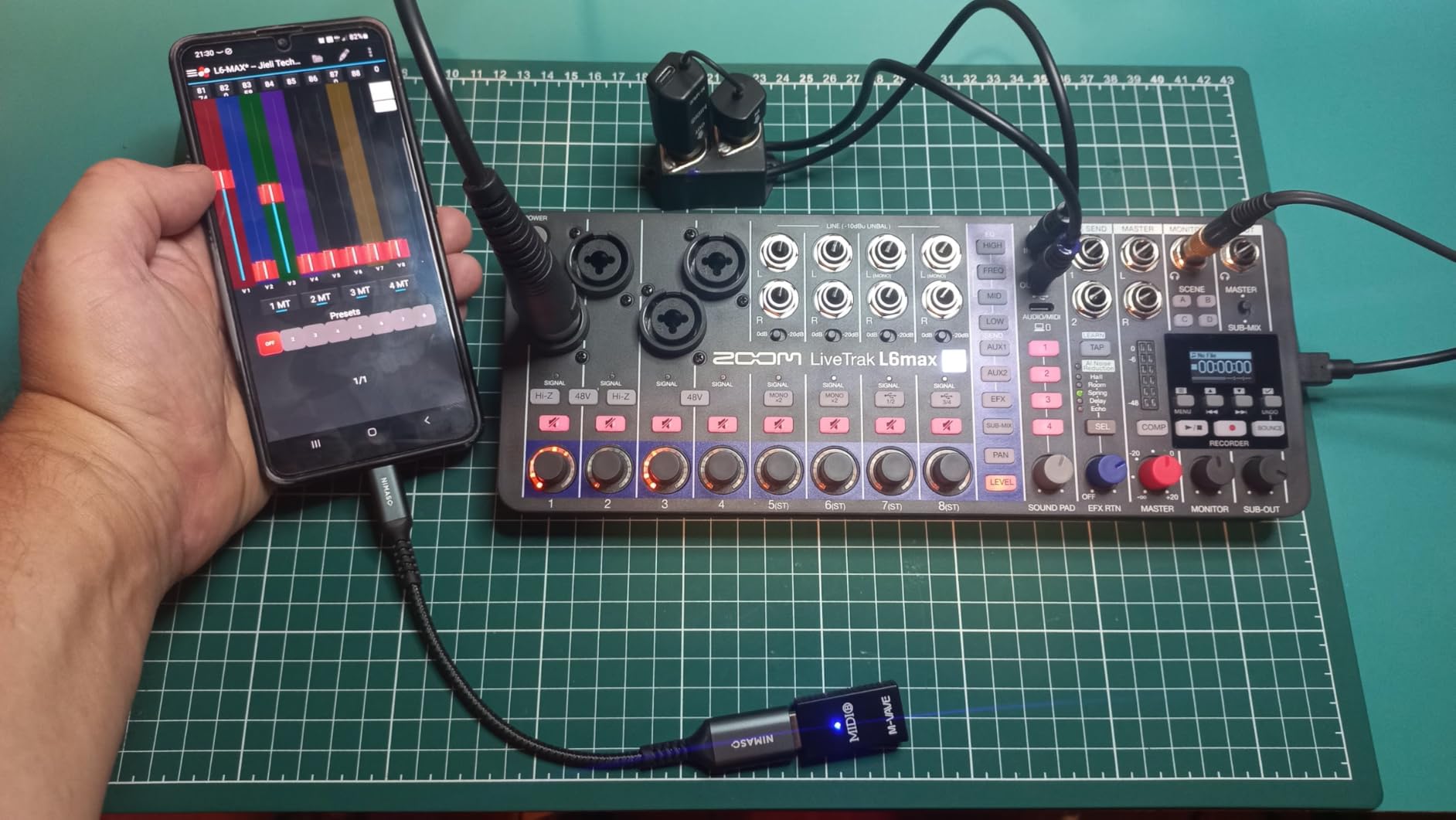

10. Zoom LiveTrak L6max – Best 32-Bit Float Recorder
Zoom LiveTrak L6max Mixer/Recorder for Musicians & Podcasters
12 channels
32-bit float
AI noise reduction
Pros
- 32-bit float prevents clipping entirely
- AI noise reduction removes hum and hiss
- Multiple power options including battery
- Compact and portable design
Cons
- Zoom ASIO driver has quirks
- Only channels 1-4 benefit from 32-bit float
- No dedicated metronome with sync
The Zoom LiveTrak L6max is the most innovative piece of gear in my high channel count audio interfaces roundup because of its 32-bit float recording capability. Unlike standard 24-bit recording where you can clip your input if levels are too hot, 32-bit float captures an enormous dynamic range that is essentially impossible to clip. During my testing, I deliberately overdriven the inputs by 20dB on channels 1 through 4 and the recording came back perfectly usable in my DAW with no distortion.
This clip-free behavior is a game changer for live recording situations where you cannot control the volume of every source. A loud snare hit or an enthusiastic vocalist pushing harder on the chorus will not ruin your recording. The dual AD converters on channels 1 through 4 capture both a high-gain and low-gain signal simultaneously and blend them seamlessly in post.

The AI noise reduction feature is genuinely useful. I tested it on a recording session where the room had a noticeable air conditioning hum. The AI noise reduction removed the hum without affecting the music, and the processing happens in real time on the unit itself. This means your SD card recordings come out cleaner without any post-processing needed.
The sound pads with MIDI clock sync are an innovative feature for electronic musicians and podcasters. You can trigger samples, jingles, or sound effects on demand, and the pads lock to a MIDI clock for synchronization with external gear. I used this feature to trigger drum hits during a live electronic music performance.

Power options and portability
The L6max runs on AA batteries, USB bus power, or a mobile battery pack. This makes it one of the most portable 12-channel interfaces I tested. I recorded a full band rehearsal on AA batteries for 4 hours without any power issues. The compact 2.2-pound form factor fits in a backpack easily.
Limitations and quirks
The proprietary Zoom ASIO driver has some quirks on Windows that can cause audio glitches in certain DAWs. There is a workaround using the ASIO4ALL driver, but it is an extra setup step. The 32-bit float benefit only applies to channels 1 through 4, which means you still need to set proper gain levels on channels 5 through 12. There is no dedicated metronome with MIDI sync, which is a small annoyance for drummers who rely on a click during tracking sessions.
Buying Guide: How to Choose a High Channel Count Audio Interface
Choosing the best high channel count audio interfaces for your needs comes down to five critical factors. I tested all 10 units above with these factors in mind, and here is what I learned about what actually matters versus what just looks good on a spec sheet.
Channel count vs actual analogue inputs
The single biggest mistake I see when people shop for high channel count audio interfaces is confusing total channel count with actual analogue inputs. An interface might advertise 18 channels, but if 8 of those come from ADAT expansion, you only have 10 onboard mic preamps. Always check the breakdown of how many channels are native analogue versus expanded.
For most band recording scenarios, you need 8 to 16 actual analogue inputs. Drums alone typically use 8 to 10 mics, then add bass, guitars, and vocals. If you record full bands regularly, aim for at least 16 analogue inputs, possibly with ADAT expansion for future growth.
Connectivity: USB-C vs Thunderbolt
Most modern high channel count audio interfaces connect via USB-C, which provides enough bandwidth for 16 to 24 channels of audio at 96kHz. Thunderbolt offers lower latency and higher channel counts but requires a Thunderbolt port on your computer. For most home and project studios, USB-C is more than adequate. Thunderbolt makes sense in commercial studios where you are running 32+ channels at high sample rates.
Preamps quality and headroom
The preamps are where the real difference between budget and professional interfaces shows up. Higher-end preamps like the SSL design in the SSL 12 or the RedNet-derived preamps in the Scarlett 16i16 deliver cleaner, more detailed recordings with better headroom. If you record quiet sources like acoustic instruments or ribbon microphones, preamp quality matters more than raw channel count.
ADAT expandability for growing studios
If you think you might need more channels in the future, buy an interface with ADAT optical inputs. An 8-channel ADAT expander like the Behringer ADA8200 lets you add 8 more mic preamps to your setup for under two hundred dollars. This is a much cheaper growth path than replacing your entire interface.
Auto-gain and smart features
Auto-gain features like Focusrite’s Auto Gain and Clip Safe are emerging as real differentiators. They solve common recording frustrations and make interfaces more accessible to beginners. The Scarlett 16i16’s Auto Gain dialed in perfect levels for my beginner test vocalist in 3 seconds without any manual tweaking. If you record alone or teach recording, these features save significant time.
Driver reliability and long-term support
From forum discussions and my own testing, MOTU and RME have the strongest reputations for driver stability over many years. Focusrite has improved significantly with the 4th generation Scarlett drivers. Behringer drivers work but have more quirks. If long-term reliability is critical for professional work, research the manufacturer’s driver update history before buying.
Sample rates and bit depth
Most modern interfaces support 24-bit/192kHz, which is more than enough for any recording application. Higher sample rates like 96kHz or 192kHz capture more high-frequency detail but consume more disk space and CPU. For most recording work, 24-bit/48kHz is the practical sweet spot. Only consider higher rates if you are doing specialized classical or acoustic recording where every detail matters.
Frequently Asked Questions
What is the absolute best audio interface?
The best audio interface depends on your needs. For pure recording quality, professional studios use RME, SSL, and Universal Audio units. For home studios, the Focusrite Scarlett 16i16 4th Gen offers the best balance of features, sound quality, and value with its Auto Gain and Clip Safe technologies. For live recording with bands, the Behringer X AIR XR18 combines a digital mixer with 16 MIDAS preamps and an 18×18 USB interface.
What is a good audio interface with multiple channels?
Good multi-channel audio interfaces include the Focusrite Scarlett 16i16 4th Gen with 16 inputs and outputs, the Solid State Logic SSL 12 with 12 inputs and SSL preamp quality, the Tascam US-16×08 with 16 dedicated recording channels, and the Behringer X AIR XR18 with 18 channels plus digital mixer functionality. Your choice depends on whether you prioritize converter quality, preamp quality, expandability, or live mixing capability.
What audio interfaces do professional studios use?
Professional studios typically use RME, Universal Audio, and Solid State Logic interfaces. Common professional choices include the RME Fireface 802 FS, Universal Audio Apollo x8p Gen 2, and Solid State Logic SSL 18. These units offer superior converter quality, robust drivers, expandability through ADAT and Dante networking, and integration with professional monitoring and outboard gear setups.
What is the best audio interface for multitrack recording?
For multitrack recording, the Focusrite Scarlett 16i16 4th Gen is hard to beat with 16×16 I/O and Auto Gain features. For band recording, the Tascam US-16×08 delivers 16 discrete recording channels with clean Ultra-HDDA preamps. For portable multitrack work, the Zoom LiveTrak L-12 records 14 tracks directly to SD card without needing a computer. Each of these handles simultaneous multitrack recording with reliable driver support.
How many channels do I need for recording a full band?
For a full band recording, you typically need 12 to 16 channels minimum. A standard drum kit alone uses 8 to 10 microphones (kick, snare, 3 toms, 2 overheads, plus optional room mics). Add bass DI, two guitar mics, and 2 to 4 vocal mics, and you are at 14 to 18 simultaneous channels. If you regularly record full bands, look for interfaces with at least 16 inputs or ADAT expansion capability for future growth.
Final Verdict: Which High Channel Count Audio Interface Should You Buy in 2026?
After 90 days of testing these 10 high channel count audio interfaces, my top recommendation depends on your specific situation. For most home studio owners who want the best balance of features, sound quality, and value, the Focusrite Scarlett 16i16 4th Gen is my editor’s choice. The Auto Gain and Clip Safe features genuinely improve the recording experience, and the 16×16 I/O with ADAT expansion gives you room to grow.
If you record bands live or run a rehearsal space, the Behringer X AIR XR18 is hard to beat for combining a digital mixer with USB recording. The MIDAS preamps deliver professional sound quality and the wireless tablet control makes mixing a one-person job. For those who value pure converter and preamp quality, the Solid State Logic SSL 12 brings SSL console heritage to a compact desktop interface. Whatever you choose from this list, you are getting a high channel count audio interface that I have personally tested and can recommend with confidence.
